FLIGHT SUMMARY INFORMATION

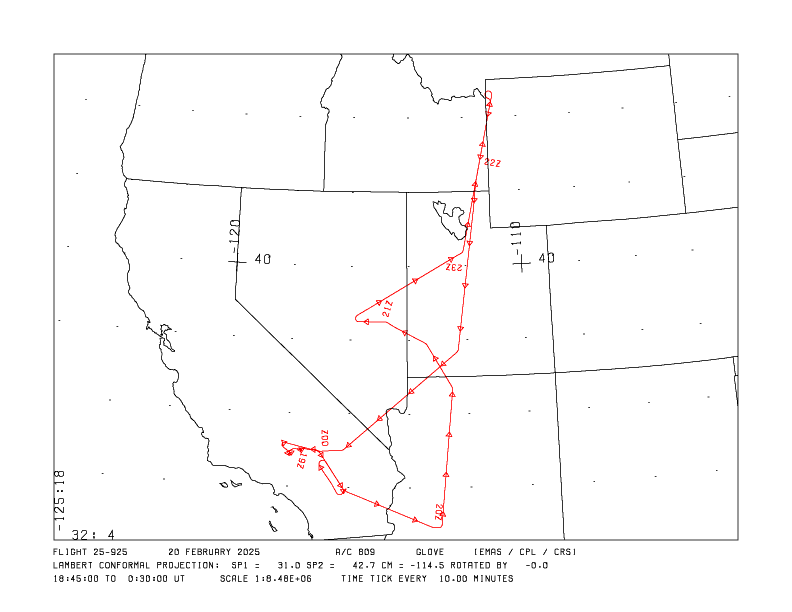

Flight Track Map
track map thumbnail Click map
Flight: 25-925
 Date: 20 Feb 2025
Campaign: GLOVE
Flight Location: Western USA / ICESat-2 / EarthCARE
Principal Investigators: Dr. Steven Platnick (NASA GSFC)
Additional Sensors: CPL / CRS
Data Evaluation
Overall quality is good
ICESat-2 Underpass @ 20:18Z (Flight Track #03)
EarthCARE Underpass @ 21:49Z (Flight Track #08)
Processing Information
Level-1B Data in HDF format is available
Flight Line Summary
Spectral Band Configuration
Spectral Response Function Table
Spectral Response Function (text)
Browse Imagery
Flight Tracks: 10
Scanlines: 91127
Browse Imagery Table
Click a Flight Track number to view a quicklook image
Lat/Lon ranges are for the BEG-END scanline nadir pixels
Flight
Track		 Time Span
(UTC)		 Heading
(Deg)		 Lat Range
(Deg N)		 Lon Range
(Deg W)		 Length
(Scanlines)		 Altitude
(Meters)

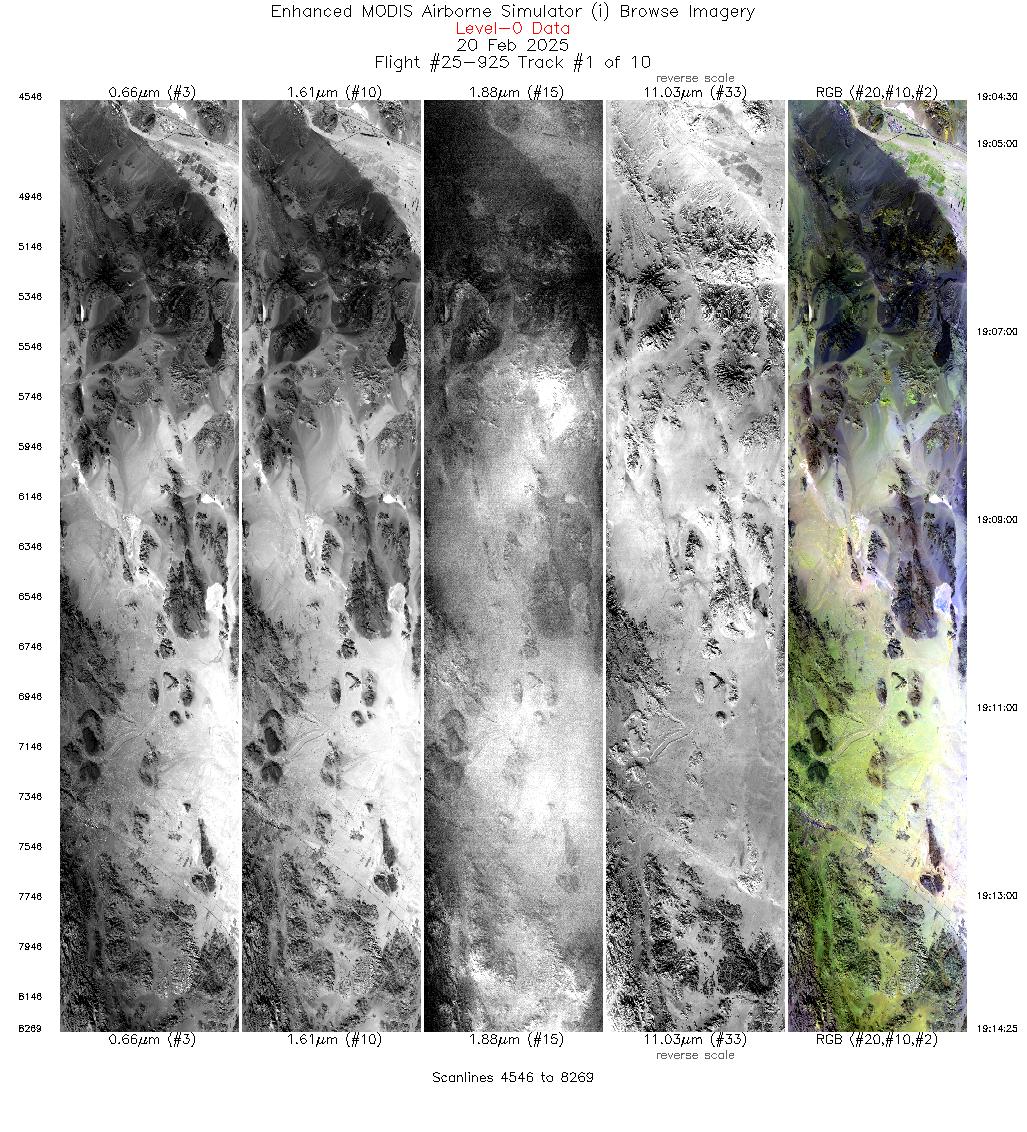

1 19:04 - 19:14 147.5 34.912 - 33.974 116.917 - 116.159 3724 18134

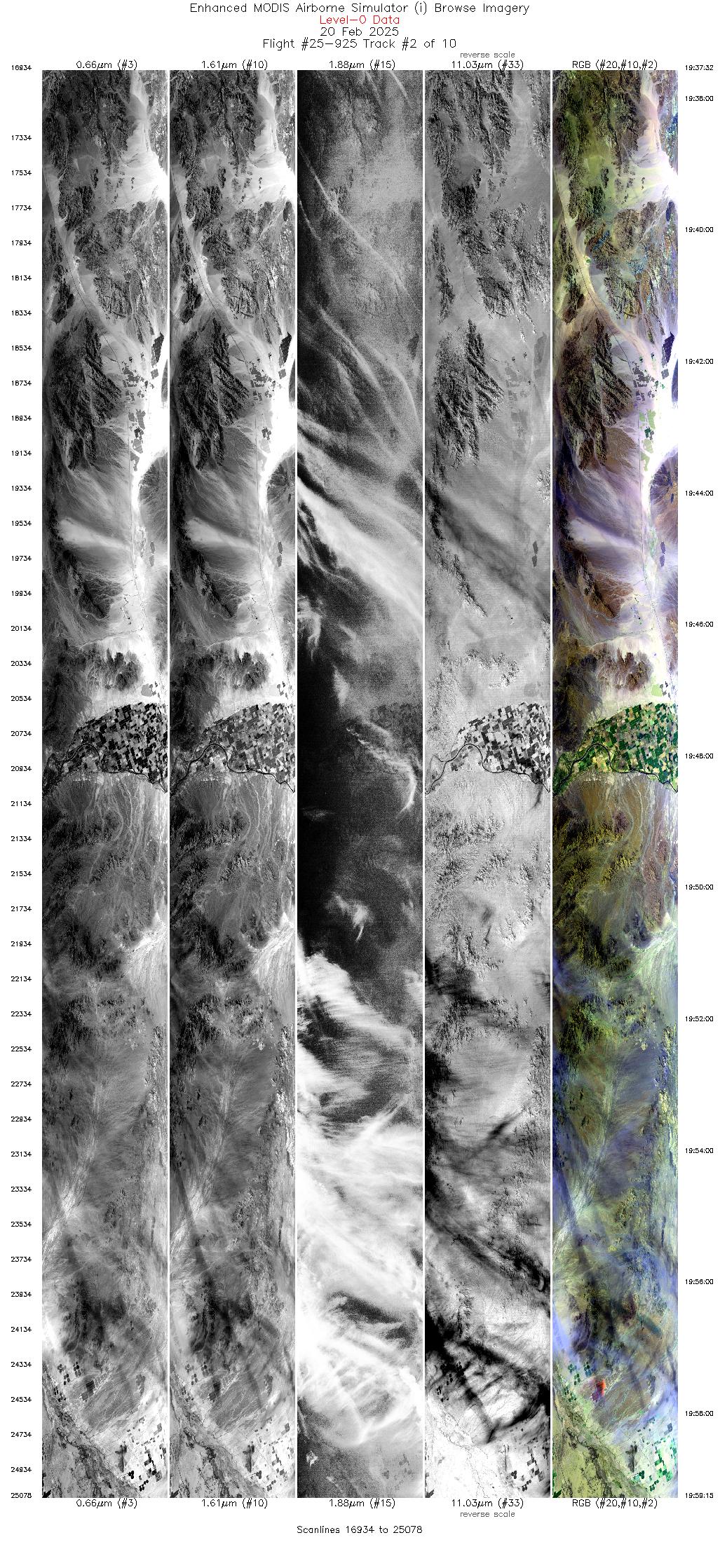

2 19:37 - 19:59 110.0 33.867 - 32.940 115.971 - 113.284 8145 19922
3 20:02 - 20:36 5.6 32.991 - 36.647 112.946 - 112.518 12687 20163

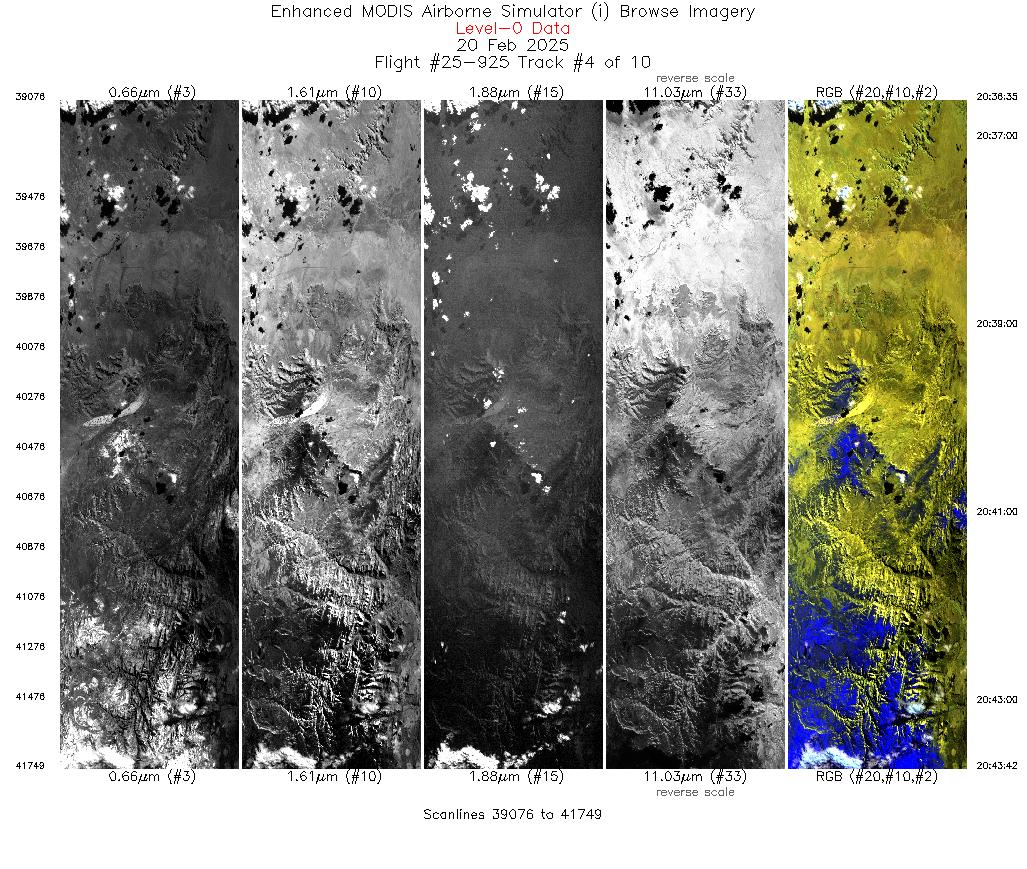

4 20:36 - 20:43 333.8 36.704 - 37.394 112.529 - 113.017 2674 20536

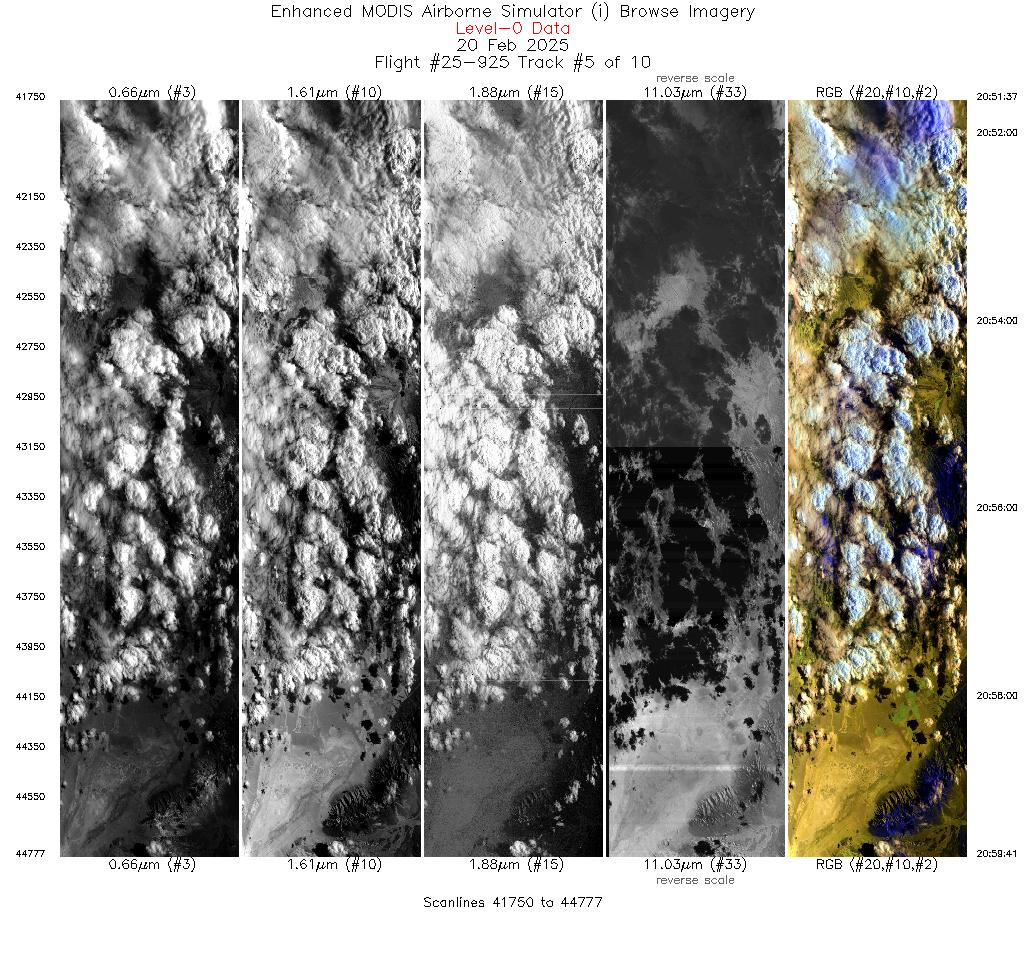

5 20:51 - 20:59 297.5 38.044 - 38.480 113.720 - 114.715 3028 20660

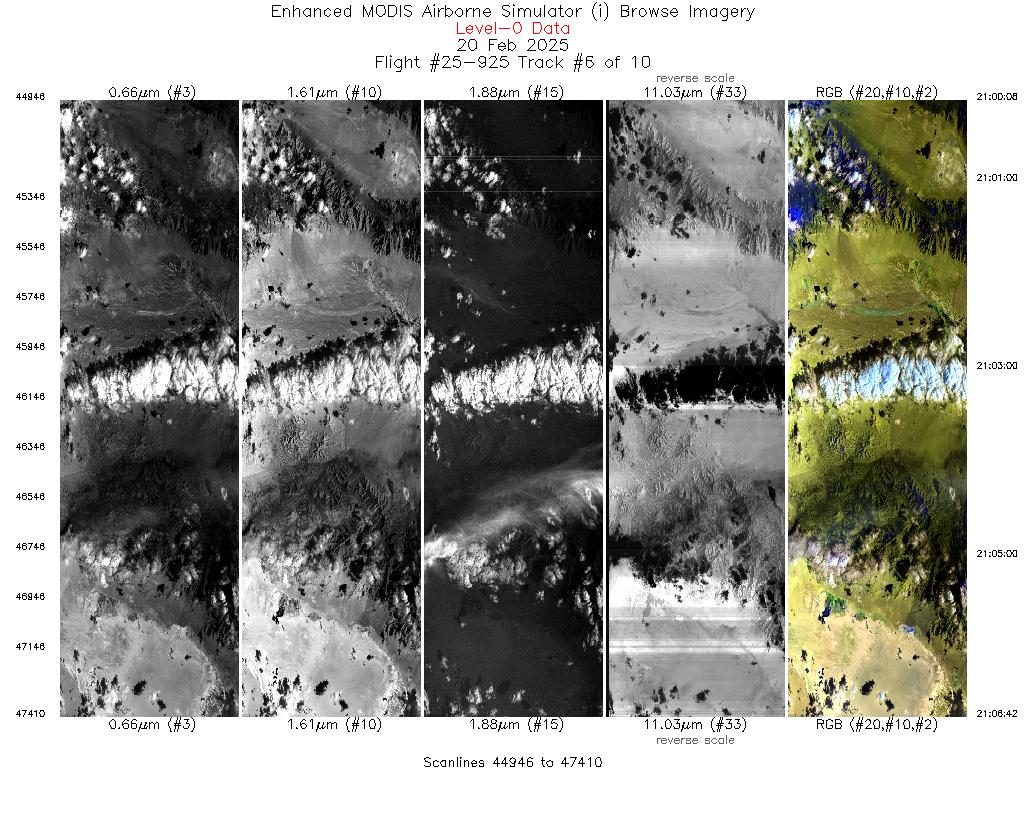

6 21:00 - 21:06 269.1 38.497 - 38.498 114.775 - 115.702 2465 20637

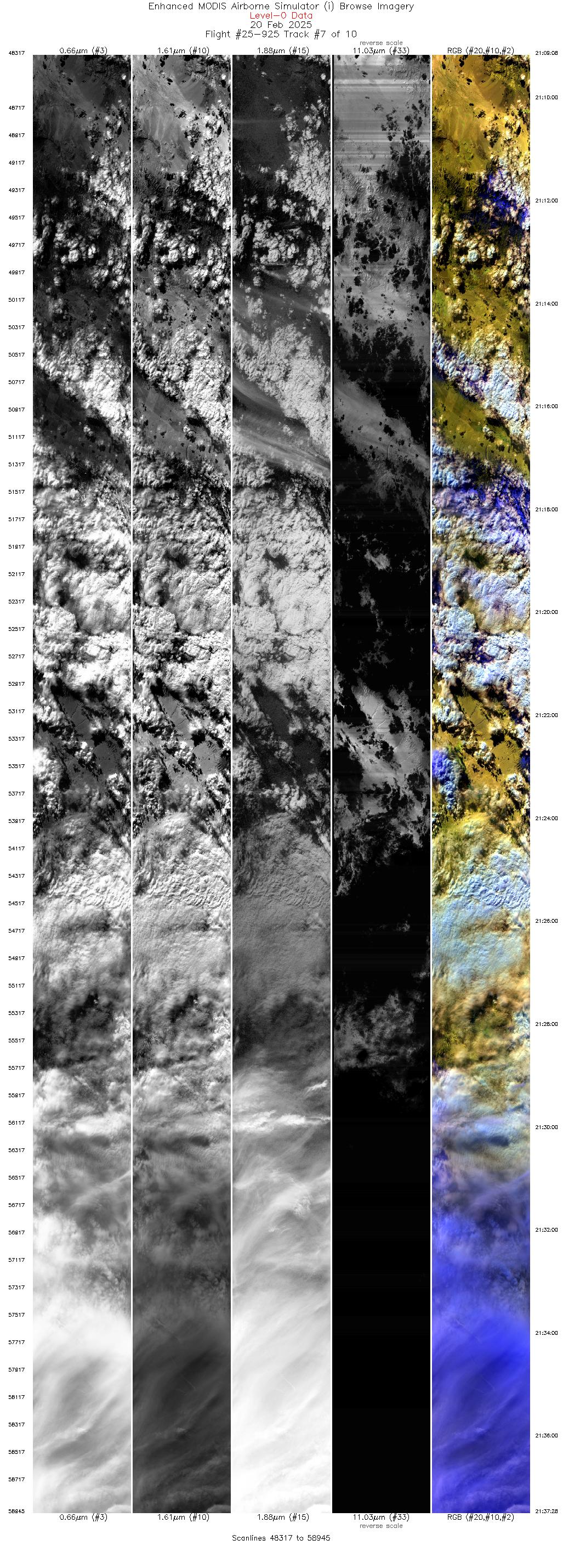

7 21:09 - 21:37 59.9 38.691 - 40.334 115.724 - 112.122 10629 20750
8 21:38 - 22:15 12.1 40.405 - 44.374 112.048 - 110.891 13839 20920

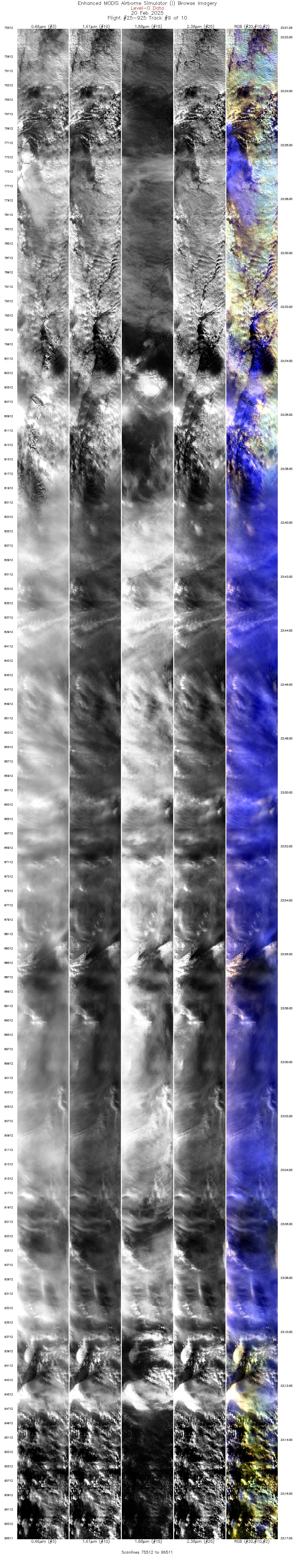

9 22:21 - 23:17 192.0 44.418 - 37.948 110.874 - 112.262 21000 20779

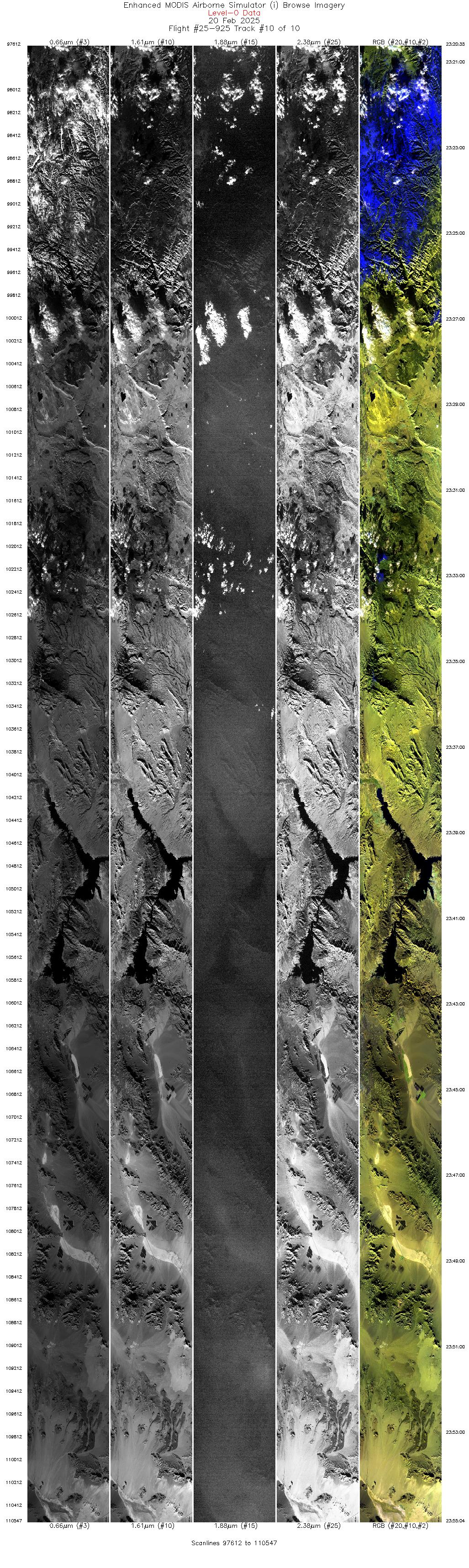

10 23:20 - 23:55 226.6 37.634 - 35.102 112.384 - 116.054 12936 20851
View all Quicklooks in sequence
page title background image

Flight 25-925

  • + HOME
  • + CAMPAIGNS
  • - MISSIONS
  • + ORDER DATA
  • + IMAGE GALLERY
  • + REFERENCE
  • + CONTACT US
Sample Imagery
Click image for full resolution
Track: #06
Railroad Valley, NV
Click to load the full resolution image Flight Direction Indicator
R: 2.13µm
G: 1.61µm
B: 0.55µm
