FLIGHT SUMMARY INFORMATION

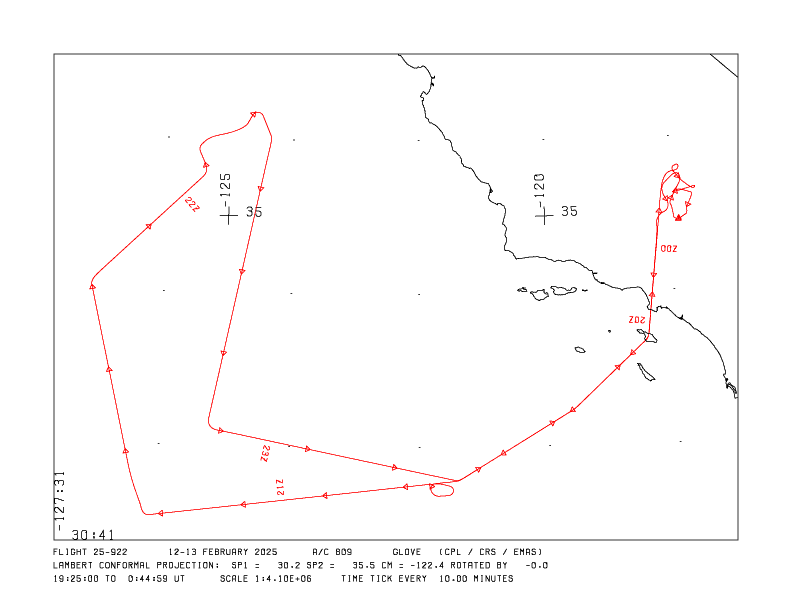

Flight Track Map
track map thumbnail Click map
Flight: 25-922
 Date: 12 Feb 2025
Campaign: GLOVE
Flight Location: Pacific Ocean
Principal Investigators: Dr. Steven Platnick (NASA GSFC)
Additional Sensors: CPL / CRS
Data Evaluation
Overall quality is good
Suomi NPP Underpass @ 21:30Z (Flight Track #05)
EarthCARE Underpass @ 22:37Z (Flight Track #08)
Processing Information
Level-1B Data in HDF format is available
Flight Line Summary
Spectral Band Configuration
Spectral Response Function Table
Spectral Response Function (text)
Browse Imagery
Flight Tracks: 10
Scanlines: 71034
Browse Imagery Table
Click a Flight Track number to view a quicklook image
Lat/Lon ranges are for the BEG-END scanline nadir pixels
Flight
Track		 Time Span
(UTC)		 Heading
(Deg)		 Lat Range
(Deg N)		 Lon Range
(Deg W)		 Length
(Scanlines)		 Altitude
(Meters)

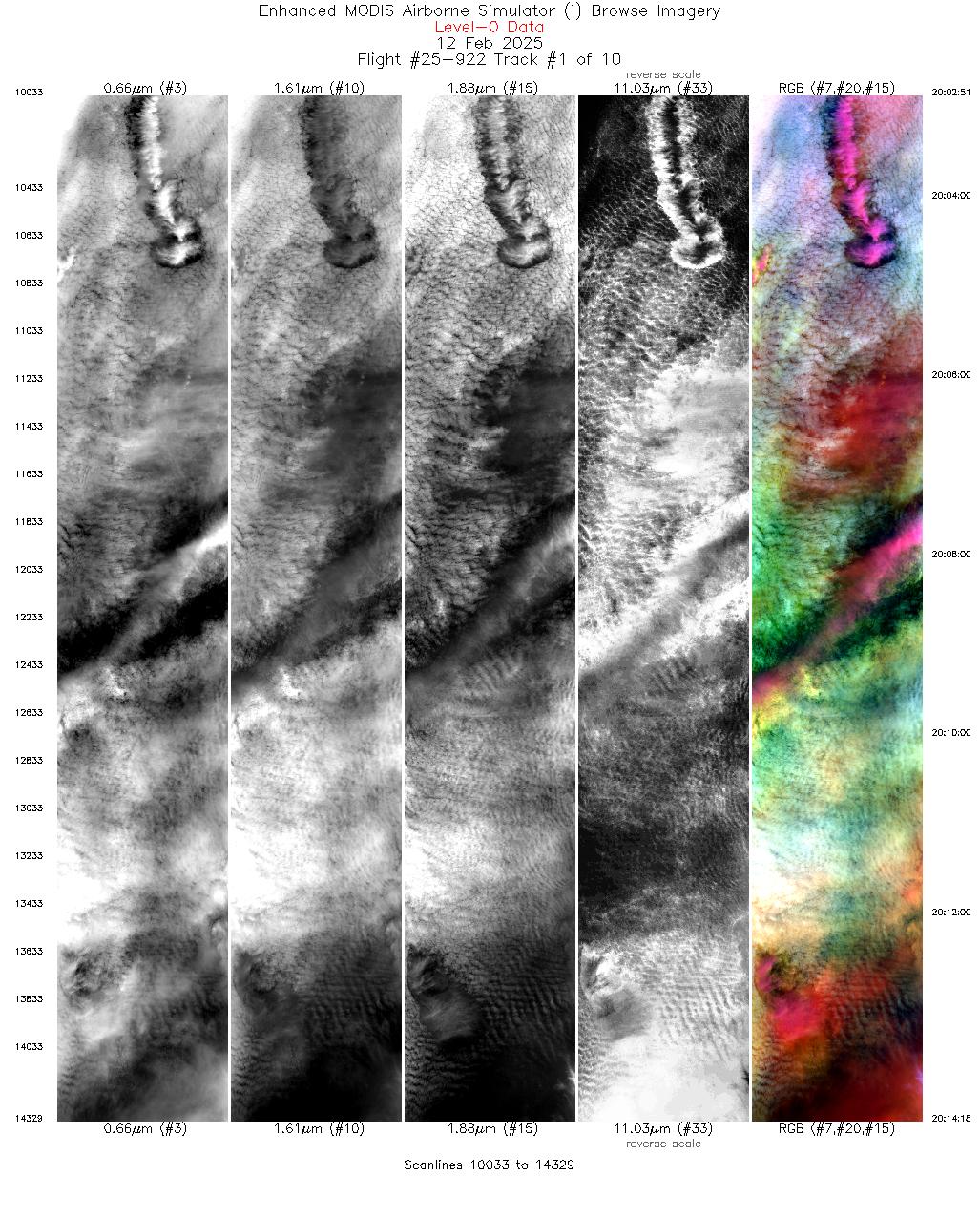

1 20:02 - 20:14 230.4 33.337 - 32.499 118.474 - 119.562 4297 19653

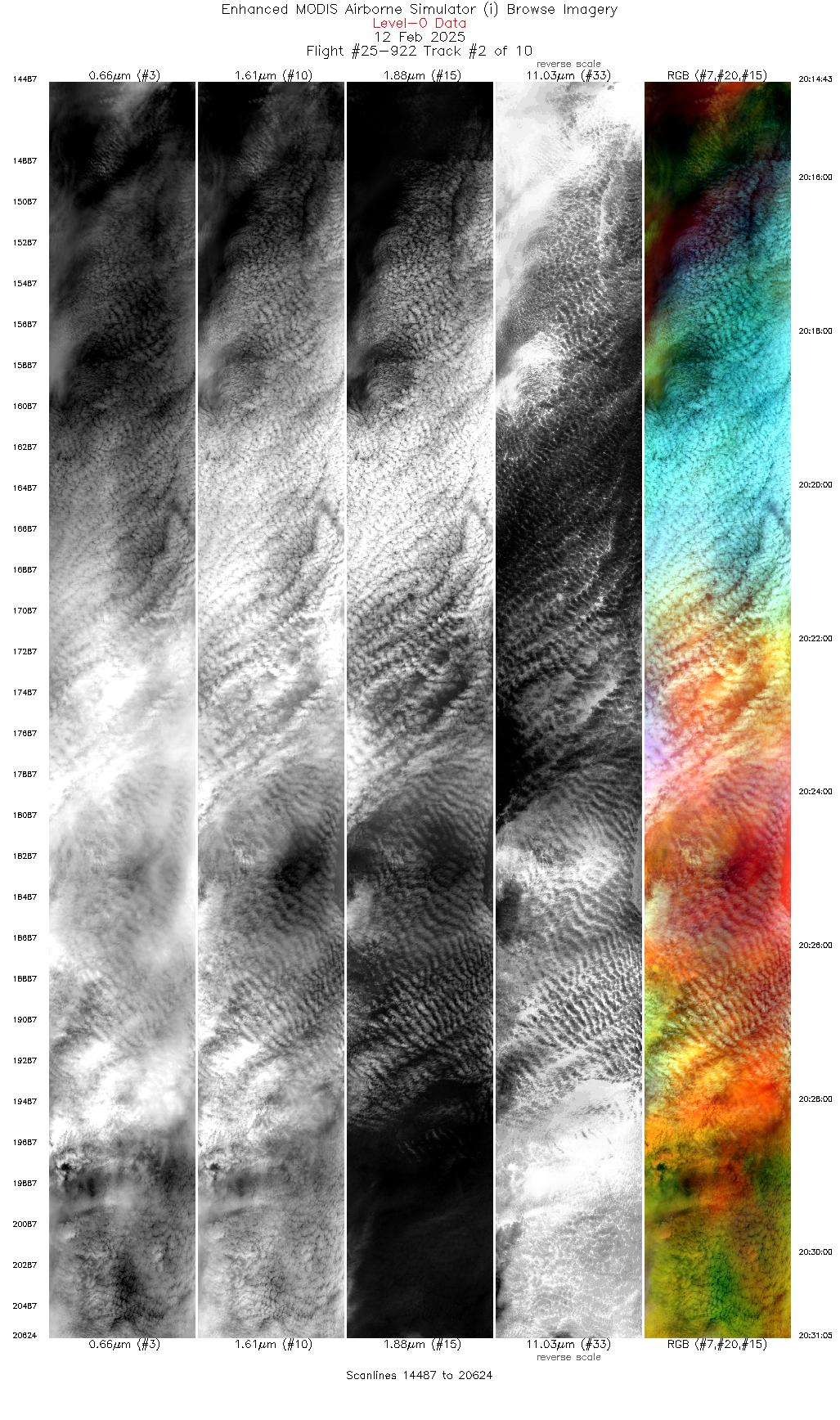

2 20:14 - 20:31 239.3 32.471 - 31.574 119.605 - 121.359 6138 19721

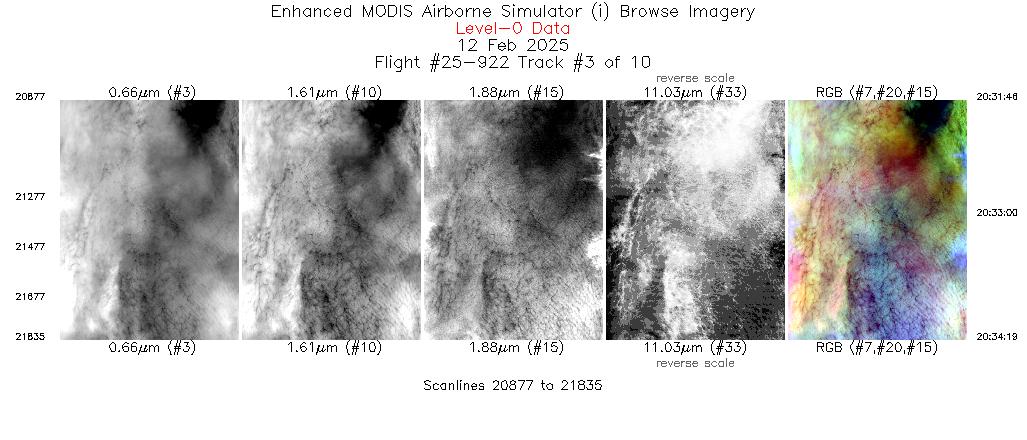

3 20:31 - 20:34 264.7 31.553 - 31.526 121.437 - 121.747 959 19717
4 20:40 - 21:16 270.7 31.520 - 31.066 121.669 - 126.096 13417 19631
5 21:17 - 21:45 343.1 31.157 - 34.030 126.221 - 127.118 10240 19848

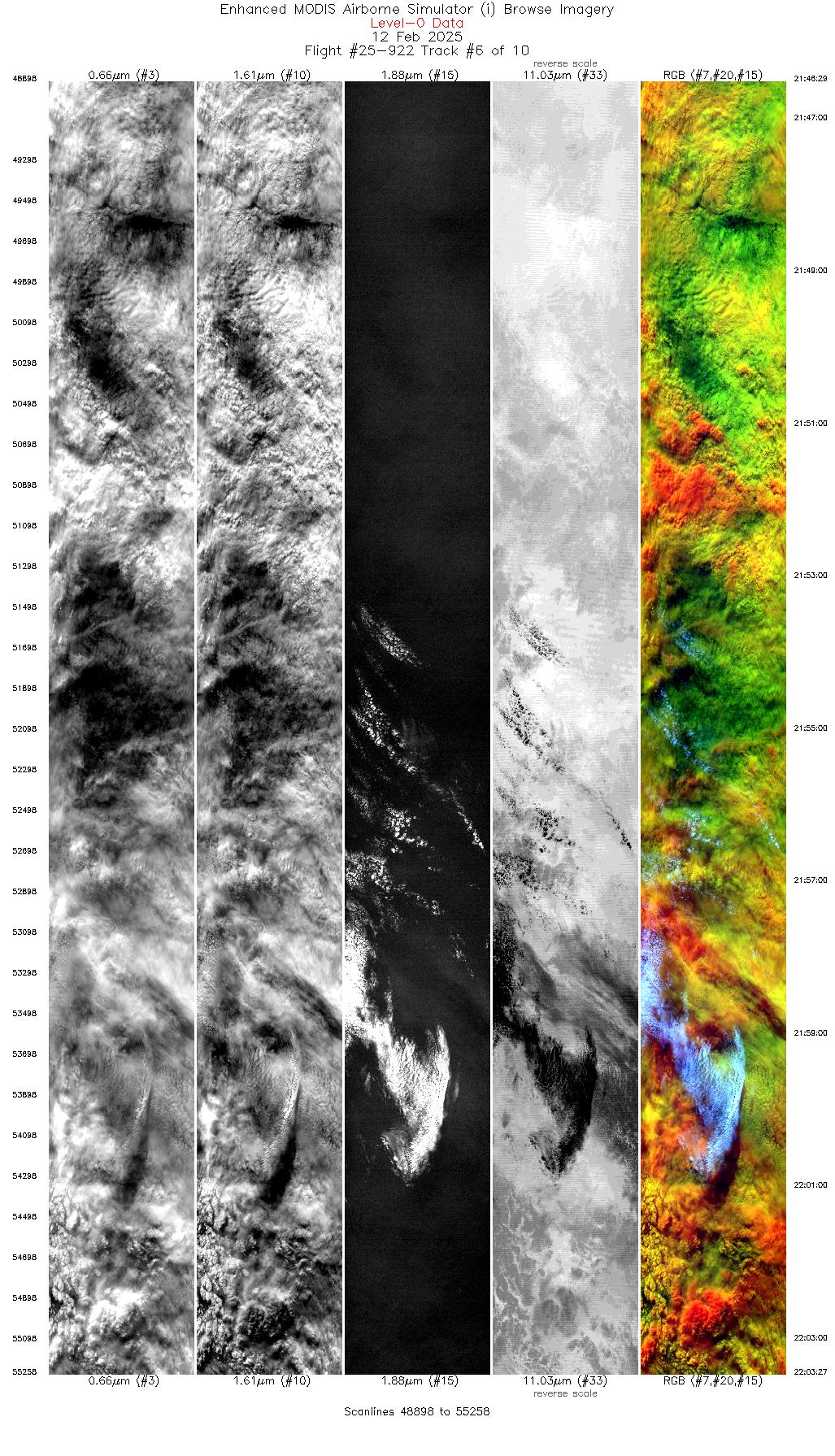

6 21:46 - 22:03 38.2 34.168 - 35.506 127.058 - 125.418 6361 19780

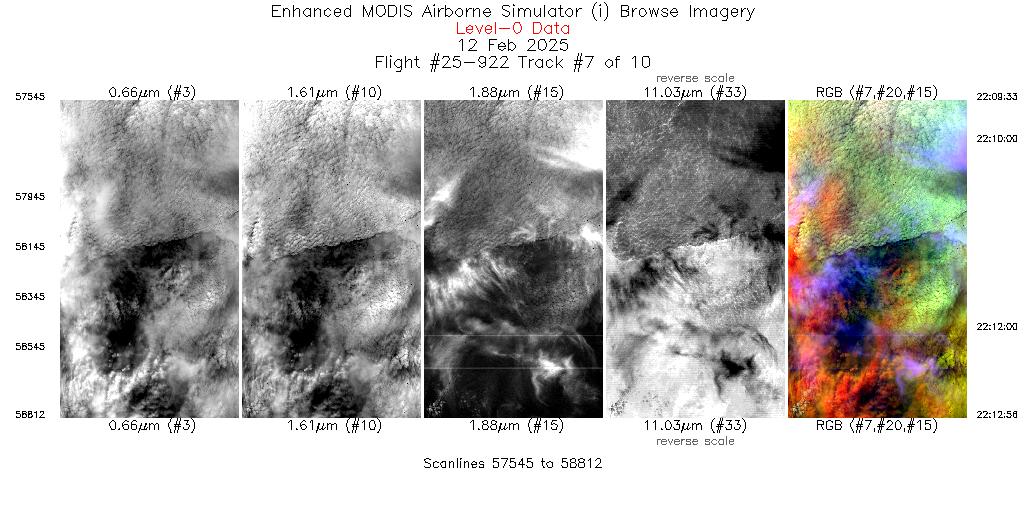

7 22:09 - 22:12 64.5 36.034 - 36.159 125.241 - 124.795 1268 19737
8 22:19 - 22:52 193.5 35.967 - 32.345 124.352 - 125.233 12483 19785

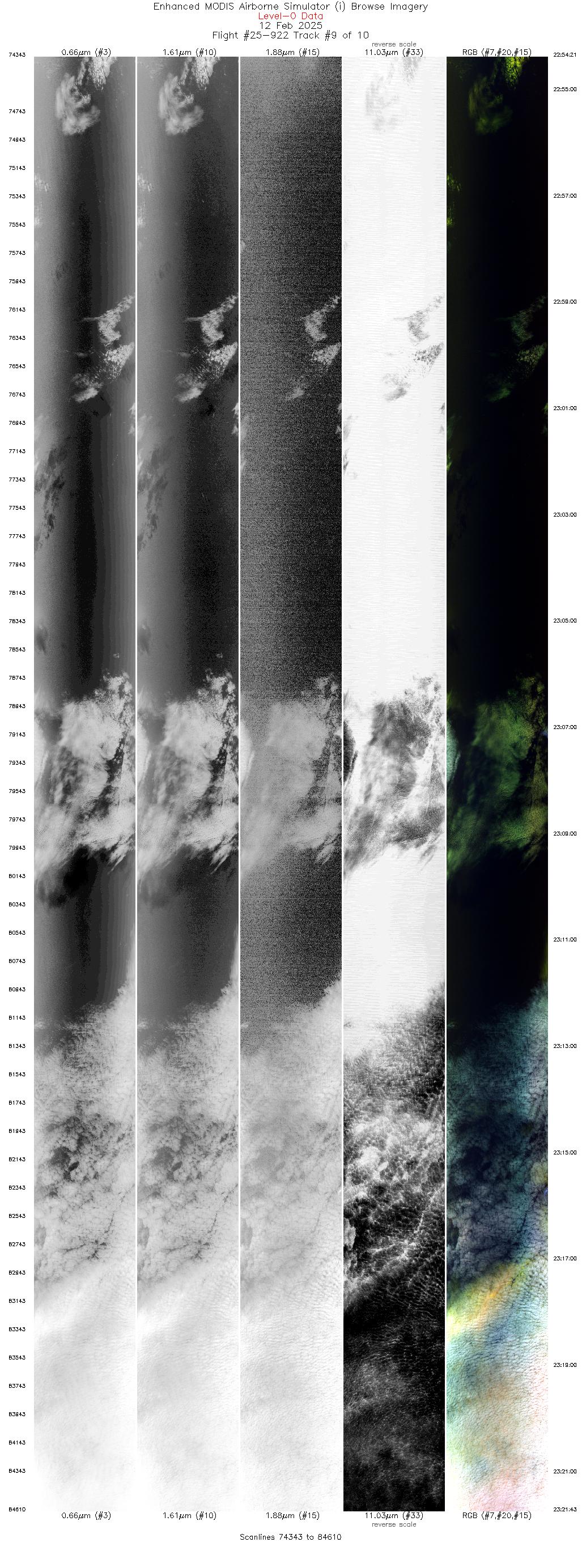

9 22:54 - 23:21 101.7 32.200 - 31.567 125.109 - 121.456 10268 19936

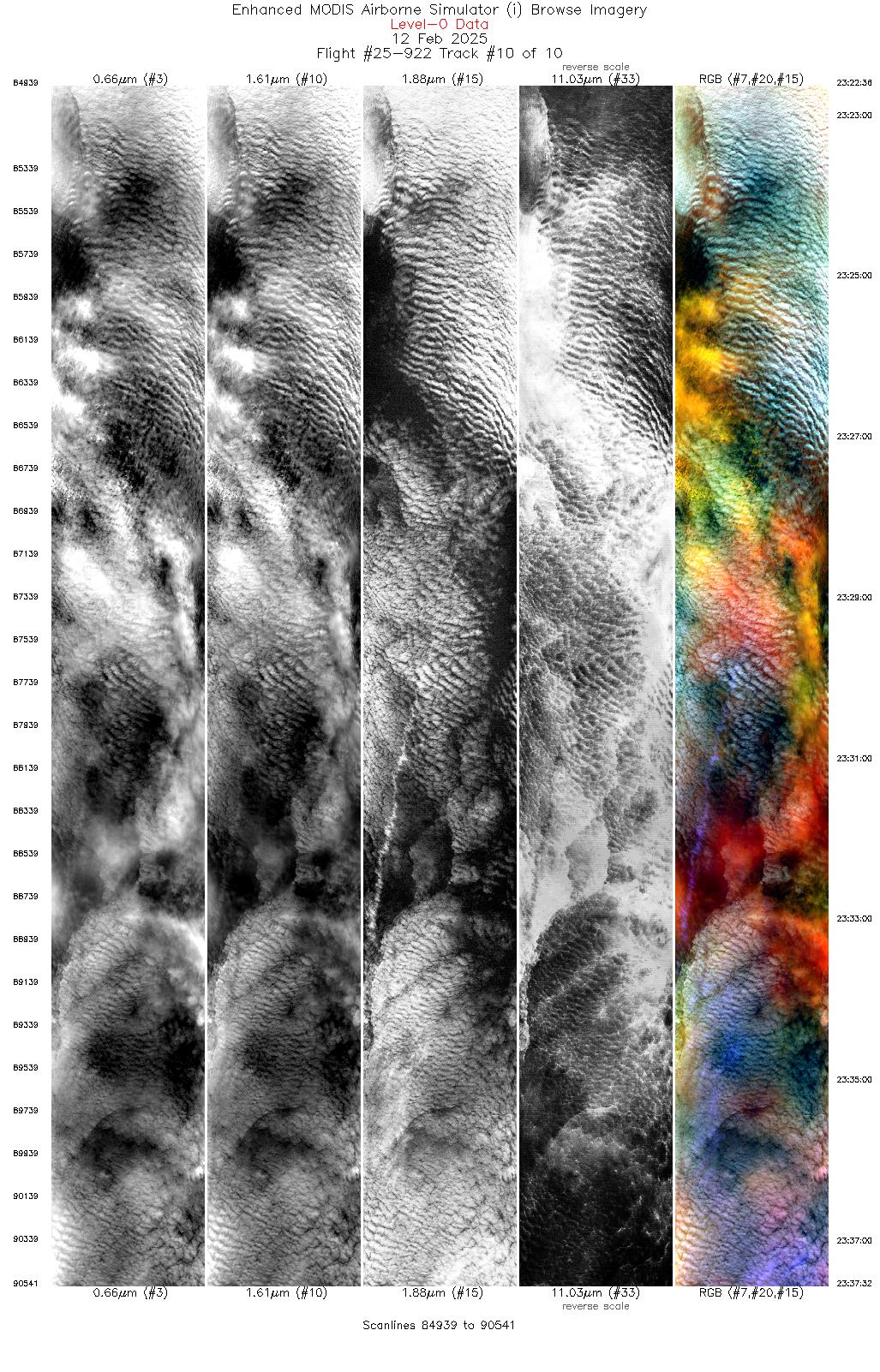

10 23:22 - 23:37 58.0 31.583 - 32.458 121.343 - 119.626 5603 20045
View all Quicklooks in sequence
page title background image

Flight 25-922

  • + HOME
  • + CAMPAIGNS
  • - MISSIONS
  • + ORDER DATA
  • + IMAGE GALLERY
  • + REFERENCE
  • + CONTACT US

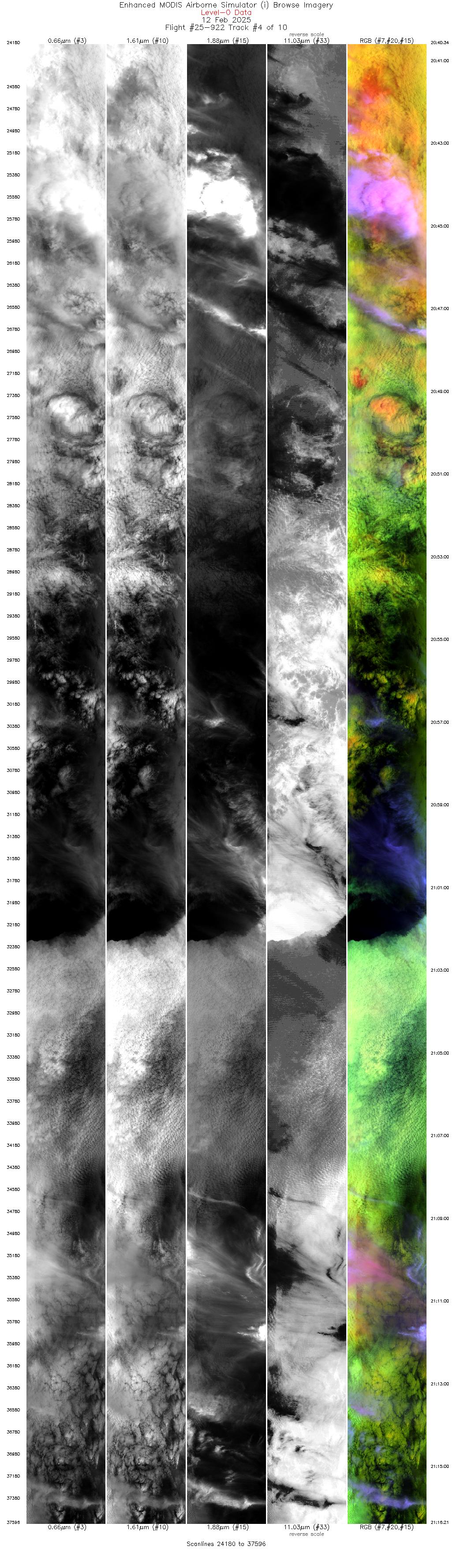

Sample Imagery
Click image for full resolution
Track: #08
EarthCARE Underpass
Click to load the full resolution image Flight Direction Indicator
R: 0.87µm
G: 2.13µm
B: 1.88µm
