FLIGHT SUMMARY INFORMATION

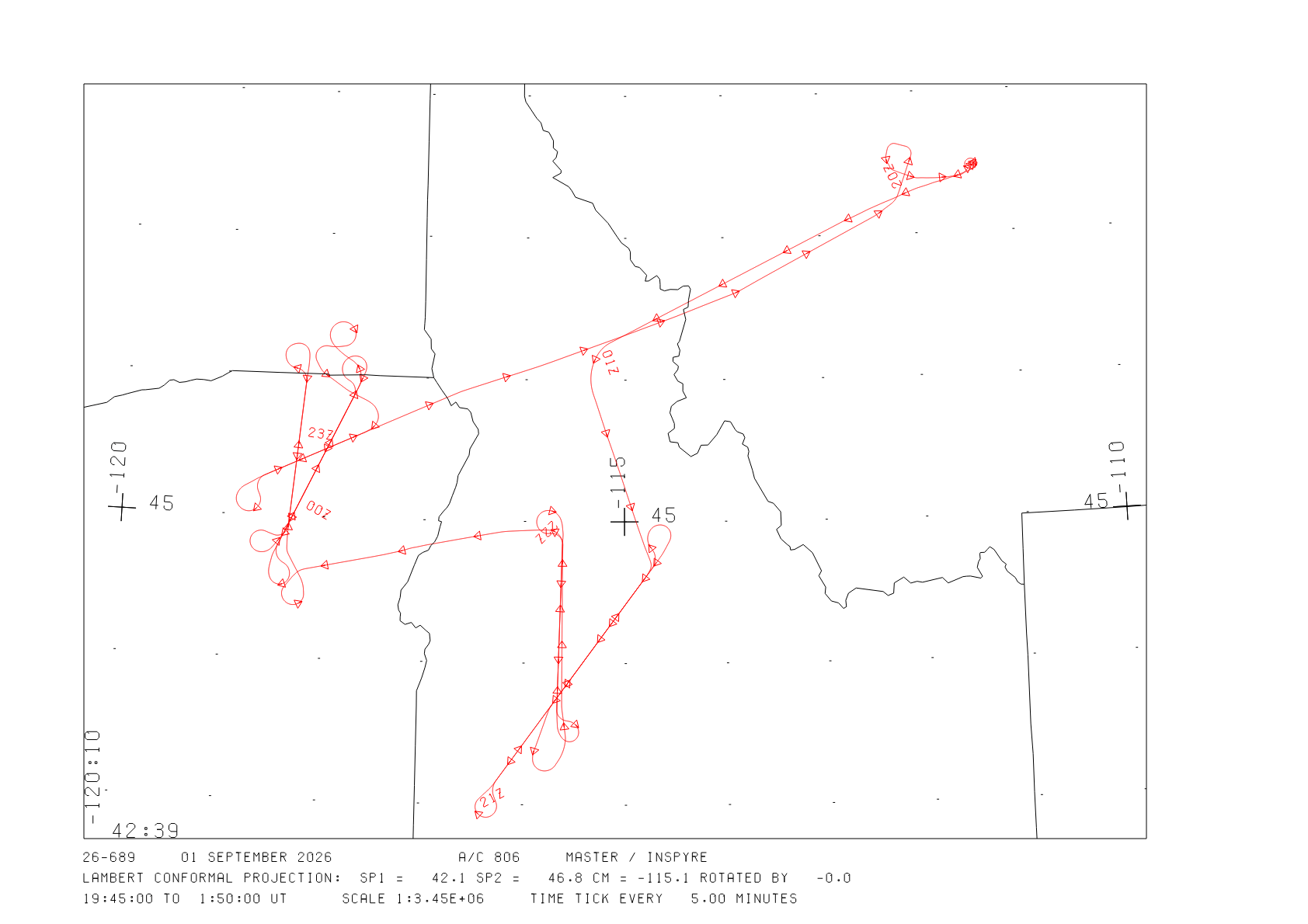

Flight Track Map
track map thumbnail Click map
Flight: 26-689-00
 Date: 01 Sep 2026
Aircraft: NASA ER-2 #806
Campaign: INSPYRE
Flight Location: Montana / Idaho / Oregon
Principal Investigators: Peterson (NRL) / Lareau (UNR) / Kalashnikova (JPL)
Additional Sensors: AirHARP-2/BBR/CPL/CRS/EXRAD/iSTORM/LIP/Mavo Edge/MVIS
Data Evaluation
Overall quality is good
Processing Information
Status: Campaign in progress
Grotto Fire @ 20:22 & 01:01 UTC
Crooked Fire @ 20:48 - 22:19 UTC
McCully Fire @ 22:53 - 23:58 UTC

NOAA21 Underpass @ 20:54 UTC
Browse Imagery
Flight Tracks: 18
Scanlines: 72534
Browse Imagery Table
Click on a Flight Track number to view a quicklook image
Flight
Track		 Time Span
(UTC)		 Length
(Scanlines)
1 20:17 - 20:23 2114

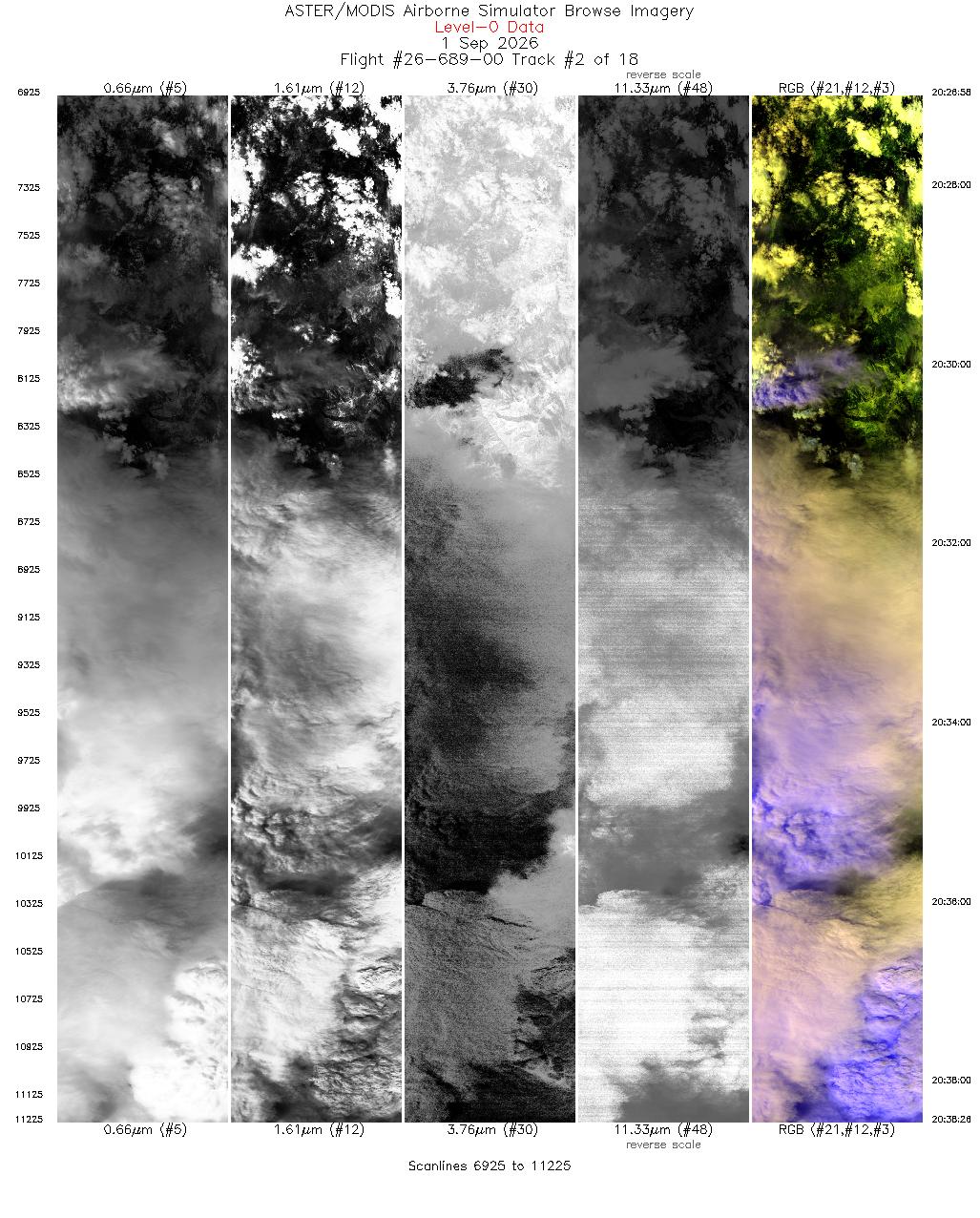

2 20:26 - 20:38 4301
3 20:39 - 20:56 6216
4 21:02 - 21:18 6052
5 21:24 - 21:36 4583
6 21:45 - 21:55 3662
7 22:01 - 22:12 4256
8 22:18 - 22:28 3842
9 22:31 - 22:38 2617

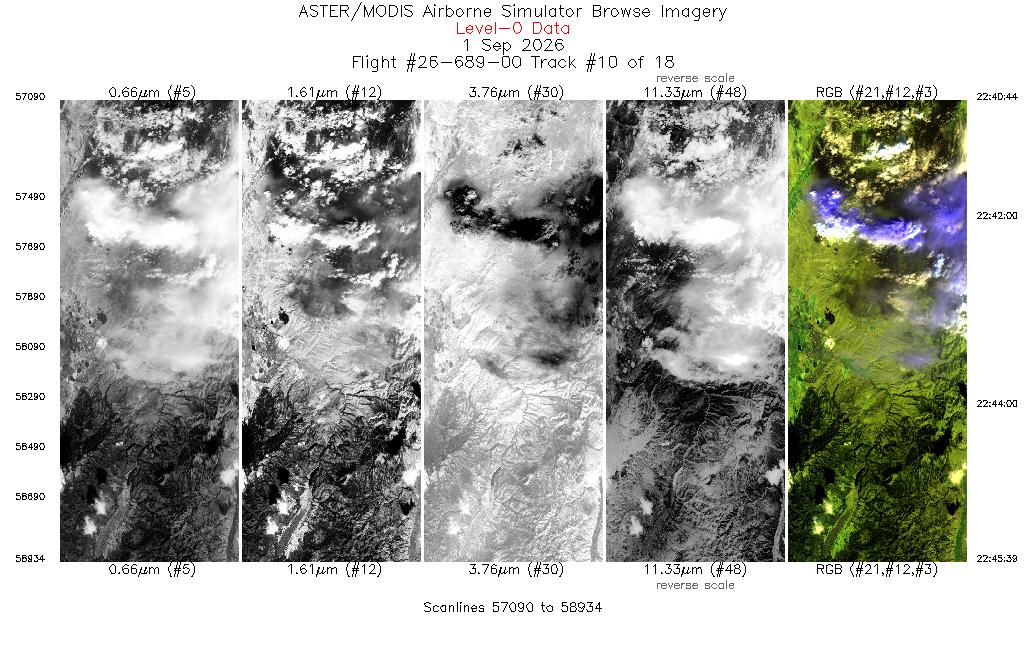

10 22:40 - 22:45 1845

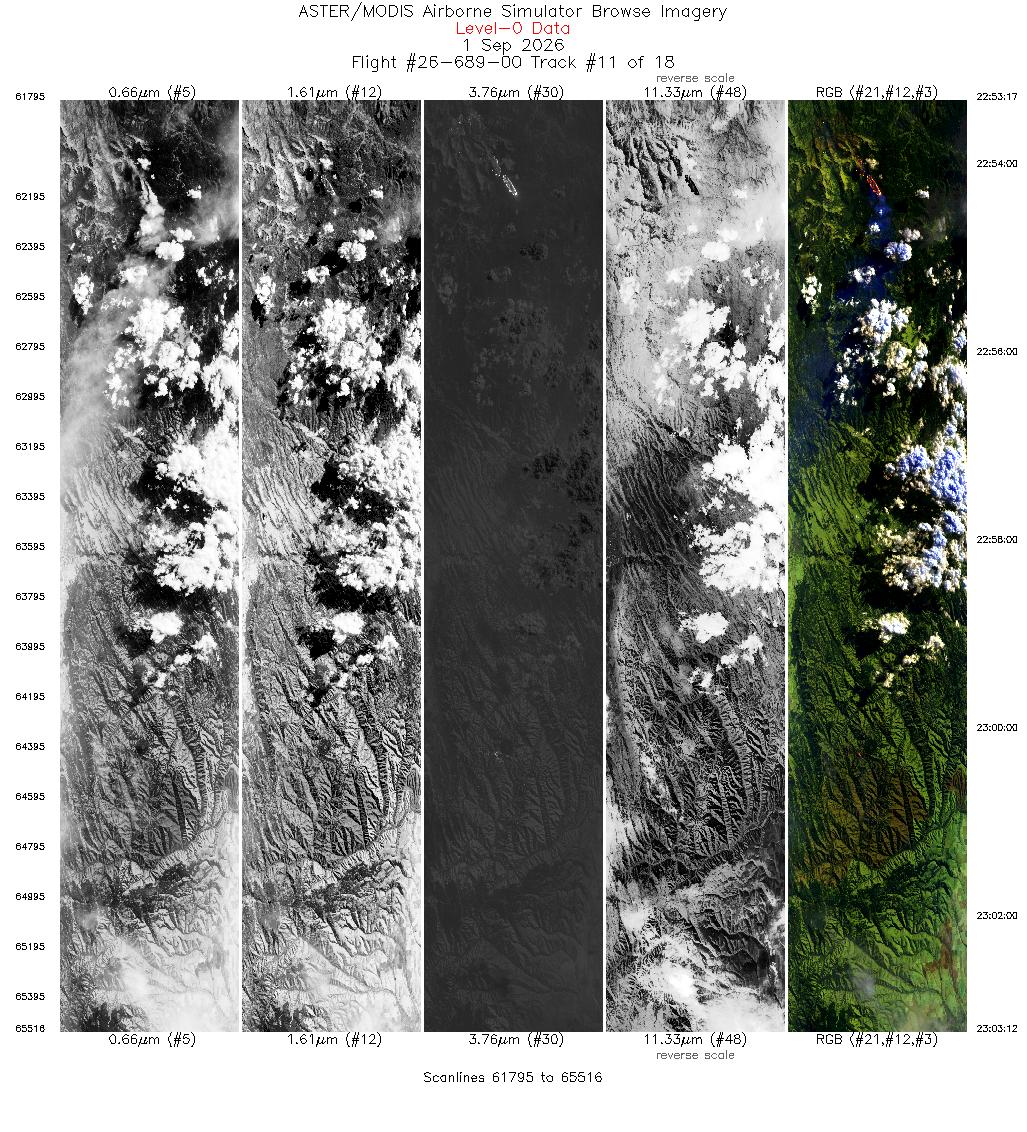

11 22:53 - 23:03 3722
12 23:08 - 23:18 3709

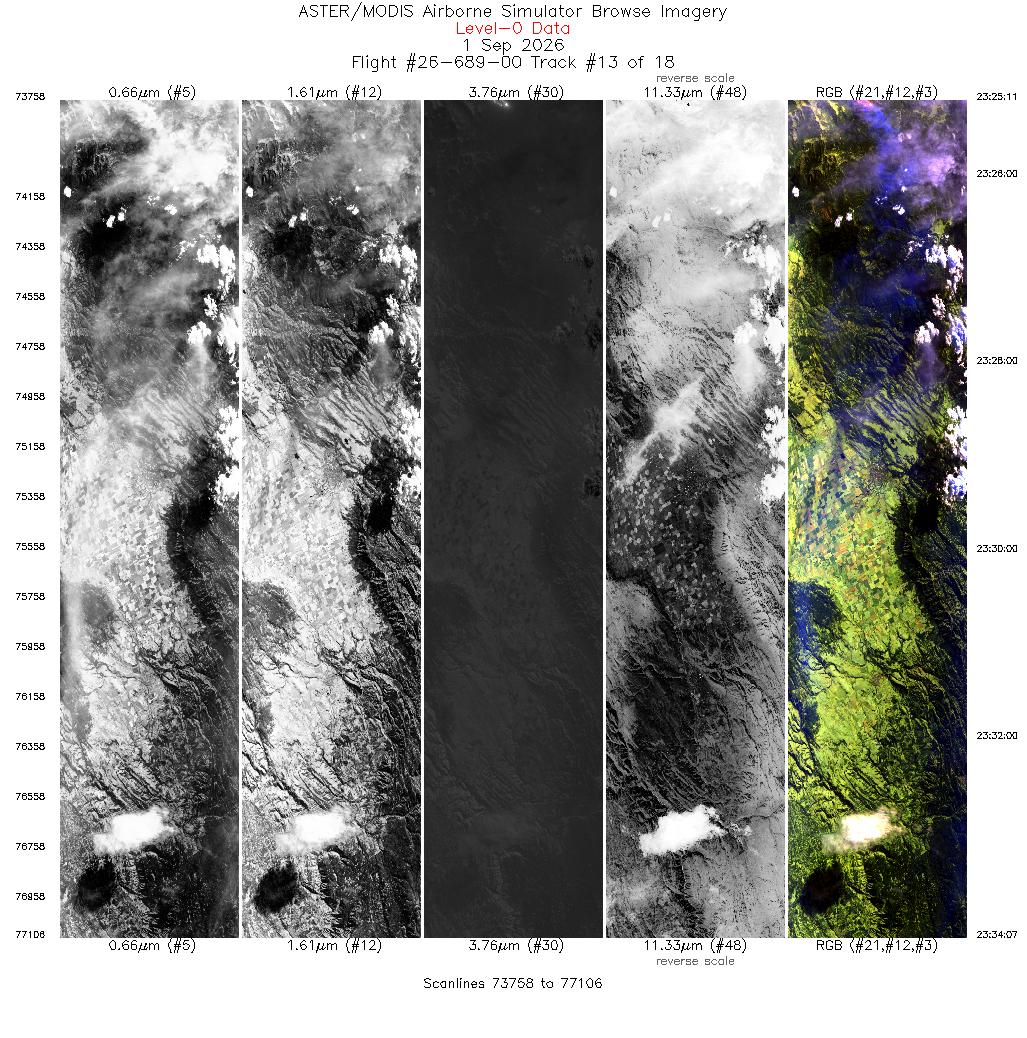

13 23:25 - 23:34 3349
14 23:40 - 23:51 4129

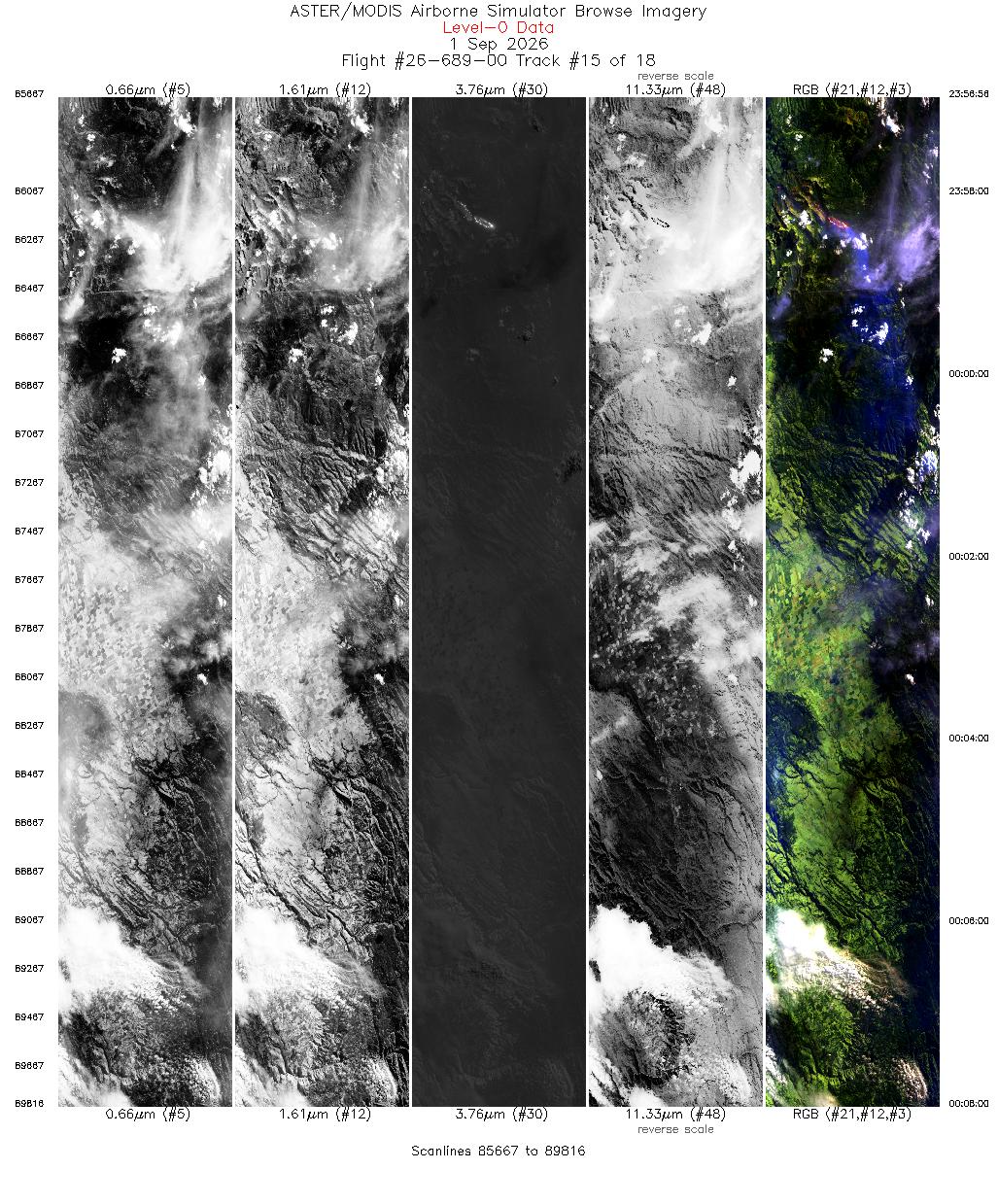

15 23:56 - 00:08 4150

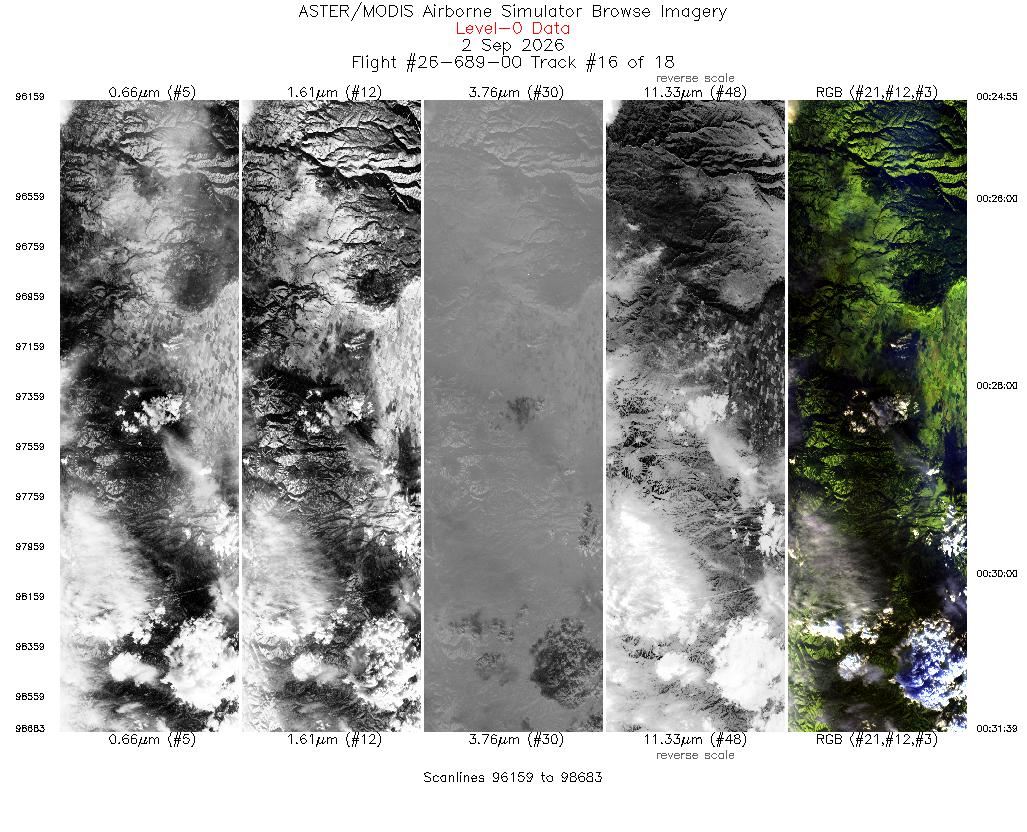

16 00:24 - 00:31 2525

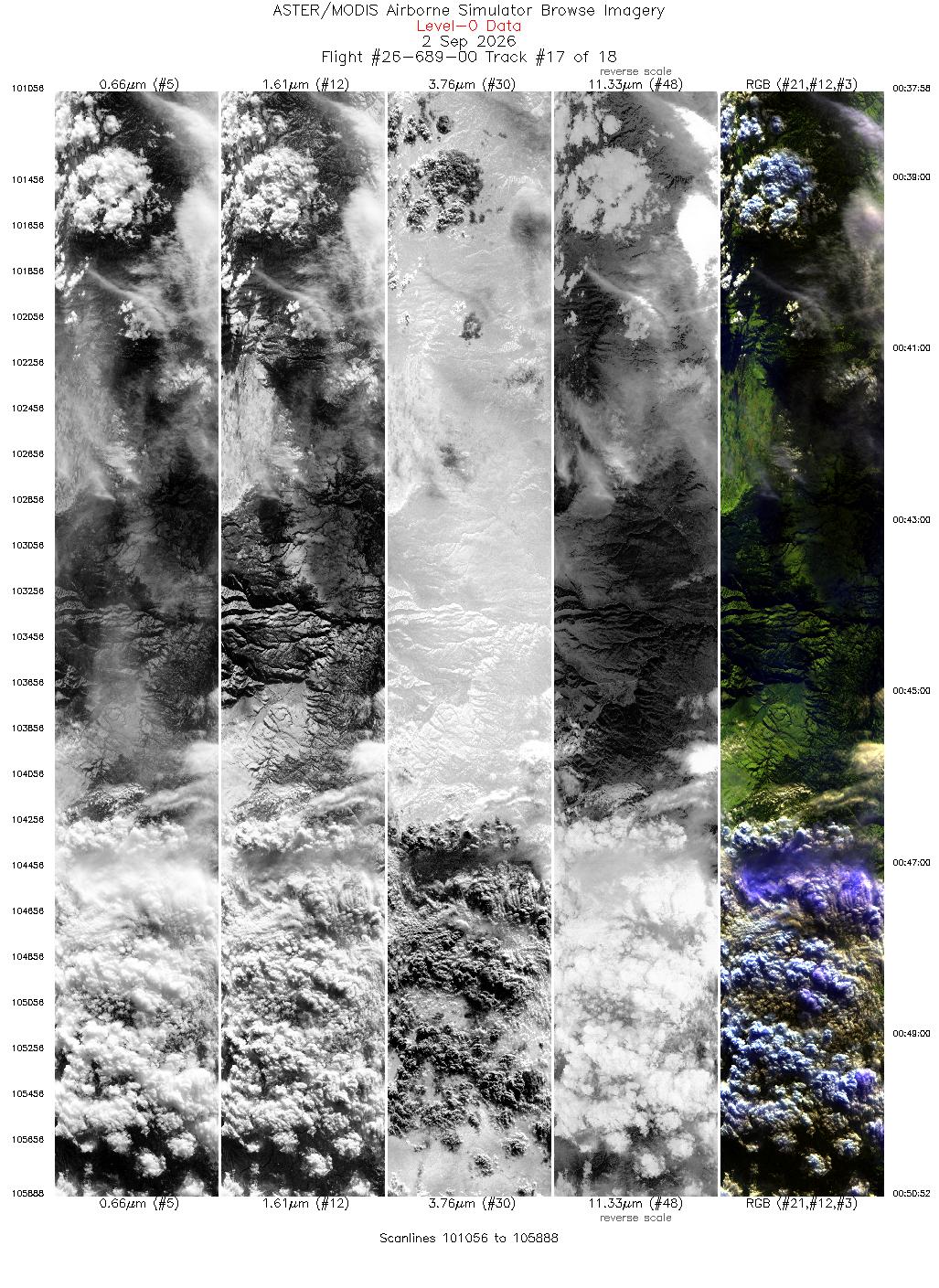

17 00:37 - 00:50 4833
18 00:51 - 01:08 6629
View all Quicklooks in sequence
page title background image

Flight 26-689-00

  • + HOME
  • + CAMPAIGNS
  • - MISSIONS
  • + ORDER DATA
  • + IMAGE GALLERY
  • + REFERENCE
  • + CONTACT US
Sample Imagery
Click image for full resolution
Track: #08
Crooked Fire, OR
Click to load the full resolution image Flight Direction Indicator
R: 2.16µm
G: 1.61µm
B: 0.47µm
