FLIGHT SUMMARY INFORMATION

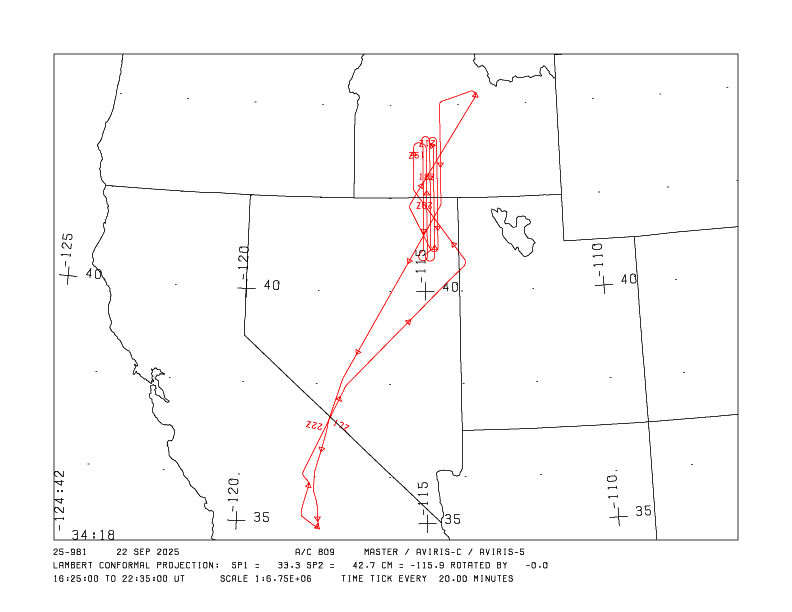

Flight Track Map
track map thumbnail Click map
Flight: 25-981-00
 Date: 22 Sep 2025
Aircraft: NASA ER-2 #809
Campaign: GEMx 2025
Flight Location: Northeastern Nevada / Southeastern Idaho (NV36)
Principal Investigators: Kokaly (USGS)
Additional Sensors: AVIRIS-C / AVIRIS-5
Data Evaluation
Overall quality is good
BB1 set to ambient
Processing Information
Level-1B Data in HDF format is available
Flight Line Summary
Spectral Band Configuration
Spectral Response Function Table
Spectral Response Function (text)
Browse Imagery
Flight Tracks: 8
Scanlines: 60280

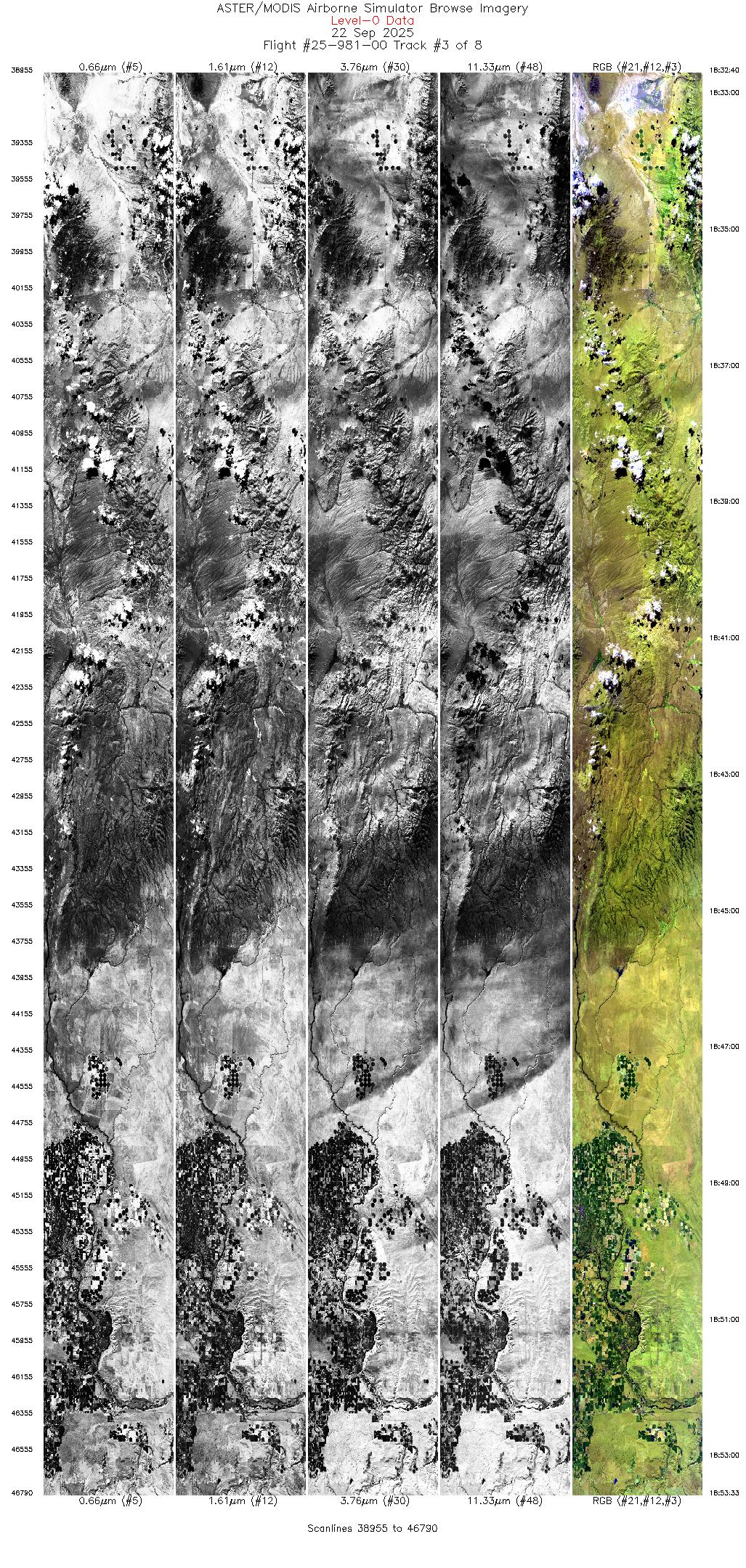

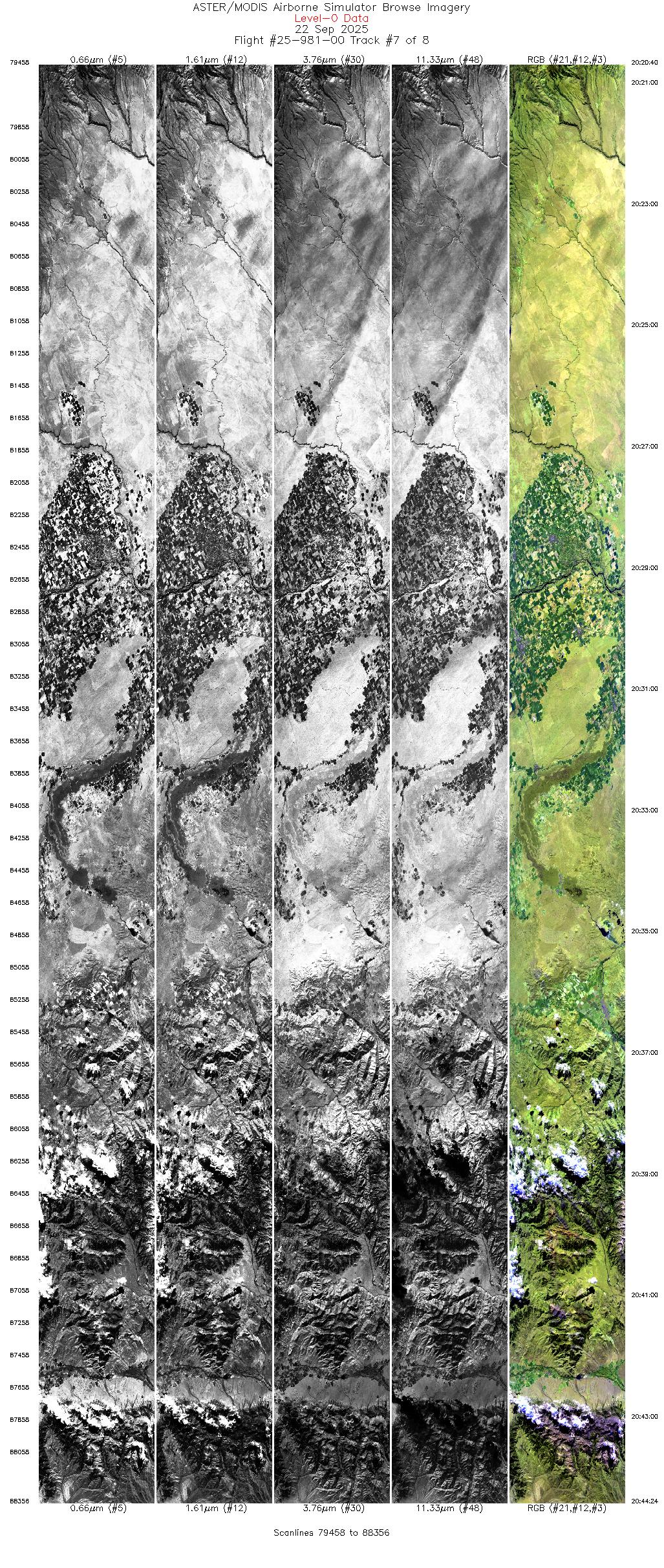

Browse Imagery Table

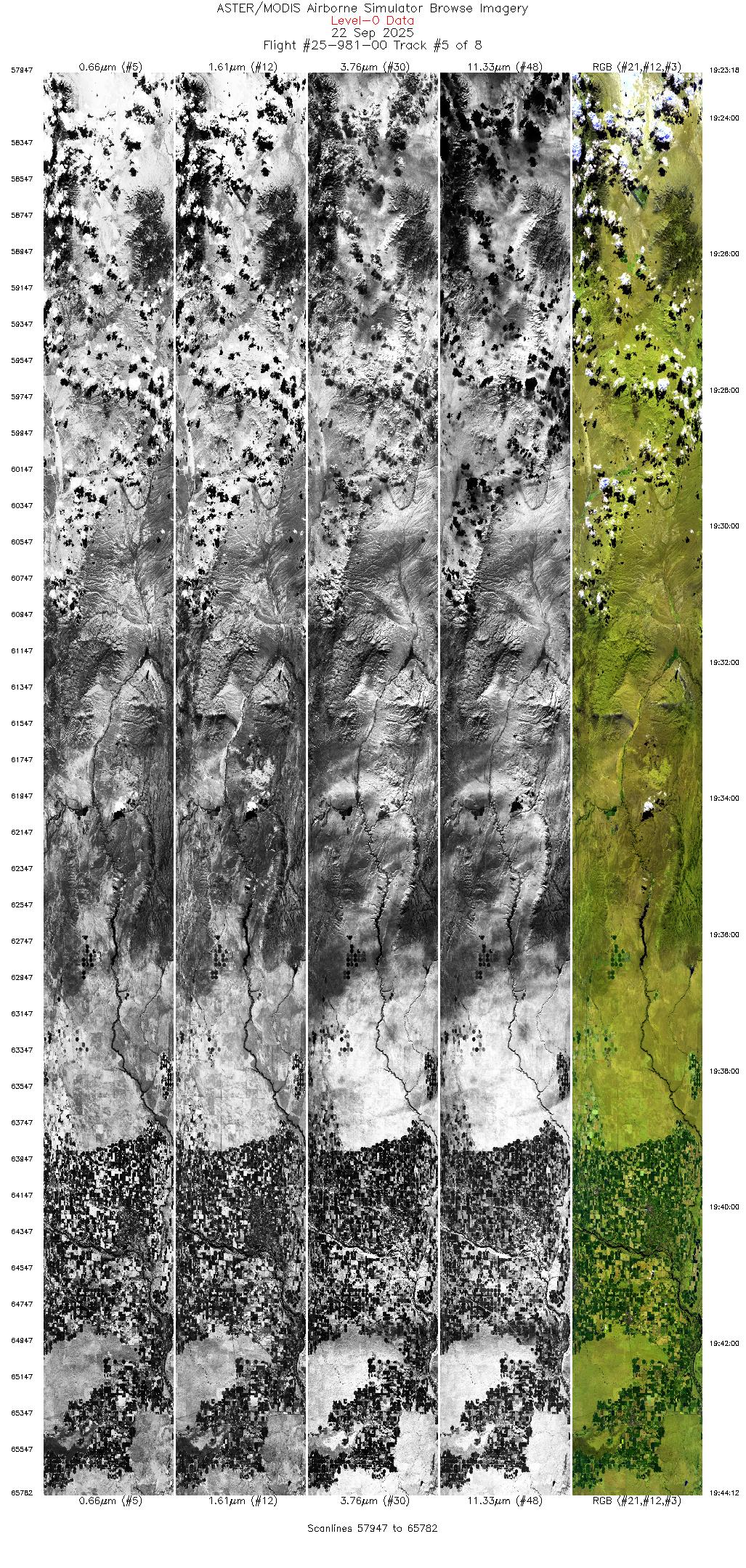

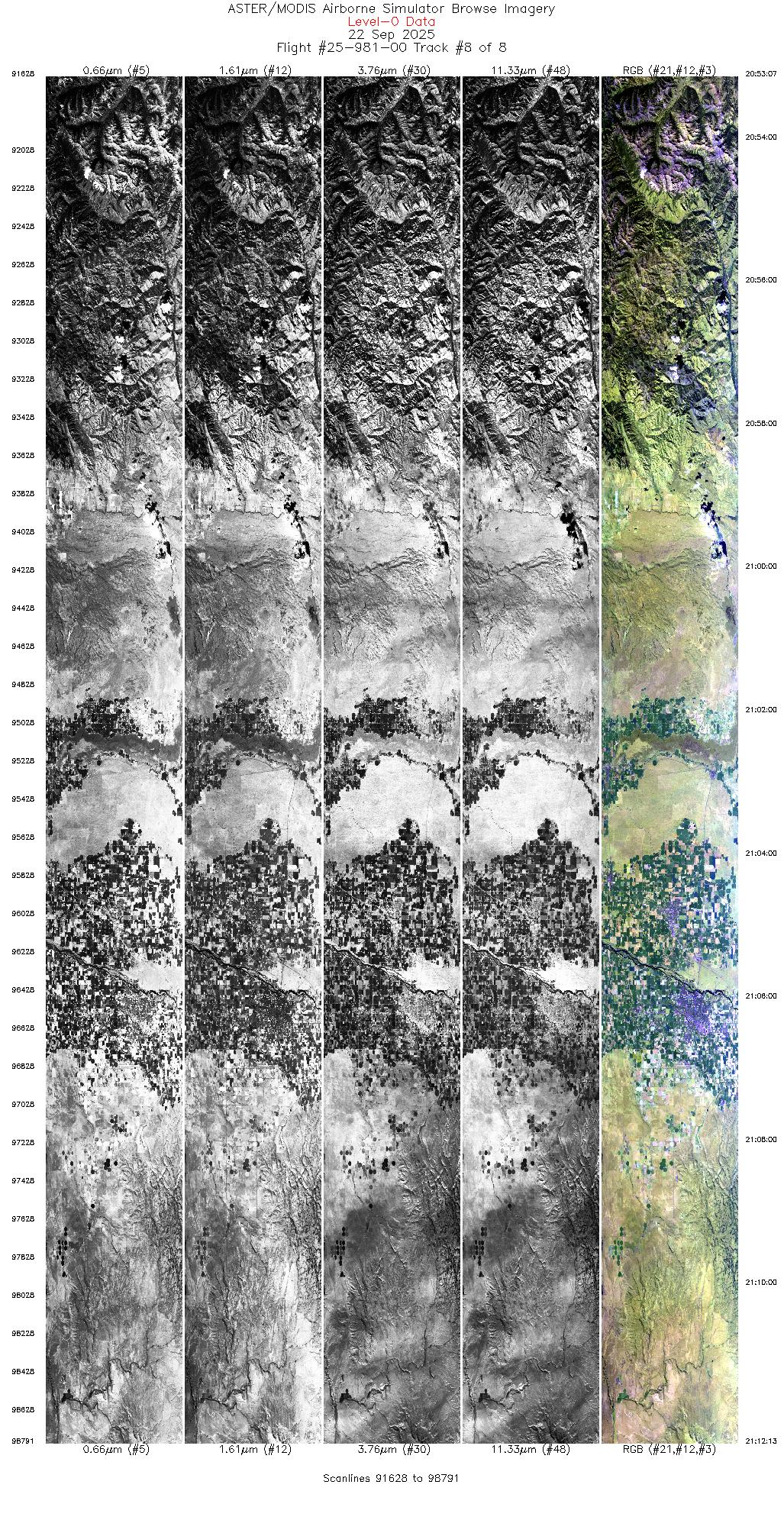

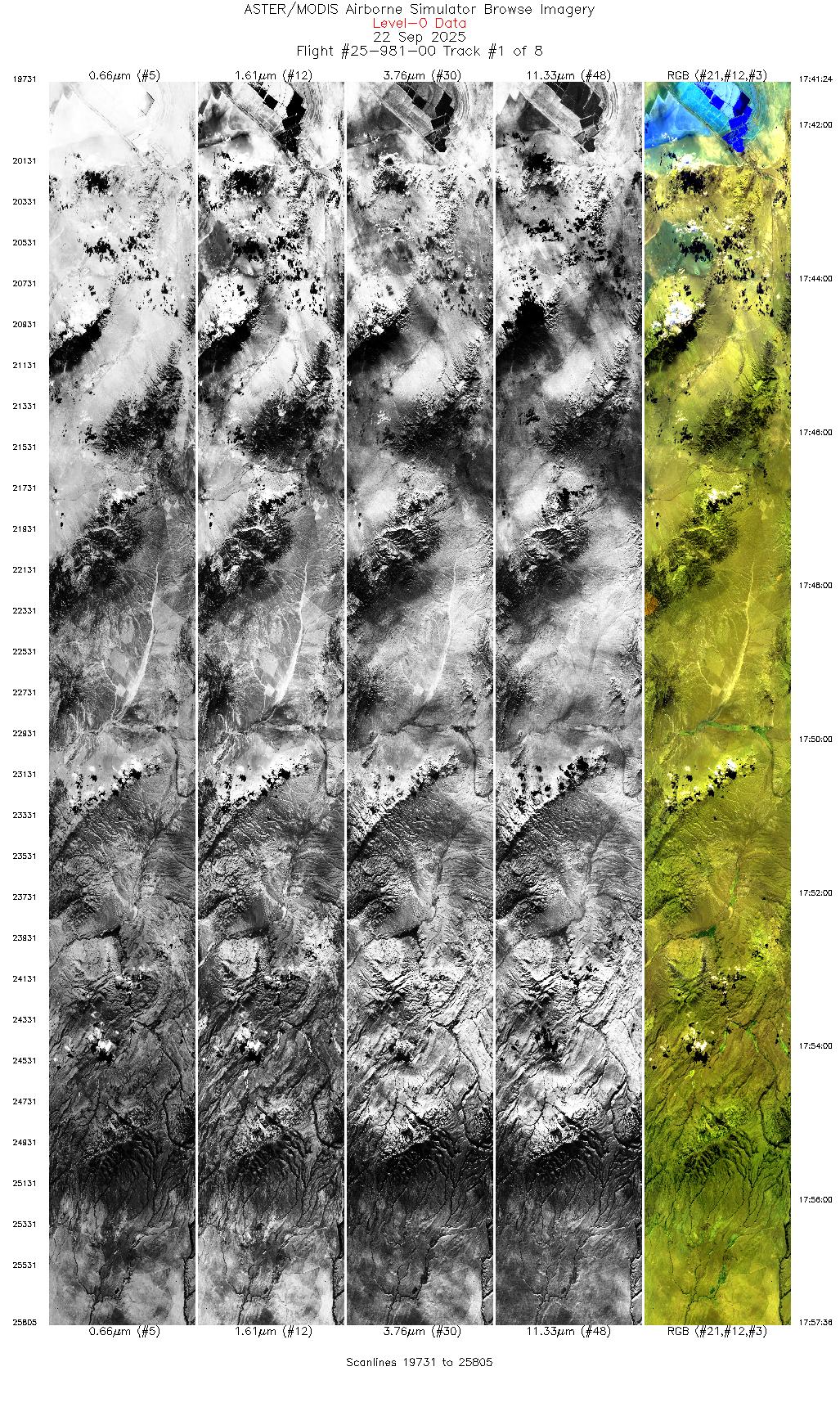

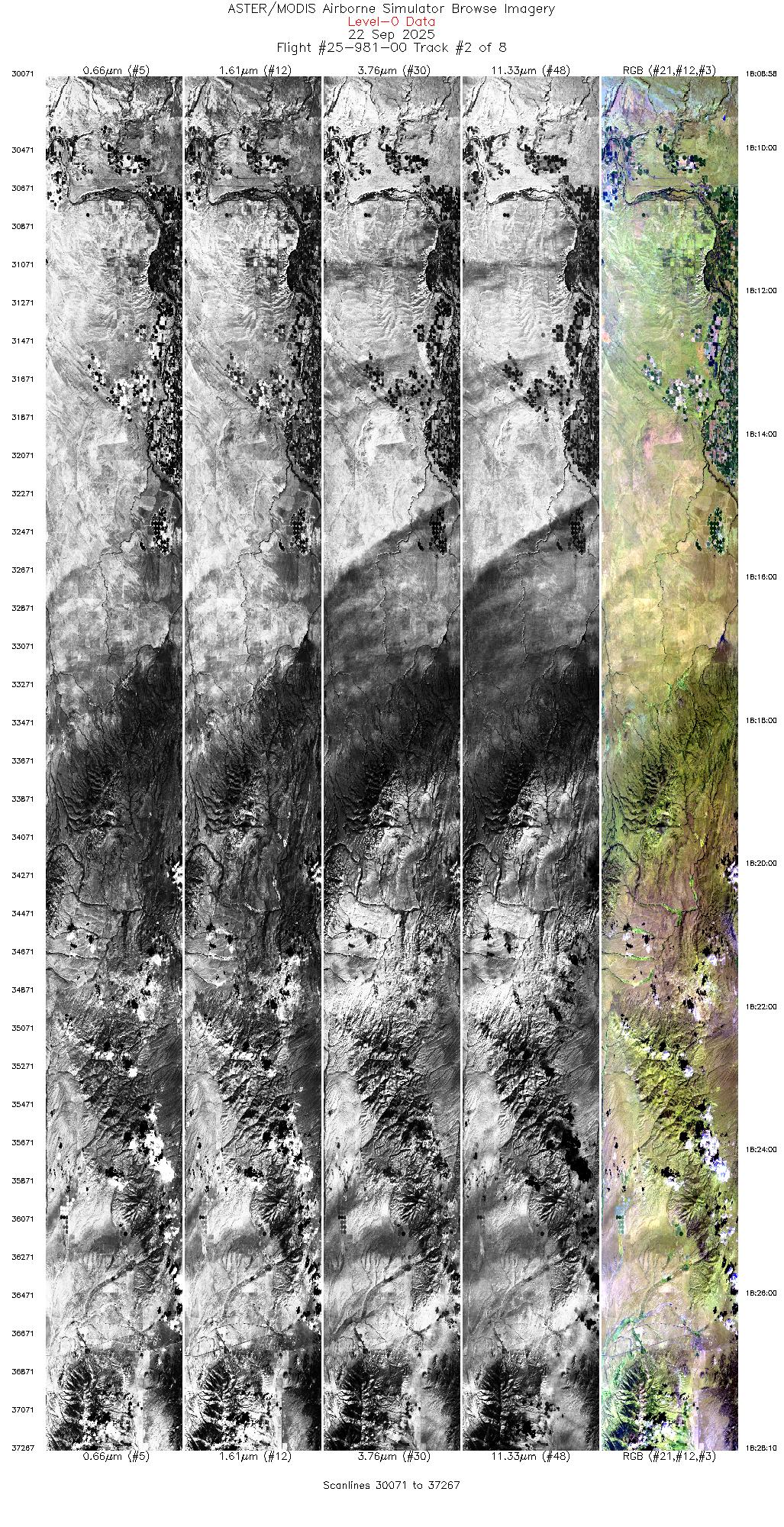

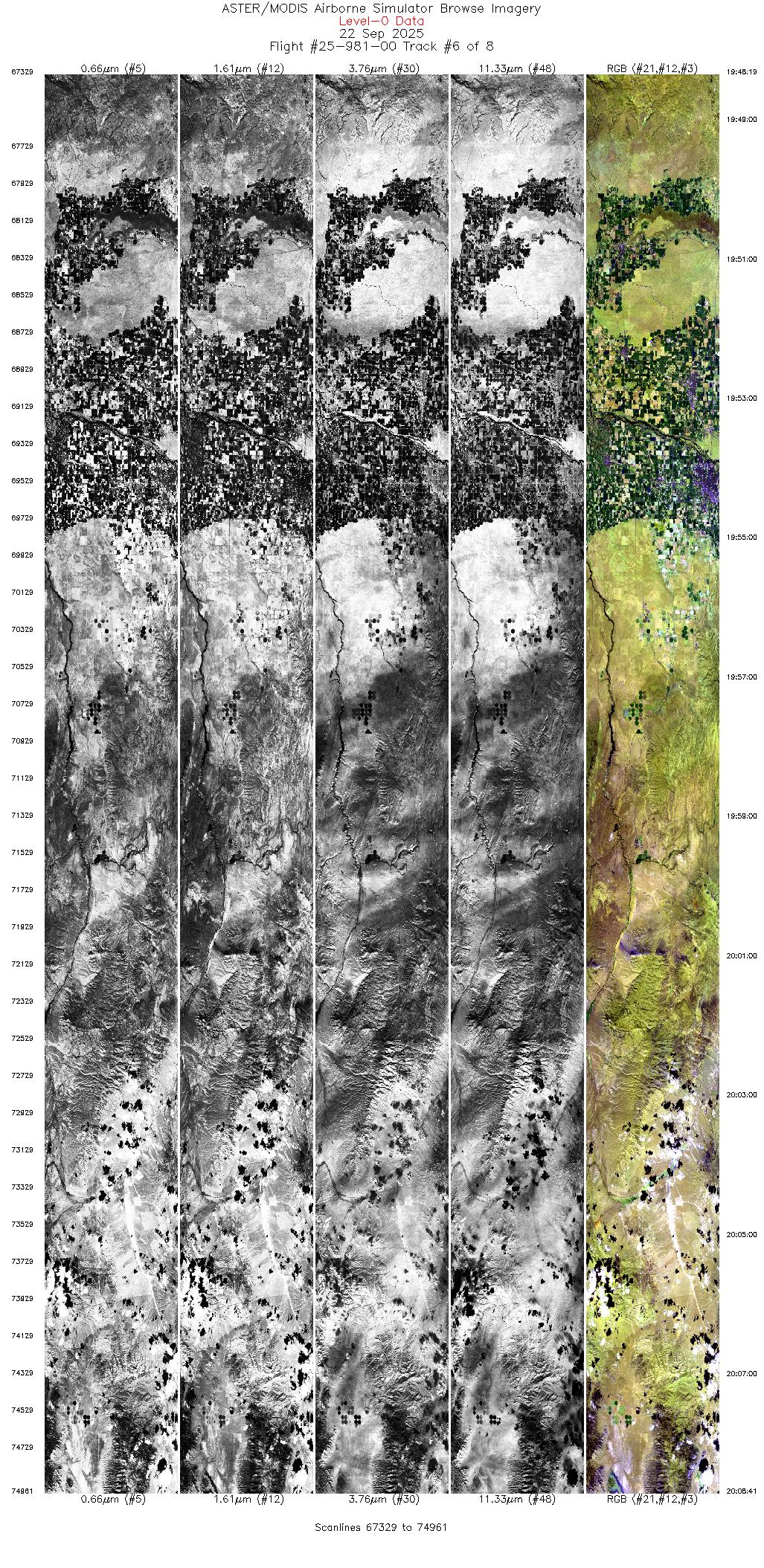

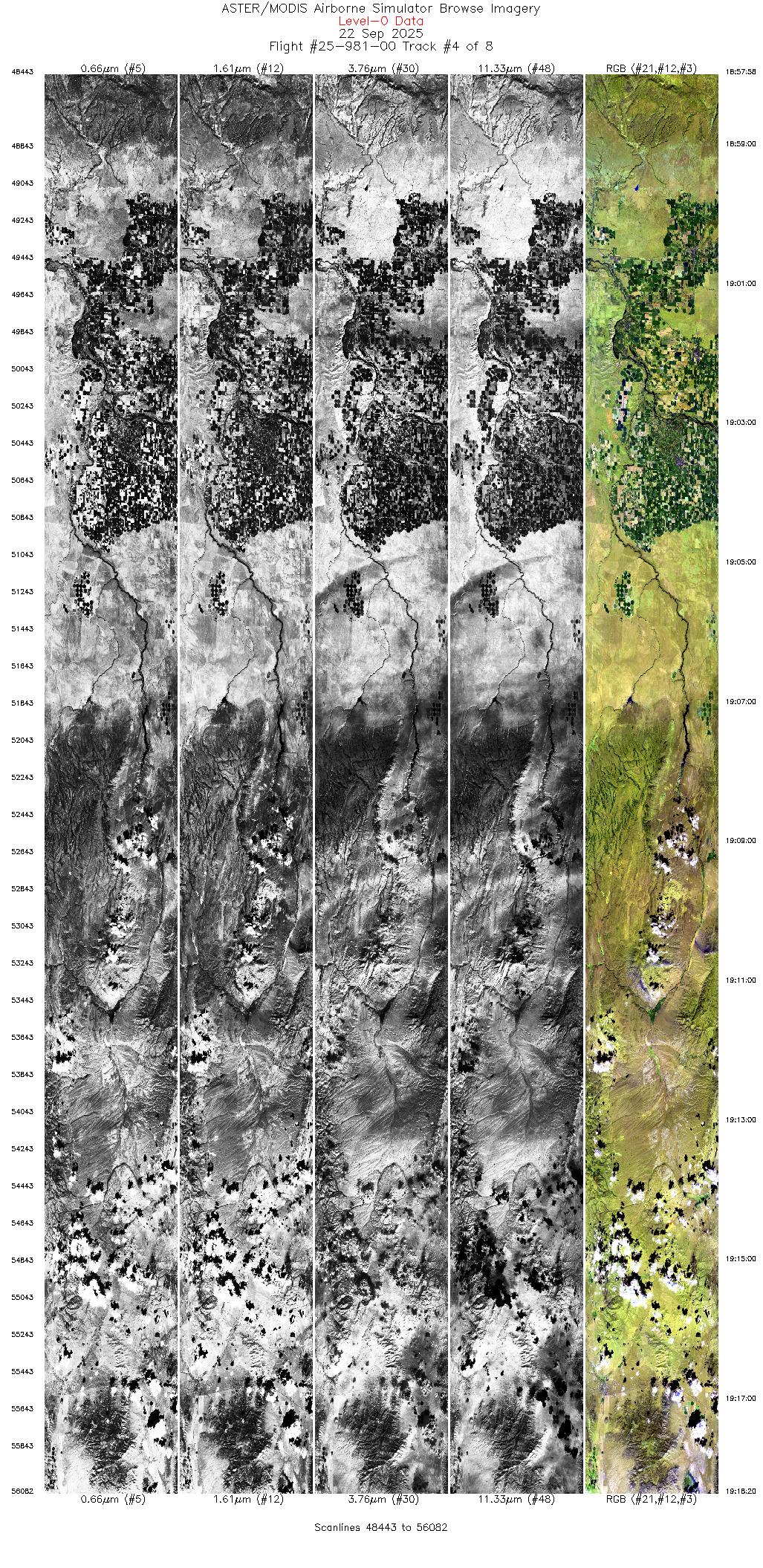

Click a Flight Track number to view a quicklook image
Lat/Lon ranges are for the BEG-END scanline nadir pixels
Flight
Track		 Time Span
(UTC)		 Heading
(Deg)		 Lat Range
(Deg N)		 Lon Range
(Deg W)		 Length
(Scanlines)		 Altitude
(Meters)
1 17:41 - 17:57 322.9 40.675 - 42.154 113.882 - 115.285 6075 20128
2 18:08 - 18:28 177.5 43.100 - 40.940 115.030 - 115.035 7197 20049
3 18:32 - 18:53 358.7 40.745 - 43.061 114.939 - 114.933 7836 20065
4 18:57 - 19:18 177.3 43.221 - 40.940 114.832 - 114.830 7640 20045
5 19:23 - 19:44 358.6 40.758 - 43.061 114.723 - 114.727 7836 20068
6 19:48 - 20:08 177.8 43.218 - 40.941 114.629 - 114.627 7633 20056
7 20:20 - 20:44 27.7 41.877 - 44.143 115.406 - 113.476 8899 20108
8 20:53 - 21:12 178.9 43.996 - 41.891 114.526 - 114.525 7164 20141
View all Quicklooks in sequence
page title background image

Flight 25-981-00

  • + HOME
  • + CAMPAIGNS
  • - MISSIONS
  • + ORDER DATA
  • + IMAGE GALLERY
  • + REFERENCE
  • + CONTACT US

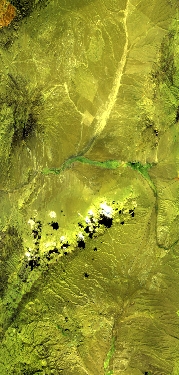

Sample Imagery
Click image for full resolution
Track: #01
Northeastern Nevada
Click to load the full resolution image Flight Direction Indicator
R: 2.13µm
G: 1.61µm
B: 0.47µm
