FLIGHT SUMMARY INFORMATION

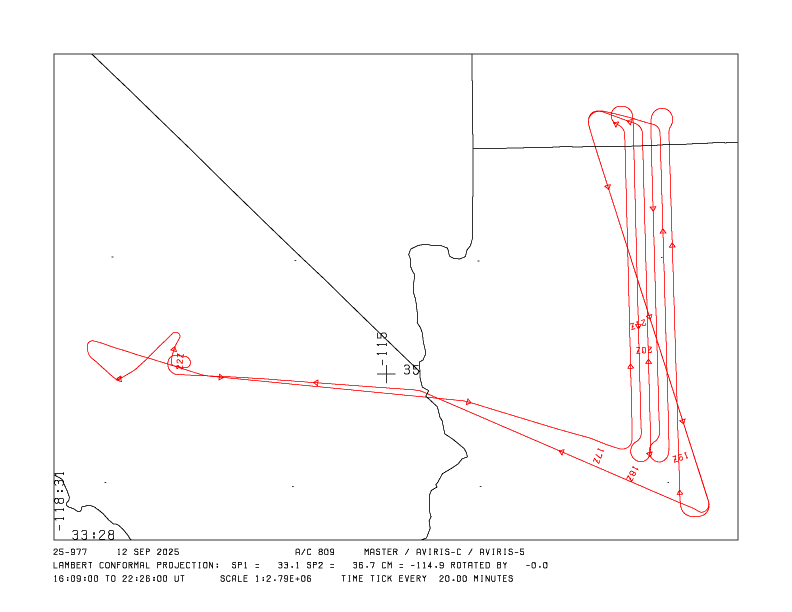

Flight Track Map
track map thumbnail Click map
Flight: 25-977-00
 Date: 12 Sep 2025
Aircraft: NASA ER-2 #809
Campaign: GEMx 2025
Flight Location: Eastern Arizona (AZ02)
Principal Investigators: Kokaly (USGS)
Additional Sensors: AVIRIS-C / AVIRIS-5
Data Evaluation
Overall quality is fair
BB1 temperature oscillates
Processing Information
Level-1B Data in HDF format is available
Flight Line Summary
Spectral Band Configuration
Spectral Response Function Table
Spectral Response Function (text)

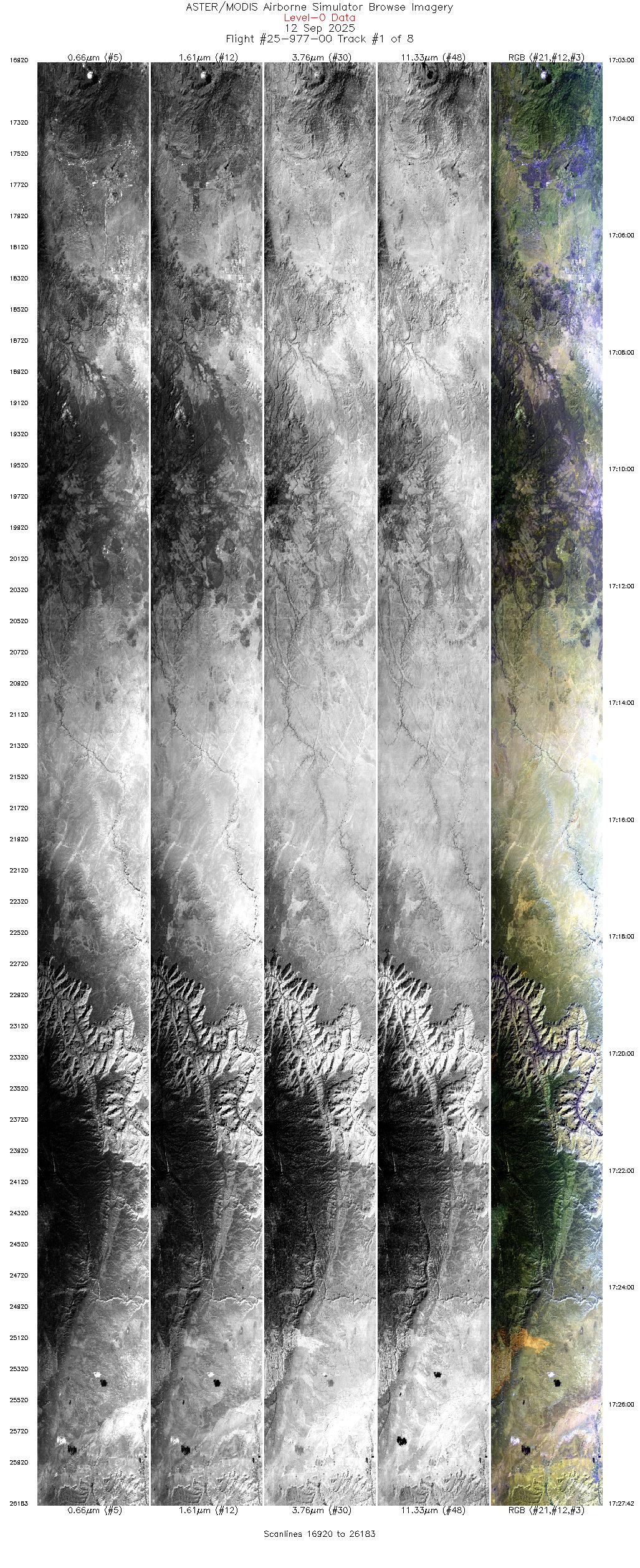

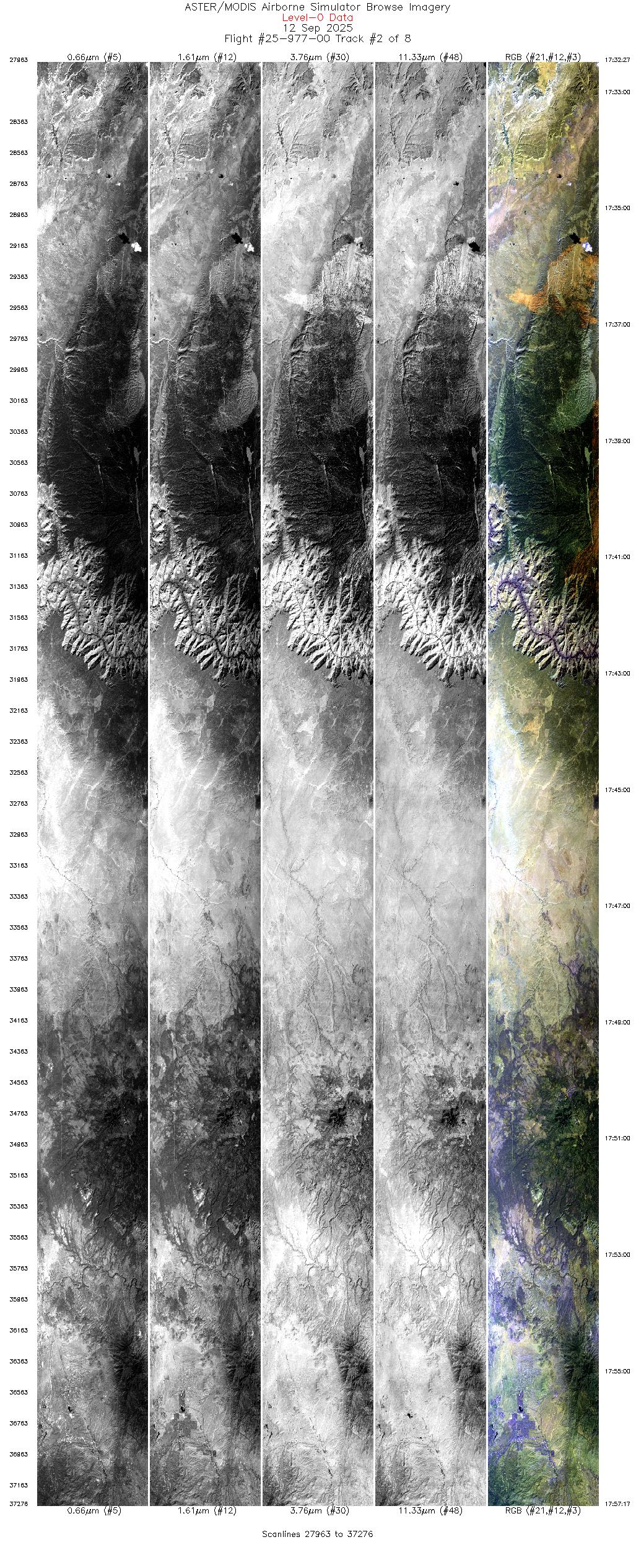

Browse Imagery
Flight Tracks: 8
Scanlines: 81621
Browse Imagery Table
Click a Flight Track number to view a quicklook image
Lat/Lon ranges are for the BEG-END scanline nadir pixels
Flight
Track		 Time Span
(UTC)		 Heading
(Deg)		 Lat Range
(Deg N)		 Lon Range
(Deg W)		 Length
(Scanlines)		 Altitude
(Meters)
1 17:03 - 17:27 1.8 34.393 - 37.097 112.367 - 112.362 9264 20255
2 17:32 - 17:57 179.2 37.250 - 34.453 112.267 - 112.266 9314 20216

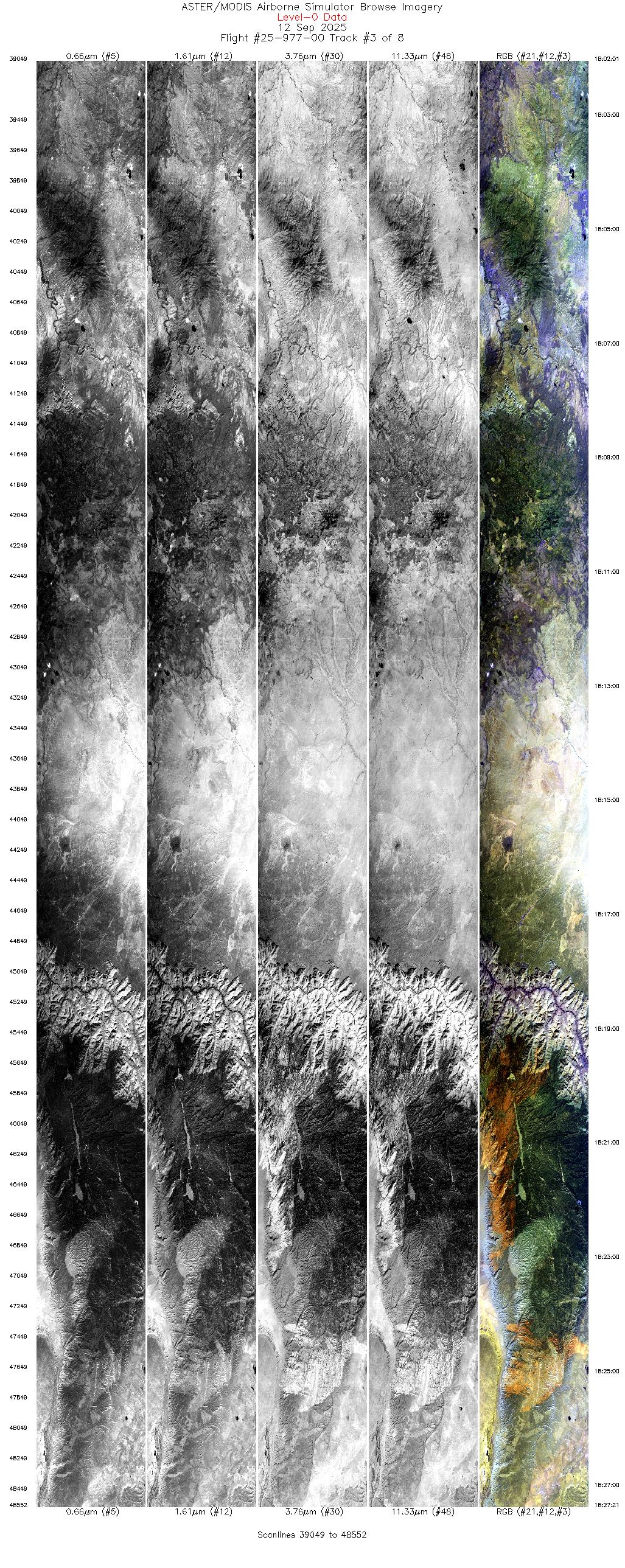

3 18:02 - 18:27 2.6 34.328 - 37.099 112.171 - 112.166 9504 20153

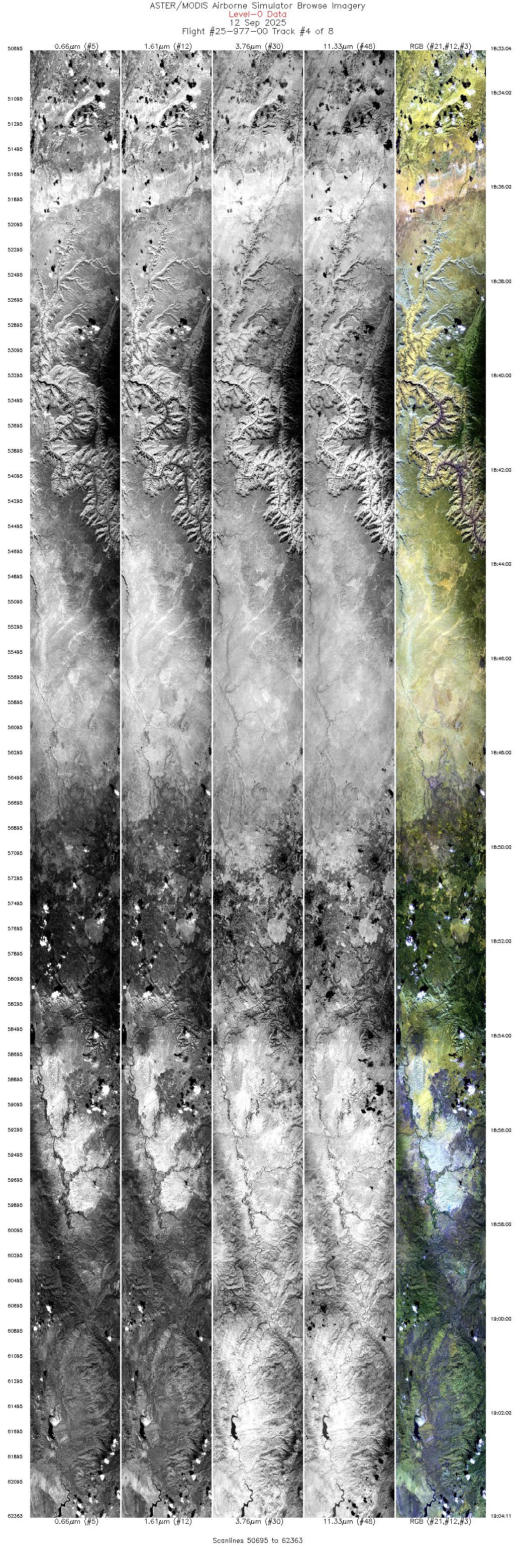

4 18:33 - 19:04 165.2 37.181 - 33.827 112.755 - 111.571 11669 20186

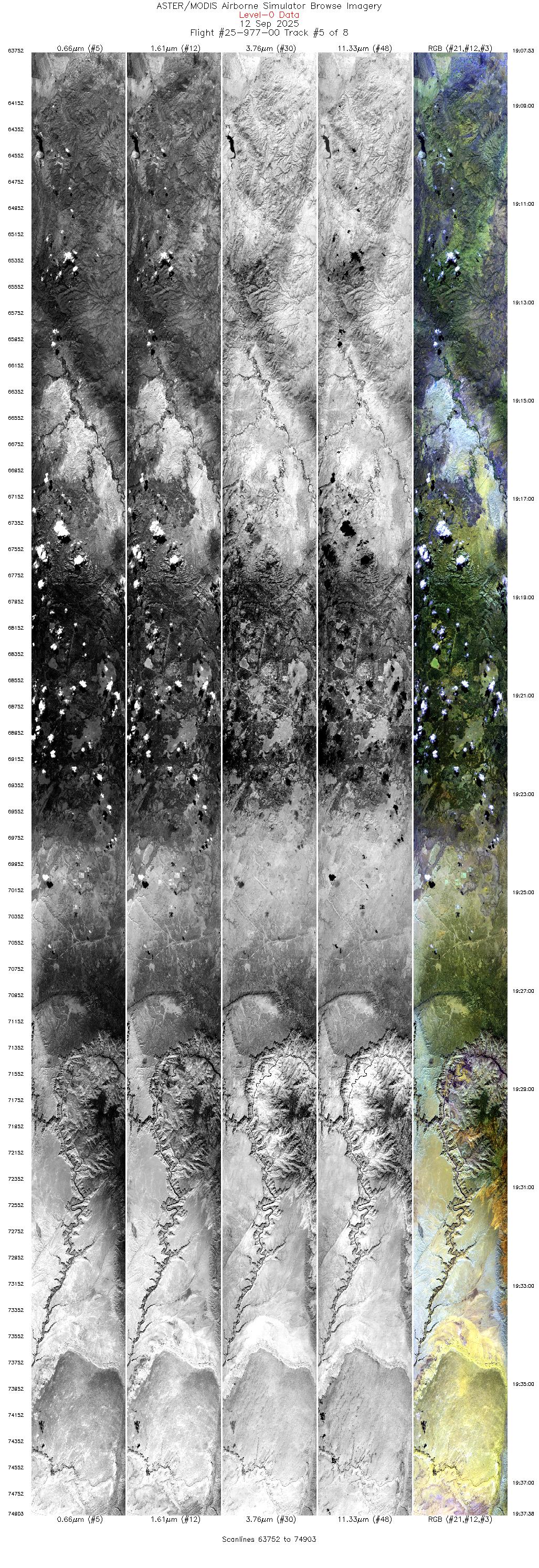

5 19:07 - 19:37 359.0 33.804 - 37.097 111.870 - 111.873 11152 20163

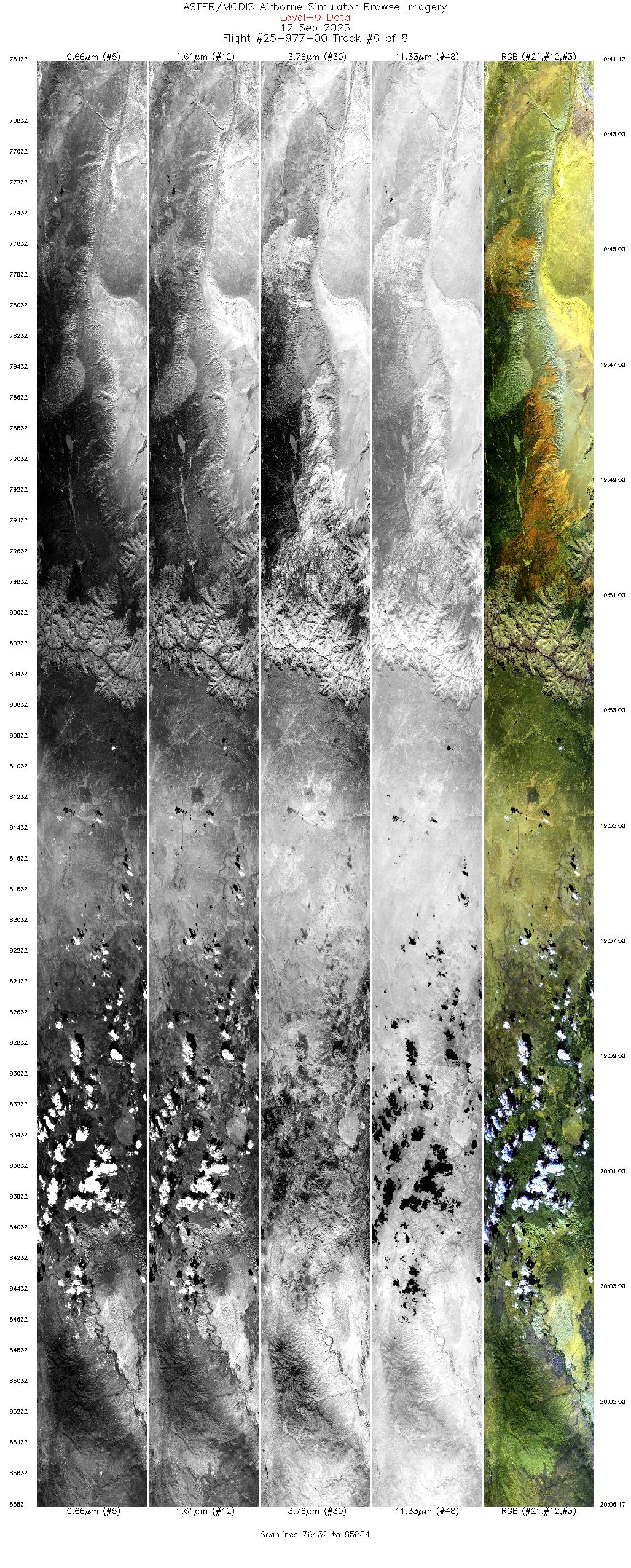

6 19:41 - 20:06 181.1 37.208 - 34.452 112.068 - 112.071 9403 20194

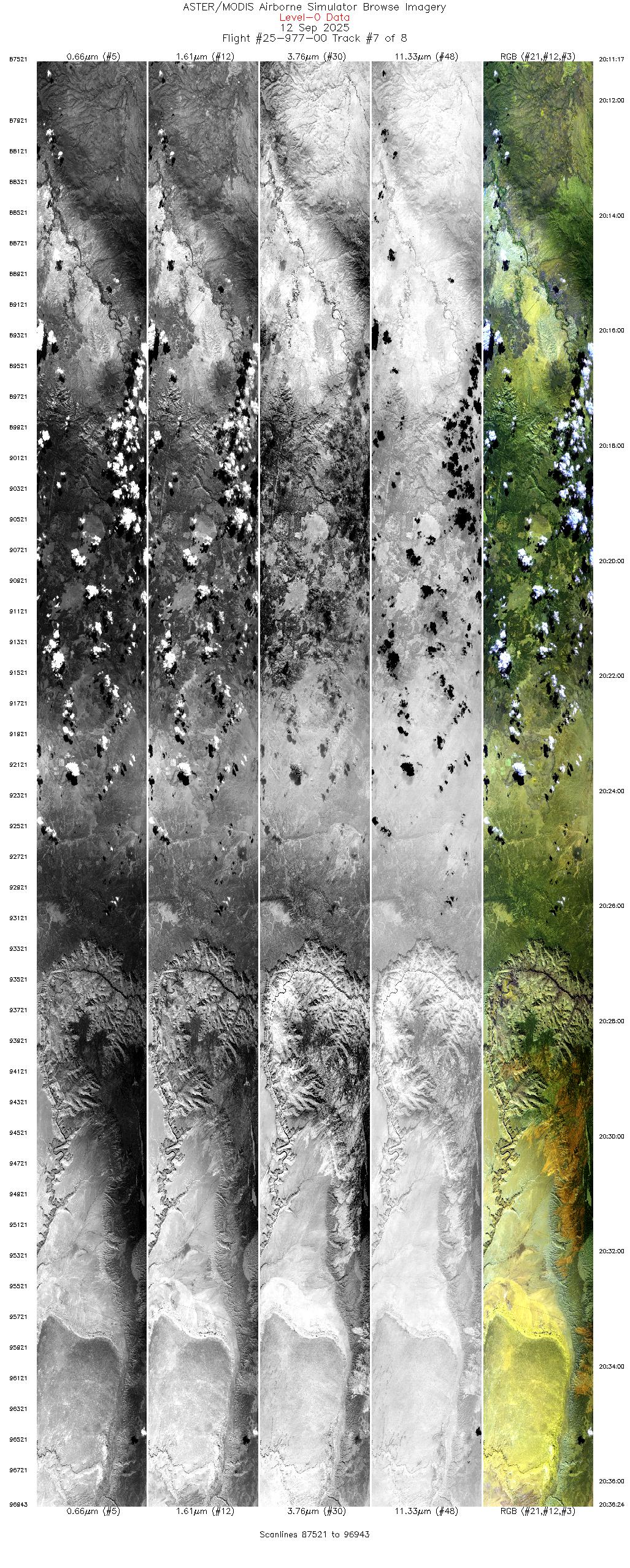

7 20:11 - 20:36 2.4 34.292 - 37.098 111.975 - 111.971 9423 20178

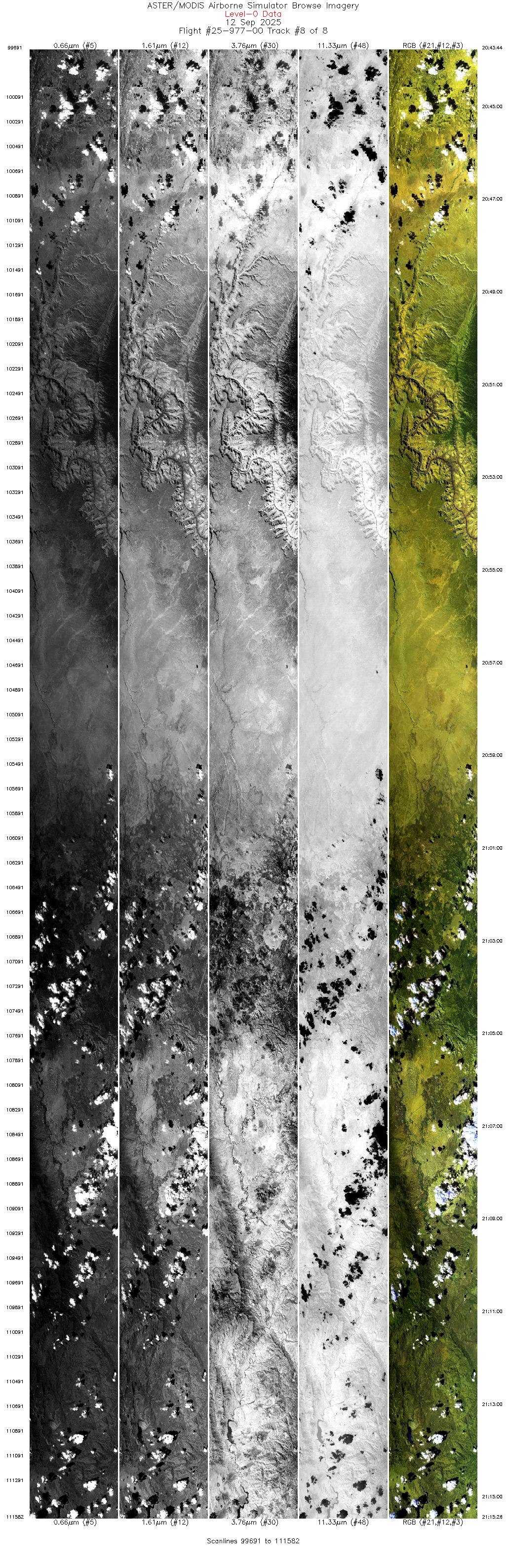

8 20:43 - 21:15 165.7 37.177 - 33.828 112.752 - 111.572 11892 20130
View all Quicklooks in sequence
page title background image

Flight 25-977-00

  • + HOME
  • + CAMPAIGNS
  • - MISSIONS
  • + ORDER DATA
  • + IMAGE GALLERY
  • + REFERENCE
  • + CONTACT US
Sample Imagery
Click image for full resolution
Track: #06
Dragon Bravo Fire Scar /
Grand Canyon, AZ
Click to load the full resolution image Flight Direction Indicator
R: 2.13µm
G: 1.61µm
B: 0.47µm
