FLIGHT SUMMARY INFORMATION

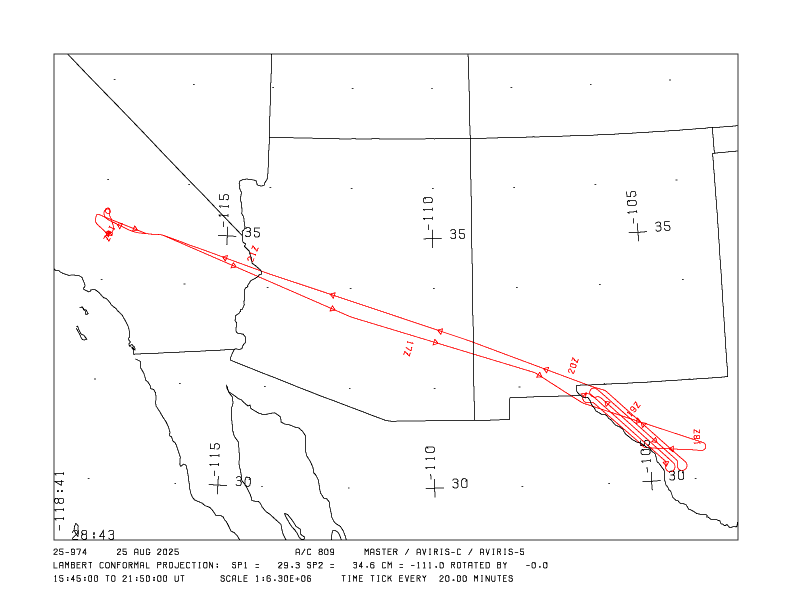

Flight Track Map
track map thumbnail Click map
Flight: 25-974-00
 Date: 25 Aug 2025
Aircraft: NASA ER-2 #809
Campaign: GEMx 2025
Flight Location: Southwestern Texas (TX01)
Principal Investigators: Kokaly (USGS)
Additional Sensors: AVIRIS-C / AVIRIS-5
Data Evaluation
Overall quality is good
Processing Information
Level-1B Data in HDF format is available
Flight Line Summary
Spectral Band Configuration
Spectral Response Function Table
Spectral Response Function (text)
Browse Imagery
Flight Tracks: 6
Scanlines: 40246
Browse Imagery Table

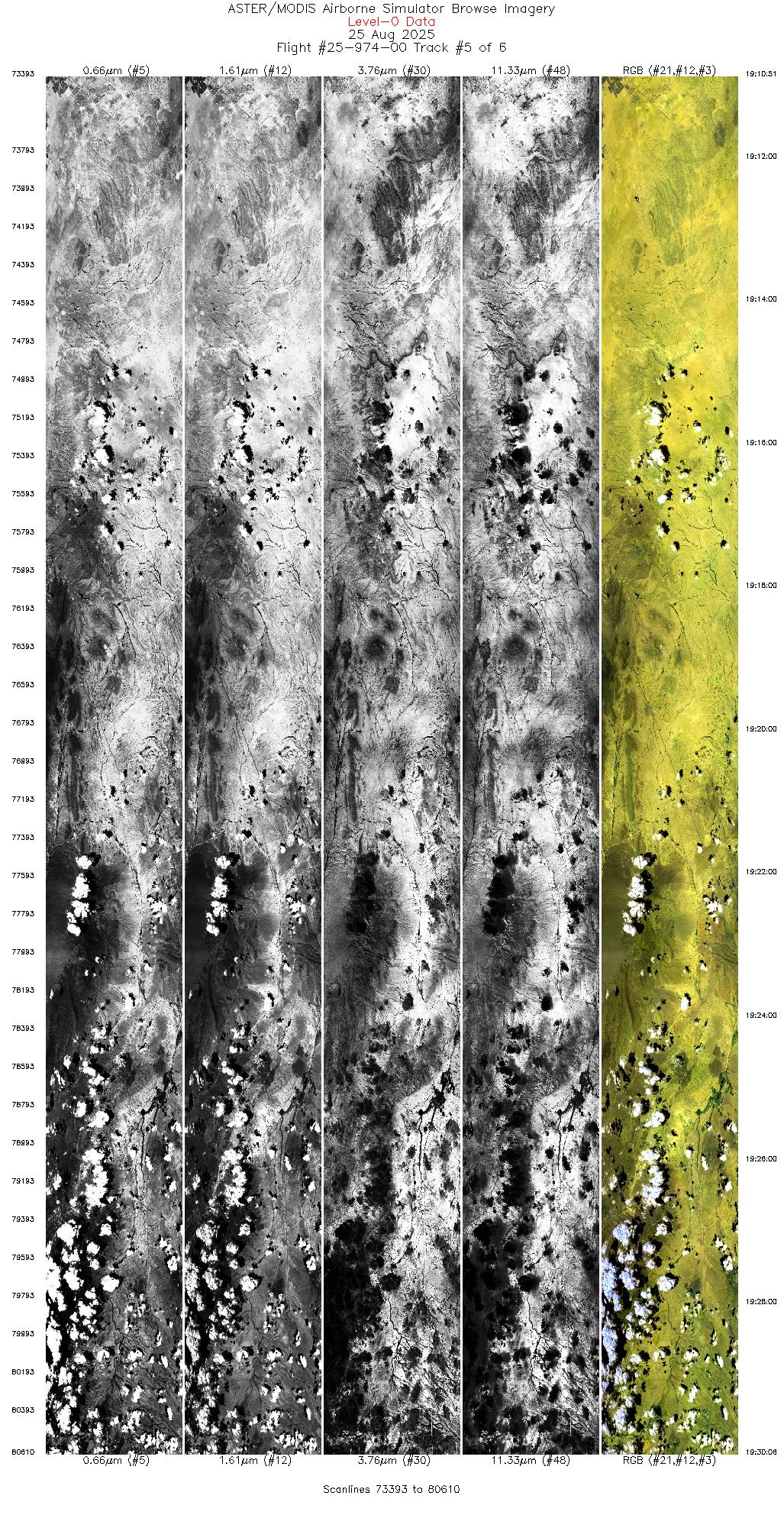

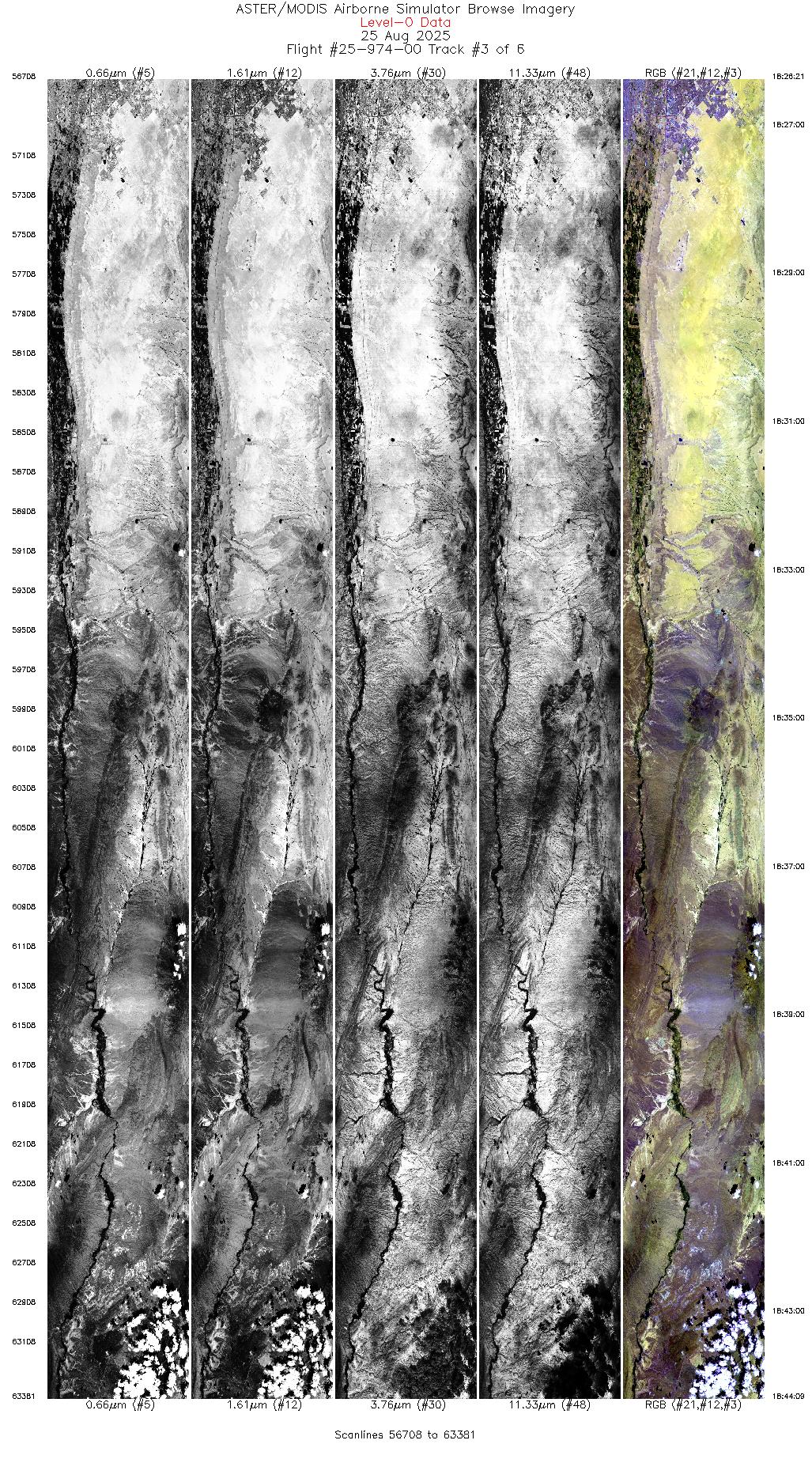

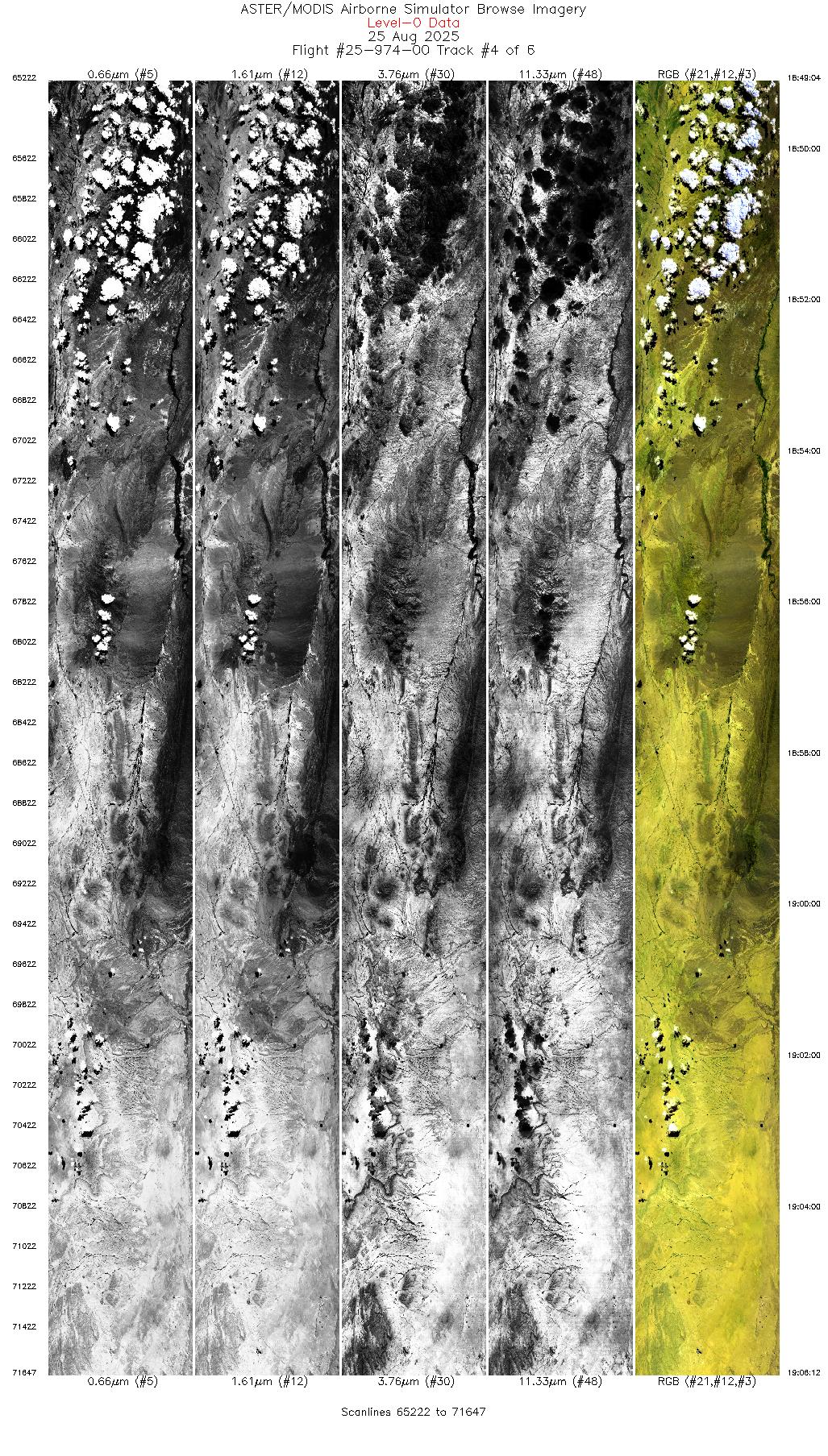

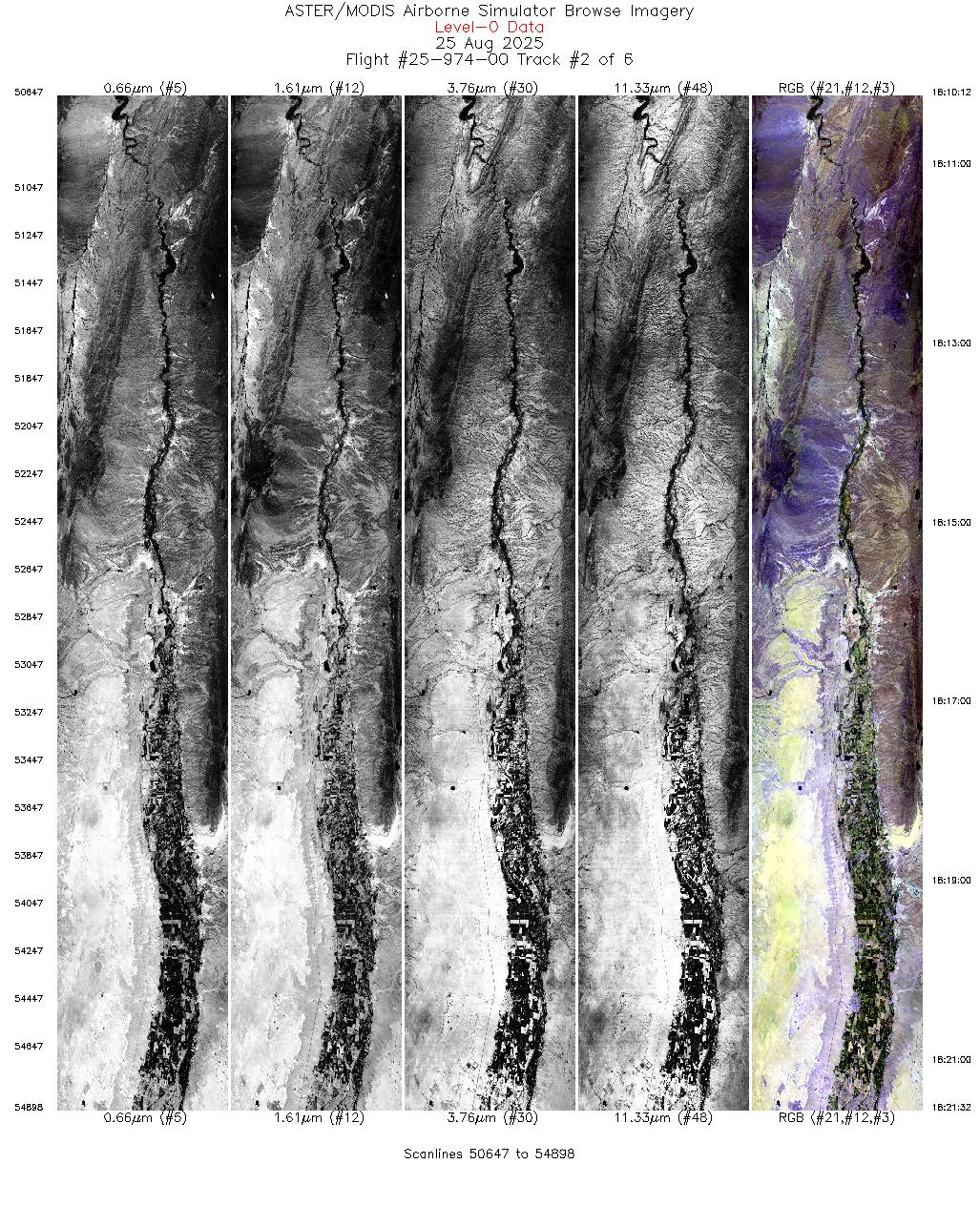

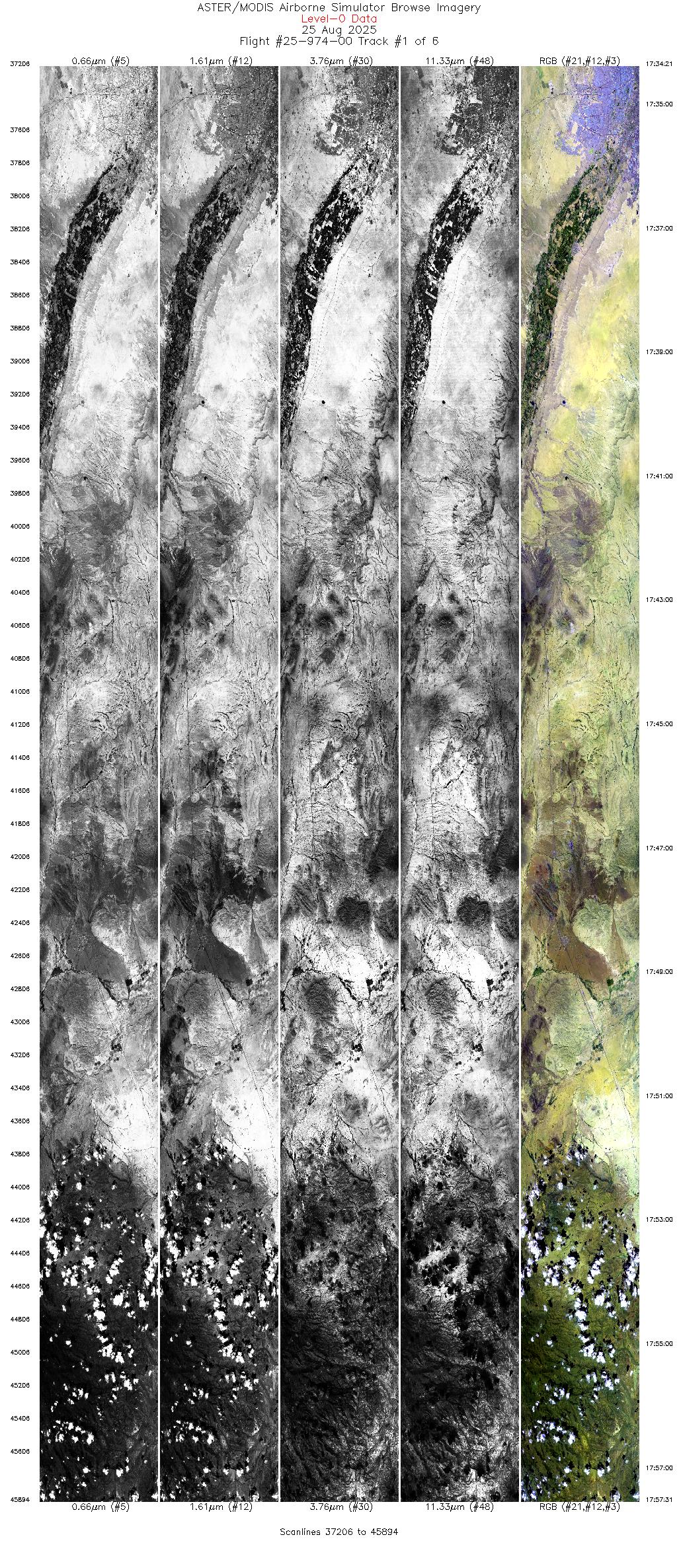

Click a Flight Track number to view a quicklook image
Lat/Lon ranges are for the BEG-END scanline nadir pixels
Flight
Track		 Time Span
(UTC)		 Heading
(Deg)		 Lat Range
(Deg N)		 Lon Range
(Deg W)		 Length
(Scanlines)		 Altitude
(Meters)
1 17:34 - 17:57 111.4 31.630 - 30.715 106.503 - 103.769 8689 20201
2 18:10 - 18:21 318.1 30.733 - 31.614 105.178 - 106.242 4252 20214
3 18:26 - 18:44 131.9 31.778 - 30.404 106.290 - 104.678 6674 20230
4 18:49 - 19:06 315.7 30.345 - 31.715 104.478 - 106.075 6426 20190
5 19:10 - 19:30 132.5 31.880 - 30.407 106.143 - 104.409 7218 20224
6 19:34 - 19:53 315.1 30.347 - 31.842 104.195 - 105.946 6987 20197

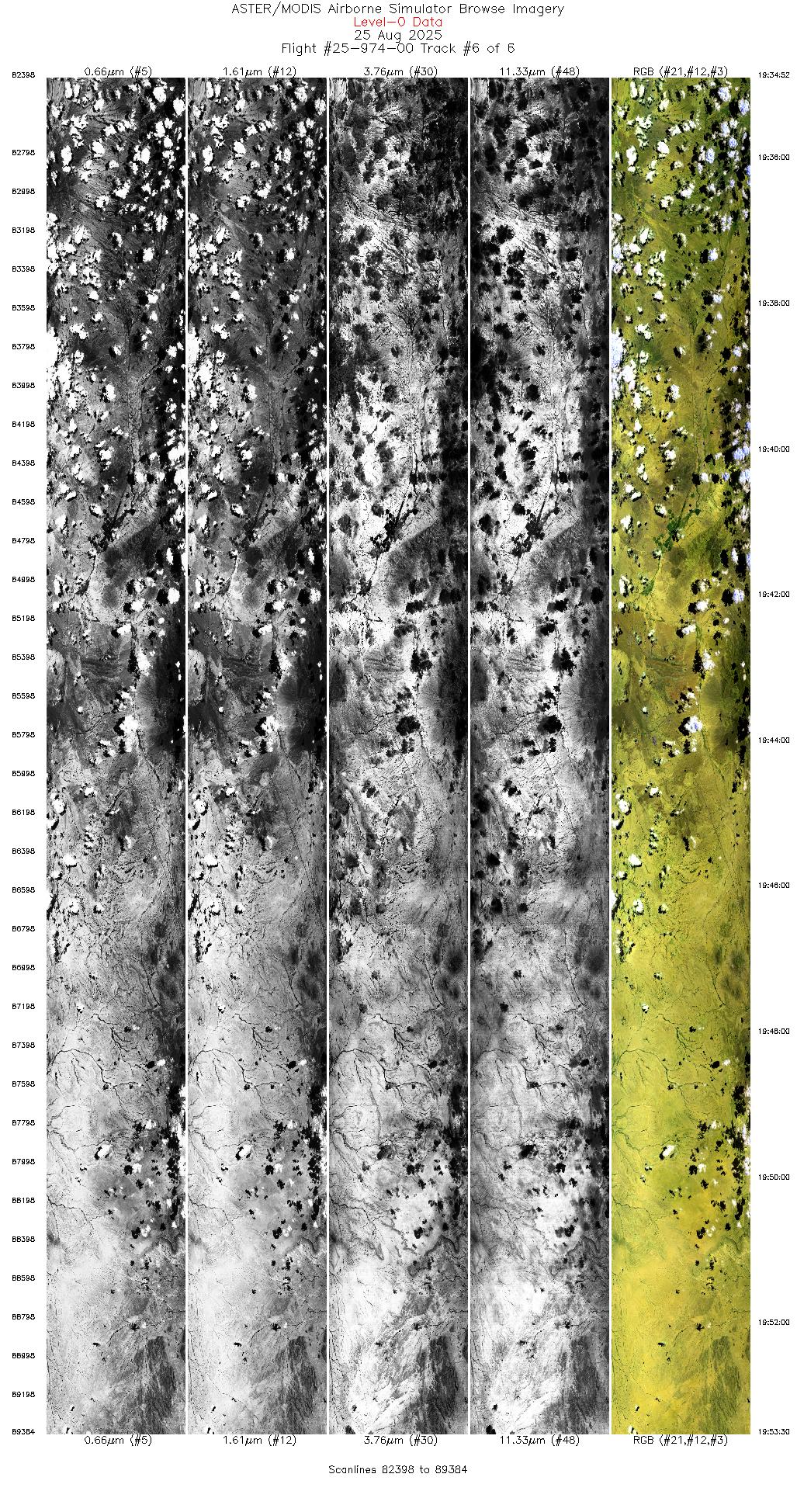

View all Quicklooks in sequence
page title background image

Flight 25-974-00

  • + HOME
  • + CAMPAIGNS
  • - MISSIONS
  • + ORDER DATA
  • + IMAGE GALLERY
  • + REFERENCE
  • + CONTACT US
Sample Imagery
Click image for full resolution
Track: #02
Rio Grande River
(Texas / Mexico border)
Click to load the full resolution image Flight Direction Indicator
R: 2.13µm
G: 1.61µm
B: 0.47µm
