FLIGHT SUMMARY INFORMATION

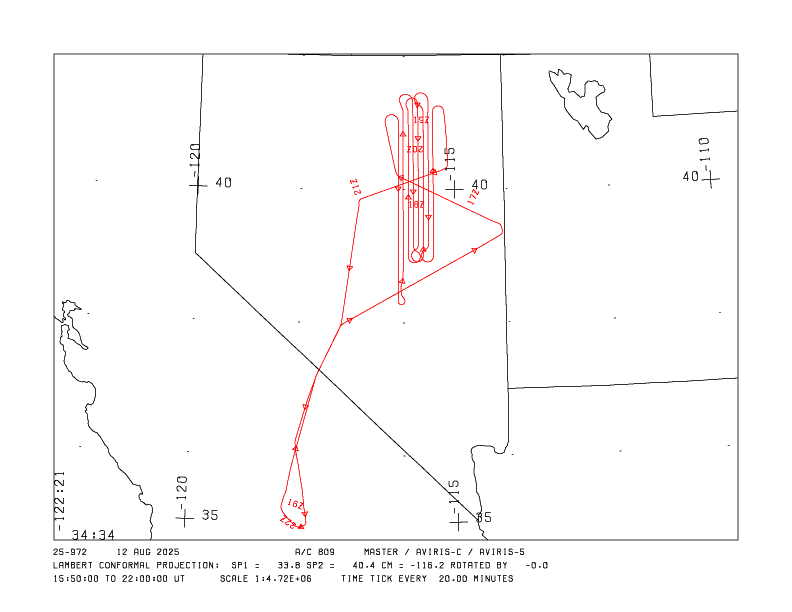

Flight Track Map
track map thumbnail Click map
Flight: 25-972-00
 Date: 12 Aug 2025
Aircraft: NASA ER-2 #809
Campaign: GEMx 2025
Flight Location: Central Nevada (NV14)
Principal Investigators: Kokaly (USGS)
Additional Sensors: AVIRIS-C / AVIRIS-5
Data Evaluation
Overall quality is good
Processing Information
Level-1B Data in HDF format is available
Flight Line Summary
Spectral Band Configuration
Spectral Response Function Table
Spectral Response Function (text)
Browse Imagery
Flight Tracks: 10
Scanlines: 71335
Browse Imagery Table
Click a Flight Track number to view a quicklook image
Lat/Lon ranges are for the BEG-END scanline nadir pixels
Flight
Track		 Time Span
(UTC)		 Heading
(Deg)		 Lat Range
(Deg N)		 Lon Range
(Deg W)		 Length
(Scanlines)		 Altitude
(Meters)

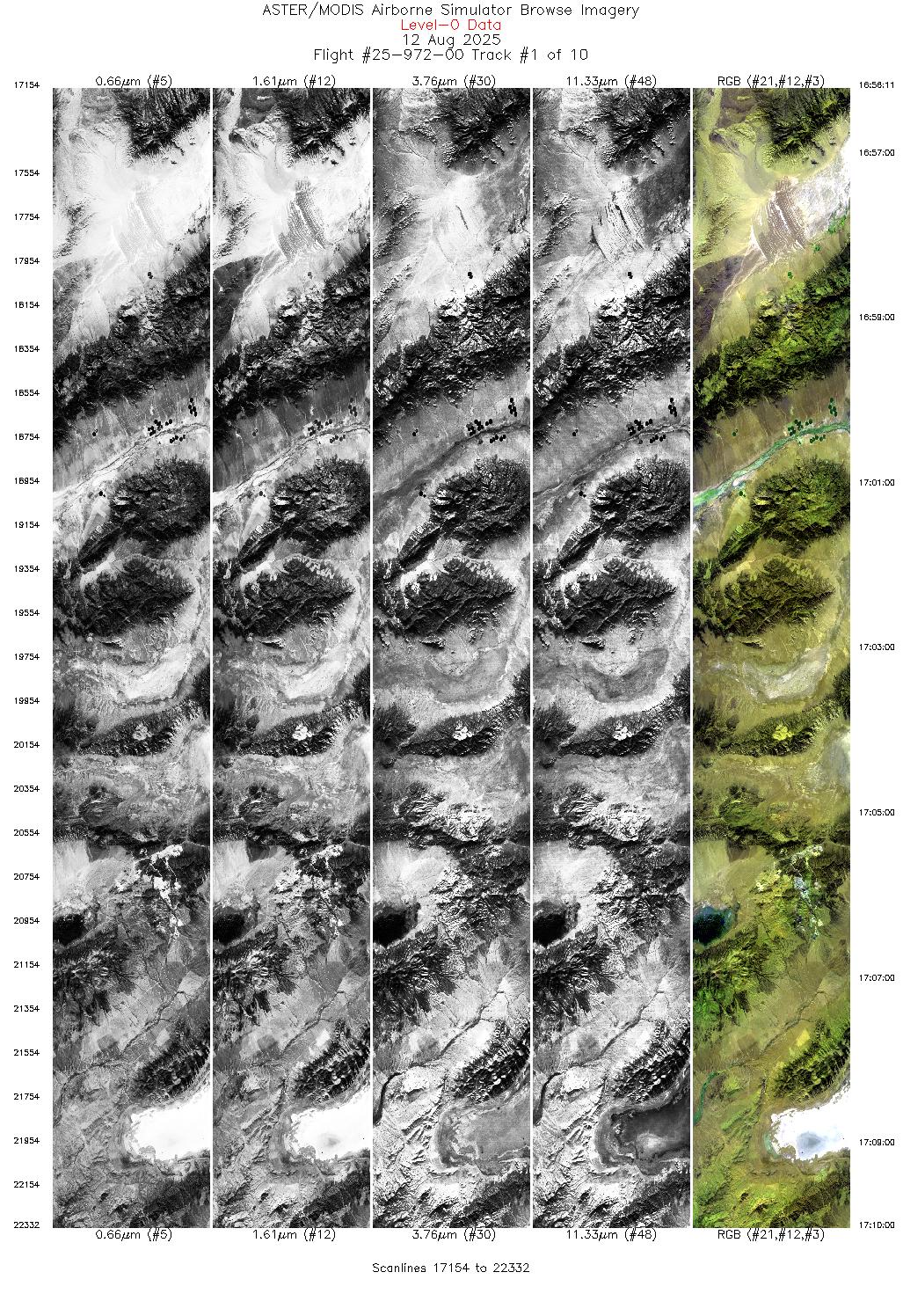

1 16:56 - 17:10 293.5 39.495 - 40.188 114.210 - 116.057 5179 20300

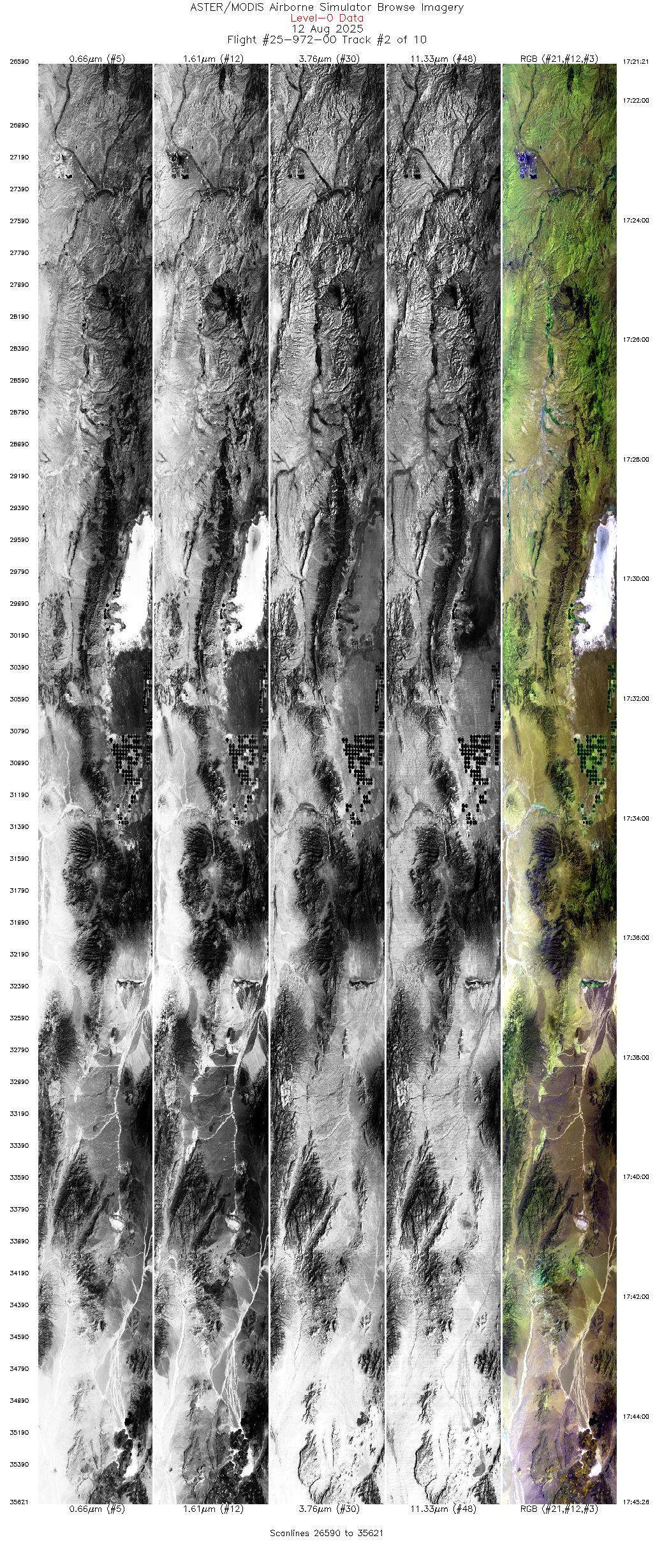

2 17:21 - 17:45 177.8 40.965 - 38.333 116.091 - 116.100 9032 20280

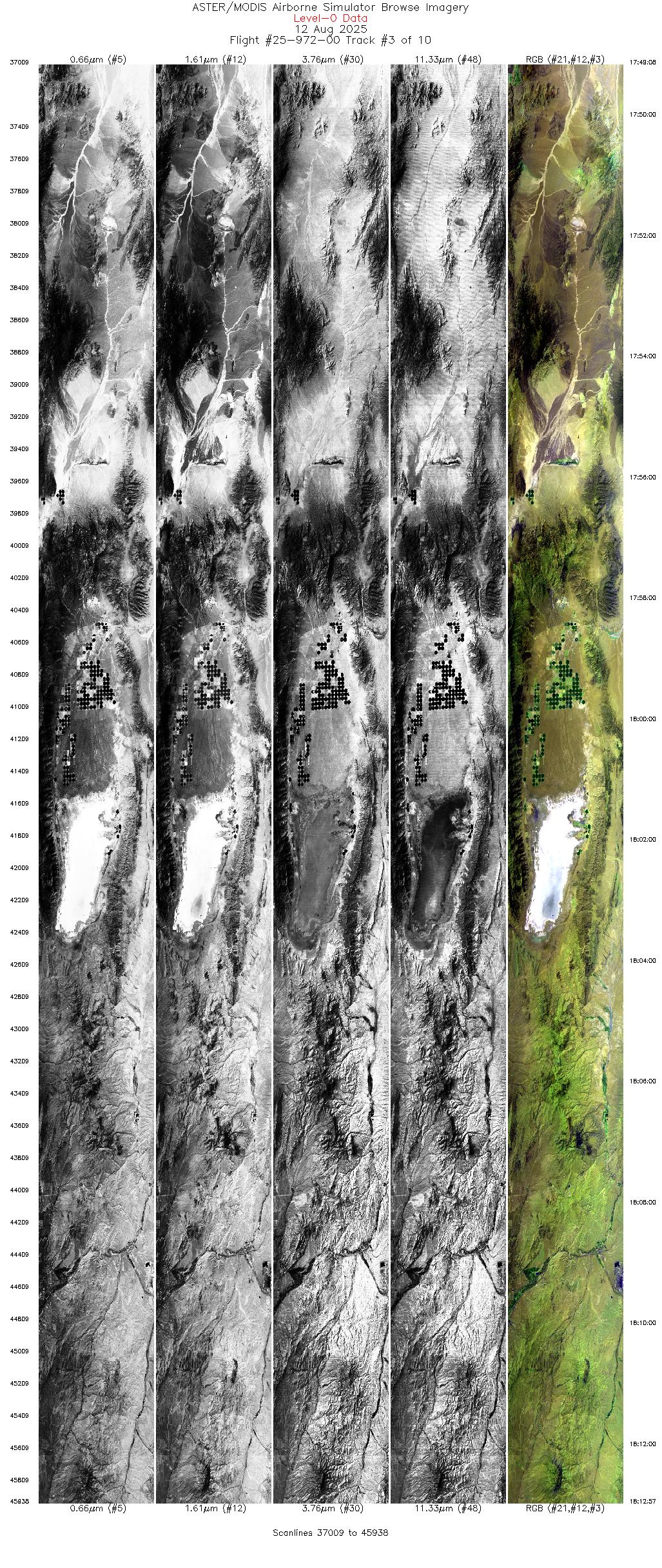

3 17:49 - 18:12 9.3 38.548 - 41.165 116.042 - 116.002 8930 20249

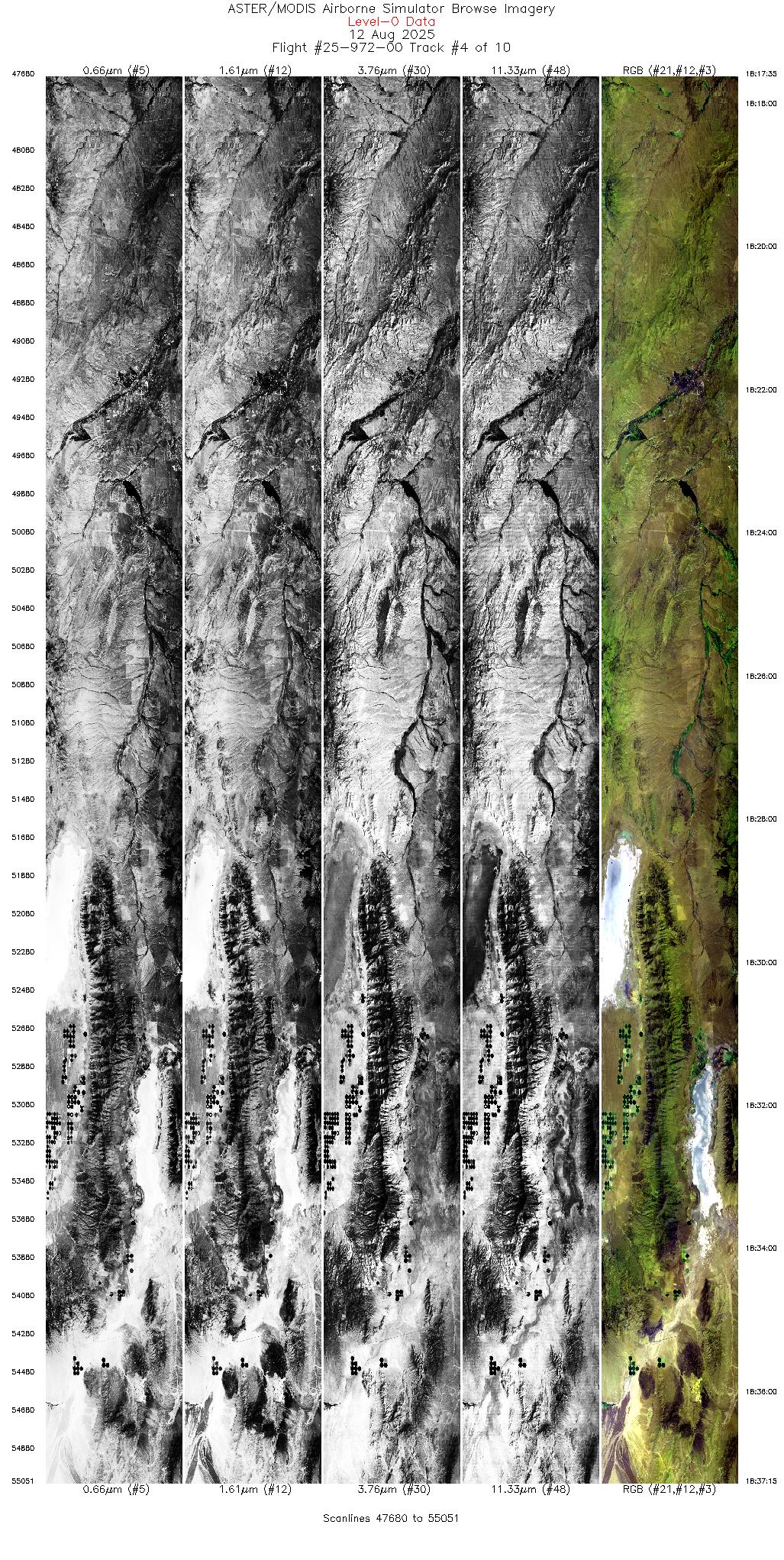

4 18:17 - 18:37 177.4 41.315 - 39.159 115.811 - 115.804 7372 20253

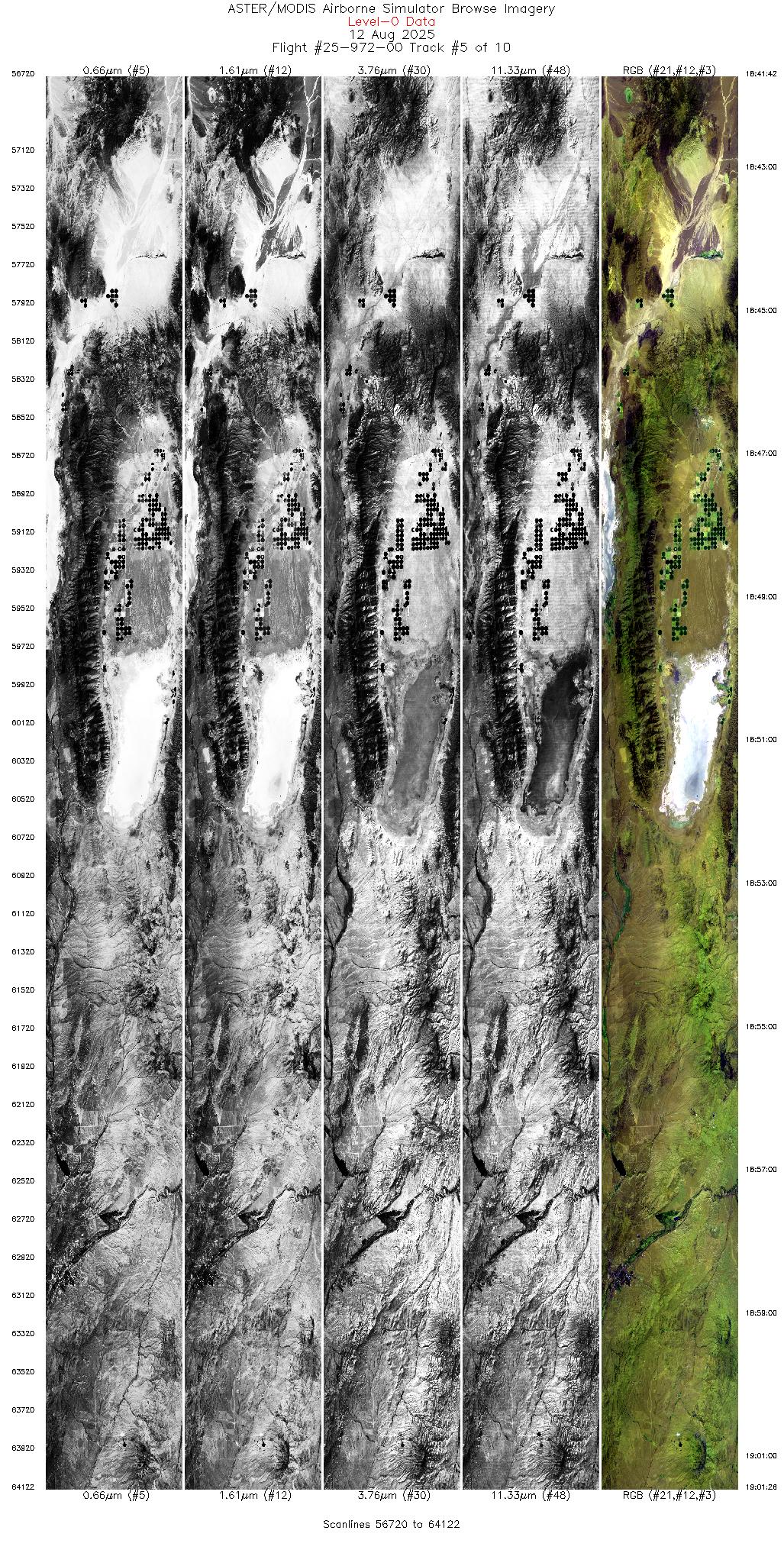

5 18:41 - 19:01 4.2 38.991 - 41.168 115.898 - 115.901 7403 20257

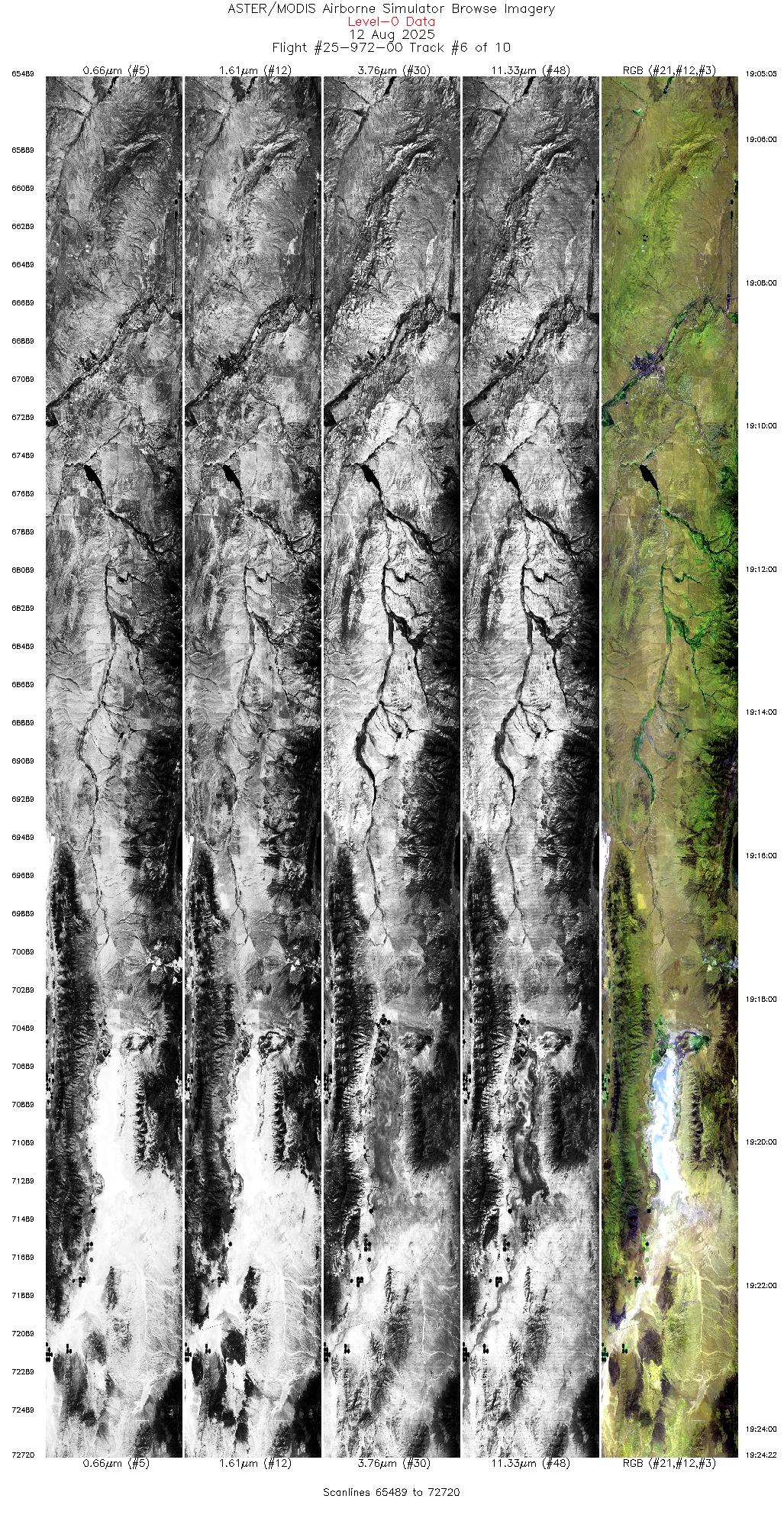

6 19:05 - 19:24 176.5 41.286 - 39.184 115.716 - 115.708 7232 20271

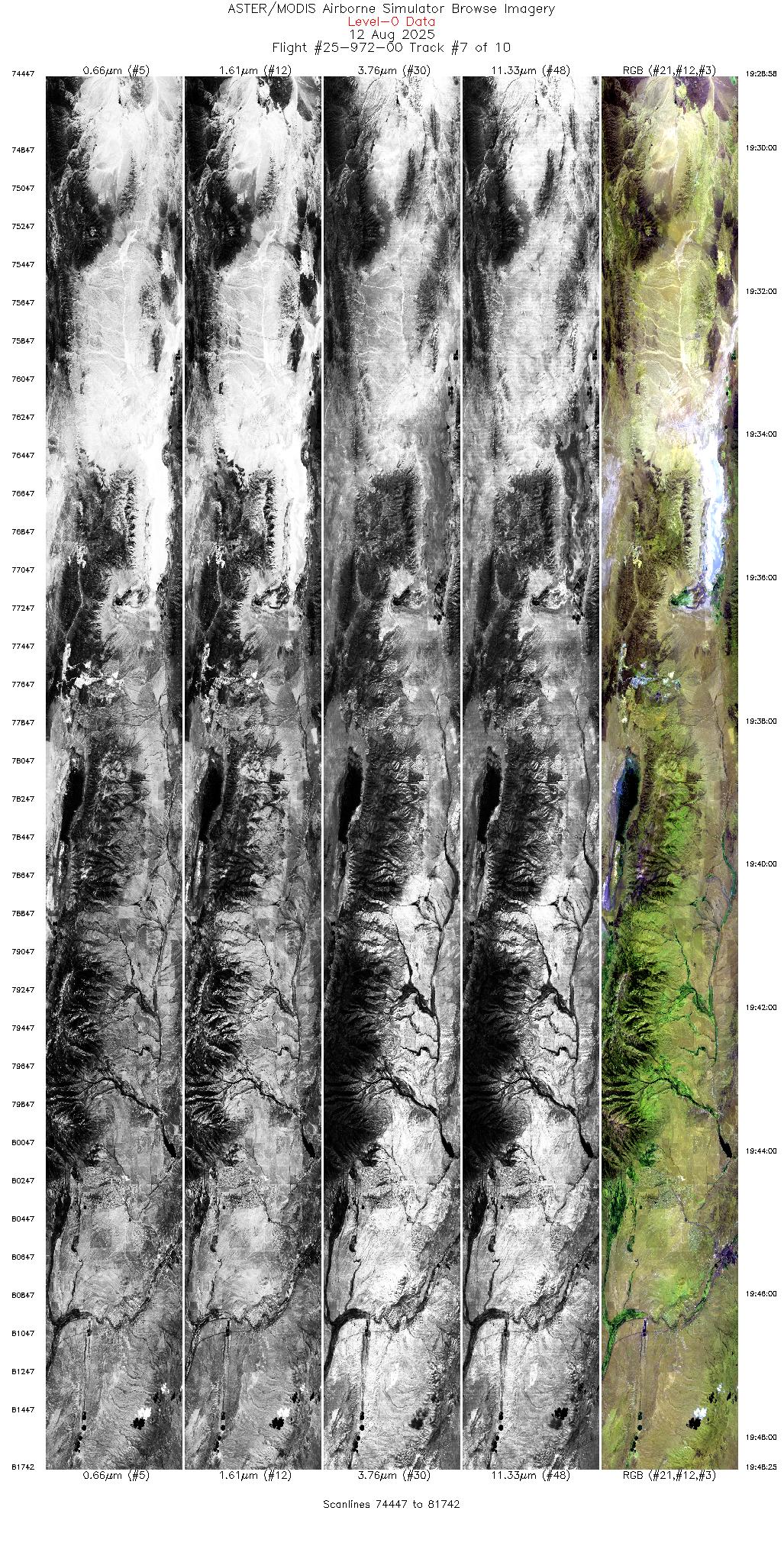

7 19:28 - 19:48 0.0 39.010 - 41.164 115.616 - 115.605 7296 20242

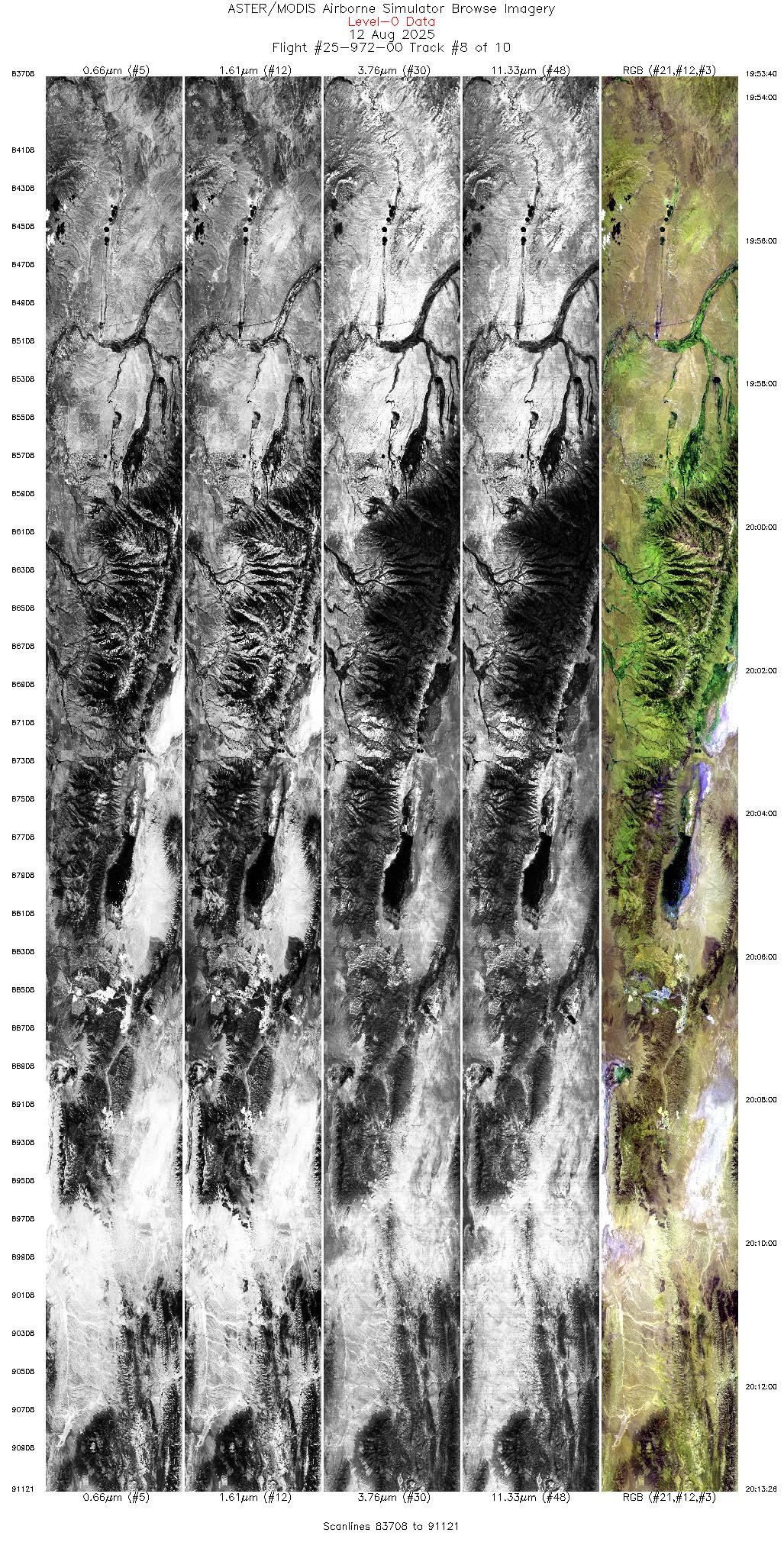

8 19:53 - 20:13 176.4 41.331 - 39.187 115.507 - 115.511 7414 20274

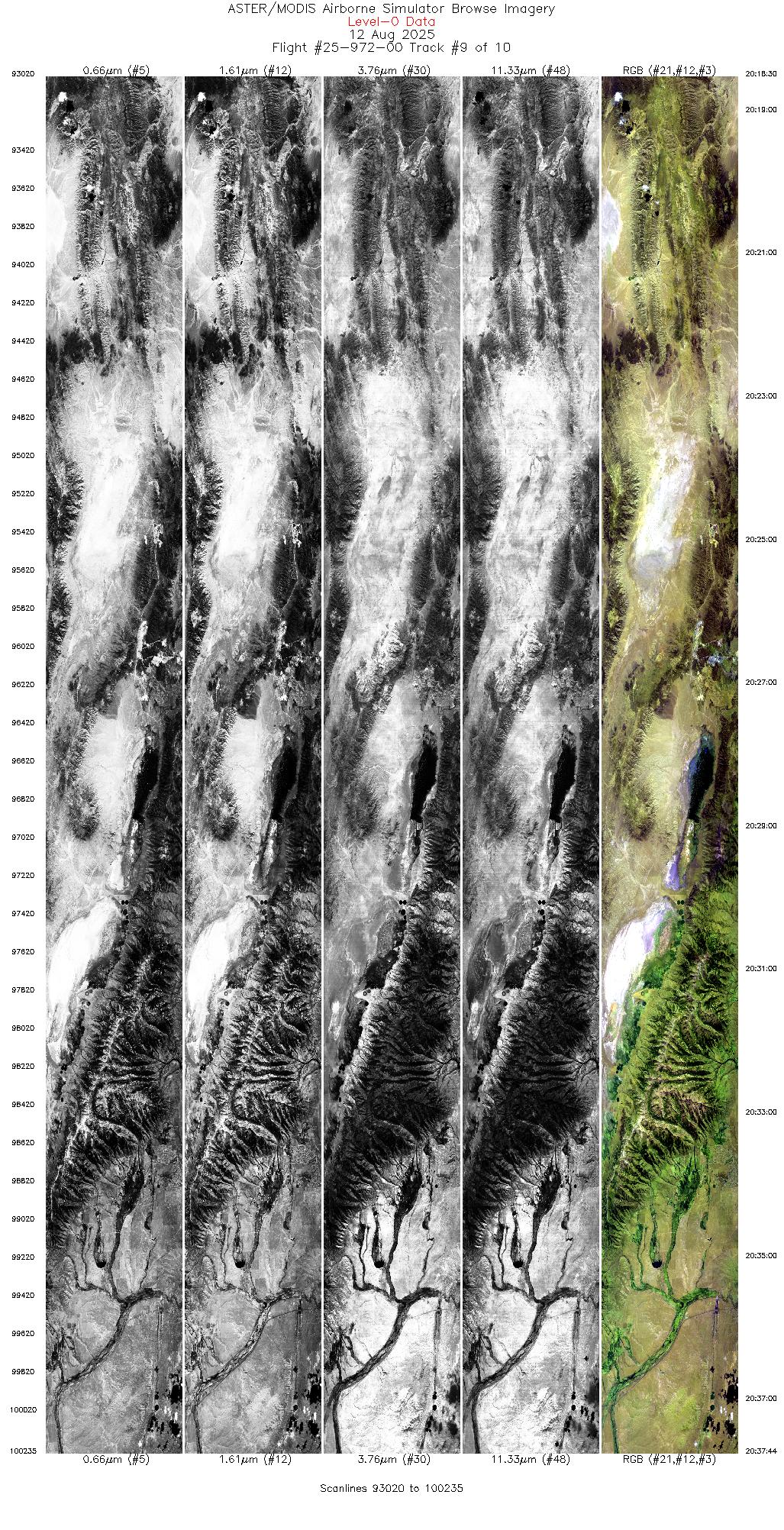

9 20:18 - 20:37 359.5 39.046 - 41.166 115.415 - 115.418 7216 20281

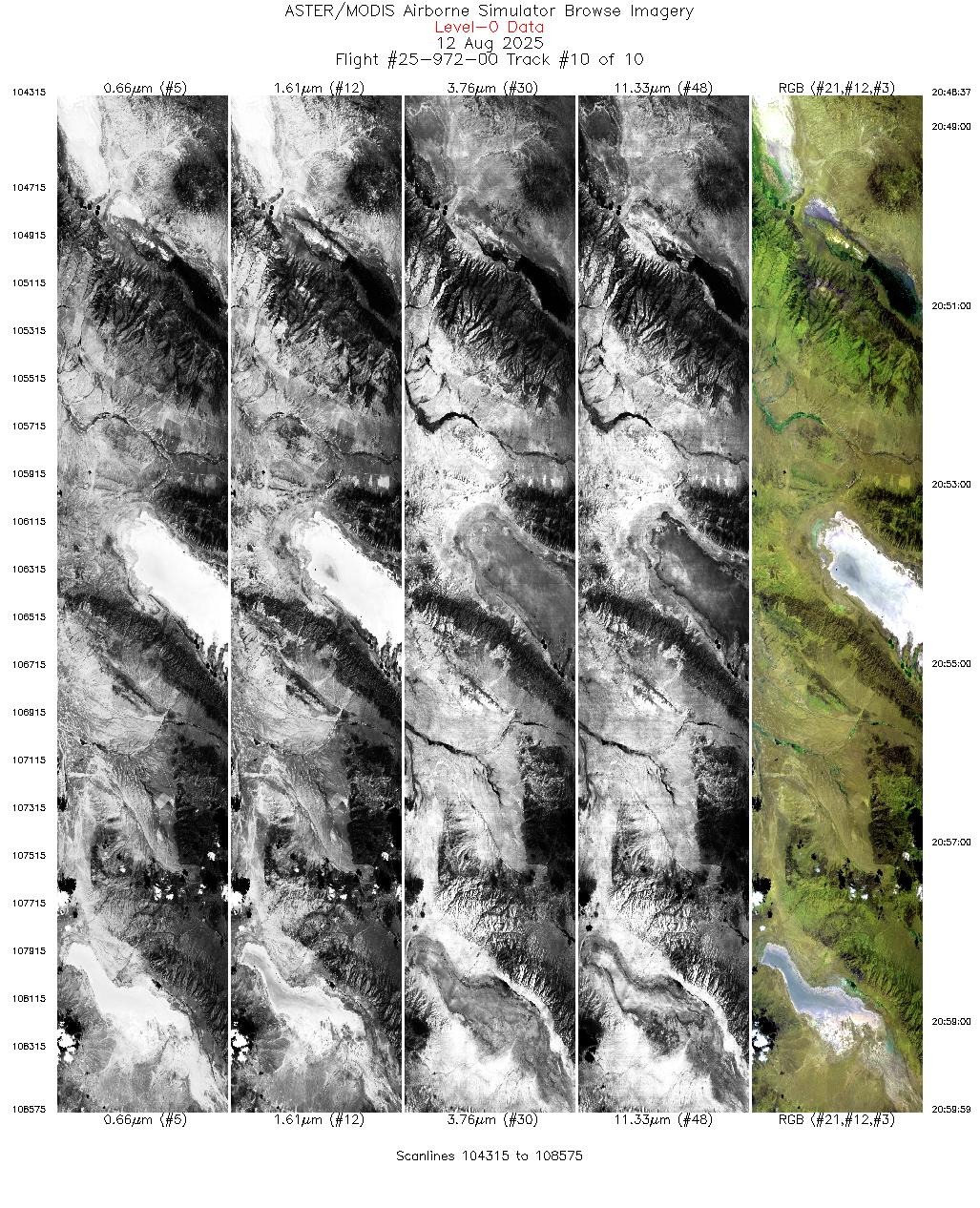

10 20:48 - 20:59 248.2 40.293 - 39.867 115.237 - 116.799 4261 20240
View all Quicklooks in sequence
page title background image

Flight 25-972-00

  • + HOME
  • + CAMPAIGNS
  • - MISSIONS
  • + ORDER DATA
  • + IMAGE GALLERY
  • + REFERENCE
  • + CONTACT US
Sample Imagery
Click image for full resolution
Track: #01
Nevada
Click to load the full resolution image Flight Direction Indicator
R: 2.13µm
G: 1.61µm
B: 0.47µm
