FLIGHT SUMMARY INFORMATION

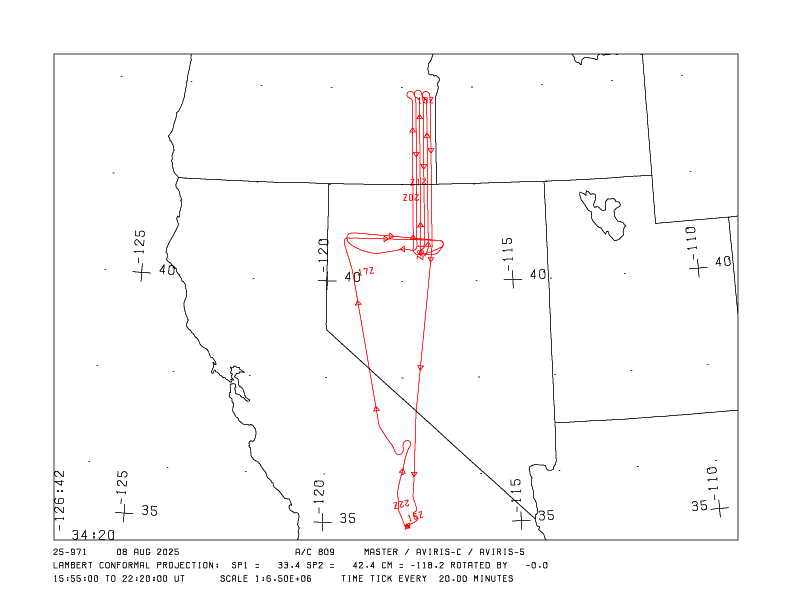

Flight Track Map
track map thumbnail Click map
Flight: 25-971-00
 Date: 08 Aug 2025
Aircraft: NASA ER-2 #809
Campaign: GEMx 2025
Flight Location: Western USA
Principal Investigators: Kokaly (USGS)
Additional Sensors: AVIRIS-C / AVIRIS-5
Data Evaluation
Overall quality is good
Processing Information
Level-1B Data in HDF format is available
Flight Line Summary
Spectral Band Configuration
Spectral Response Function Table
Spectral Response Function (text)

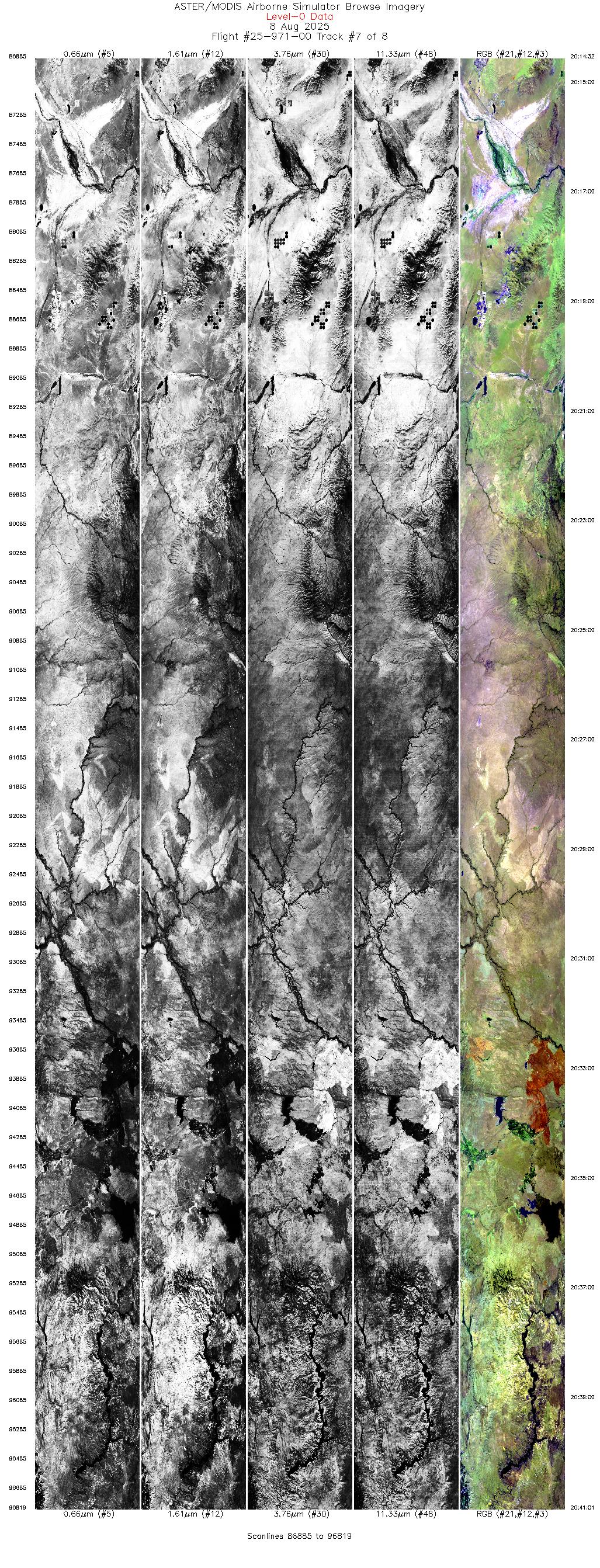

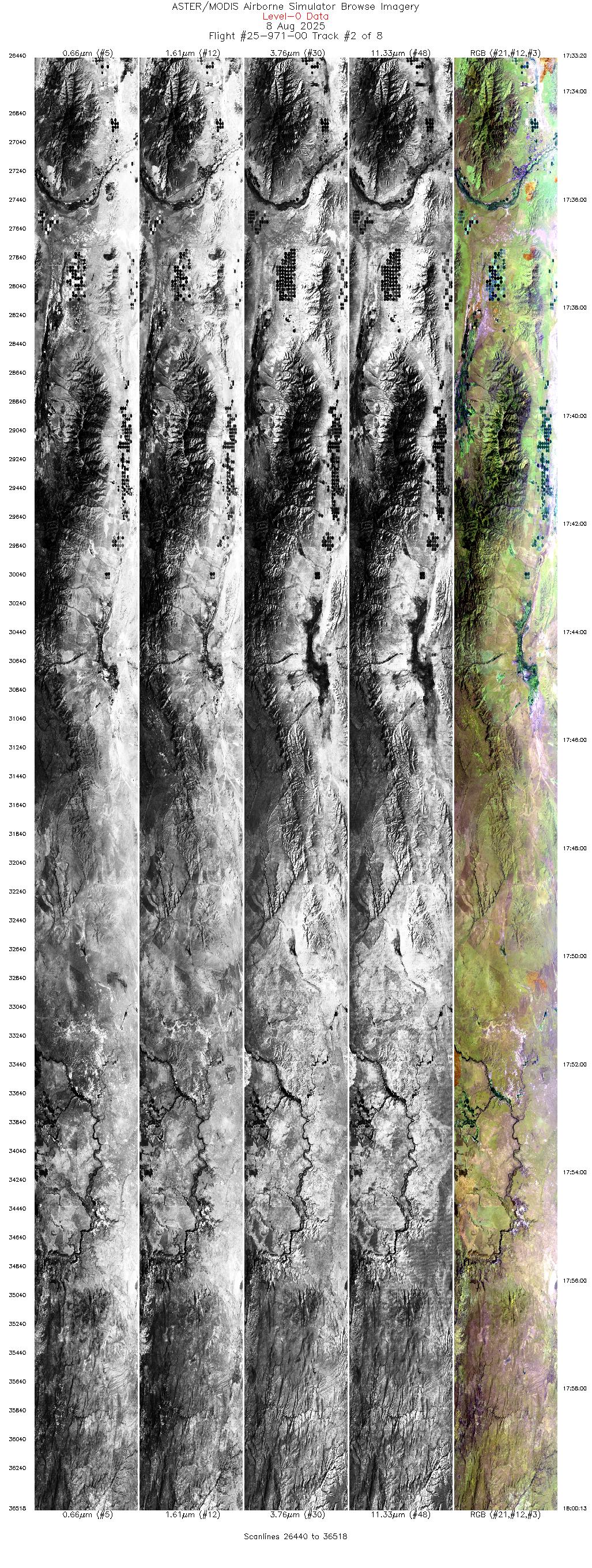

Browse Imagery
Flight Tracks: 8
Scanlines: 71201

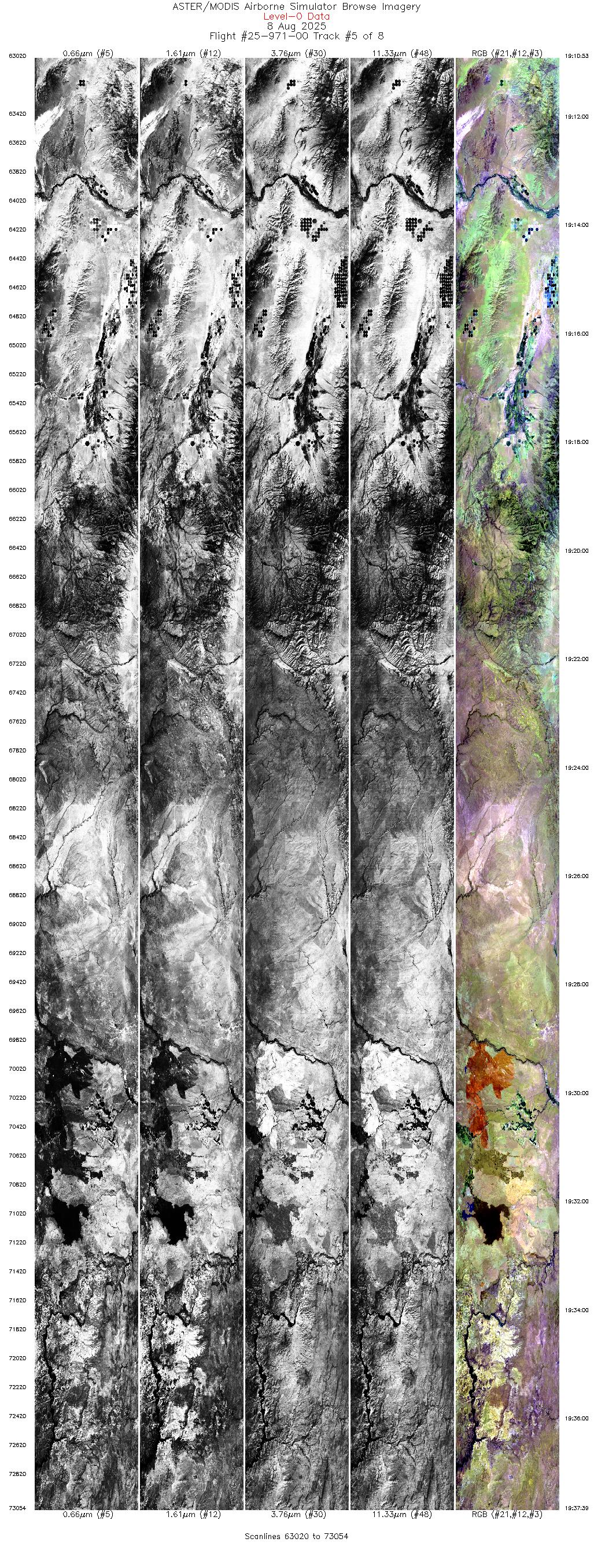

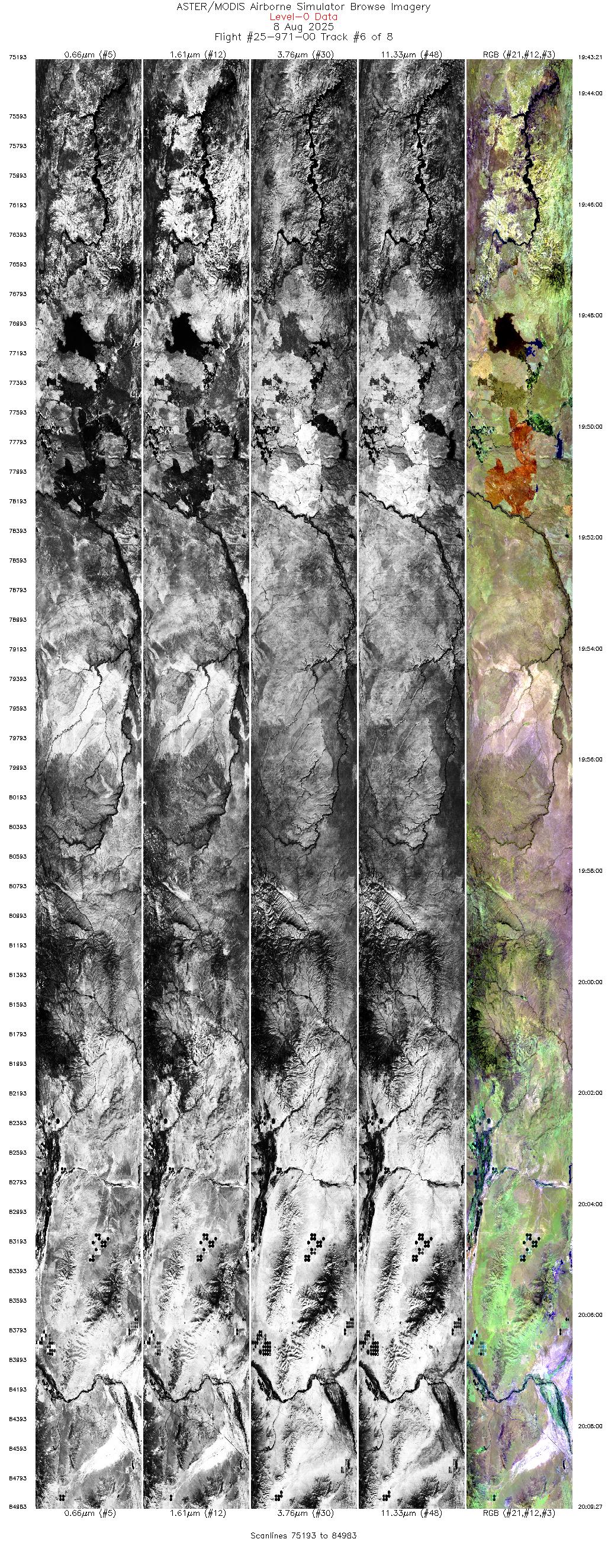

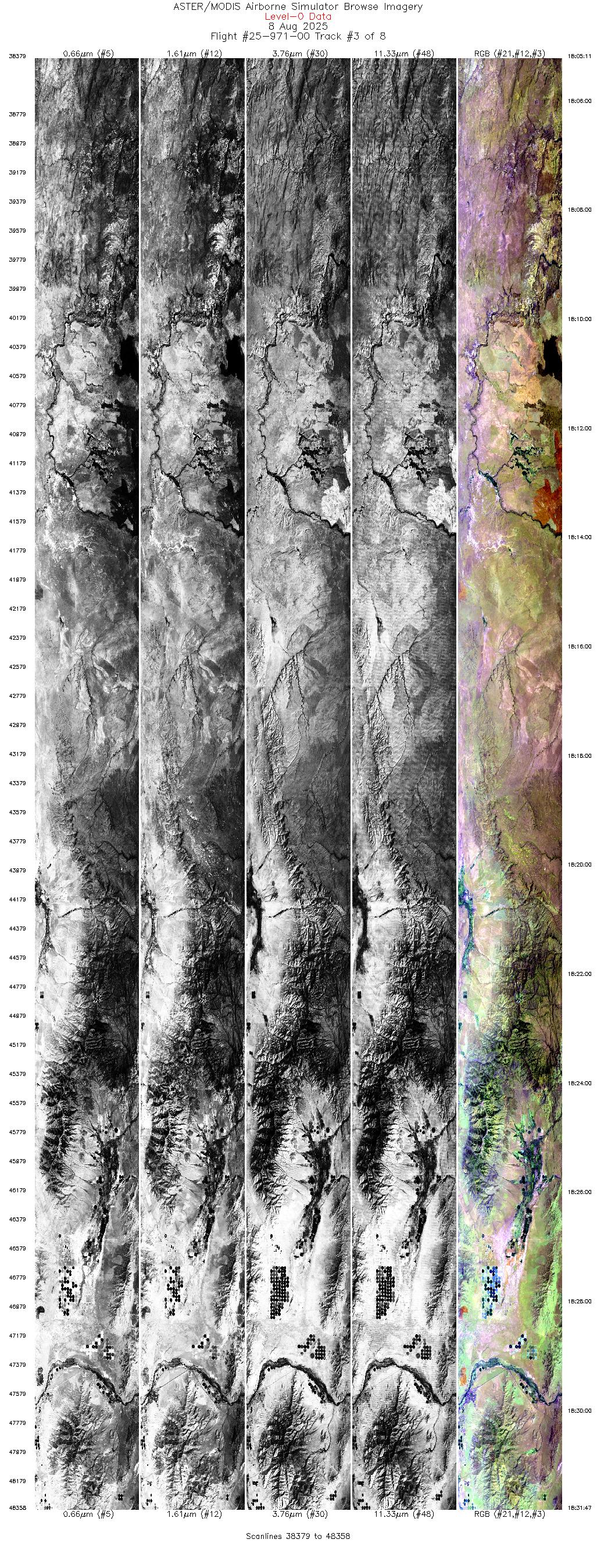

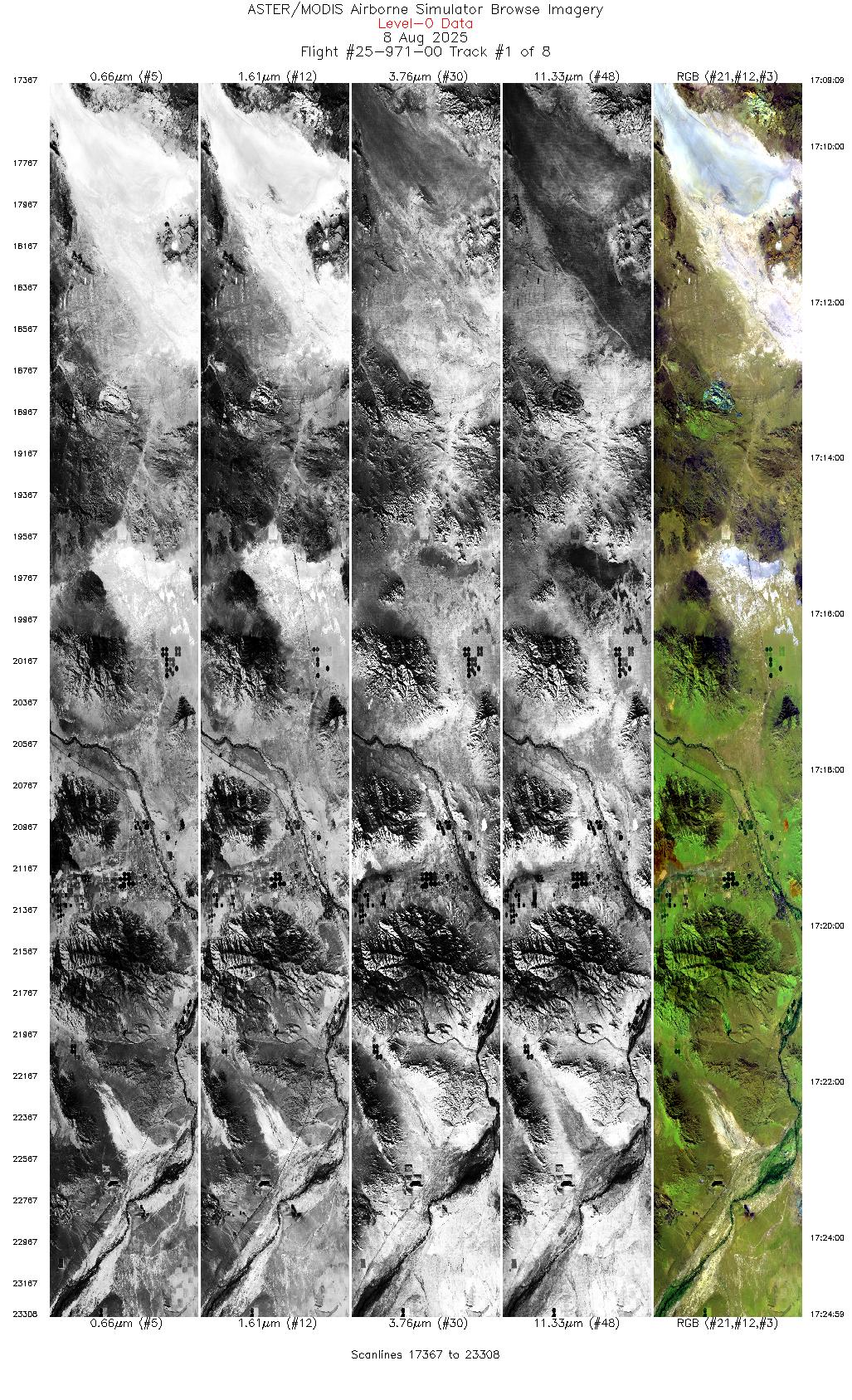

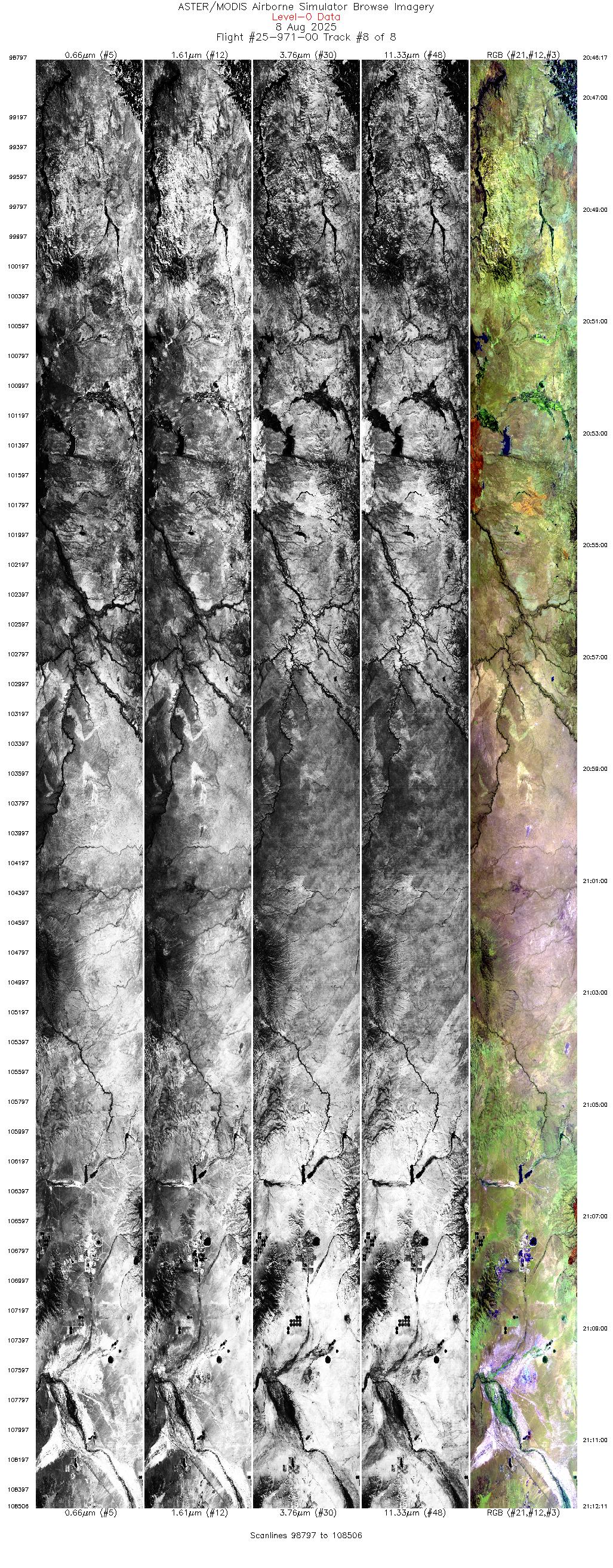

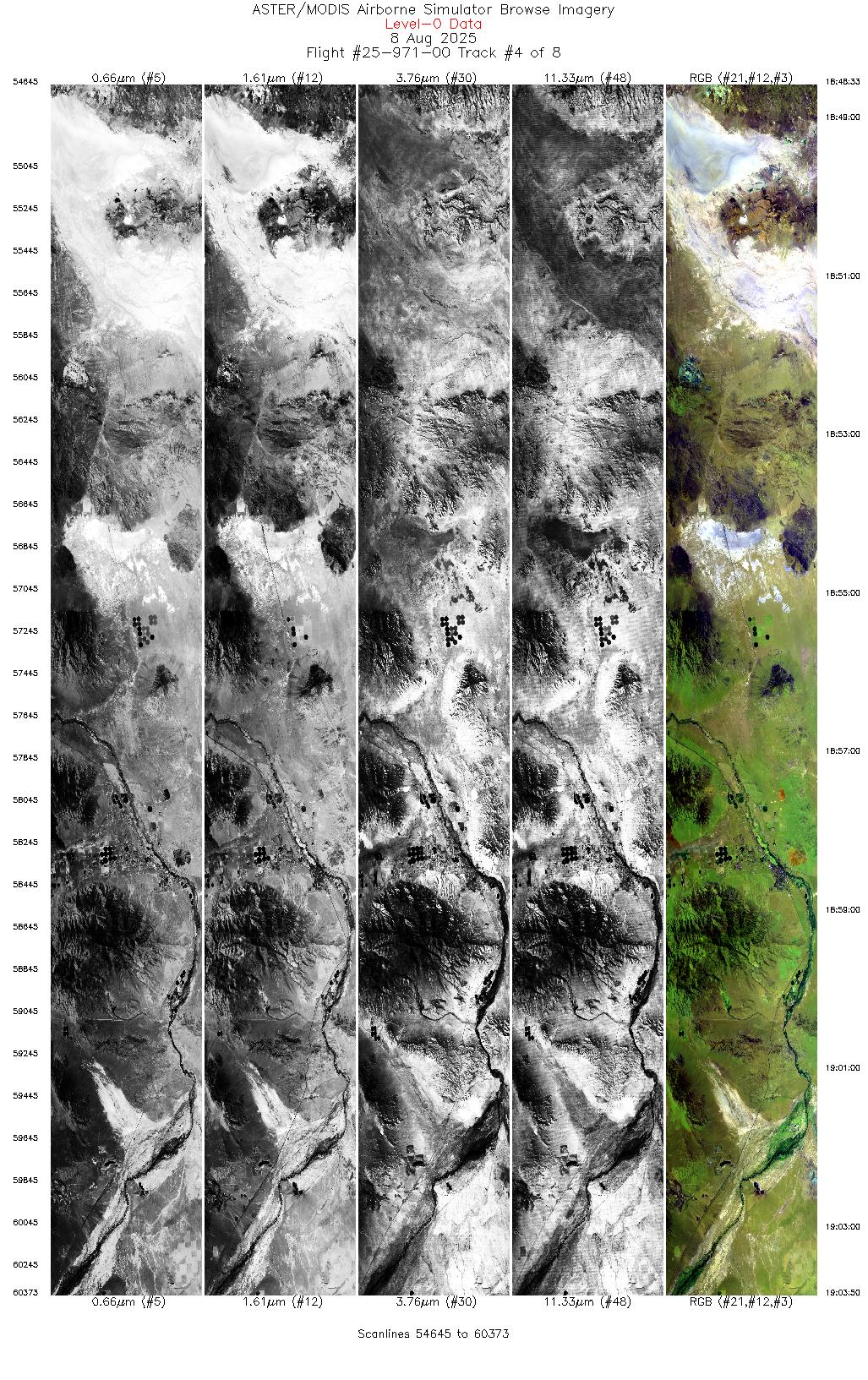

Browse Imagery Table
Click a Flight Track number to view a quicklook image
Lat/Lon ranges are for the BEG-END scanline nadir pixels
Flight
Track		 Time Span
(UTC)		 Heading
(Deg)		 Lat Range
(Deg N)		 Lon Range
(Deg W)		 Length
(Scanlines)		 Altitude
(Meters)
1 17:09 - 17:24 90.7 40.896 - 40.845 119.261 - 116.963 5942 20257
2 17:33 - 18:00 1.4 40.730 - 43.710 117.682 - 117.678 10079 20176
3 18:05 - 18:31 178.4 43.728 - 40.737 117.581 - 117.579 9980 20294
4 18:48 - 19:03 95.5 40.999 - 40.842 119.216 - 116.965 5729 20289
5 19:10 - 19:37 359.0 40.712 - 43.709 117.476 - 117.476 10035 20175
6 19:43 - 20:09 178.9 43.679 - 40.742 117.373 - 117.373 9791 20294
7 20:14 - 20:41 1.0 40.730 - 43.708 117.271 - 117.273 9935 20137
8 20:46 - 21:12 179.9 43.661 - 40.741 117.165 - 117.165 9710 20269
View all Quicklooks in sequence
page title background image

Flight 25-971-00

  • + HOME
  • + CAMPAIGNS
  • - MISSIONS
  • + ORDER DATA
  • + IMAGE GALLERY
  • + REFERENCE
  • + CONTACT US

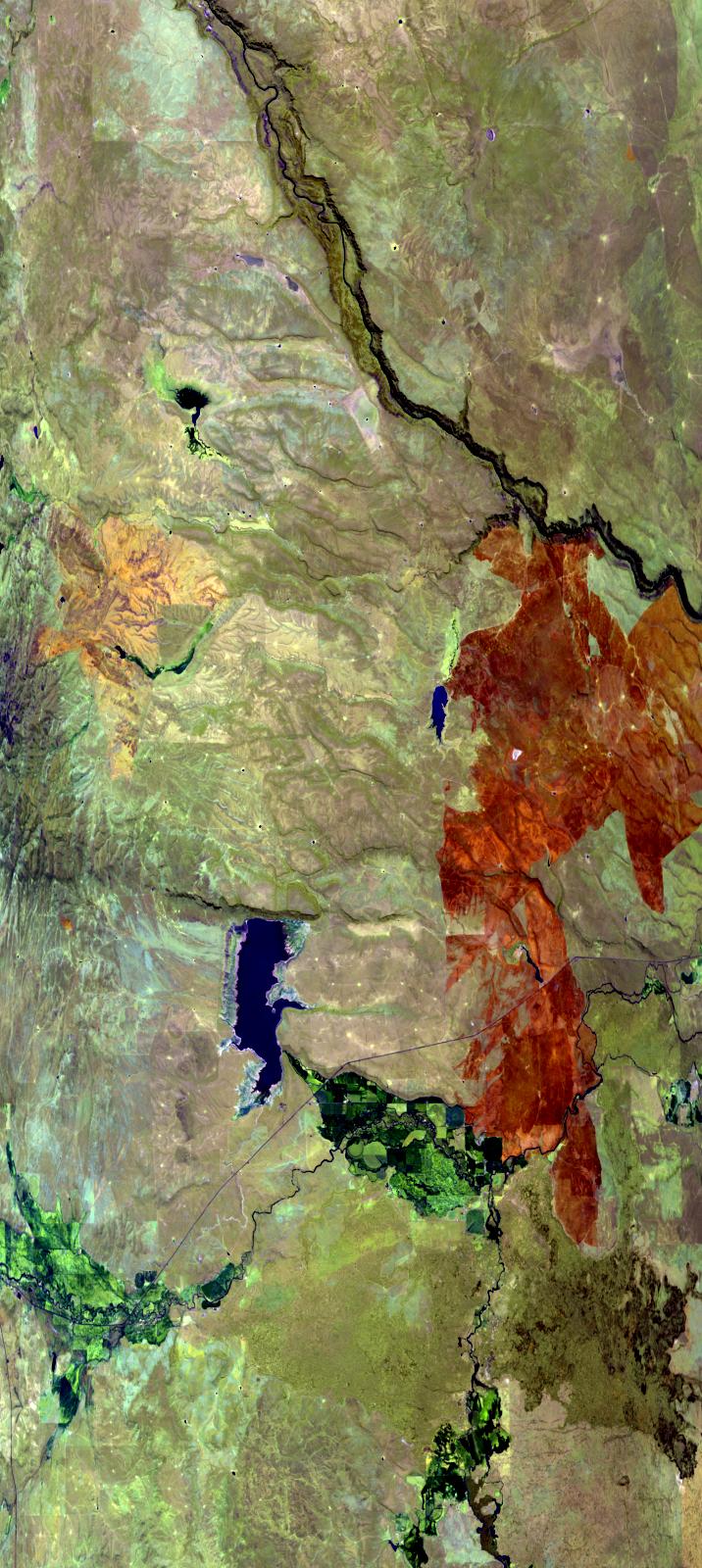

Sample Imagery
Click image for full resolution
Track: #07
NV
Click to load the full resolution image Flight Direction Indicator
R: 2.13µm
G: 1.61µm
B: 0.47µm
