FLIGHT SUMMARY INFORMATION

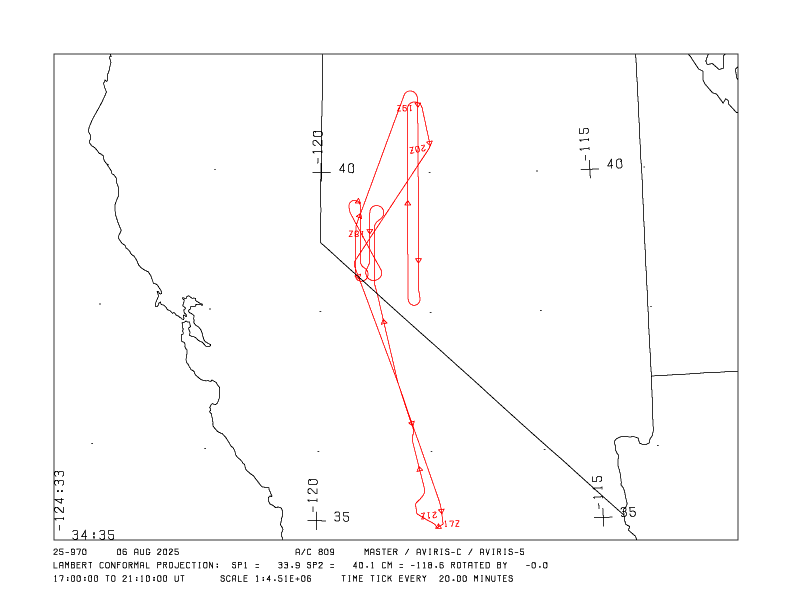

Flight Track Map
track map thumbnail Click map
Flight: 25-970-00
 Date: 06 Aug 2025
Aircraft: NASA ER-2 #809
Campaign: GEMx 2025
Flight Location: Western Nevada (NV11)
Principal Investigators: Kokaly (USGS)
Additional Sensors: AVIRIS-C / AVIRIS-5
Data Evaluation
Overall quality is good
Processing Information
Level-1B Data in HDF format is available
Flight Line Summary
Spectral Band Configuration
Spectral Response Function Table
Spectral Response Function (text)
Browse Imagery
Flight Tracks: 8
Scanlines: 37805
Browse Imagery Table

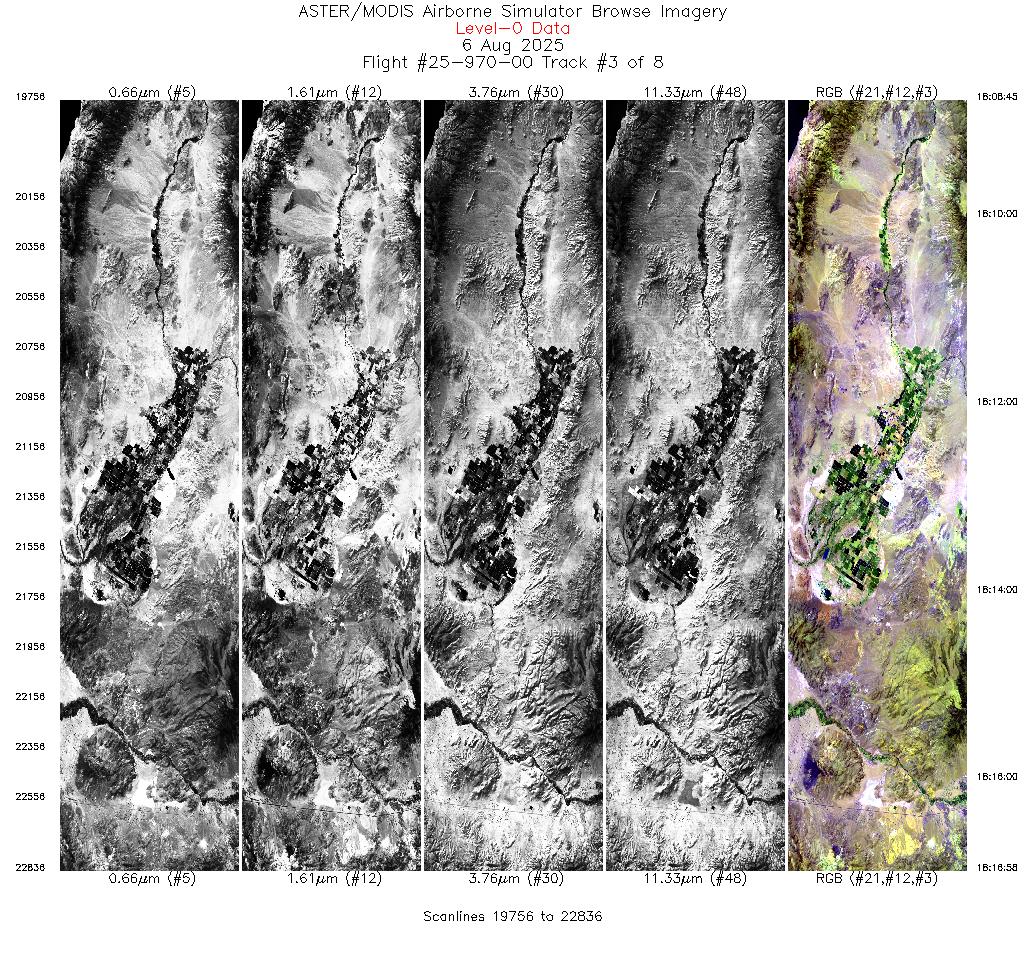

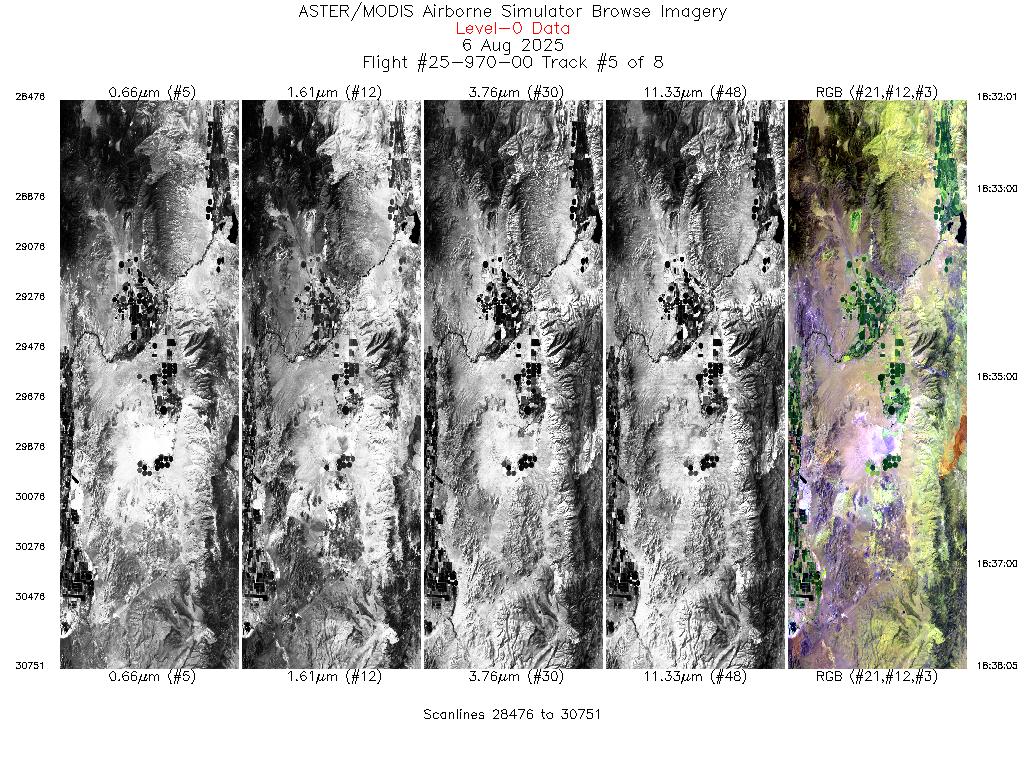

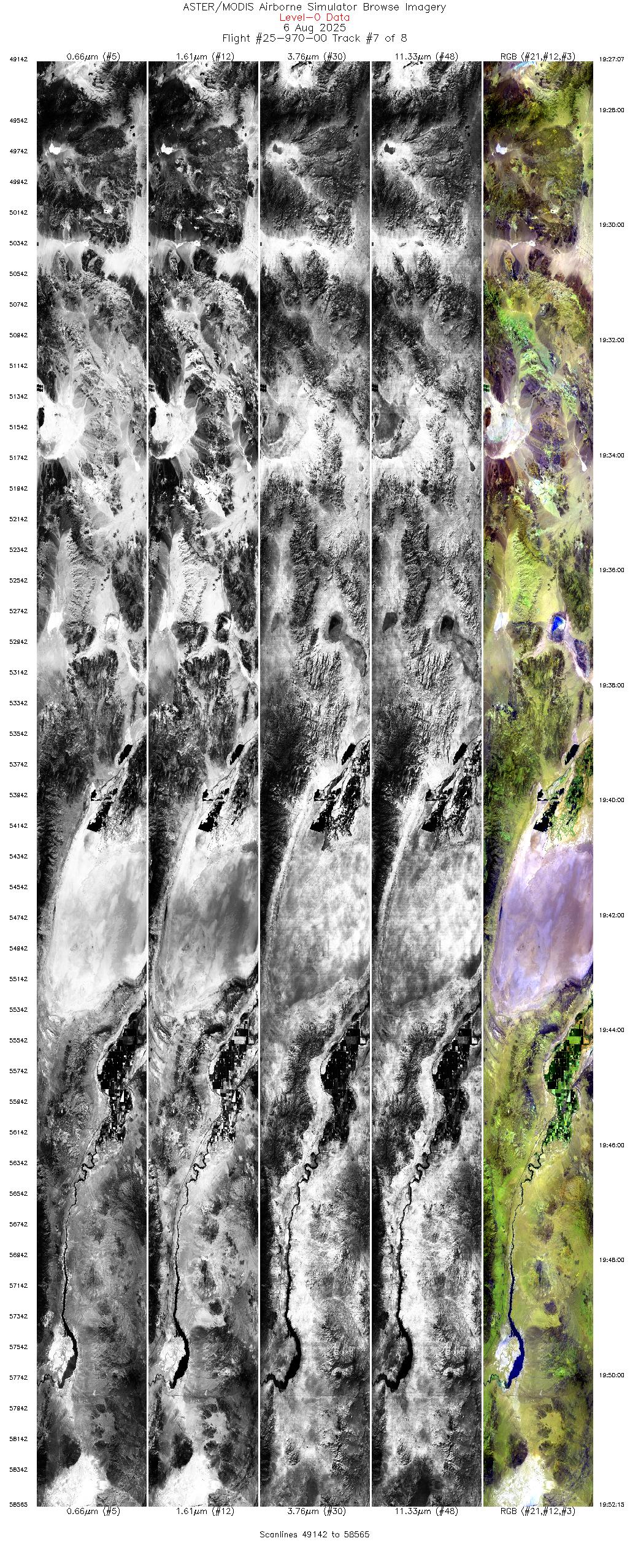

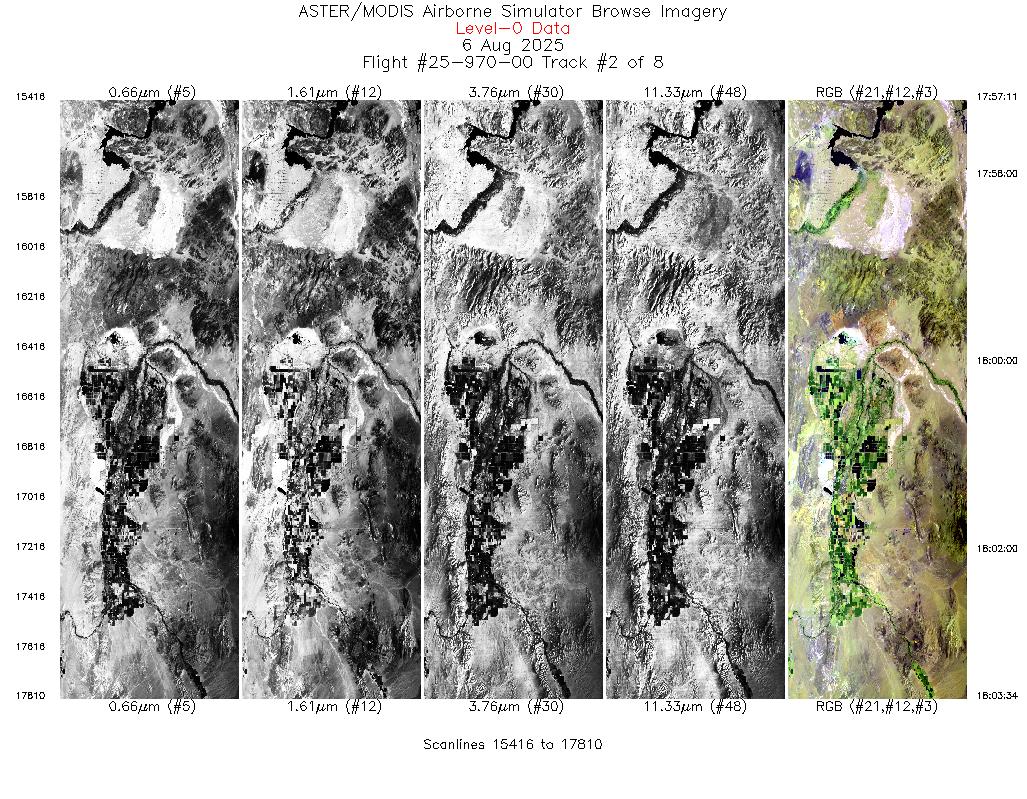

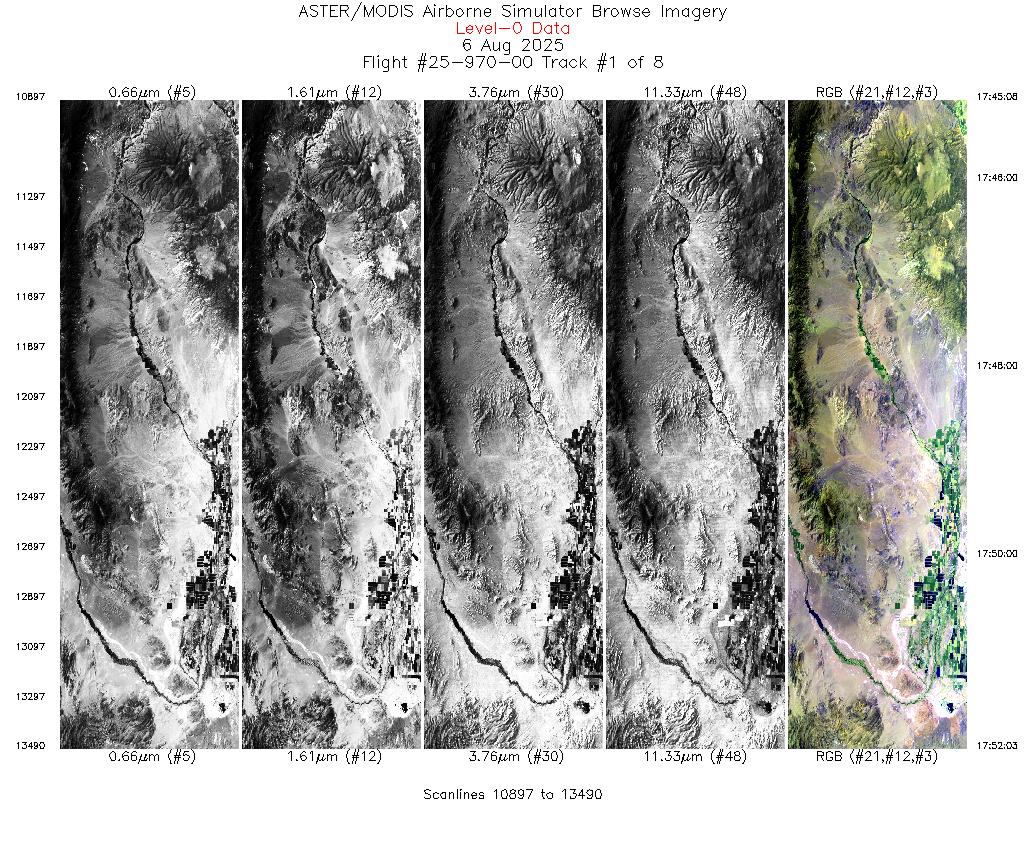

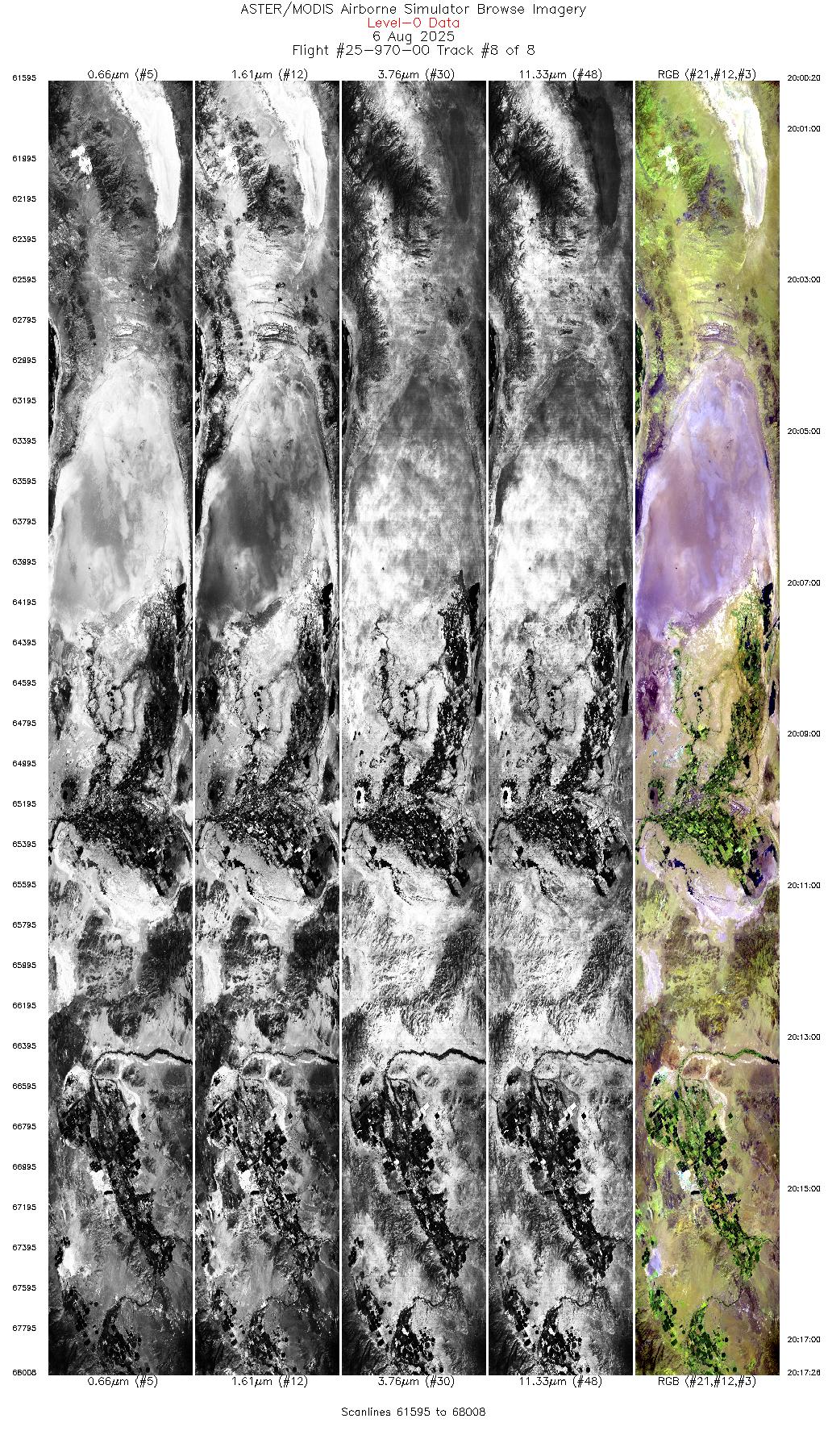

Click a Flight Track number to view a quicklook image
Lat/Lon ranges are for the BEG-END scanline nadir pixels
Flight
Track		 Time Span
(UTC)		 Heading
(Deg)		 Lat Range
(Deg N)		 Lon Range
(Deg W)		 Length
(Scanlines)		 Altitude
(Meters)
1 17:45 - 17:52 359.6 38.445 - 39.214 119.011 - 119.010 2594 20296
2 17:57 - 18:03 181.2 39.444 - 38.738 119.097 - 119.097 2395 20330
3 18:08 - 18:16 331.3 38.609 - 39.409 118.886 - 119.450 3081 20304
4 18:20 - 18:27 180.7 39.497 - 38.741 119.266 - 119.268 2545 20225
5 18:32 - 18:38 1.0 38.525 - 39.210 119.353 - 119.353 2276 20321
6 18:59 - 19:23 179.1 41.039 - 38.332 118.202 - 118.201 9076 20339
7 19:27 - 19:52 359.0 38.198 - 40.917 118.395 - 118.396 9424 20327
8 20:00 - 20:17 213.3 40.349 - 38.743 117.996 - 119.360 6414 20306
View all Quicklooks in sequence
page title background image

Flight 25-970-00

  • + HOME
  • + CAMPAIGNS
  • - MISSIONS
  • + ORDER DATA
  • + IMAGE GALLERY
  • + REFERENCE
  • + CONTACT US

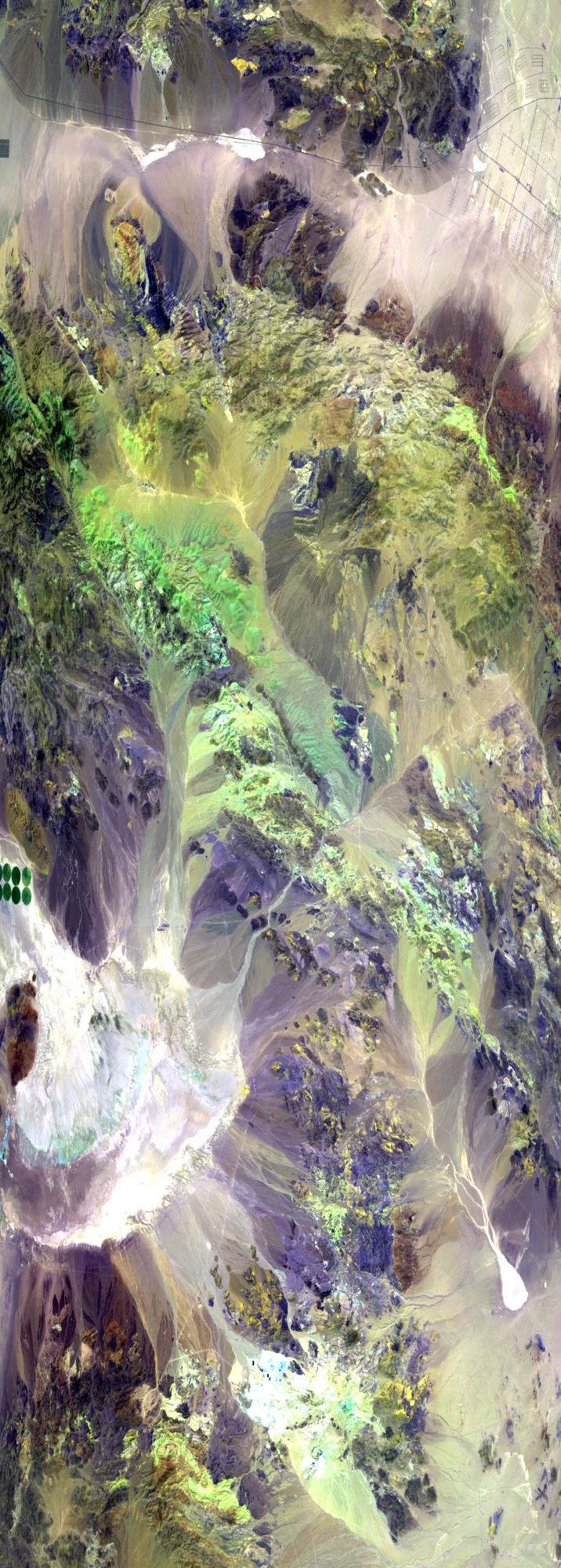

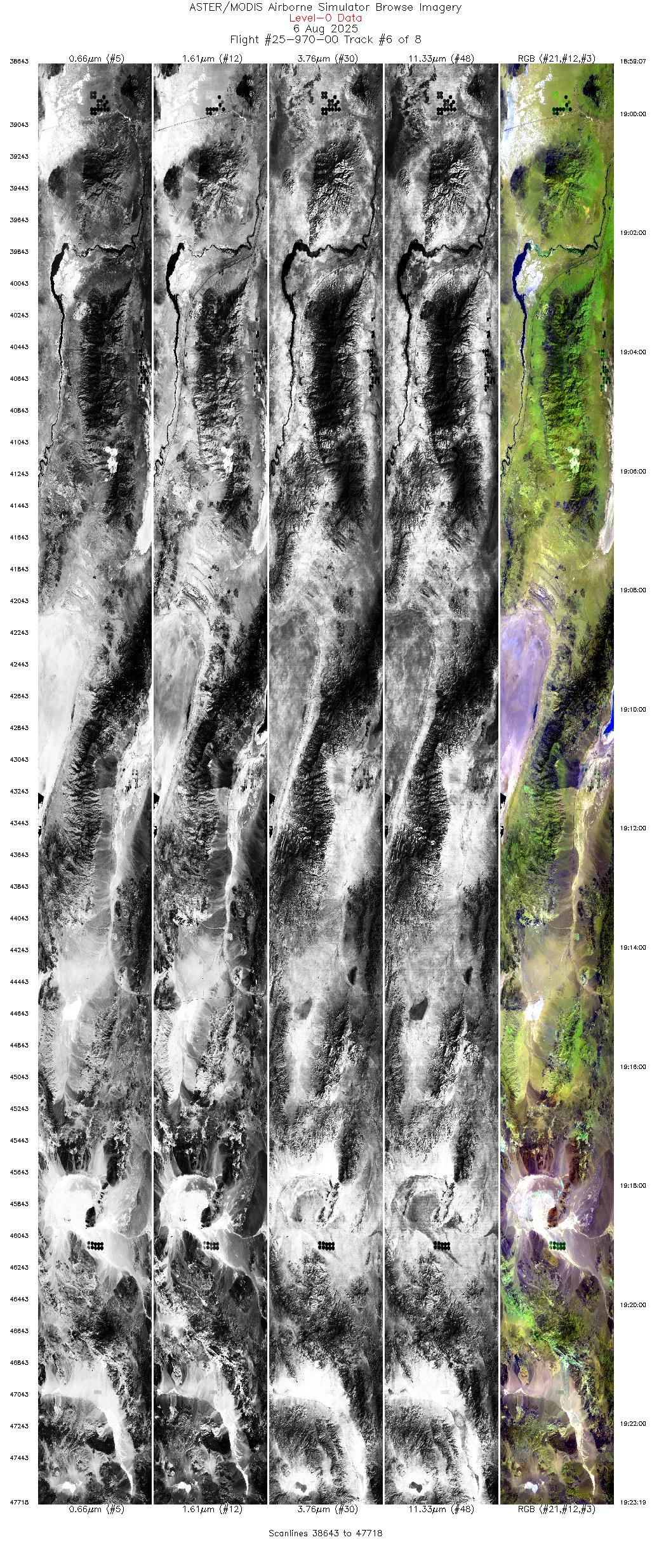

Sample Imagery
Click image for full resolution
Track: #07
Nevada
Click to load the full resolution image Flight Direction Indicator
R: 2.13µm
G: 1.61µm
B: 0.47µm
