FLIGHT SUMMARY INFORMATION

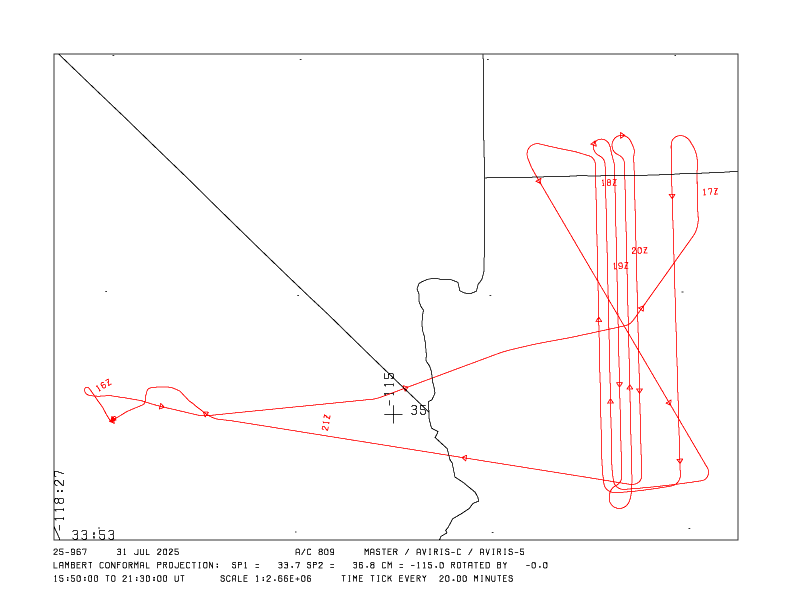

Flight Track Map
track map thumbnail Click map
Flight: 25-967-00
 Date: 31 Jul 2025
Aircraft: NASA ER-2 #809
Campaign: GEMx 2025
Flight Location: Arizona (AZ01) / Dragon Bravo Fire
Principal Investigators: Kokaly (USGS)
Additional Sensors: AVIRIS-C / AVIRIS-5
Data Evaluation
Overall quality is good

Dragon Bravo Fire @ 1655Z / 1712Z
Processing Information
Level-1B Data in HDF format is available
Flight Line Summary
Spectral Band Configuration
Spectral Response Function Table
Spectral Response Function (text)
Browse Imagery
Flight Tracks: 5
Scanlines: 38706
Browse Imagery Table

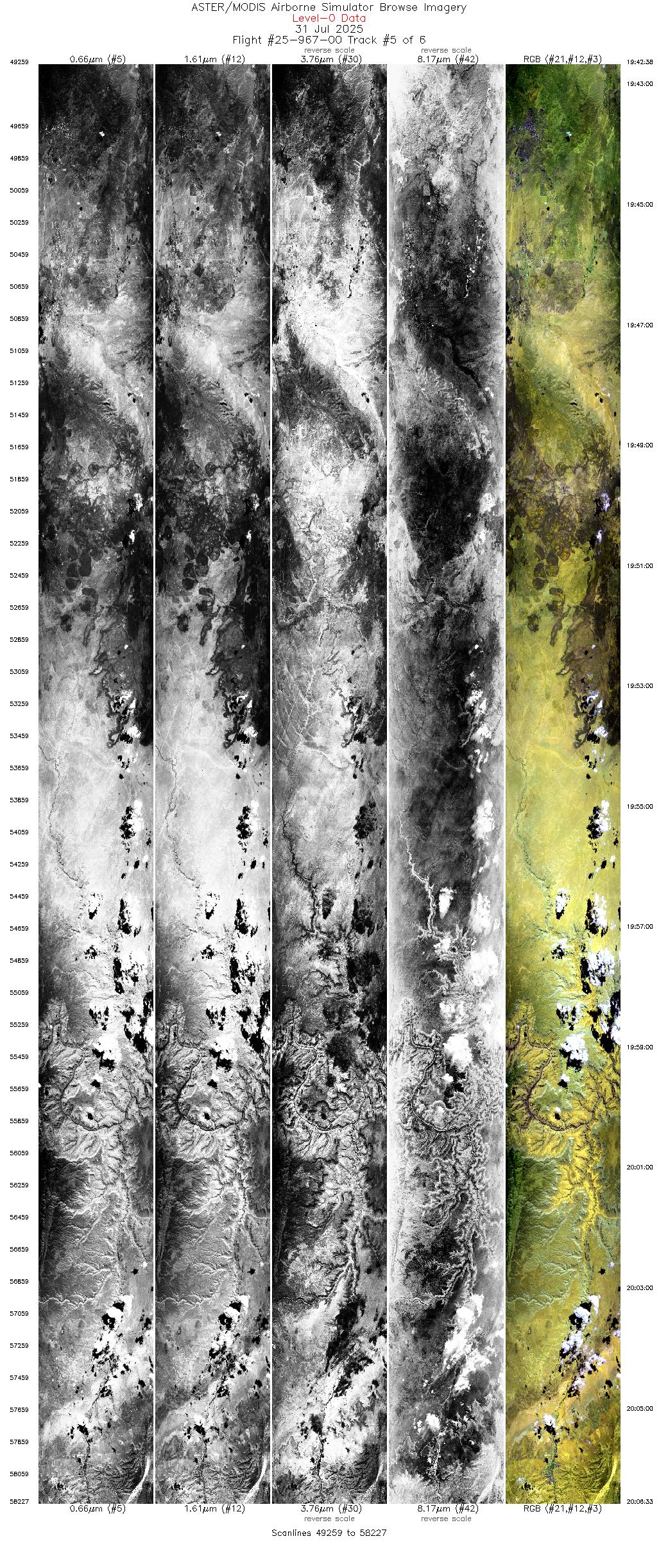

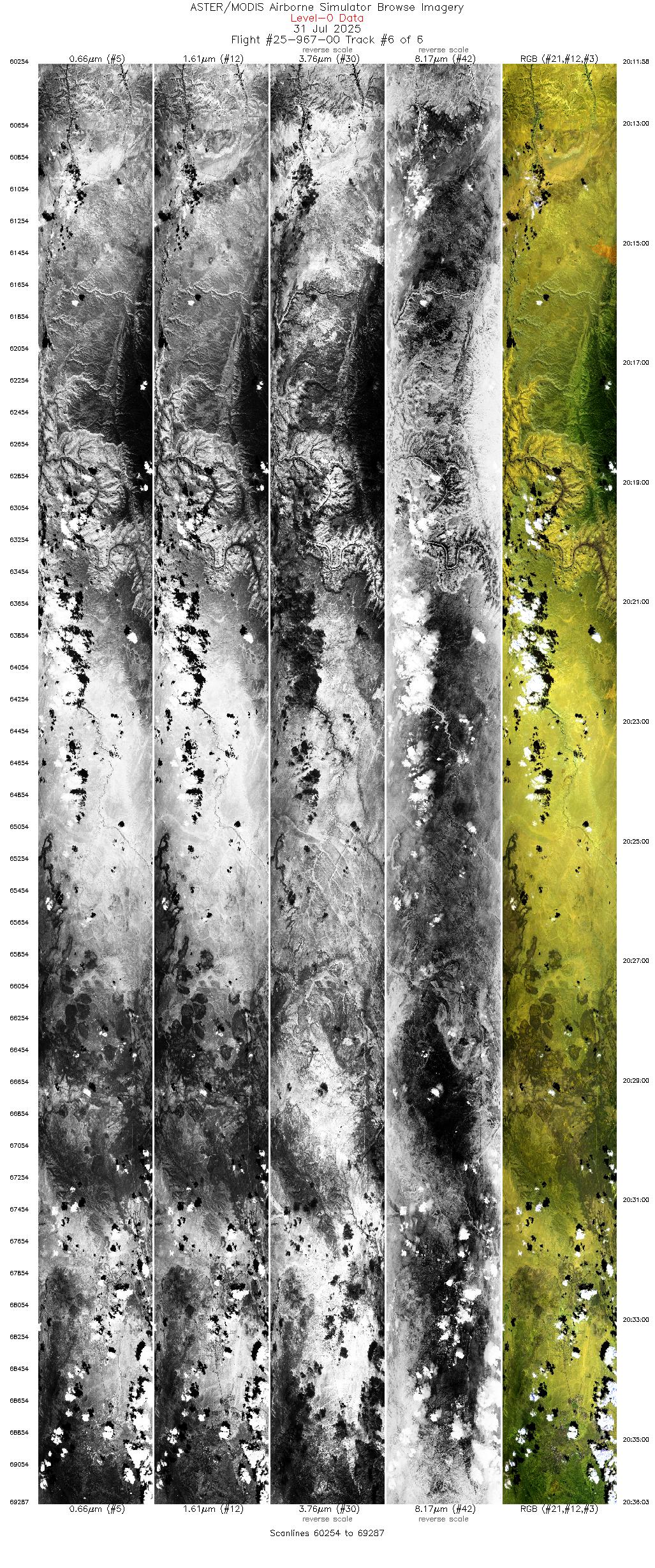

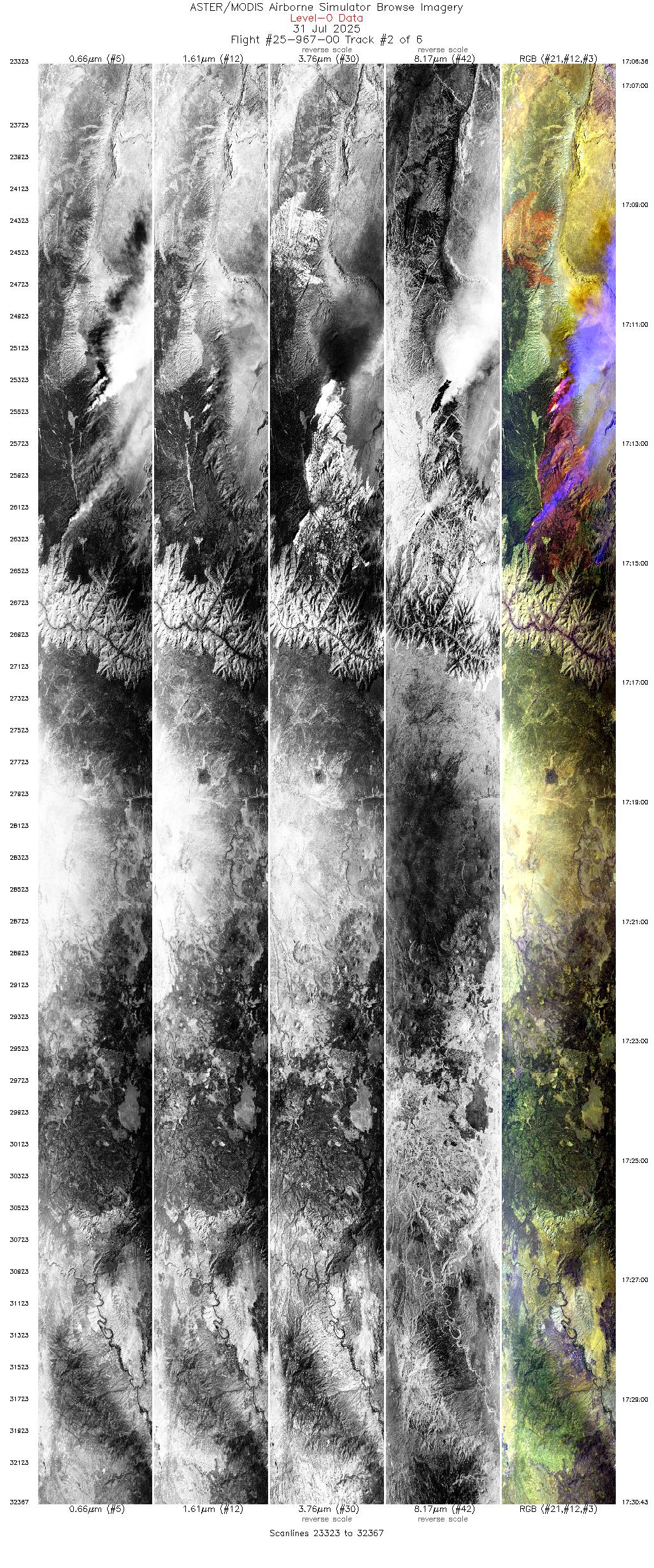

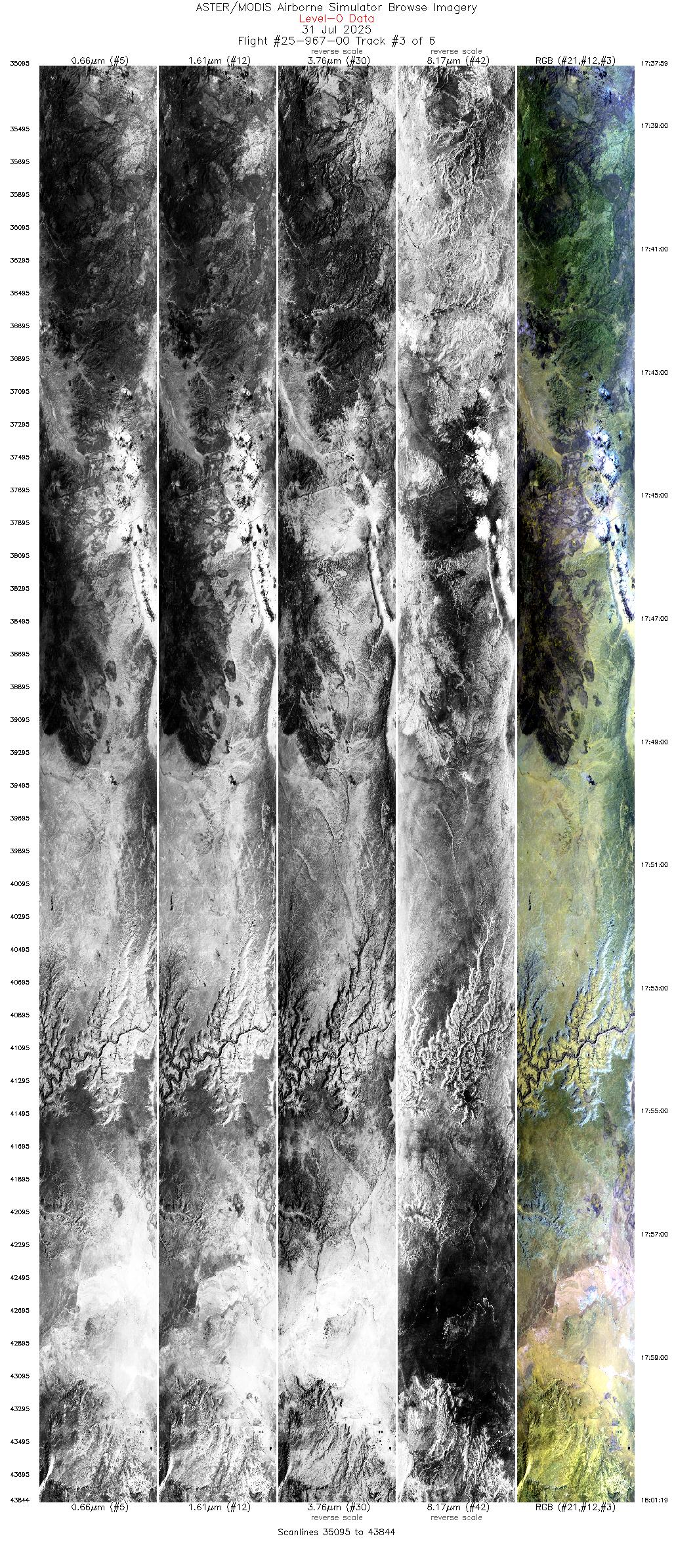

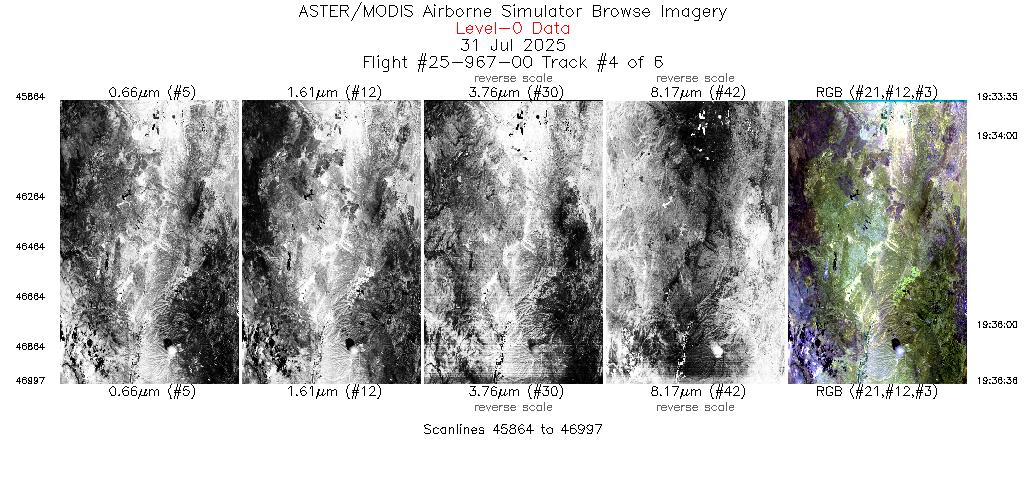

Click a Flight Track number to view a quicklook image
Lat/Lon ranges are for the BEG-END scanline nadir pixels
Flight
Track		 Time Span
(UTC)		 Heading
(Deg)		 Lat Range
(Deg N)		 Lon Range
(Deg W)		 Length
(Scanlines)		 Altitude
(Meters)
1 16:48 - 16:56 38.6 35.791 - 36.466 112.493 - 111.866 2908 20316
2 17:06 - 17:30 178.6 37.161 - 34.458 112.067 - 112.070 9045 20141
3 17:37 - 18:01 359.5 34.479 - 37.091 112.862 - 112.870 8750 20296
4 19:42 - 20:06 2.6 34.431 - 37.095 112.564 - 112.562 8969 20332
5 20:11 - 20:36 177.5 37.128 - 34.458 112.463 - 112.465 9034 20297
View all Quicklooks in sequence
page title background image

Flight 25-967-00

  • + HOME
  • + CAMPAIGNS
  • - MISSIONS
  • + ORDER DATA
  • + IMAGE GALLERY
  • + REFERENCE
  • + CONTACT US
Sample Imagery
Click image for full resolution
Track: #01
Dragon Bravo Fire, AZ
Click to load the full resolution image Flight Direction Indicator
R: 2.13µm
G: 1.61µm
B: 0.47µm
