FLIGHT SUMMARY INFORMATION

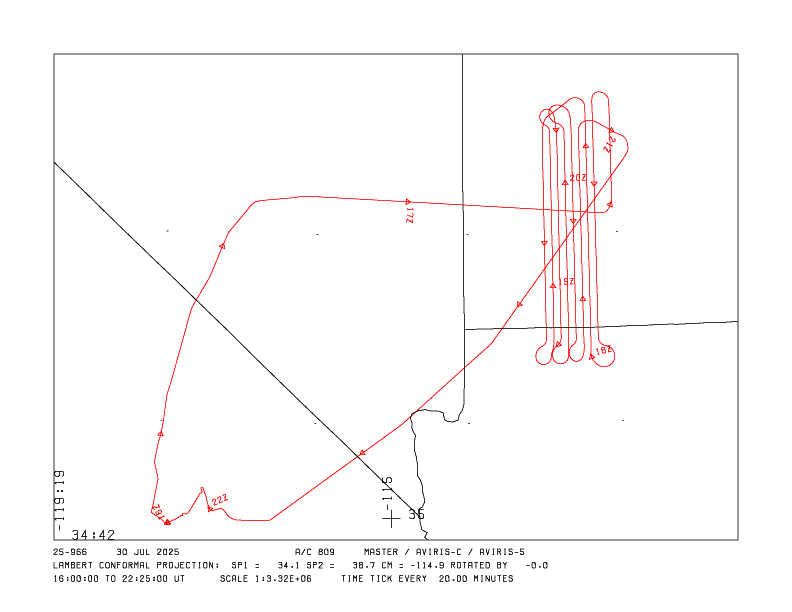

Flight Track Map
track map thumbnail Click map
Flight: 25-966-00
 Date: 30 Jul 2025
Aircraft: NASA ER-2 #809
Campaign: GEMx 2025
Flight Location: Southwestern Utah (UT02)
Principal Investigators: Kokaly (USGS)
Additional Sensors: AVIRIS-C / AVIRIS-5
Data Evaluation
Overall quality is good

Monroe Canyon Fire @ 2105Z
Processing Information
Level-1B Data in HDF format is available
Flight Line Summary
Spectral Band Configuration
Spectral Response Function Table
Spectral Response Function (text)
Browse Imagery
Flight Tracks: 11
Scanlines: 85097

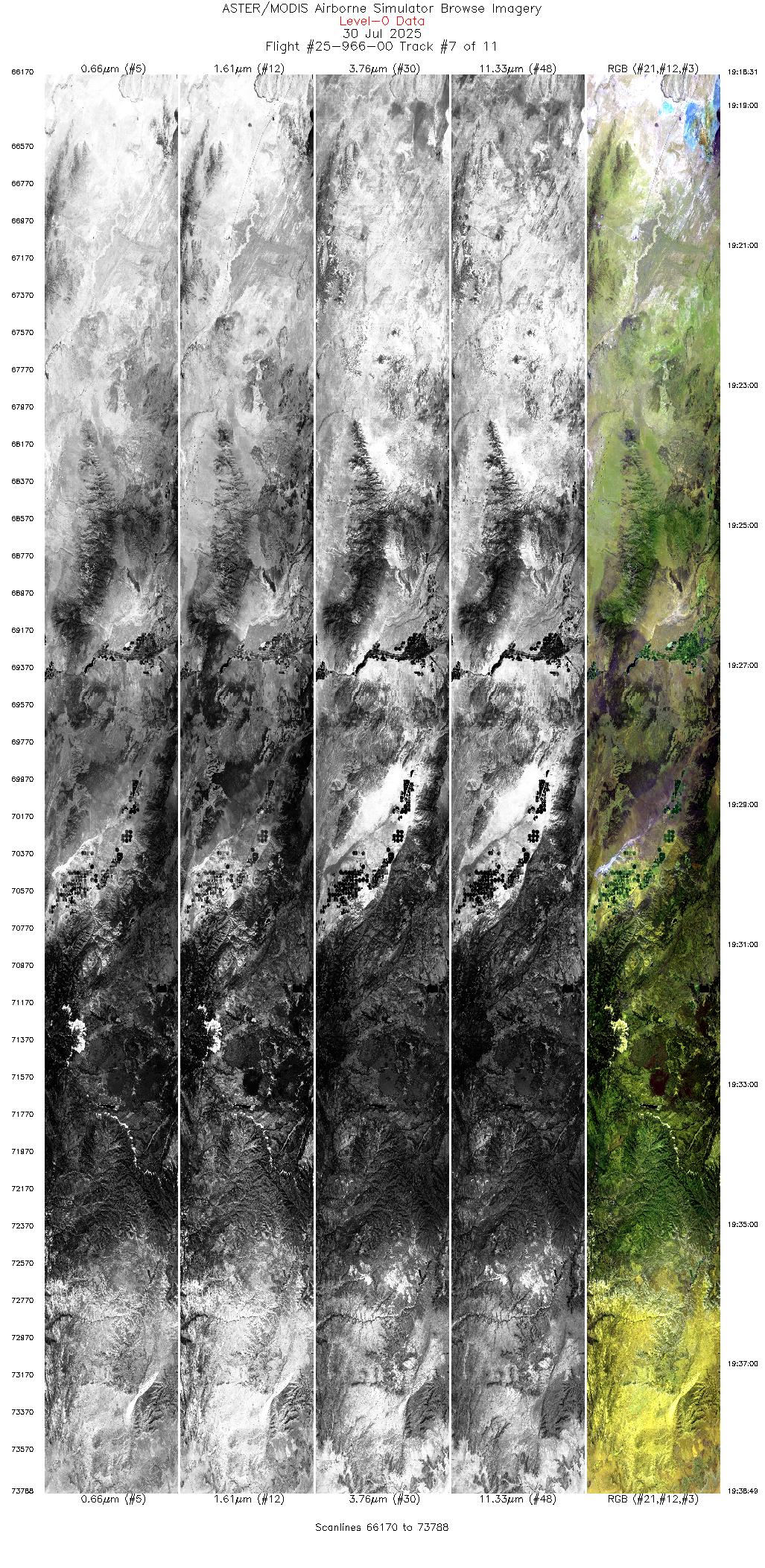

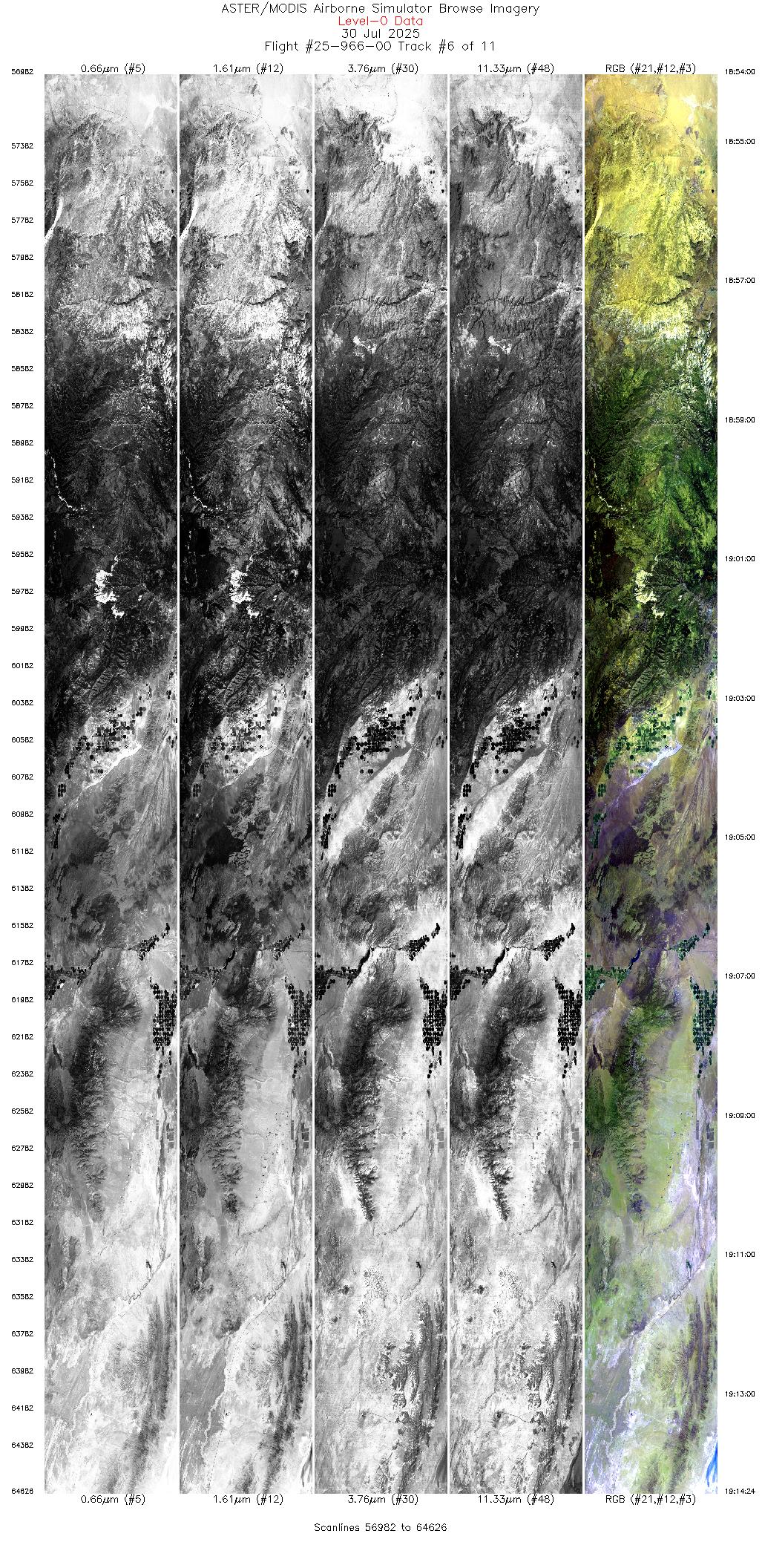

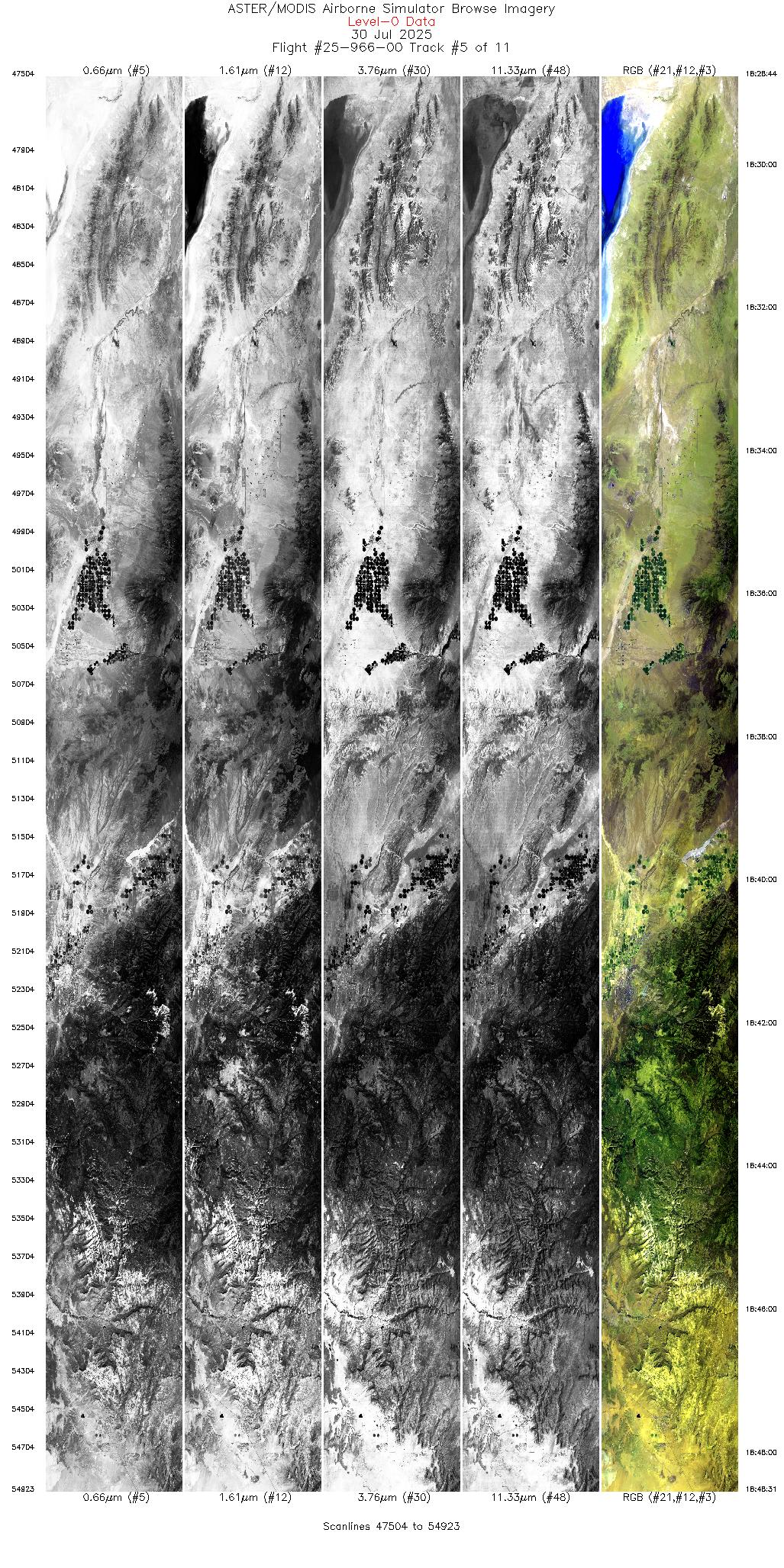

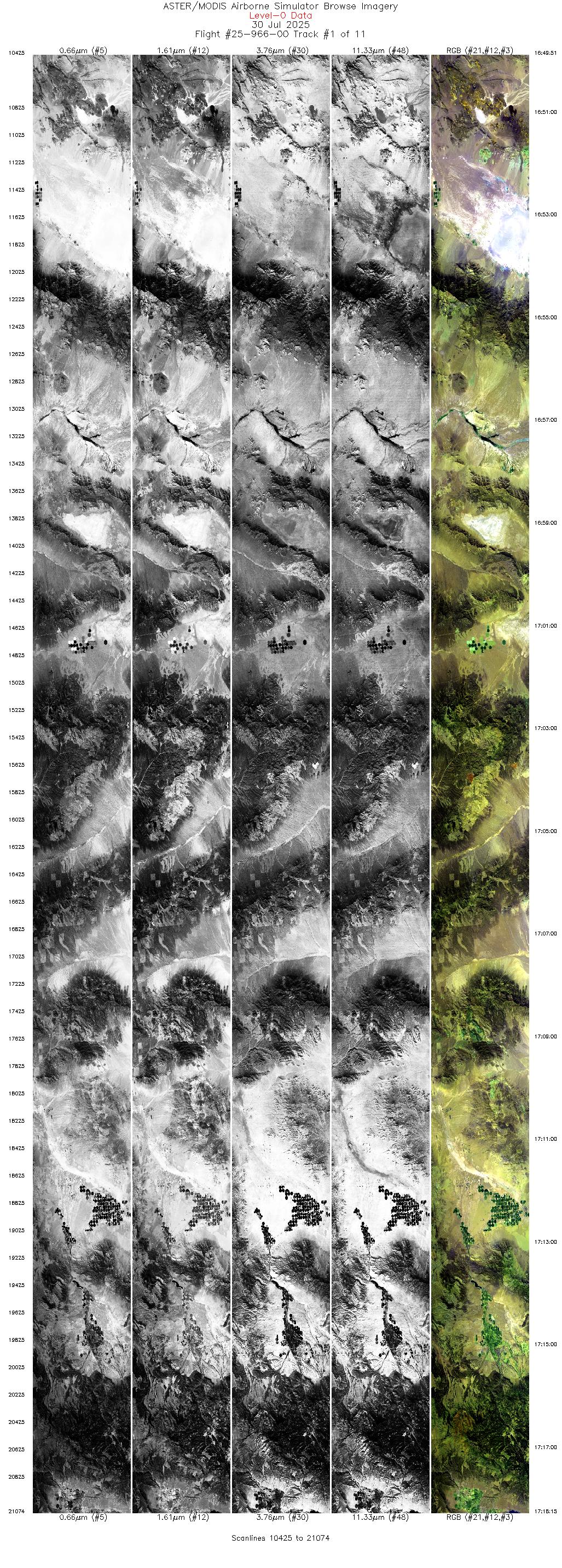

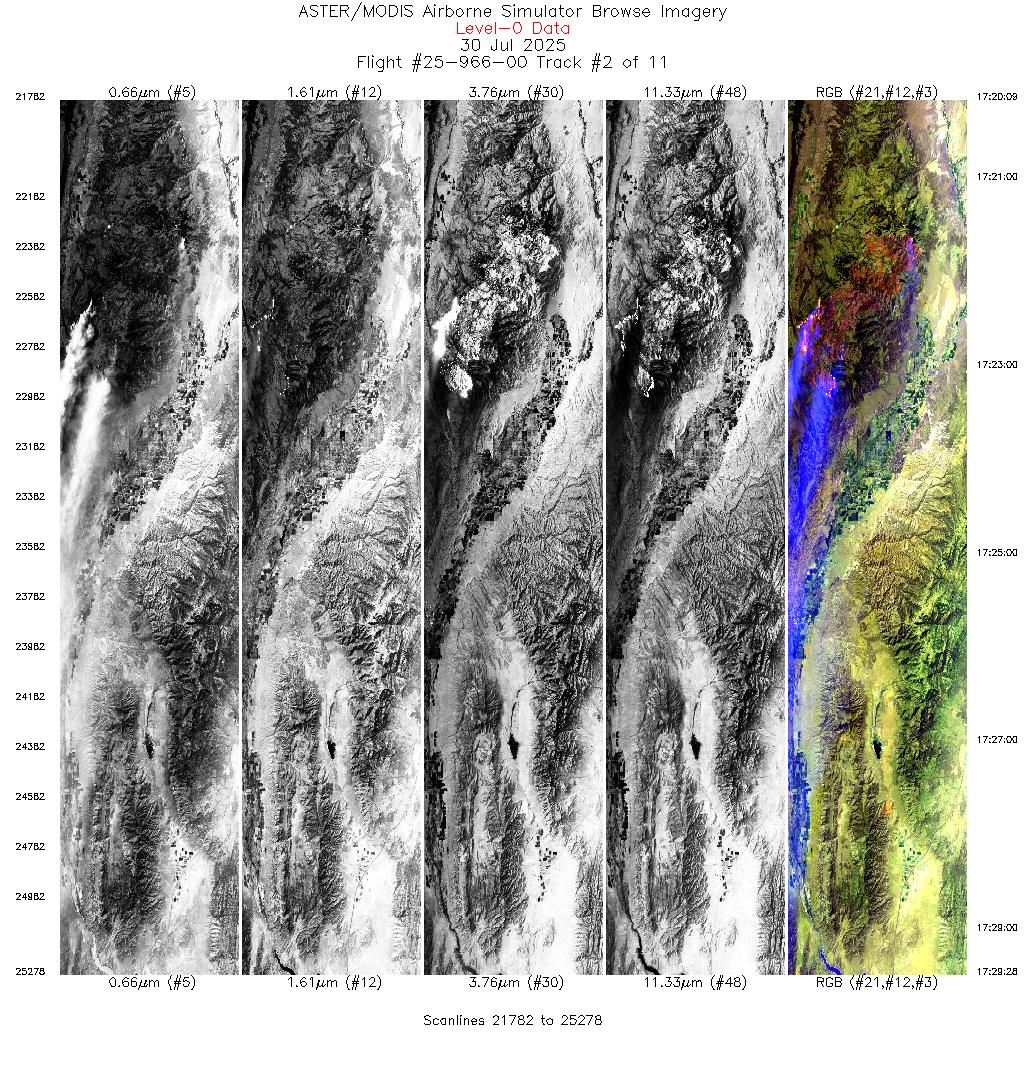

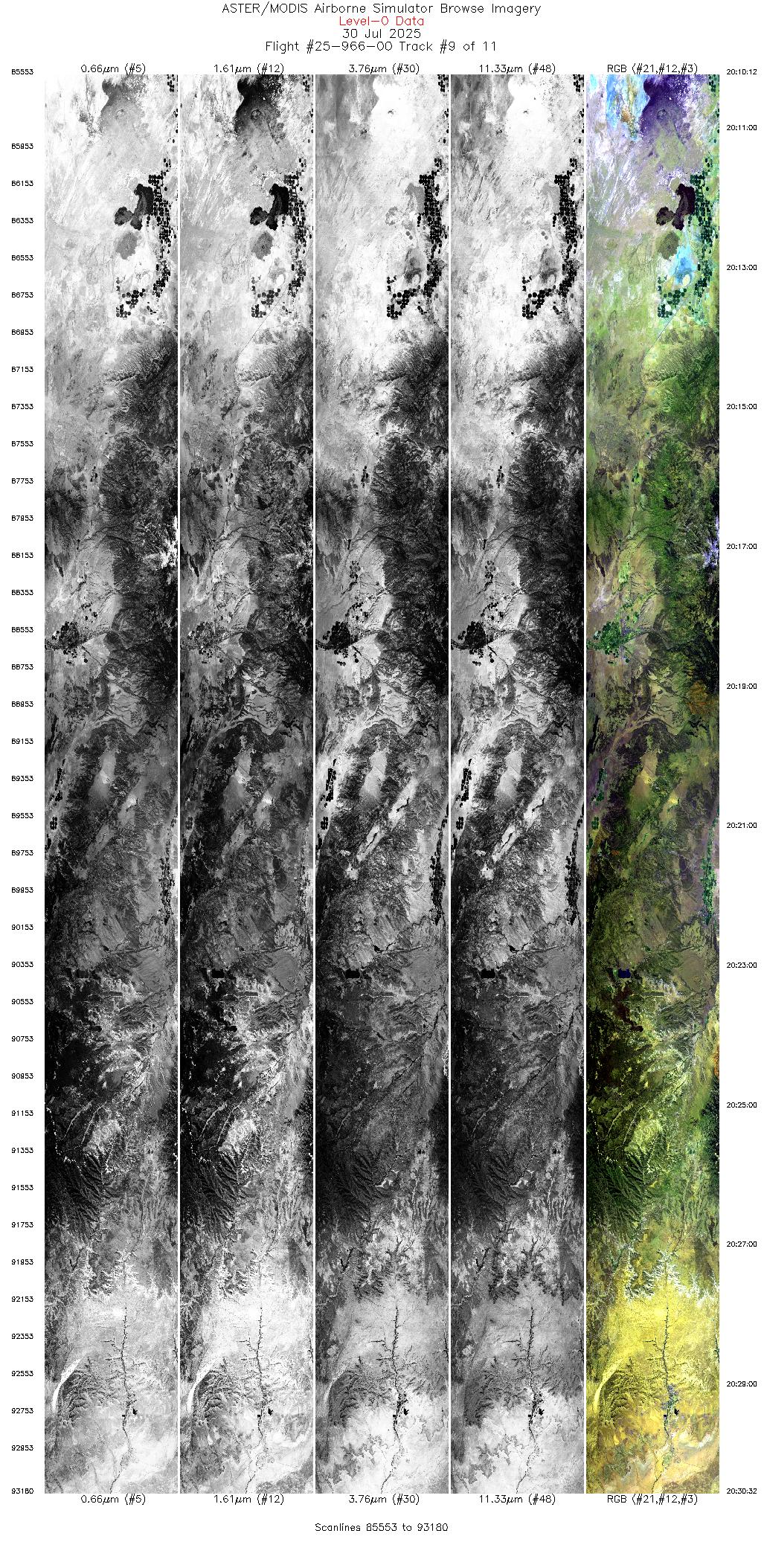

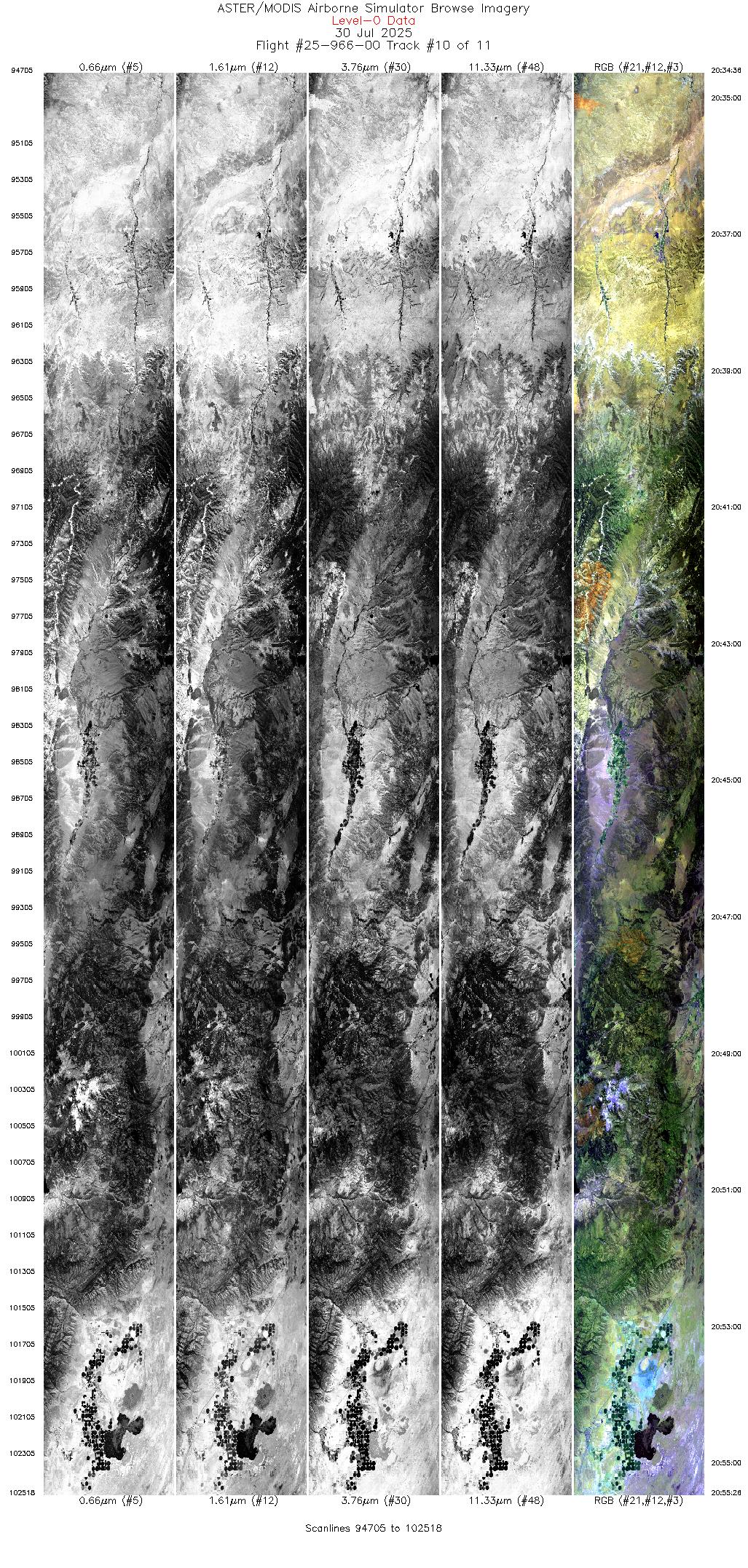

Browse Imagery Table
Click a Flight Track number to view a quicklook image
Lat/Lon ranges are for the BEG-END scanline nadir pixels
Flight
Track		 Time Span
(UTC)		 Heading
(Deg)		 Lat Range
(Deg N)		 Lon Range
(Deg W)		 Length
(Scanlines)		 Altitude
(Meters)
1 16:49 - 17:18 90.1 38.401 - 38.201 116.157 - 112.217 10650 20358
2 17:20 - 17:29 6.1 38.335 - 39.370 112.057 - 112.051 3497 20292

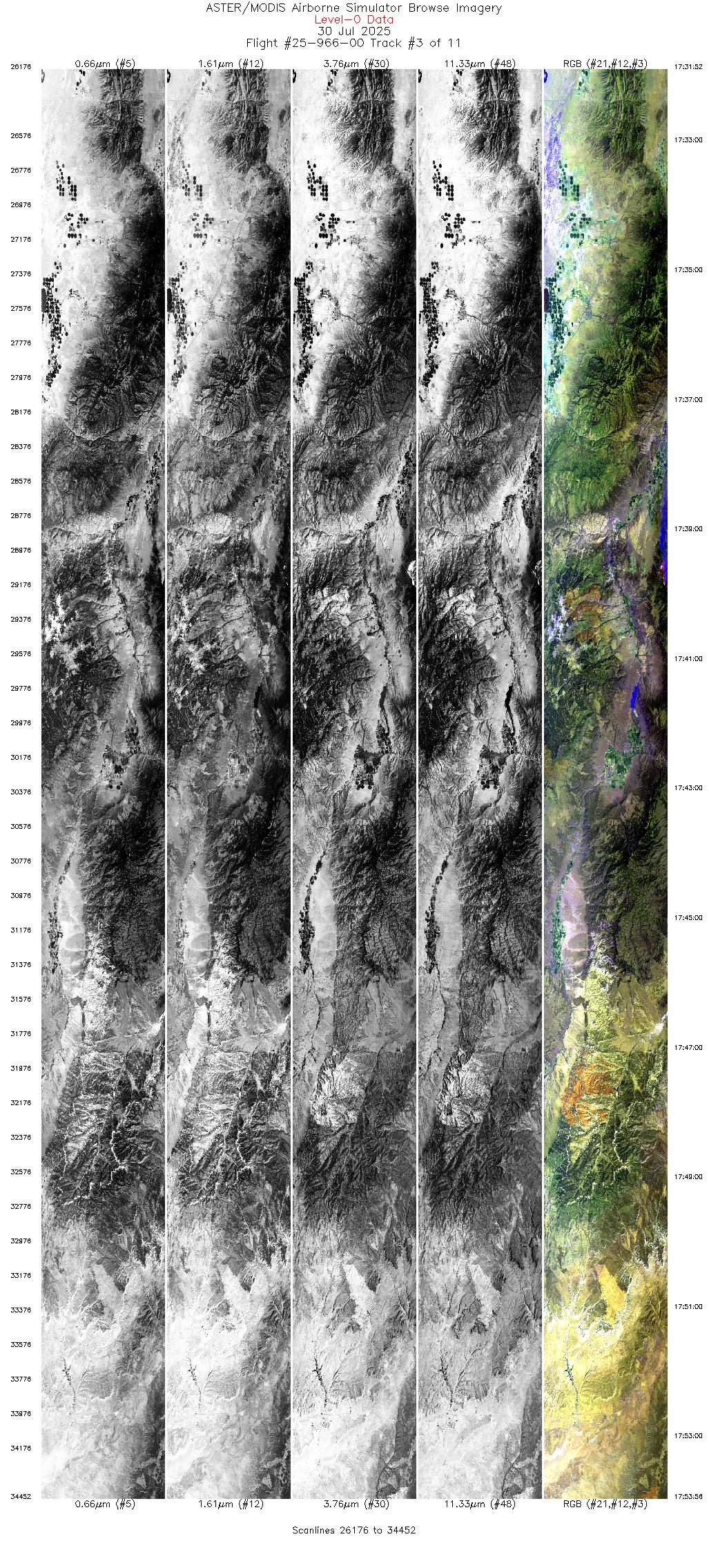

3 17:31 - 17:53 181.0 39.408 - 36.892 112.278 - 112.282 8277 20372

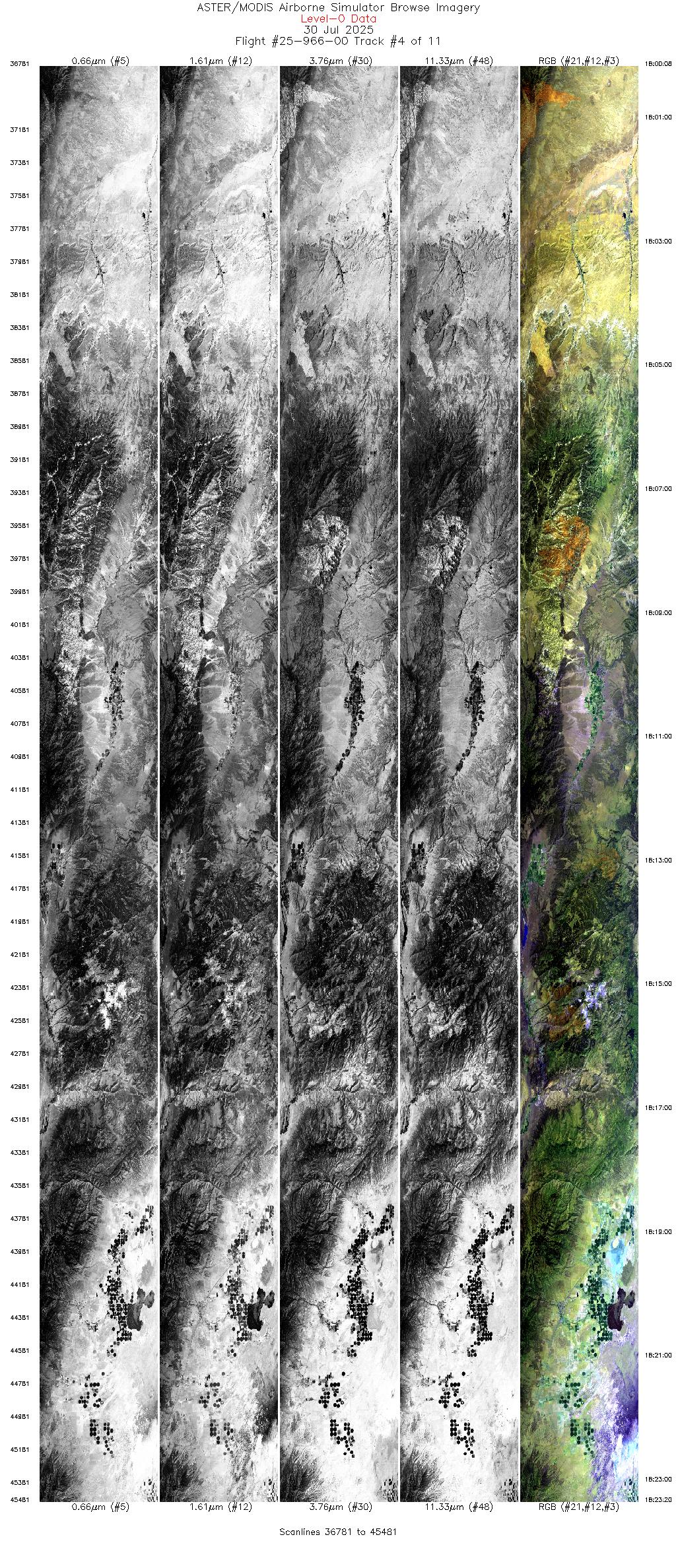

4 18:00 - 18:23 2.6 36.736 - 39.318 112.383 - 112.379 8701 20385
5 18:28 - 18:48 184.3 39.133 - 36.887 112.951 - 112.964 7420 20352
6 18:54 - 19:14 5.9 36.814 - 39.066 112.868 - 112.863 7645 20295
7 19:18 - 19:38 175.4 39.210 - 36.896 112.796 - 112.770 7619 20241

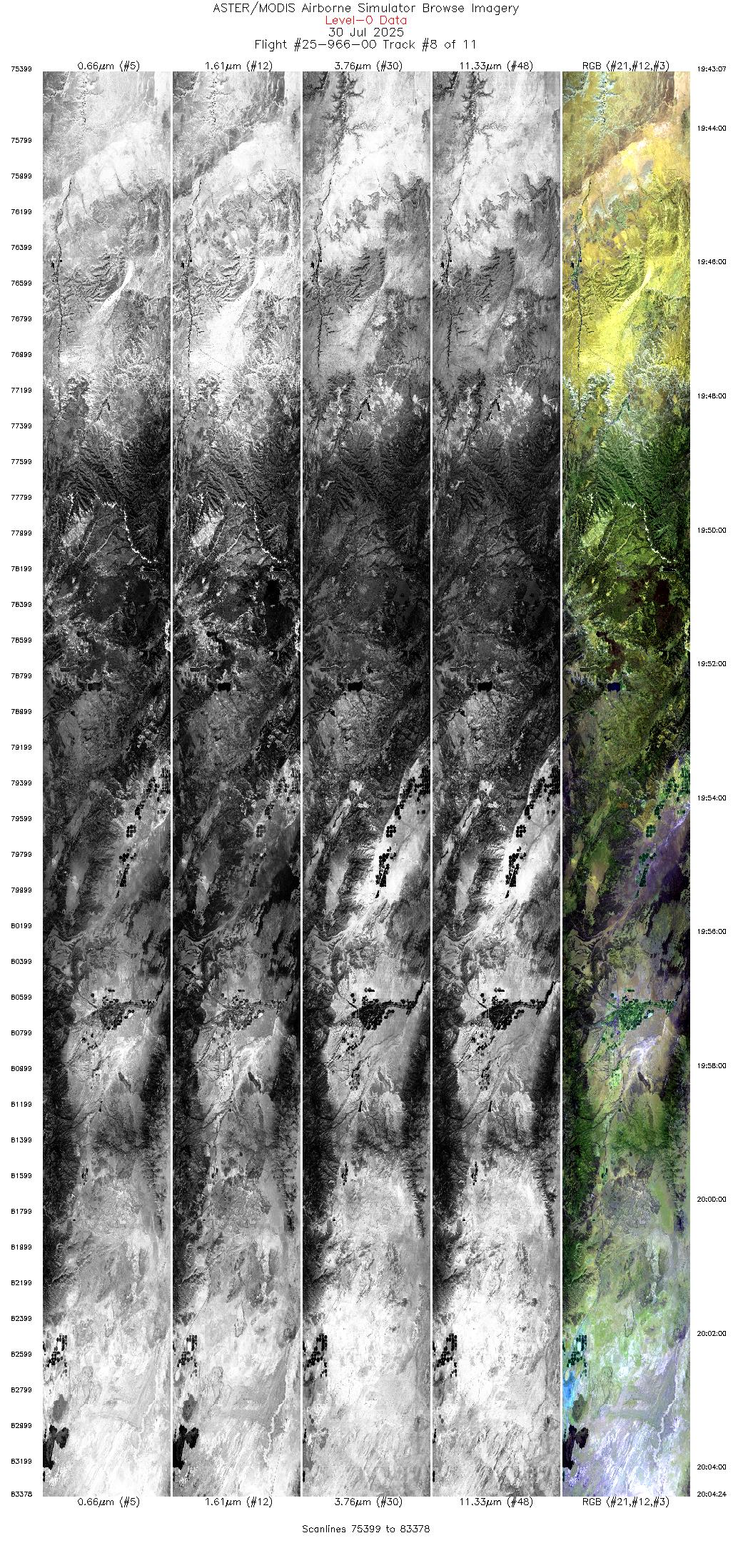

8 19:43 - 20:04 6.0 36.691 - 39.063 112.681 - 112.670 7980 20301
9 20:10 - 20:30 176.6 39.189 - 36.880 112.578 - 112.572 7628 20364
10 20:34 - 20:55 5.9 36.745 - 39.071 112.475 - 112.474 7814 20304

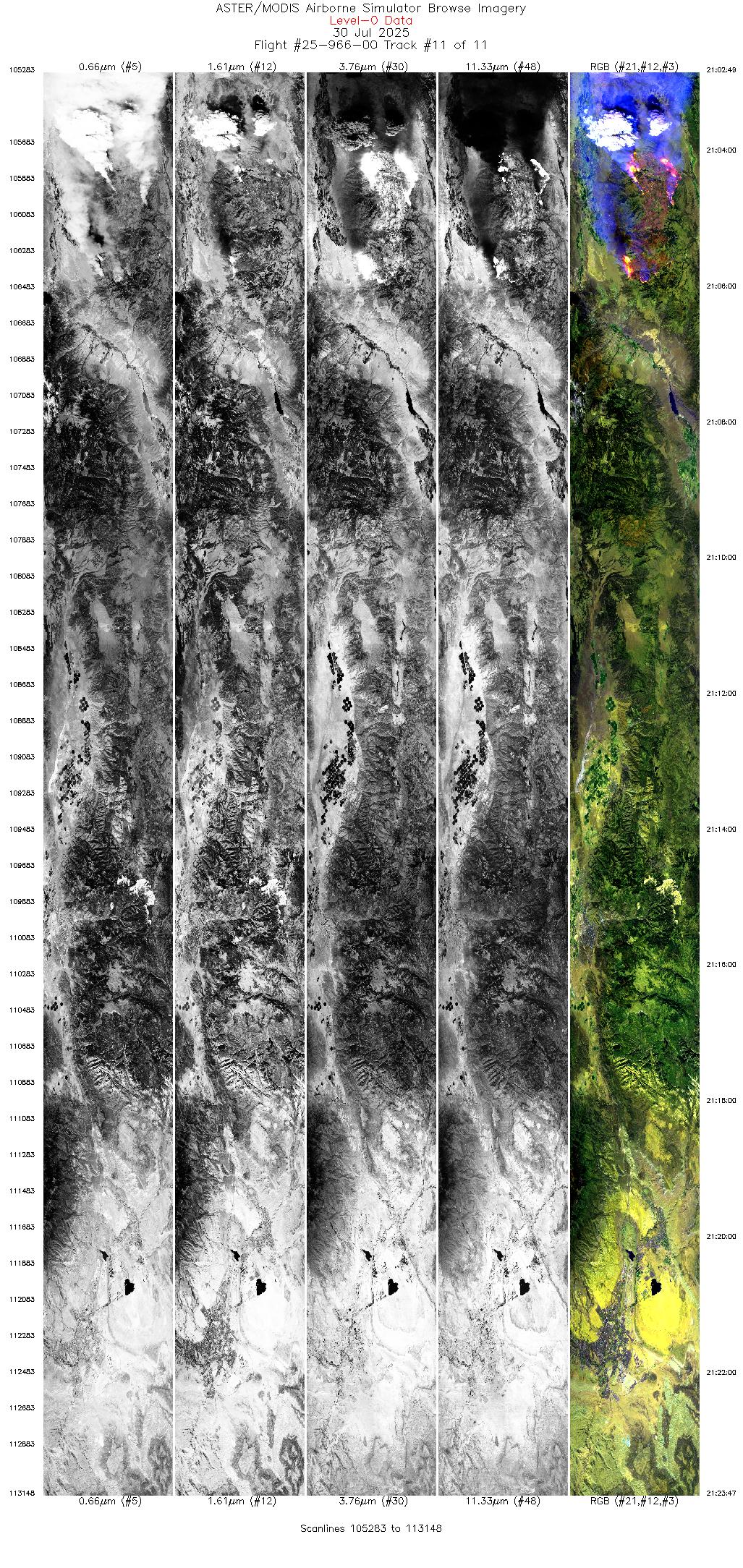

11 21:02 - 21:23 214.0 38.797 - 36.855 111.851 - 113.679 7866 20358
View all Quicklooks in sequence
page title background image

Flight 25-966-00

  • + HOME
  • + CAMPAIGNS
  • - MISSIONS
  • + ORDER DATA
  • + IMAGE GALLERY
  • + REFERENCE
  • + CONTACT US
Sample Imagery
Click image for full resolution
Track: #11
Monroe Canyon Fire, UT
Click to load the full resolution image Flight Direction Indicator
R: 4.0µm
G: 2.2µm
B: 1.6µm
