FLIGHT SUMMARY INFORMATION

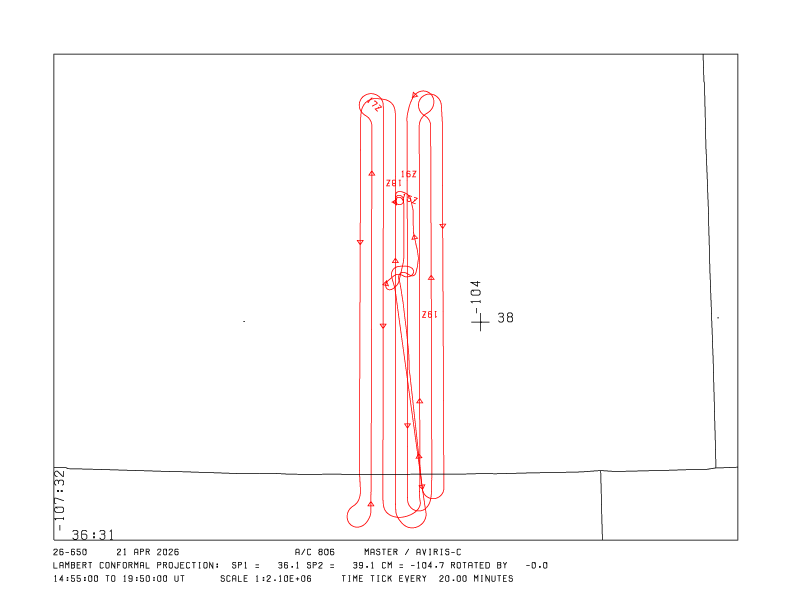

Flight Track Map
track map thumbnail Click map
Flight: 26-650-00
 Date: 21 Apr 2026
Aircraft: NASA ER-2 #806
Campaign: GEMx 2026
Flight Location: Central Colorado (CO07)
Principal Investigators: Kokaly / Hoefen (USGS))
Additional Sensors: AVIRIS-C
Data Evaluation
Overall quality is good
Processing Information
Level-1B Data in HDF format is available
Flight Line Summary
Spectral Band Configuration
Spectral Response Function Table
Spectral Response Function (text)

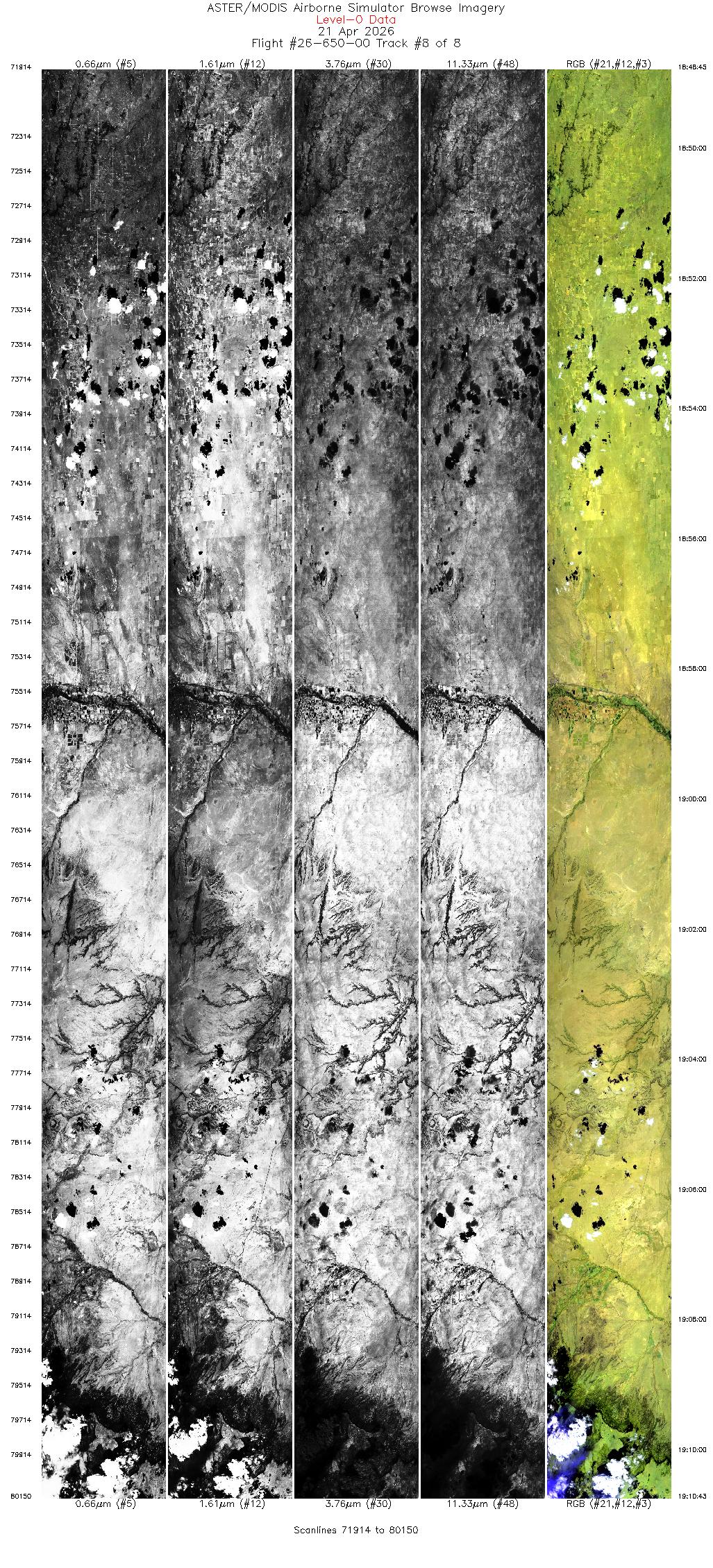

Browse Imagery
Flight Tracks: 8
Scanlines: 58410
Browse Imagery Table

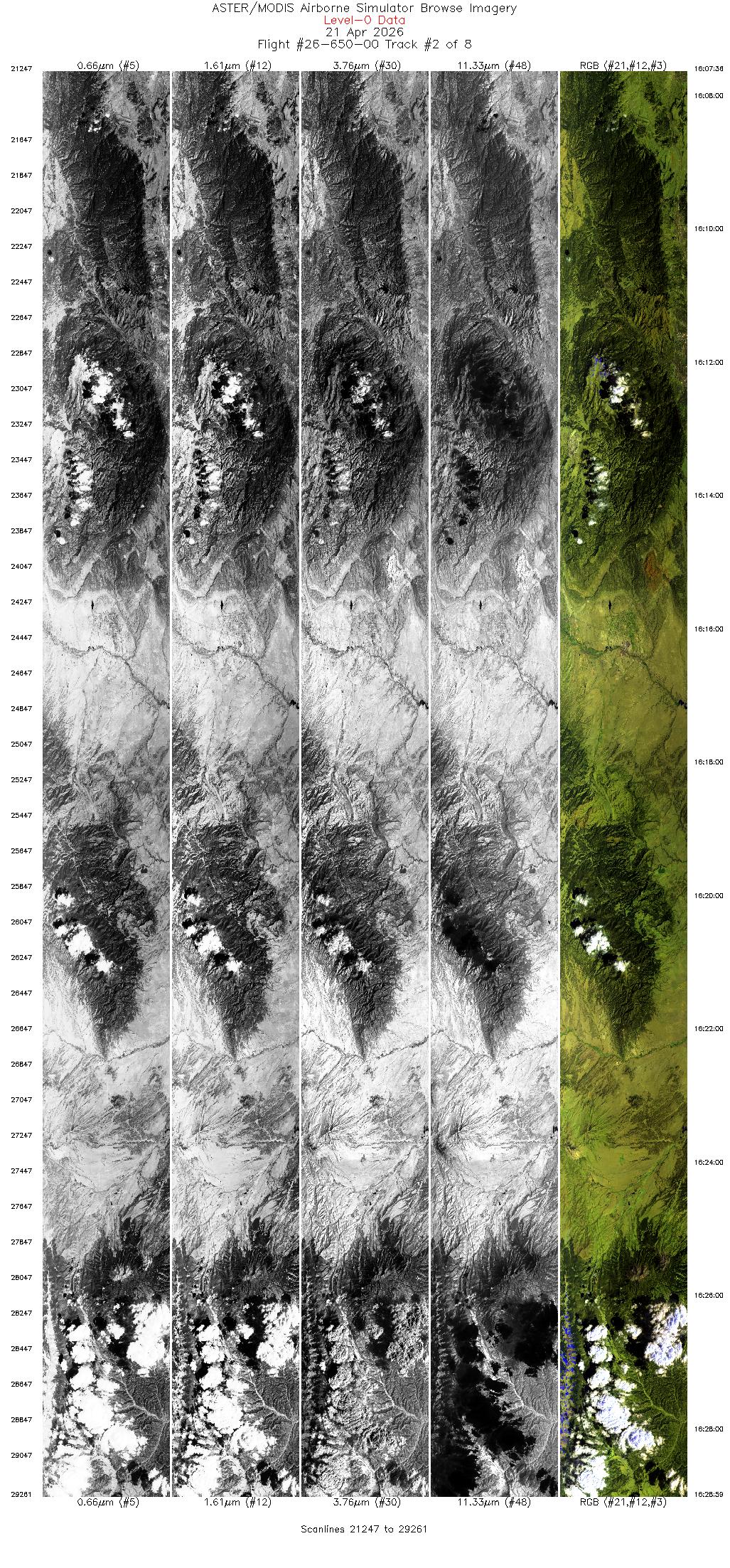

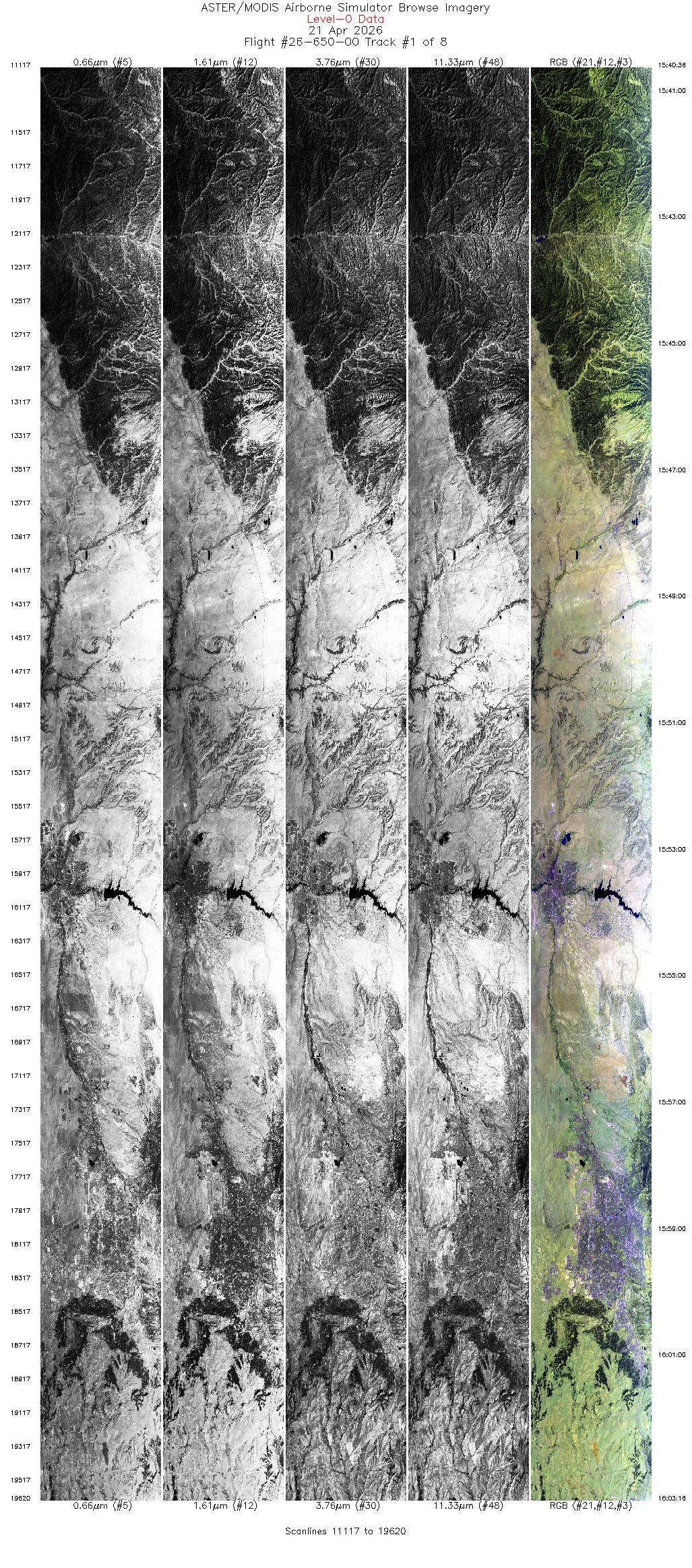

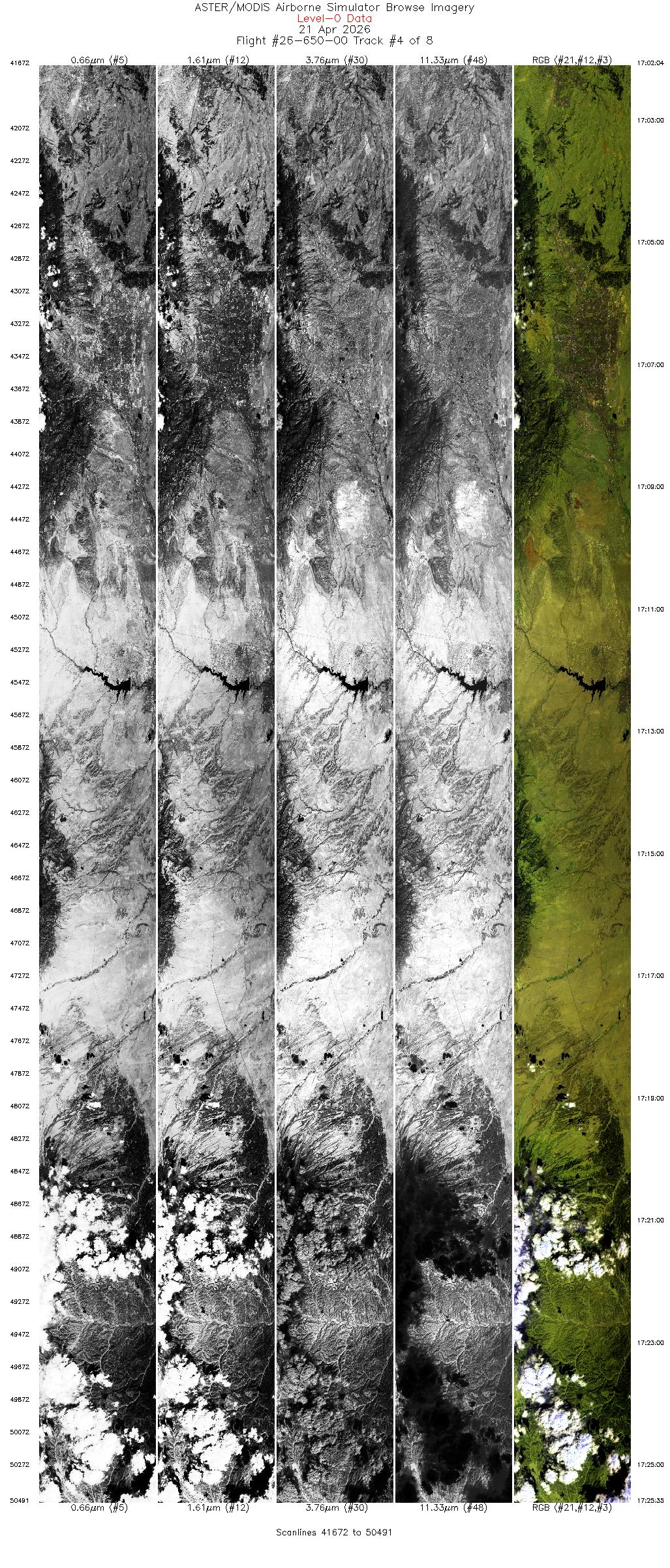

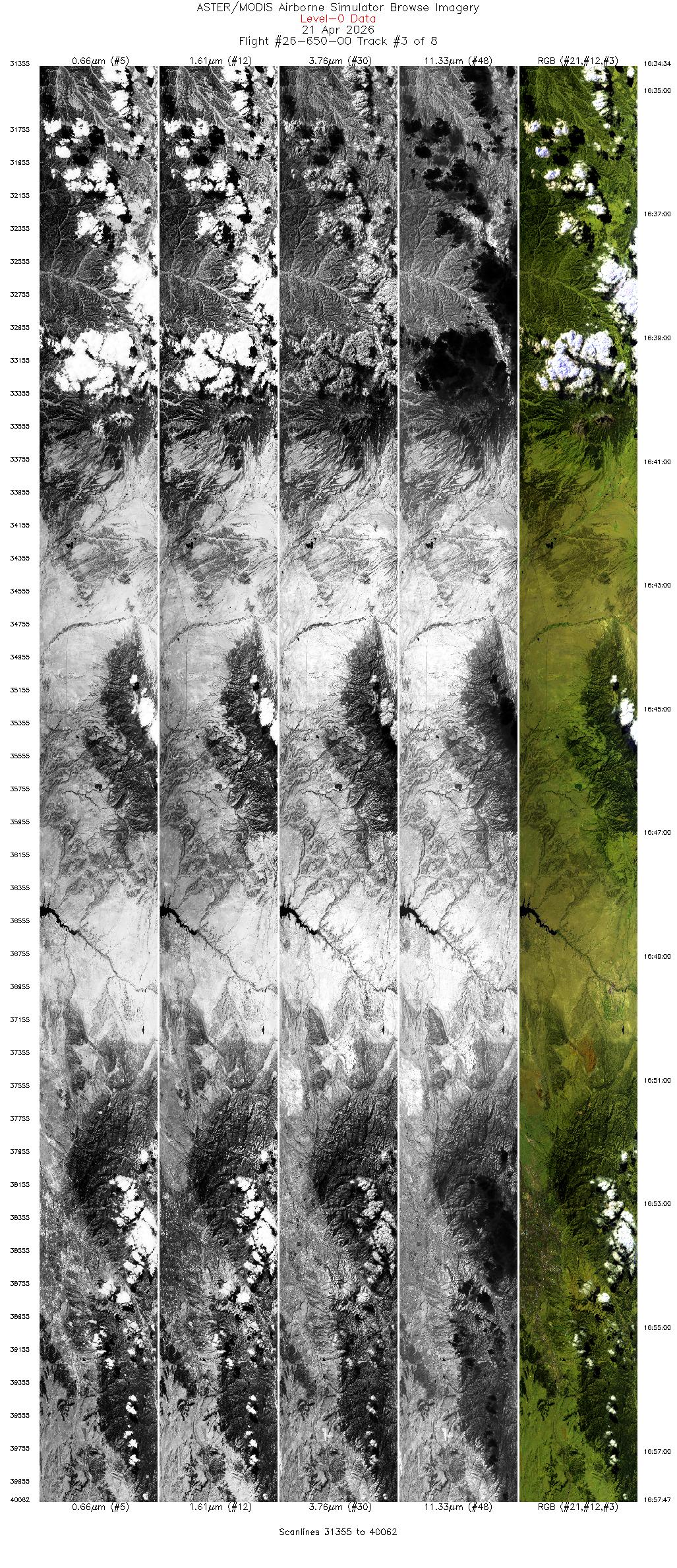

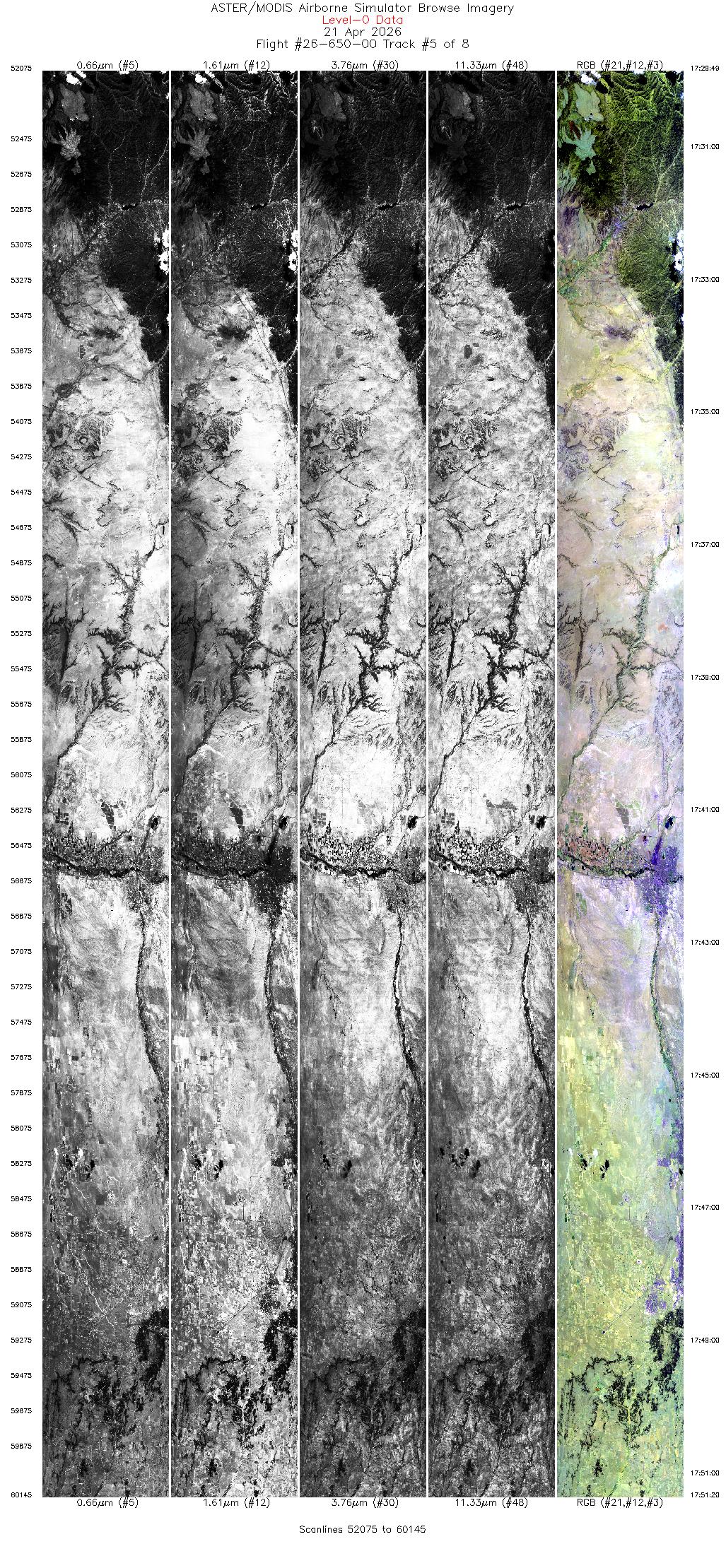

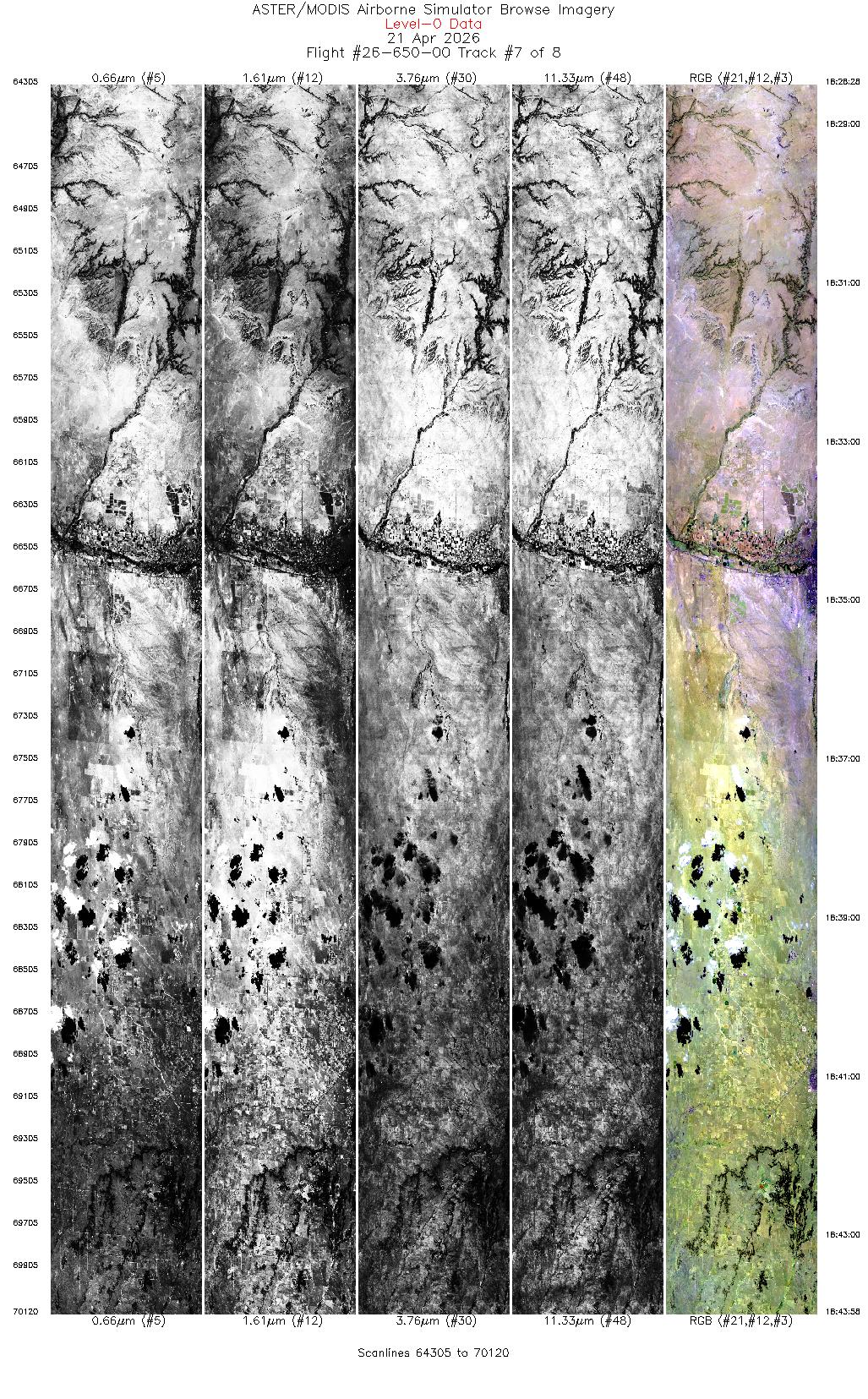

Click a Flight Track number to view a quicklook image
Lat/Lon ranges are for the BEG-END scanline nadir pixels
Flight
Track		 Time Span
(UTC)		 Heading
(Deg)		 Lat Range
(Deg N)		 Lon Range
(Deg W)		 Length
(Scanlines)		 Altitude
(Meters)
1 15:40 - 16:03 355.9 36.834 - 39.327 104.717 - 104.718 8504 19770
2 16:07 - 16:28 182.2 39.344 - 37.017 105.016 - 105.016 8015 19988
3 16:34 - 16:57 355.6 36.746 - 39.306 104.920 - 104.919 8708 19946
4 17:02 - 17:25 180.4 39.398 - 36.808 104.820 - 104.820 8820 20012
5 17:29 - 17:51 357.5 36.912 - 39.306 104.515 - 104.513 8071 19958
6 17:56 - 18:02 181.4 39.349 - 38.679 104.618 - 104.616 2239 19963
7 18:28 - 18:43 356.5 37.594 - 39.310 104.414 - 104.414 5816 20038
8 18:48 - 19:10 181.9 39.322 - 36.900 104.314 - 104.314 8237 19910
View all Quicklooks in sequence
page title background image

Flight 26-650-00

  • + HOME
  • + CAMPAIGNS
  • - MISSIONS
  • + ORDER DATA
  • + IMAGE GALLERY
  • + REFERENCE
  • + CONTACT US
Sample Imagery
Click image for full resolution

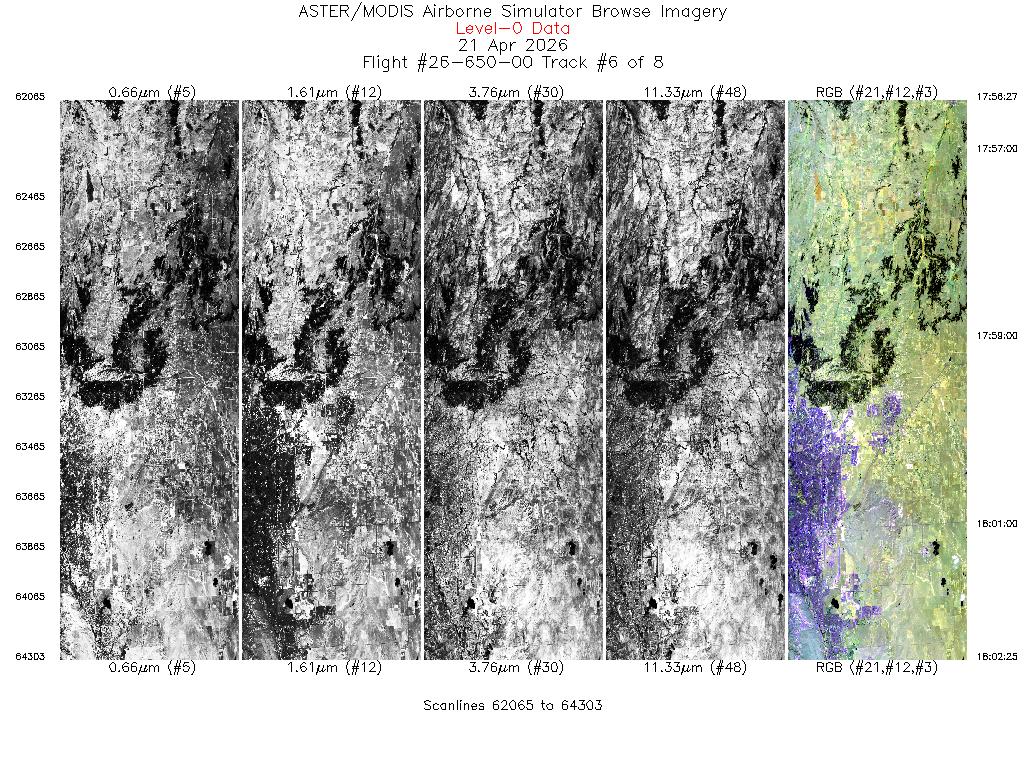

Track: #06
Colorado Springs, CO
Click to load the full resolution image Flight Direction Indicator
R: 8.17µm
G: 2.33µm
B: 0.66µm
