FLIGHT SUMMARY INFORMATION

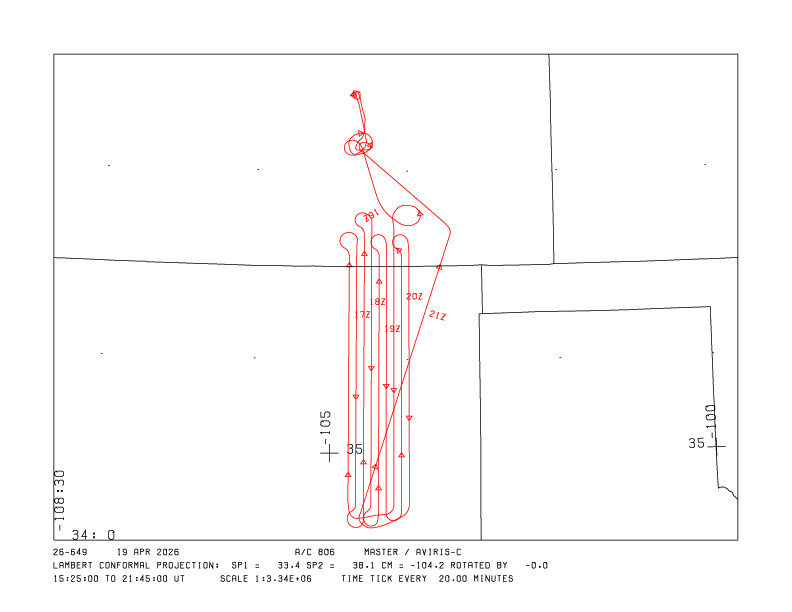

Flight Track Map
track map thumbnail Click map
Flight: 26-649-00
 Date: 19 Apr 2026
Aircraft: NASA ER-2 #806
Campaign: GEMx 2026
Flight Location: Northeastern New Mexico (NM17b)
Principal Investigators: Kokaly / Hoefen (USGS))
Additional Sensors: AVIRIS-C
Data Evaluation
Overall quality is good
Processing Information
Level-1B Data in HDF format is available
Flight Line Summary
Spectral Band Configuration
Spectral Response Function Table
Spectral Response Function (text)
Browse Imagery
Flight Tracks: 10
Scanlines: 94557

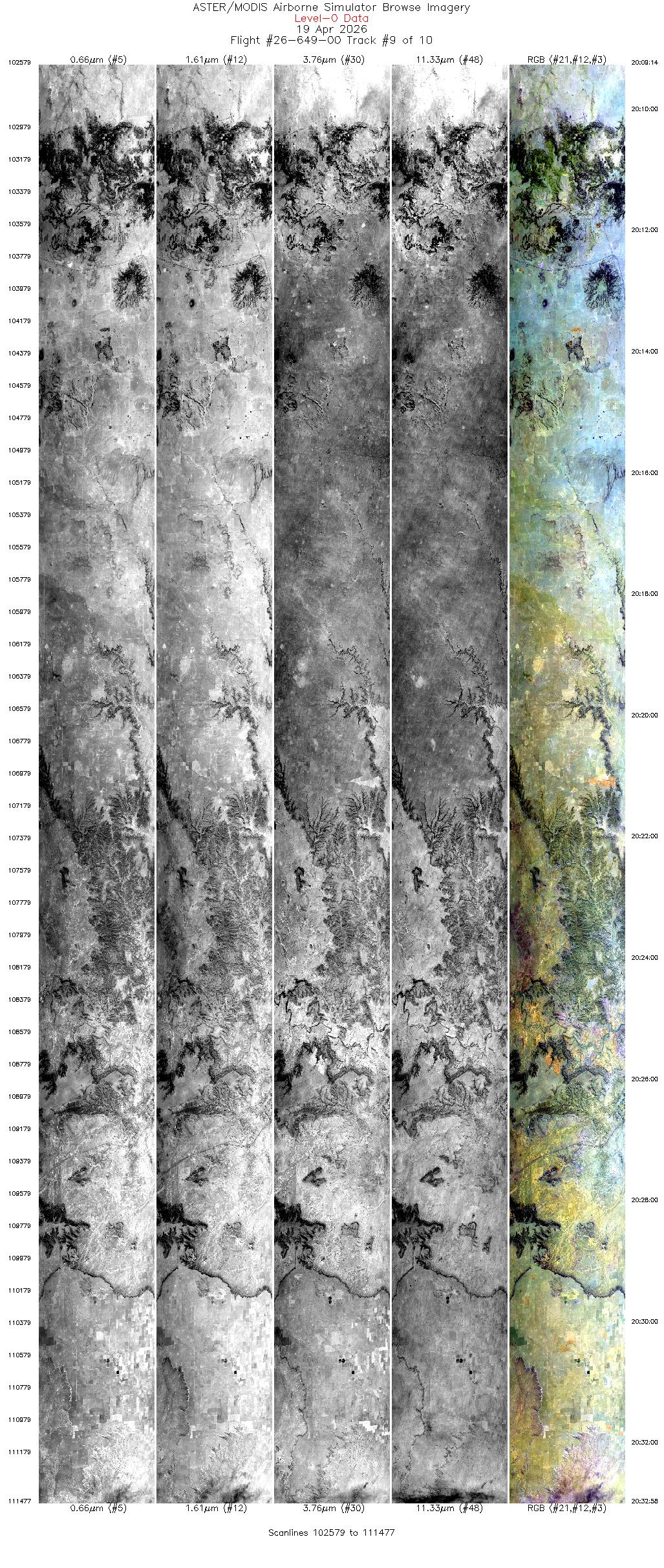

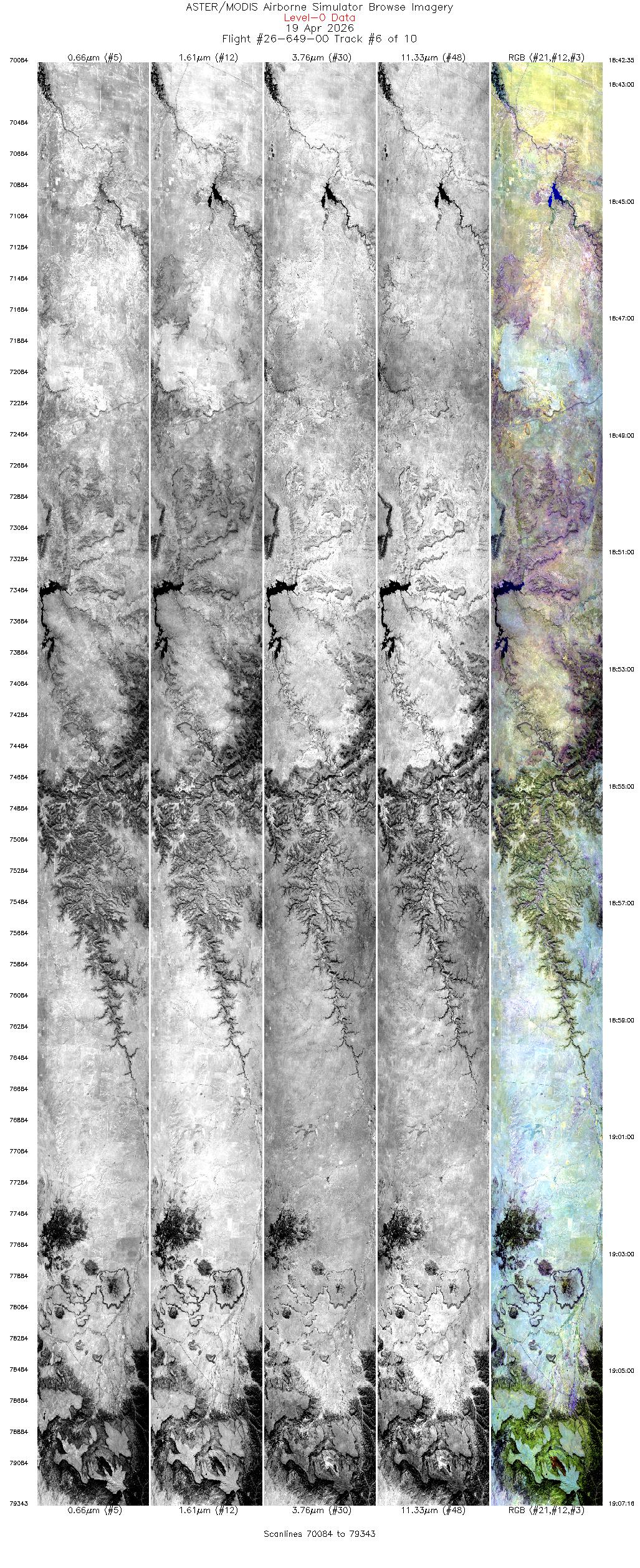

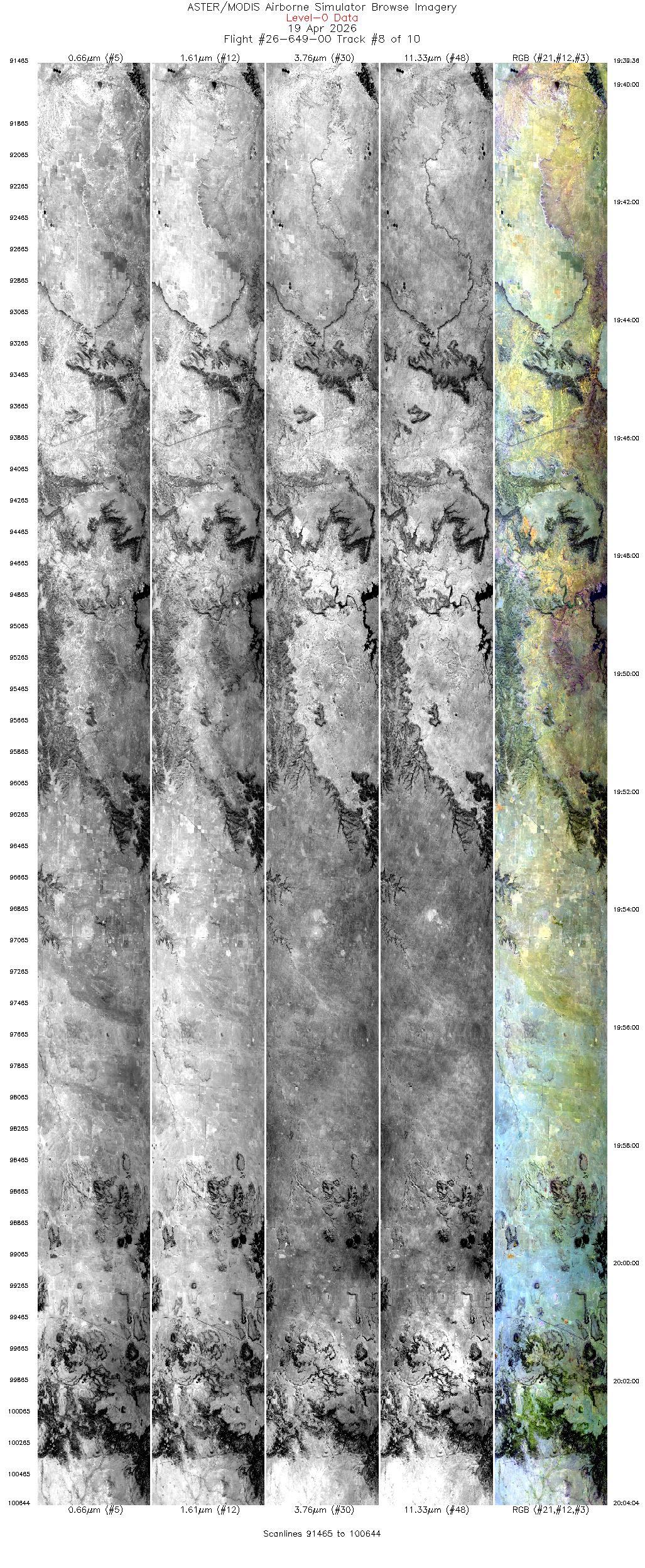

Browse Imagery Table
Click a Flight Track number to view a quicklook image
Lat/Lon ranges are for the BEG-END scanline nadir pixels
Flight
Track		 Time Span
(UTC)		 Heading
(Deg)		 Lat Range
(Deg N)		 Lon Range
(Deg W)		 Length
(Scanlines)		 Altitude
(Meters)

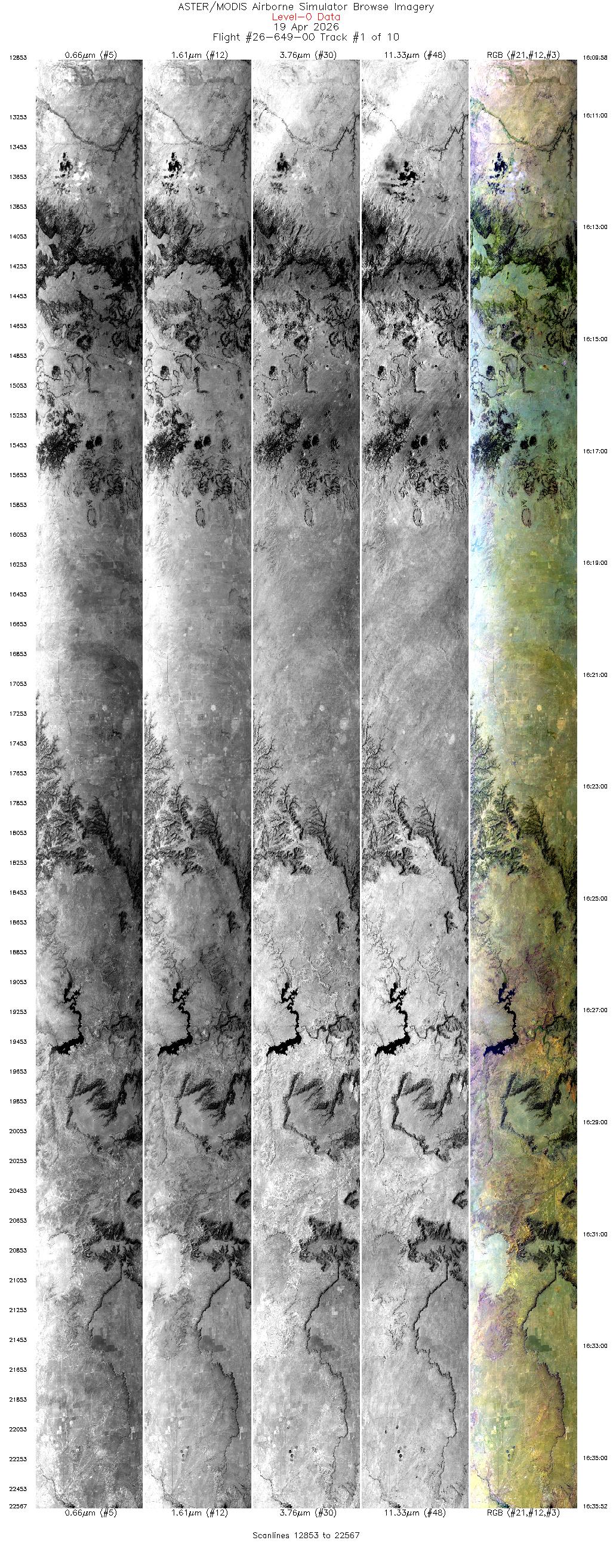

1 16:09 - 16:35 183.0 37.366 - 34.454 104.168 - 104.168 9715 19657

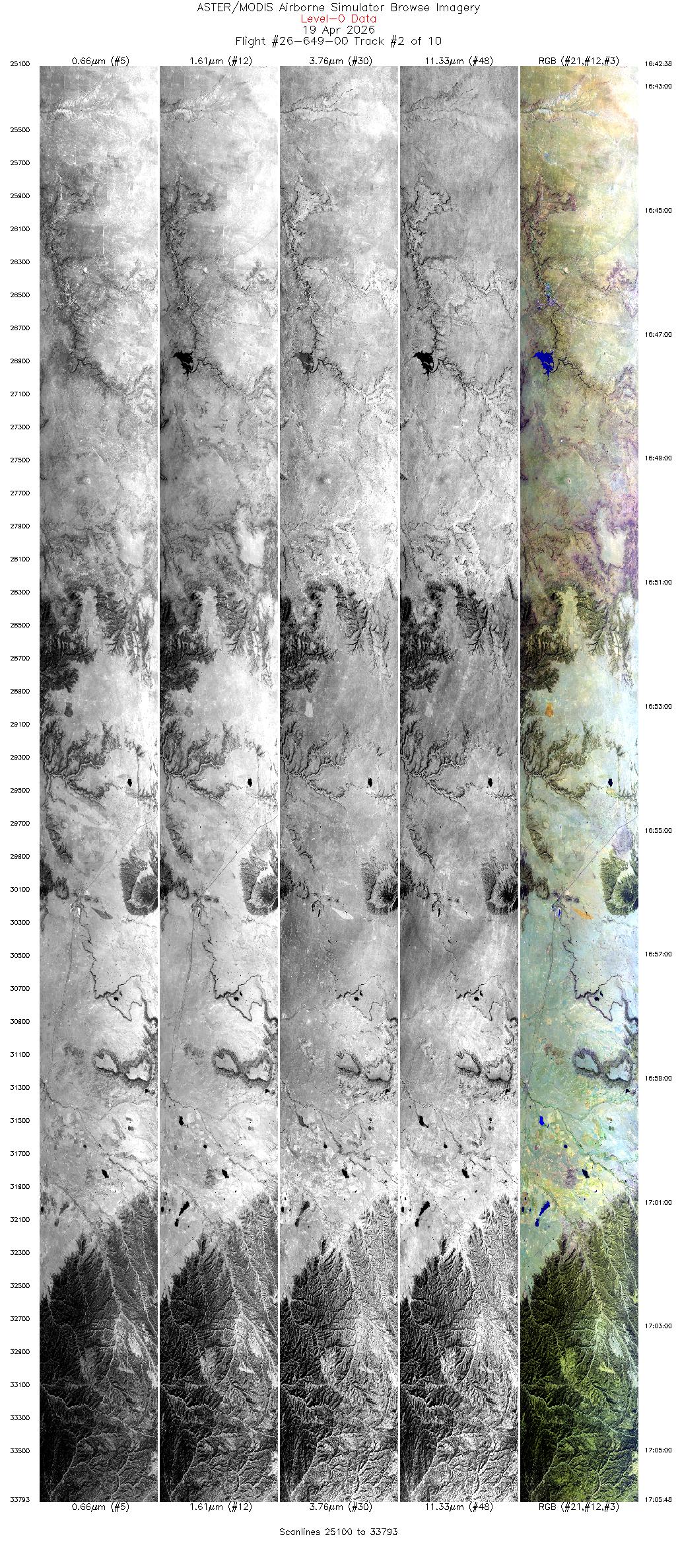

2 16:42 - 17:05 356.8 34.512 - 37.094 104.759 - 104.760 8694 19938

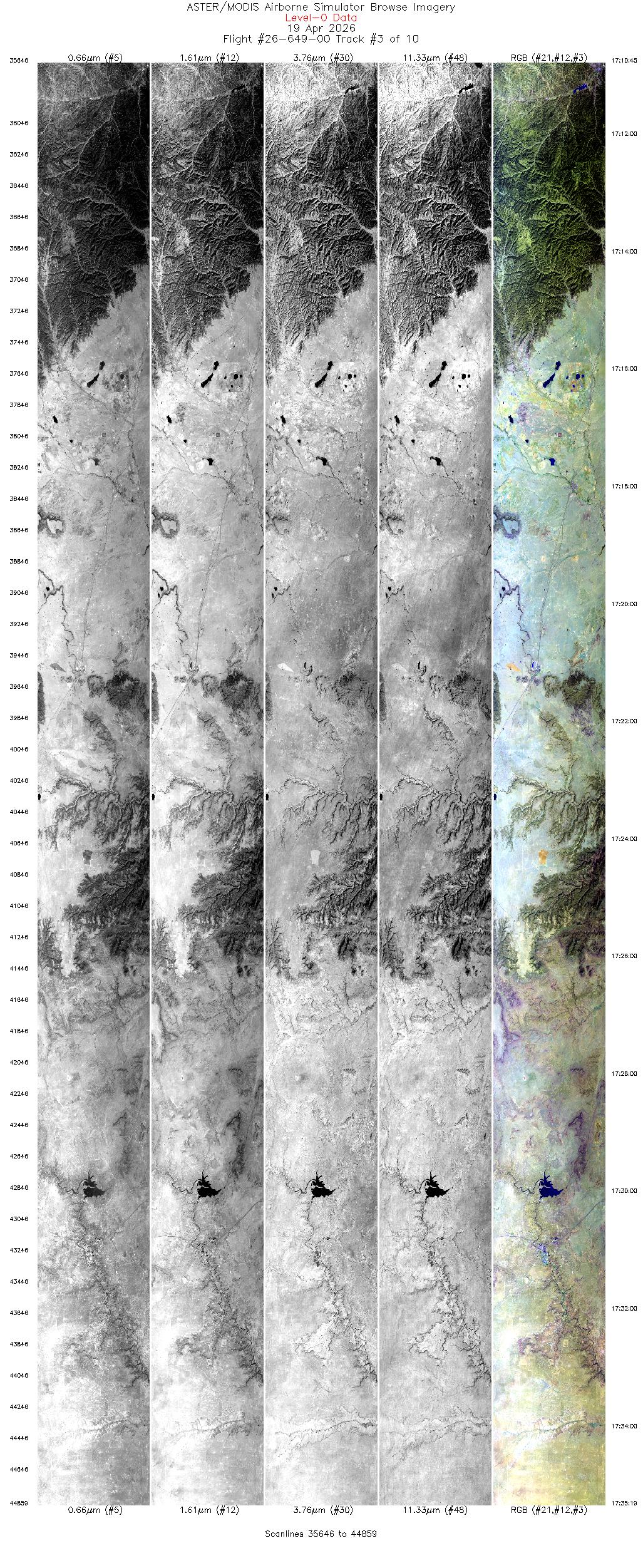

3 17:10 - 17:35 183.1 37.190 - 34.456 104.661 - 104.661 9214 19677

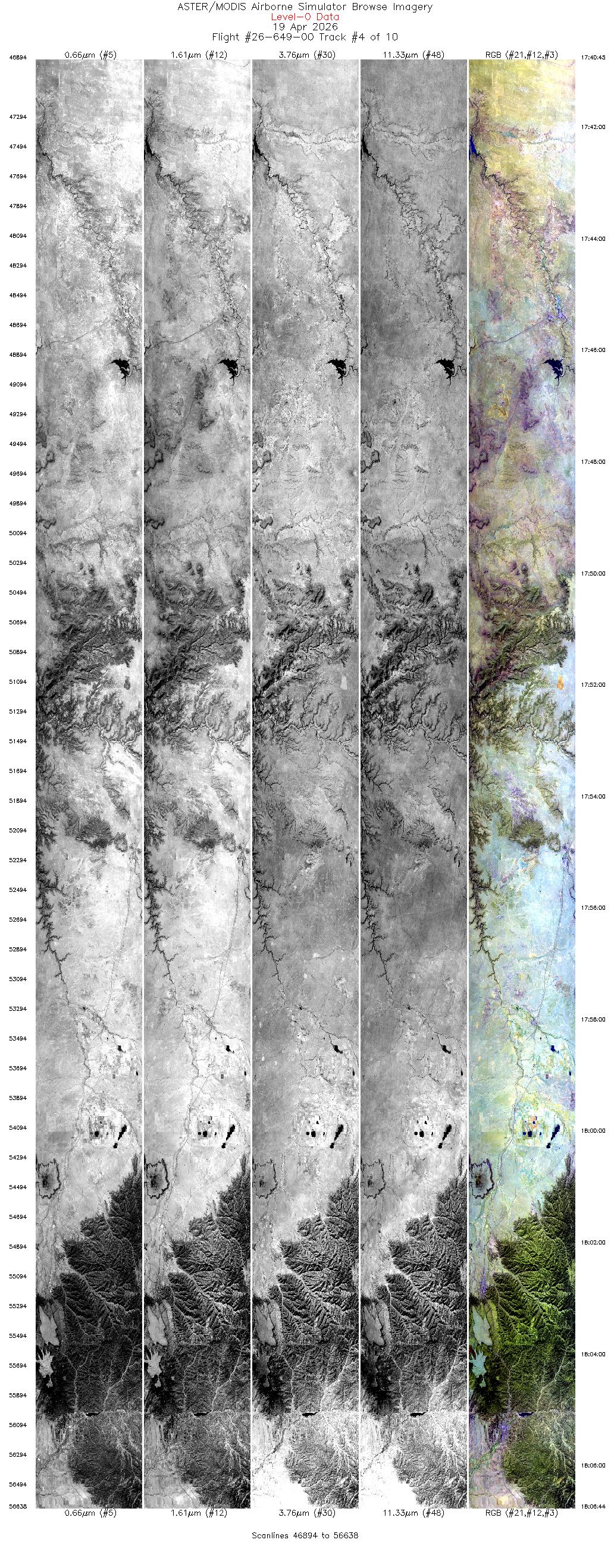

4 17:40 - 18:06 356.2 34.443 - 37.325 104.561 - 104.561 9745 19714
5 18:10 - 18:38 184.4 37.457 - 34.457 104.462 - 104.463 10196 19791
6 18:42 - 19:07 355.6 34.381 - 37.092 104.365 - 104.364 9260 19928

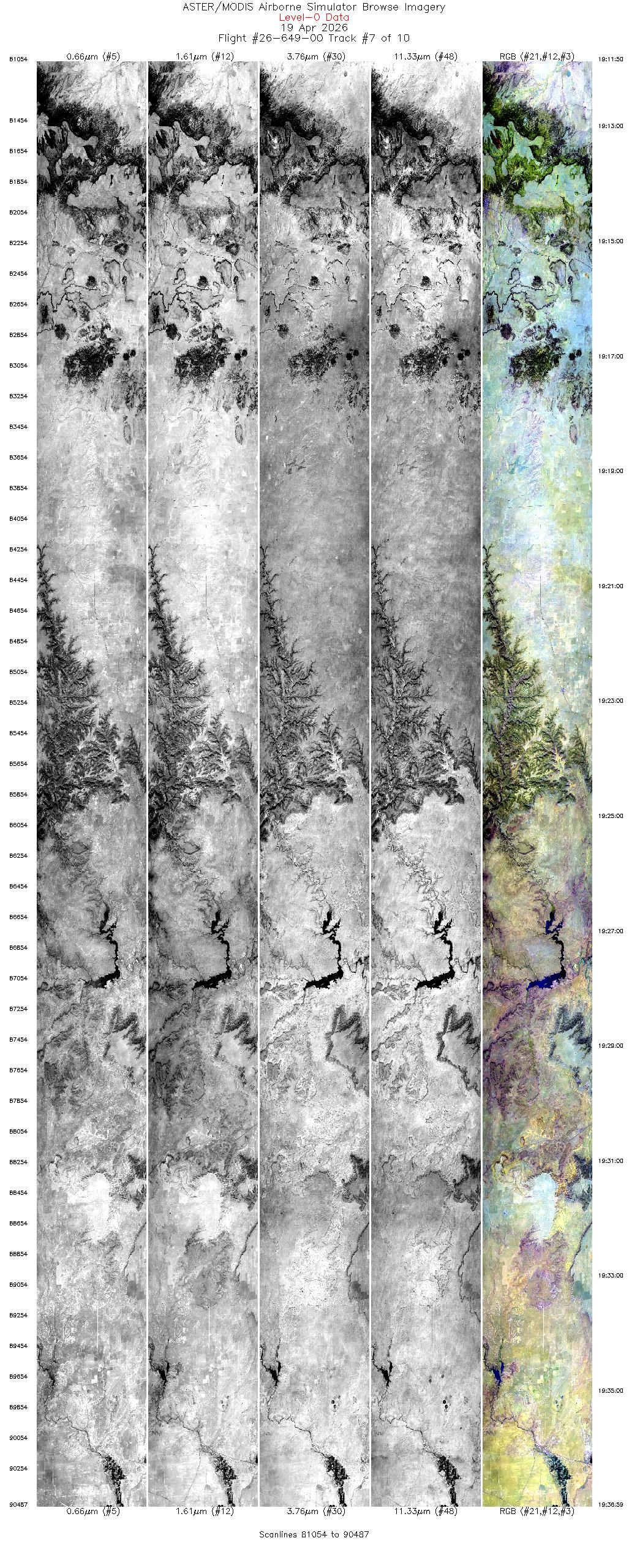

7 19:11 - 19:36 183.5 37.166 - 34.368 104.266 - 104.268 9434 19959
8 19:39 - 20:04 355.1 34.408 - 37.092 104.070 - 104.069 9180 19868
9 20:09 - 20:32 183.3 37.112 - 34.457 103.969 - 103.970 8899 20010

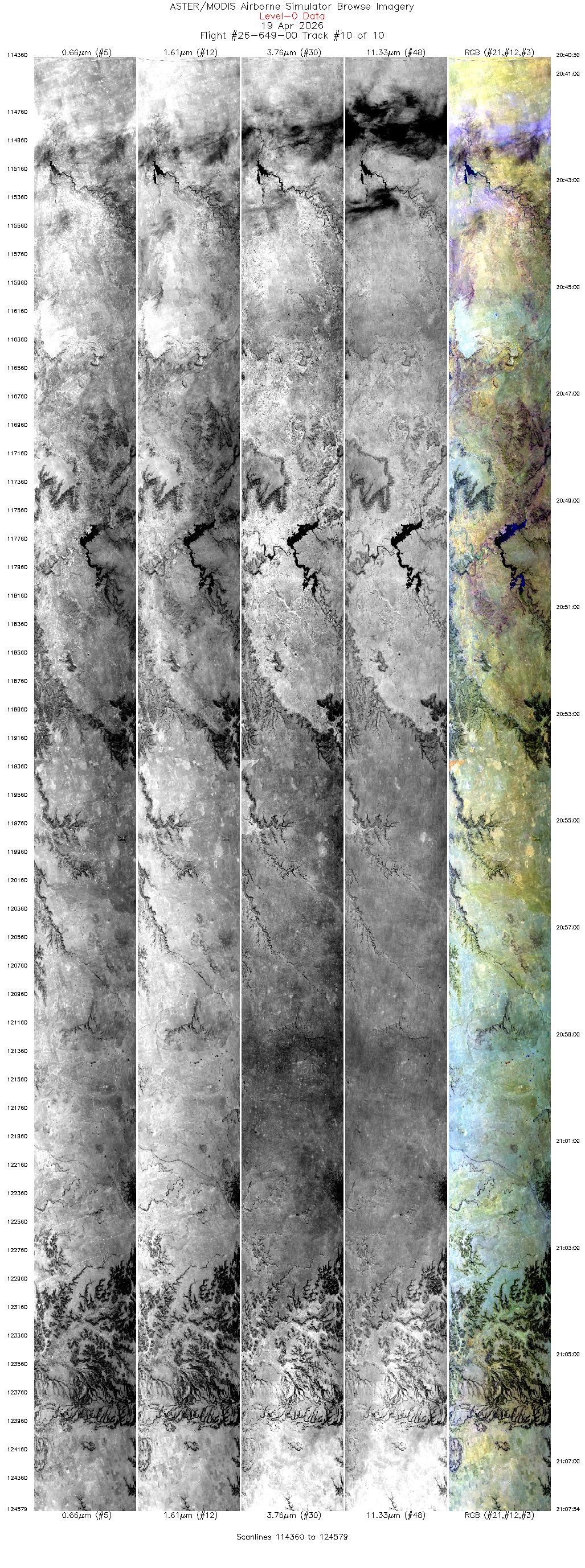

10 20:40 - 21:07 12.4 34.424 - 37.322 104.575 - 103.425 10220 19859
View all Quicklooks in sequence
page title background image

Flight 26-649-00

  • + HOME
  • + CAMPAIGNS
  • - MISSIONS
  • + ORDER DATA
  • + IMAGE GALLERY
  • + REFERENCE
  • + CONTACT US

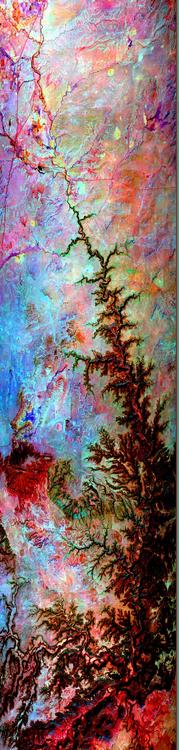

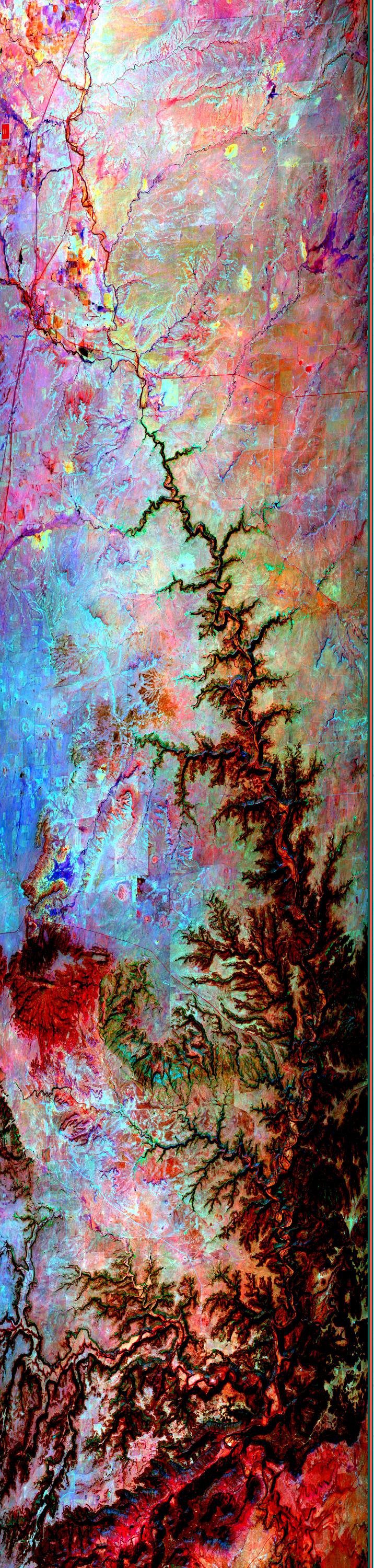

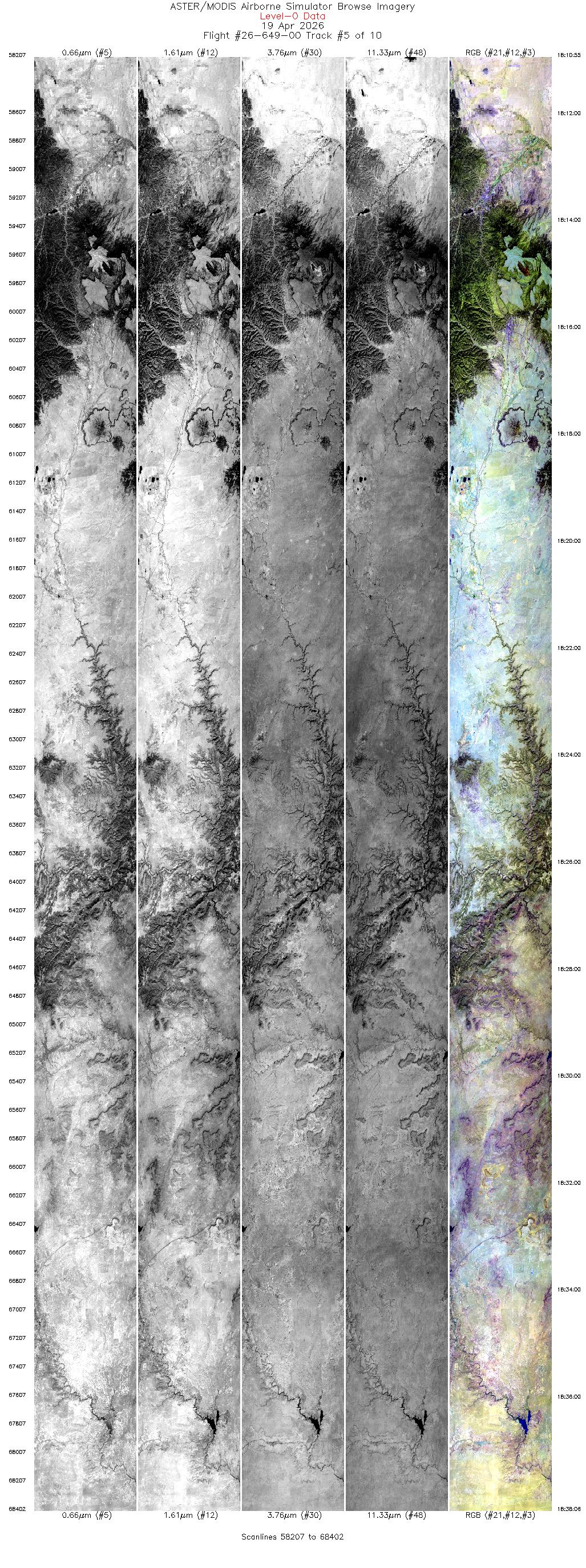

Sample Imagery
Click image for full resolution
Track: #05
New Mexico
Click to load the full resolution image Flight Direction Indicator
R: 8.17µm
G: 2.33µm
B: 0.66µm
