FLIGHT SUMMARY INFORMATION

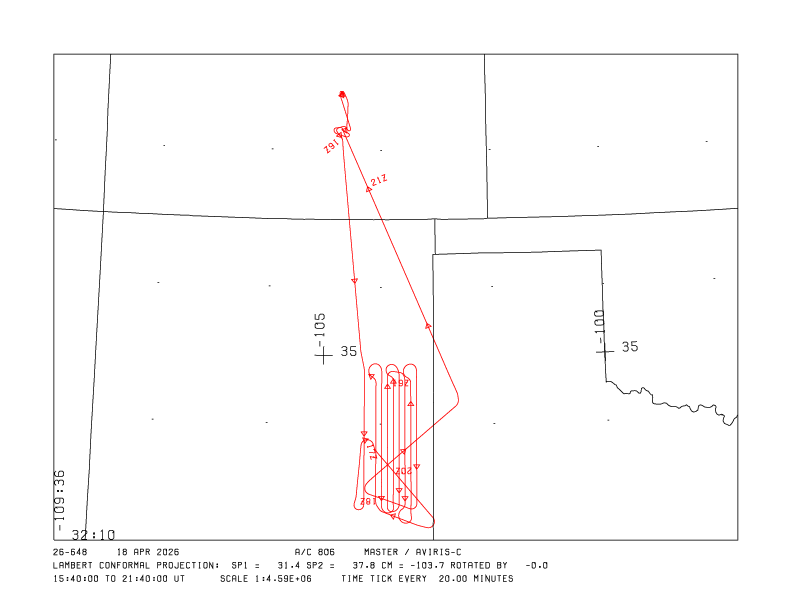

Flight Track Map
track map thumbnail Click map
Flight: 26-648-00
 Date: 18 Apr 2026
Aircraft: NASA ER-2 #806
Campaign: GEMx 2026
Flight Location: Eastern New Mexico (NM10b)
Principal Investigators: Kokaly / Hoefen (USGS))
Additional Sensors: AVIRIS-C
Data Evaluation
Overall quality is good
Processing Information
Level-1B Data in HDF format is available
Flight Line Summary
Spectral Band Configuration
Spectral Response Function Table
Spectral Response Function (text)
Browse Imagery
Flight Tracks: 8
Scanlines: 46972
Browse Imagery Table
Click a Flight Track number to view a quicklook image
Lat/Lon ranges are for the BEG-END scanline nadir pixels
Flight
Track		 Time Span
(UTC)		 Heading
(Deg)		 Lat Range
(Deg N)		 Lon Range
(Deg W)		 Length
(Scanlines)		 Altitude
(Meters)

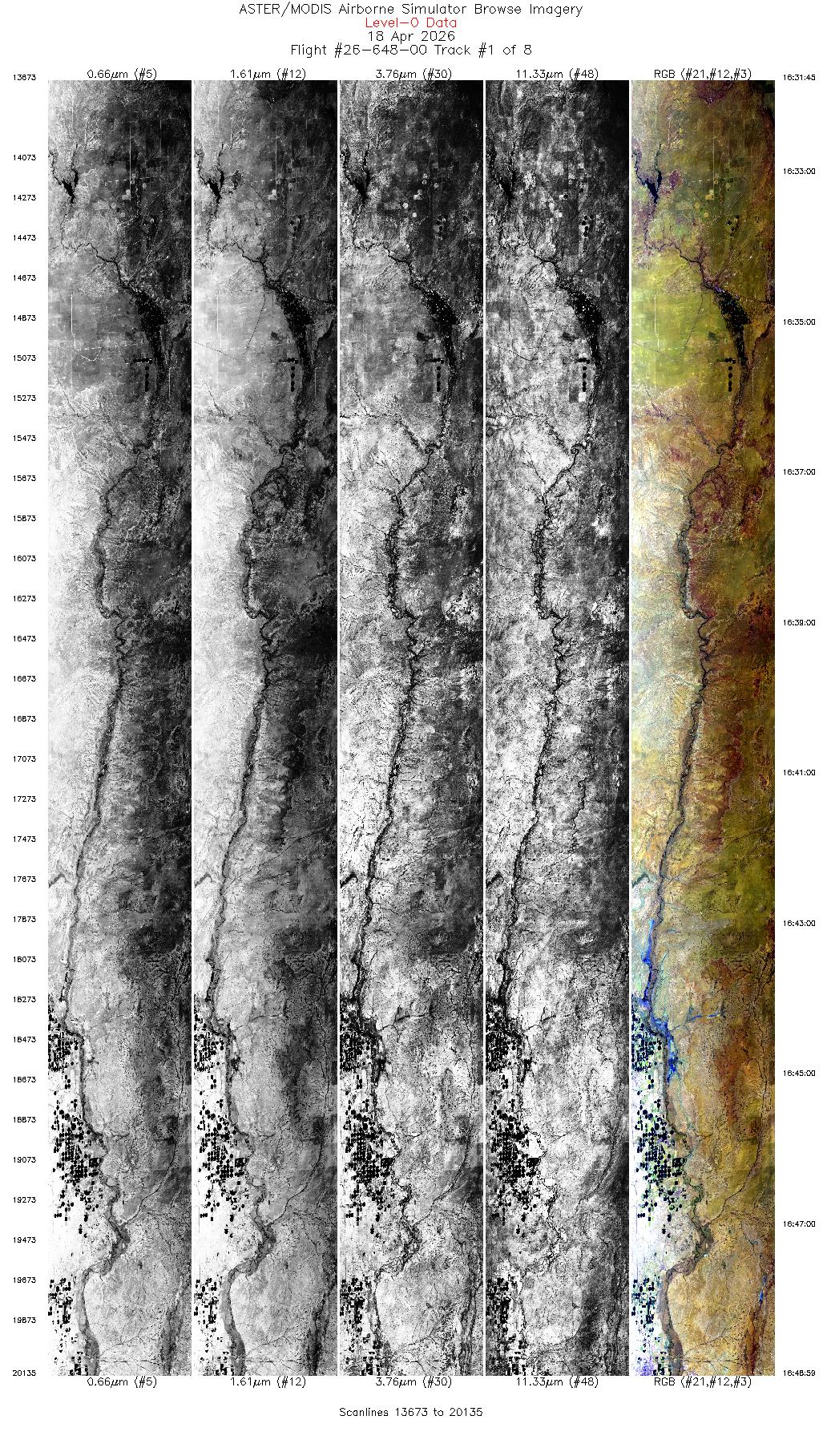

1 16:31 - 16:48 181.1 34.784 - 32.830 104.275 - 104.273 6463 20016

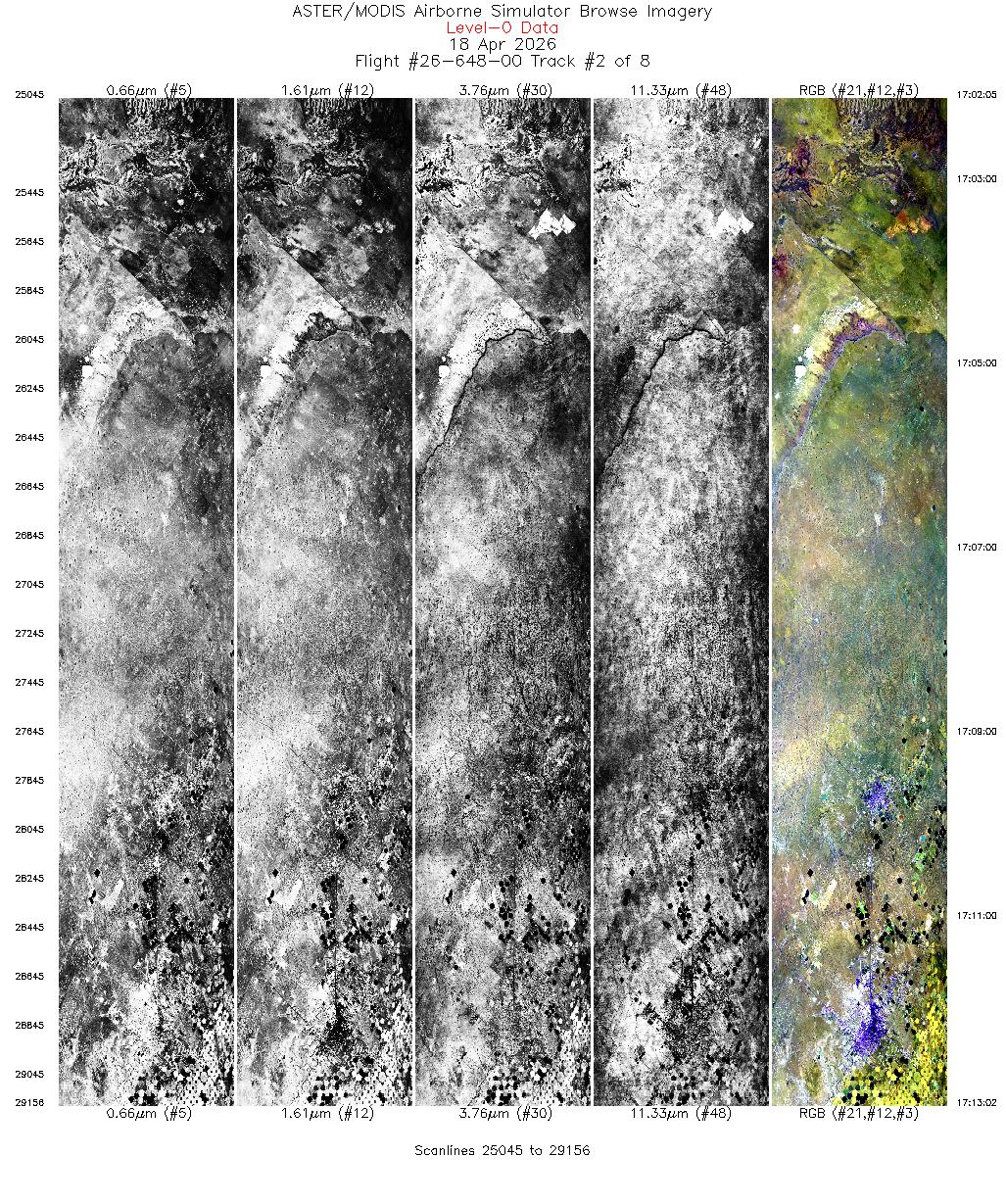

2 17:02 - 17:13 142.4 33.608 - 32.636 104.064 - 103.080 4112 20008

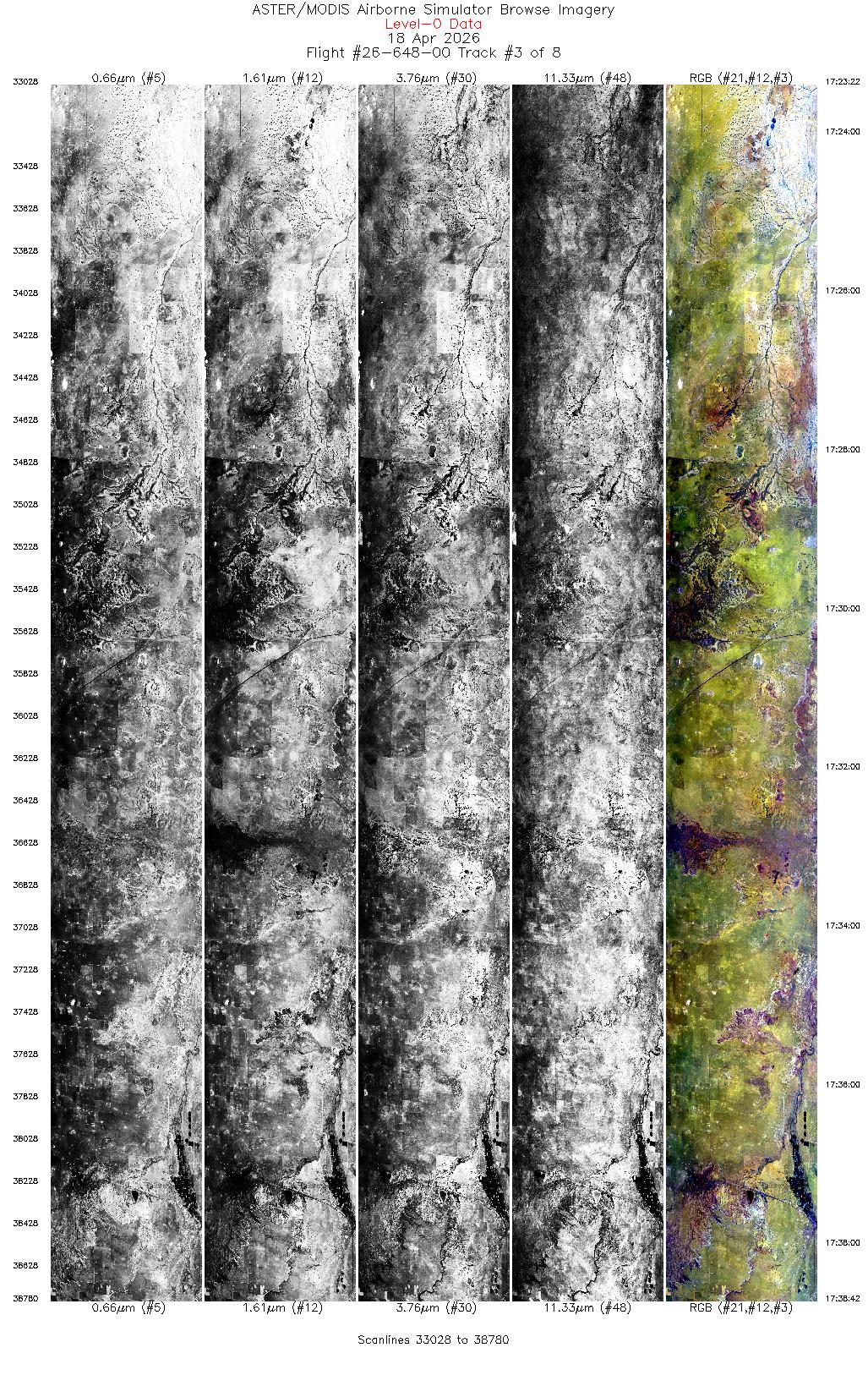

3 17:23 - 17:38 354.4 32.889 - 34.599 104.069 - 104.068 5753 20018

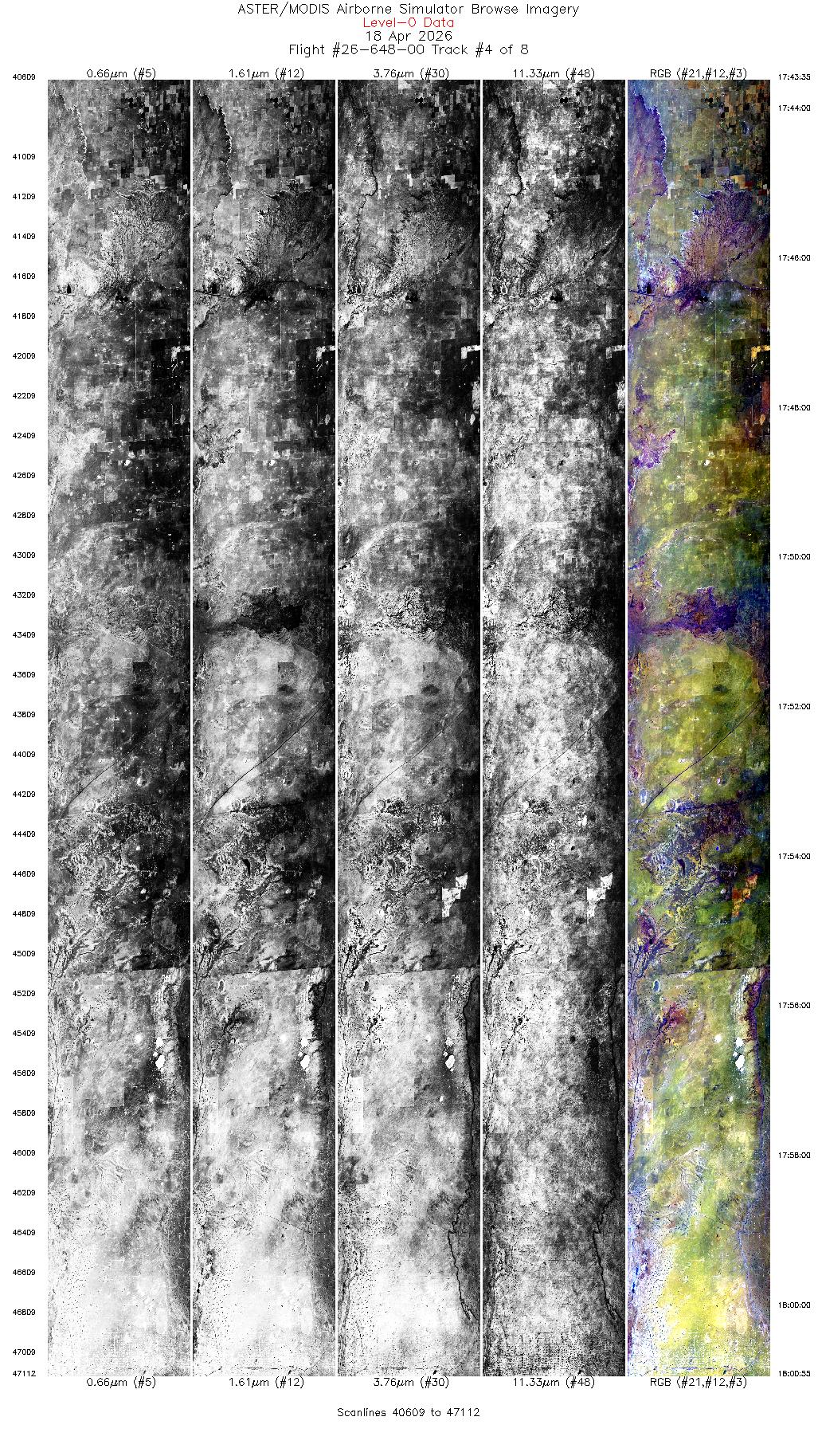

4 17:43 - 18:00 181.2 34.752 - 32.809 103.966 - 103.967 6504 20014
5 18:04 - 18:19 355.8 32.853 - 34.630 103.764 - 103.761 5950 19954

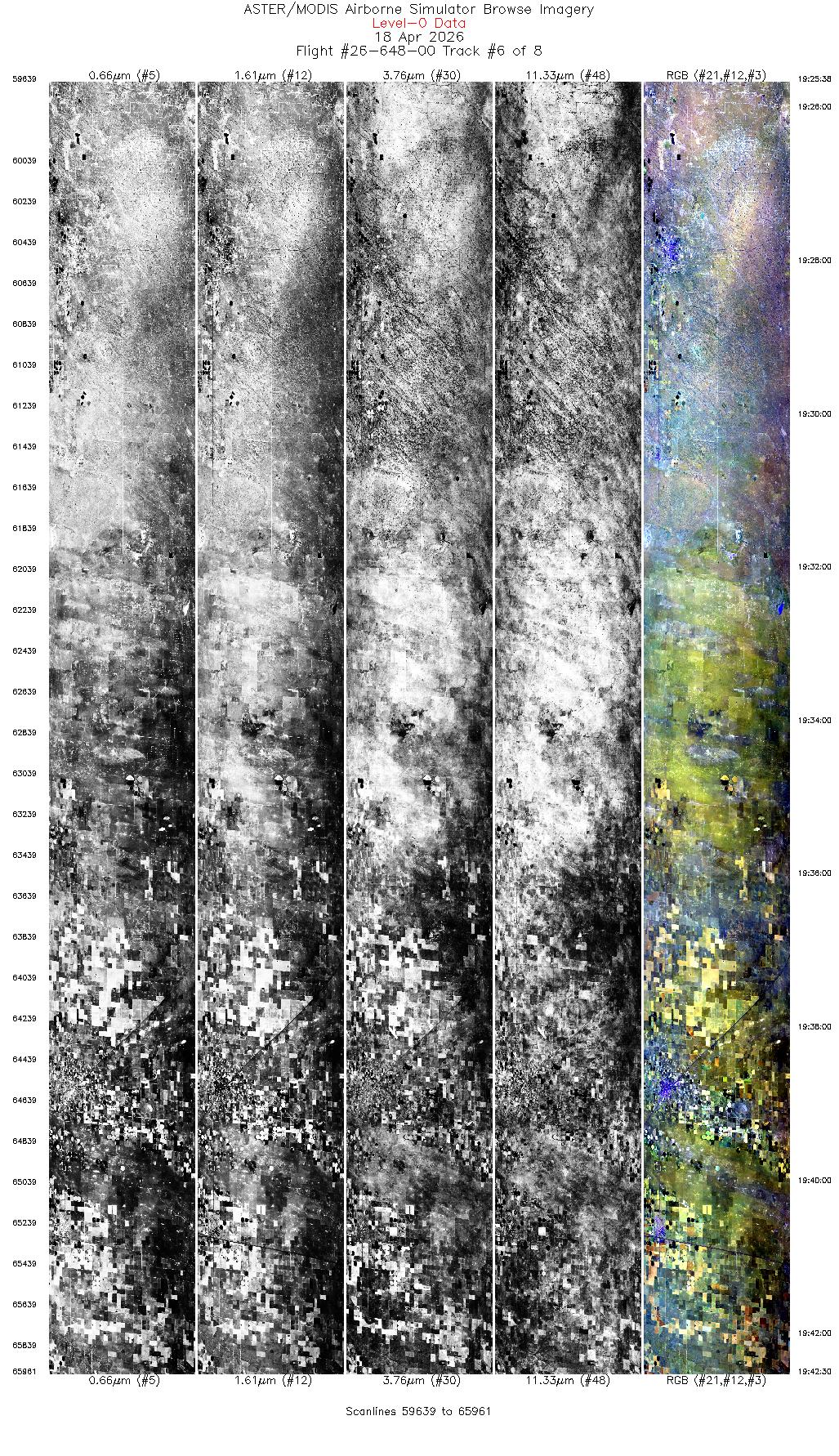

6 19:25 - 19:42 355.0 32.698 - 34.597 103.456 - 103.455 6323 19918

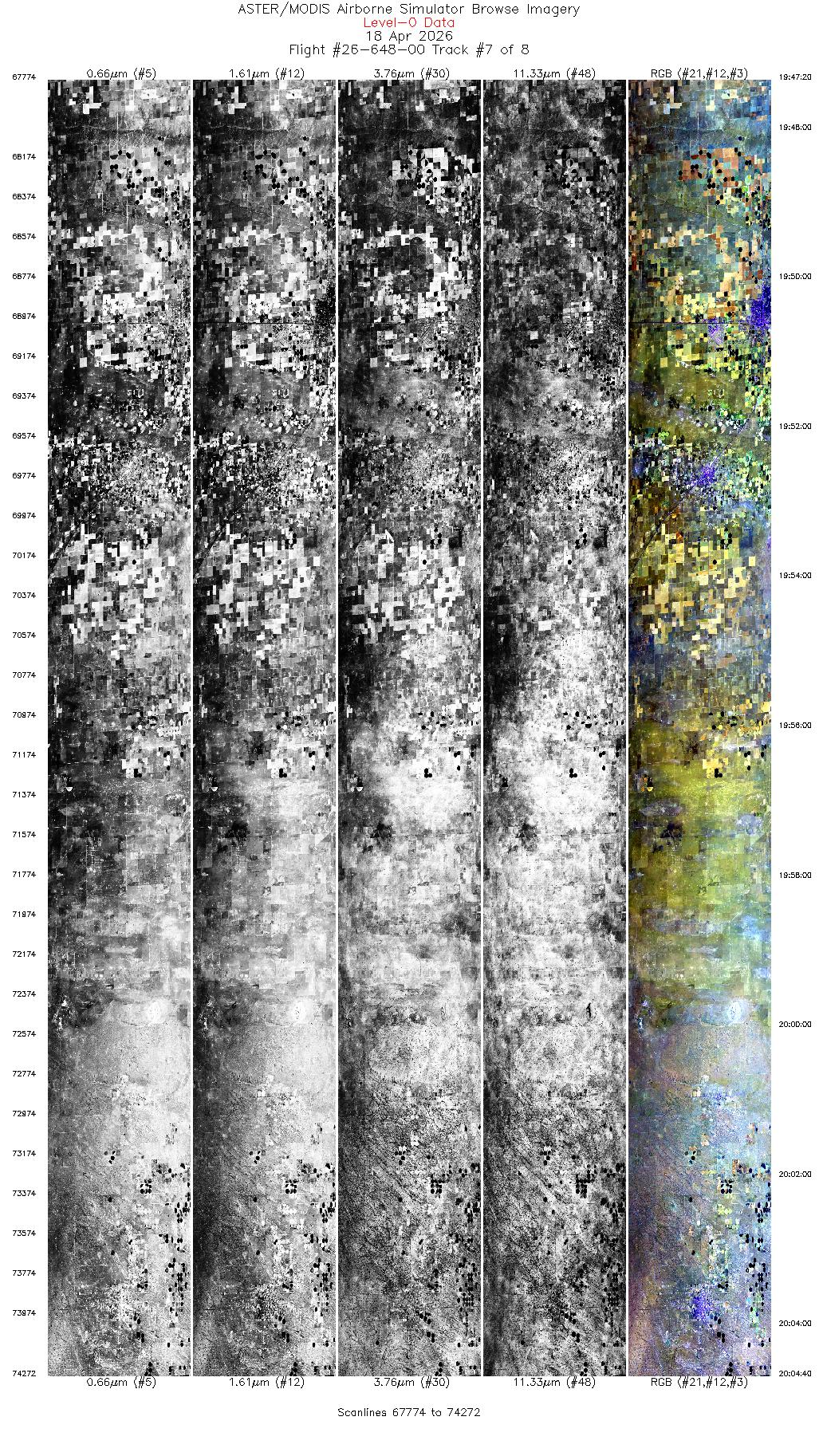

7 19:47 - 20:04 180.8 34.762 - 32.844 103.351 - 103.354 6499 19967
8 20:14 - 20:28 44.4 33.163 - 34.257 104.190 - 102.666 5368 19939
View all Quicklooks in sequence
page title background image

Flight 26-648-00

  • + HOME
  • + CAMPAIGNS
  • - MISSIONS
  • + ORDER DATA
  • + IMAGE GALLERY
  • + REFERENCE
  • + CONTACT US

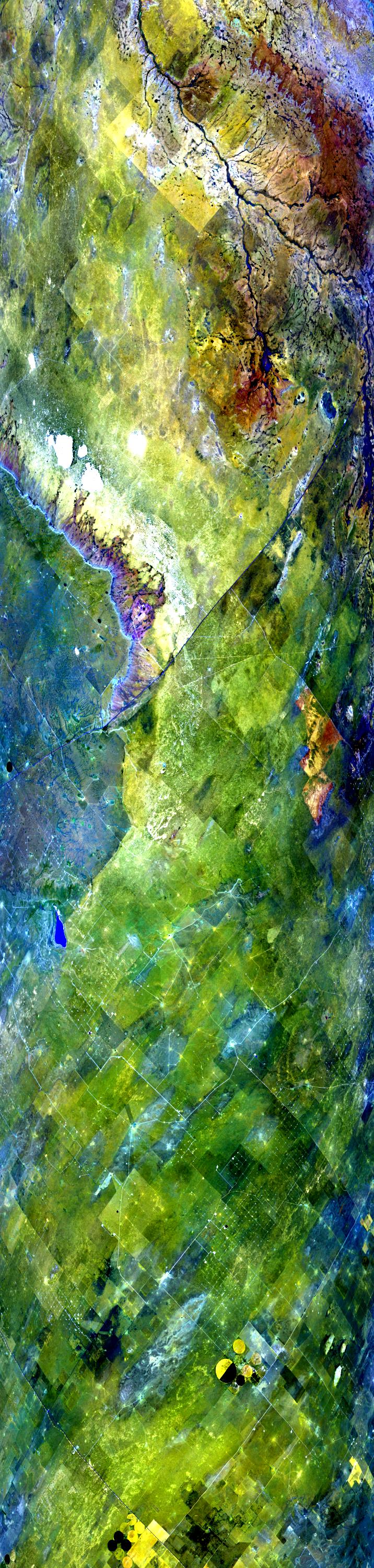

Sample Imagery
Click image for full resolution
Track: #11
New Mexico
Click to load the full resolution image Flight Direction Indicator
R: 2.16µm
G: 1.61µm
B: 0.47µm
