FLIGHT SUMMARY INFORMATION

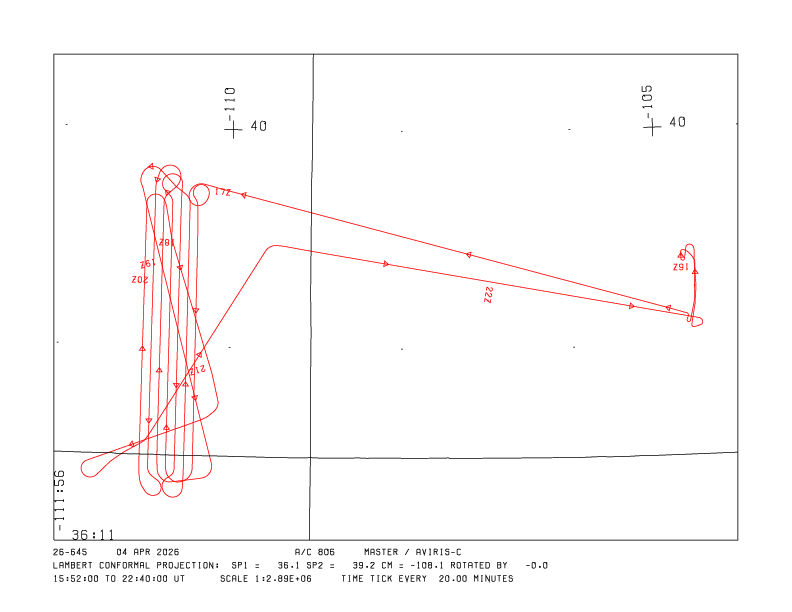

Flight Track Map
track map thumbnail Click map
Flight: 26-645-00
 Date: 04 Apr 2026
Aircraft: NASA ER-2 #806
Campaign: GEMx 2026
Flight Location: Southeastern Utah (UT04)
Principal Investigators: Kokaly / Hoefen (USGS))
Additional Sensors: AVIRIS-C
Data Evaluation
Overall quality is good
Processing Information
Level-1B Data in HDF format is available
Flight Line Summary
Spectral Band Configuration
Spectral Response Function Table
Spectral Response Function (text)
Browse Imagery
Flight Tracks: 10
Scanlines: 79213
Browse Imagery Table
Click a Flight Track number to view a quicklook image
Lat/Lon ranges are for the BEG-END scanline nadir pixels
Flight
Track		 Time Span
(UTC)		 Heading
(Deg)		 Lat Range
(Deg N)		 Lon Range
(Deg W)		 Length
(Scanlines)		 Altitude
(Meters)

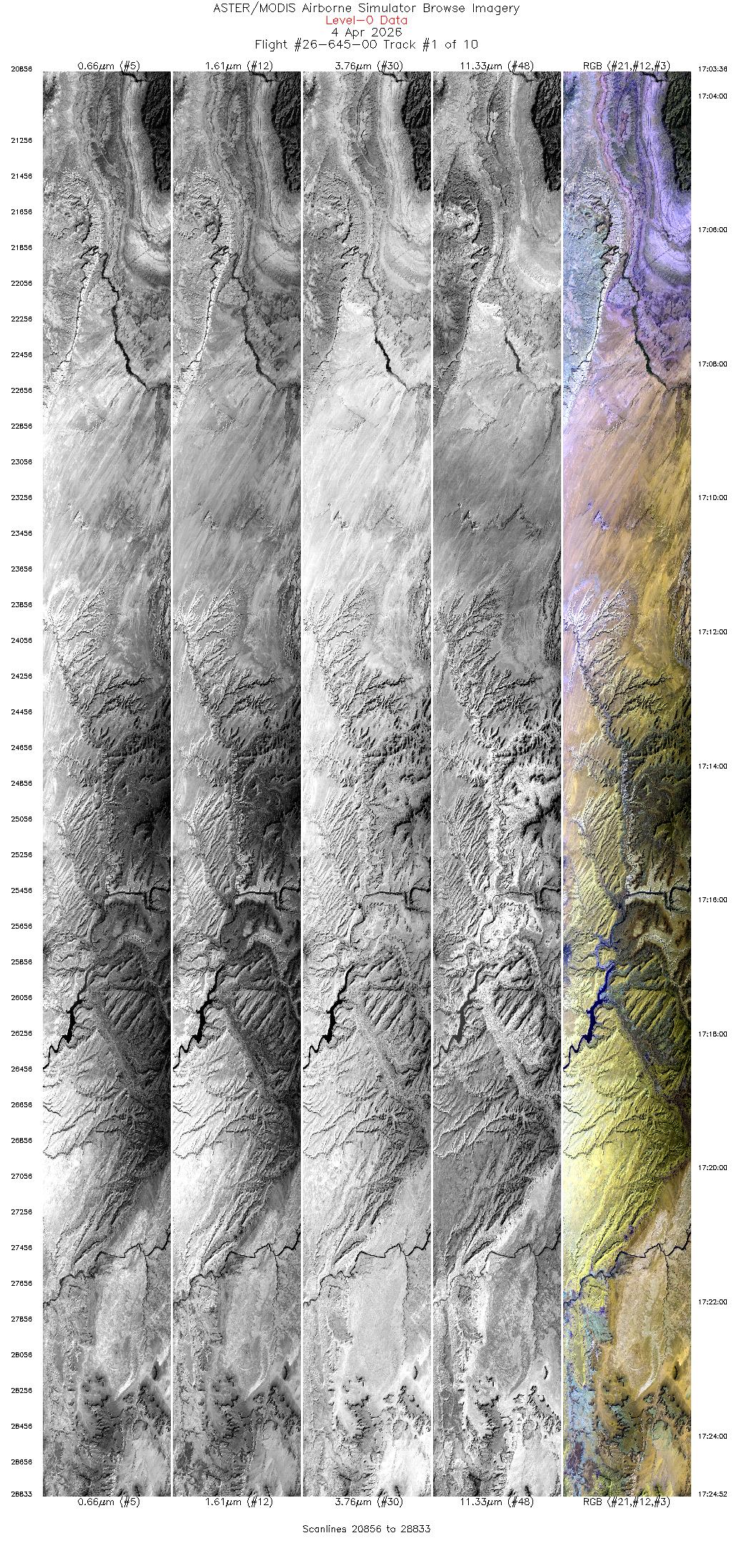

1 17:03 - 17:24 180.8 39.268 - 36.888 110.401 - 110.393 7978 19859

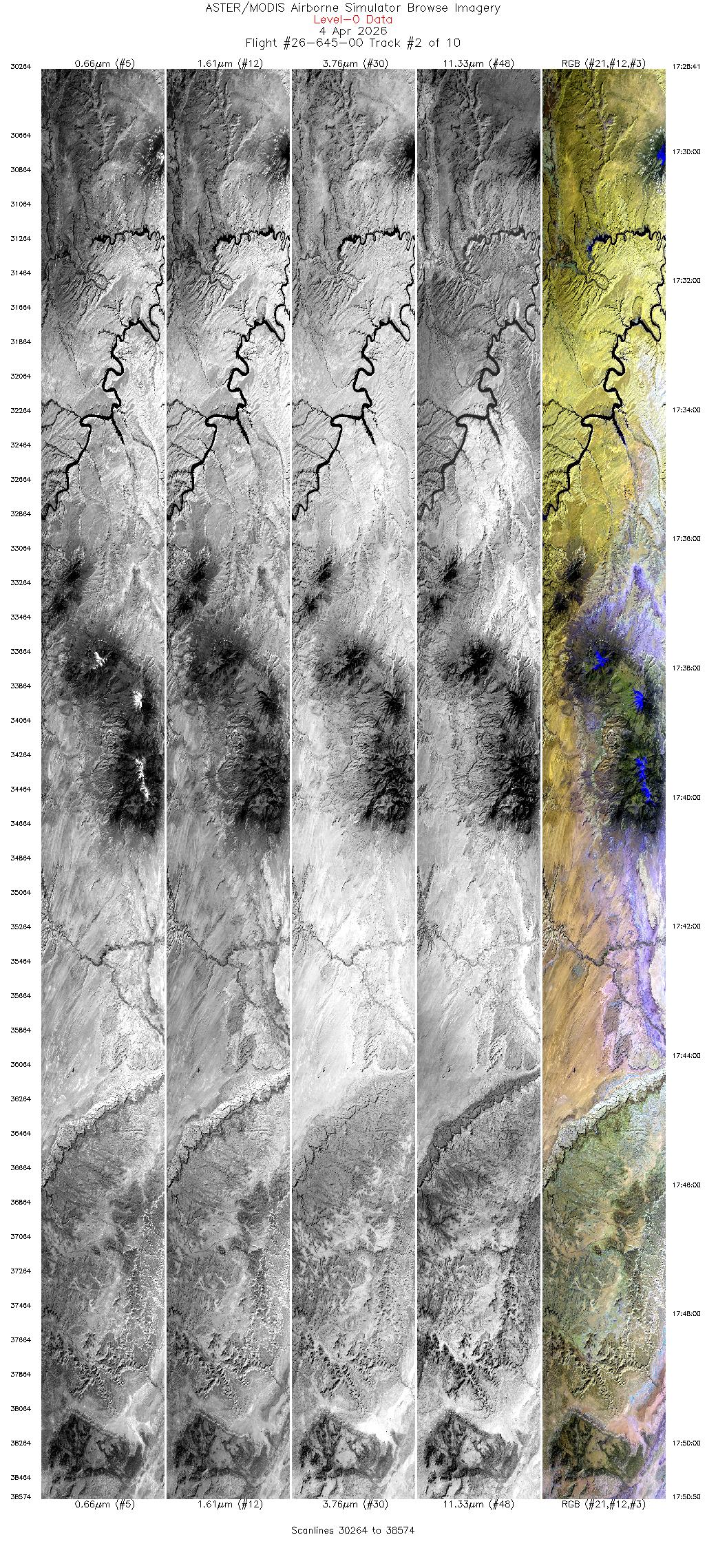

2 17:28 - 17:50 356.5 36.894 - 39.312 110.699 - 110.699 8311 19945

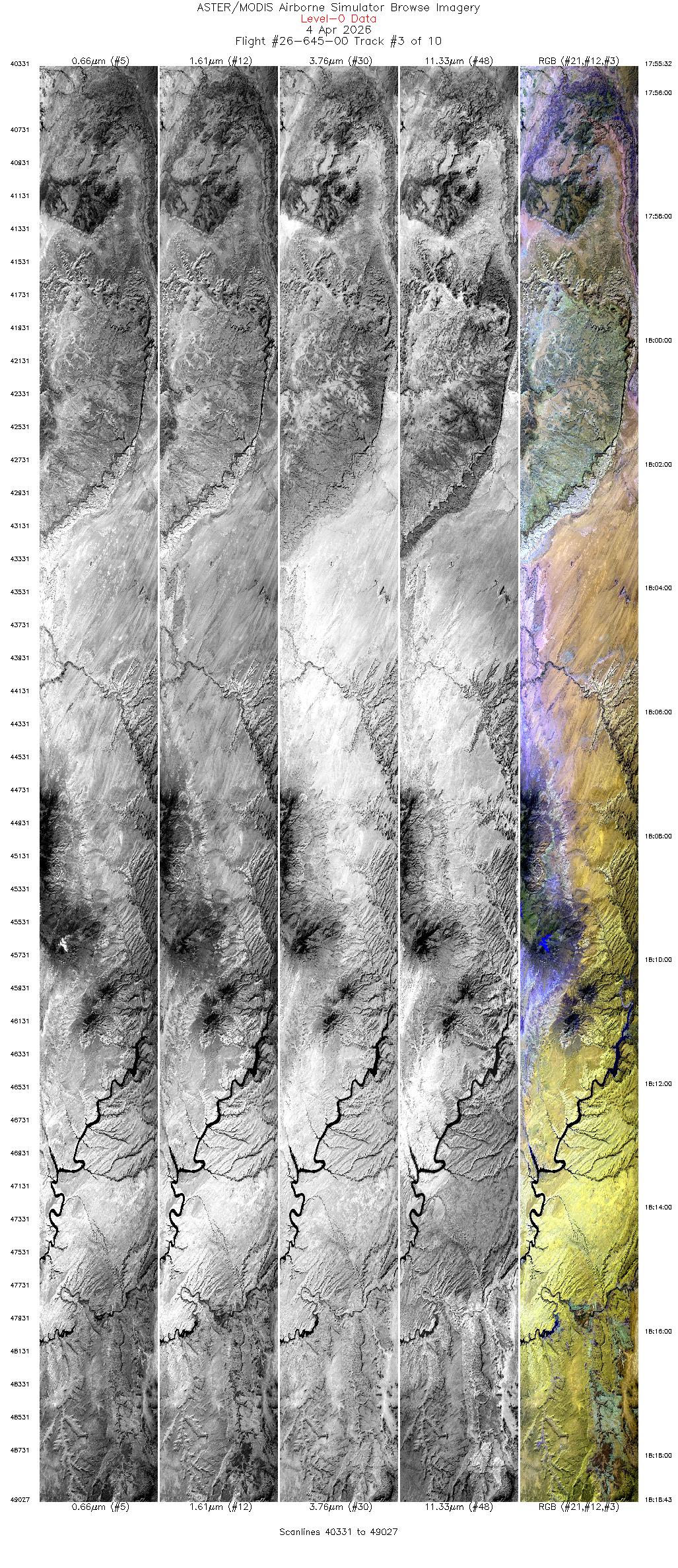

3 17:55 - 18:18 185.0 39.468 - 36.876 110.591 - 110.600 8697 19987

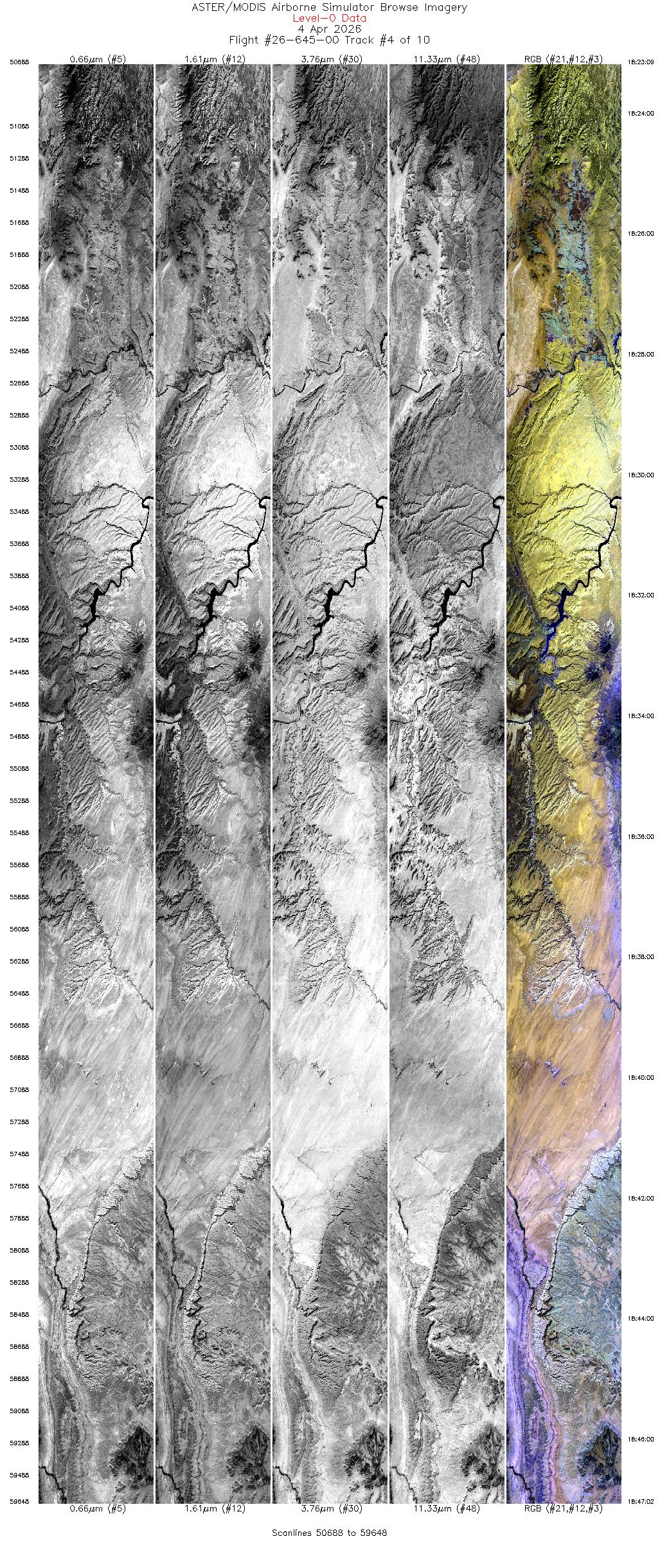

4 18:23 - 18:47 0.0 36.697 - 39.312 110.501 - 110.494 8961 20017

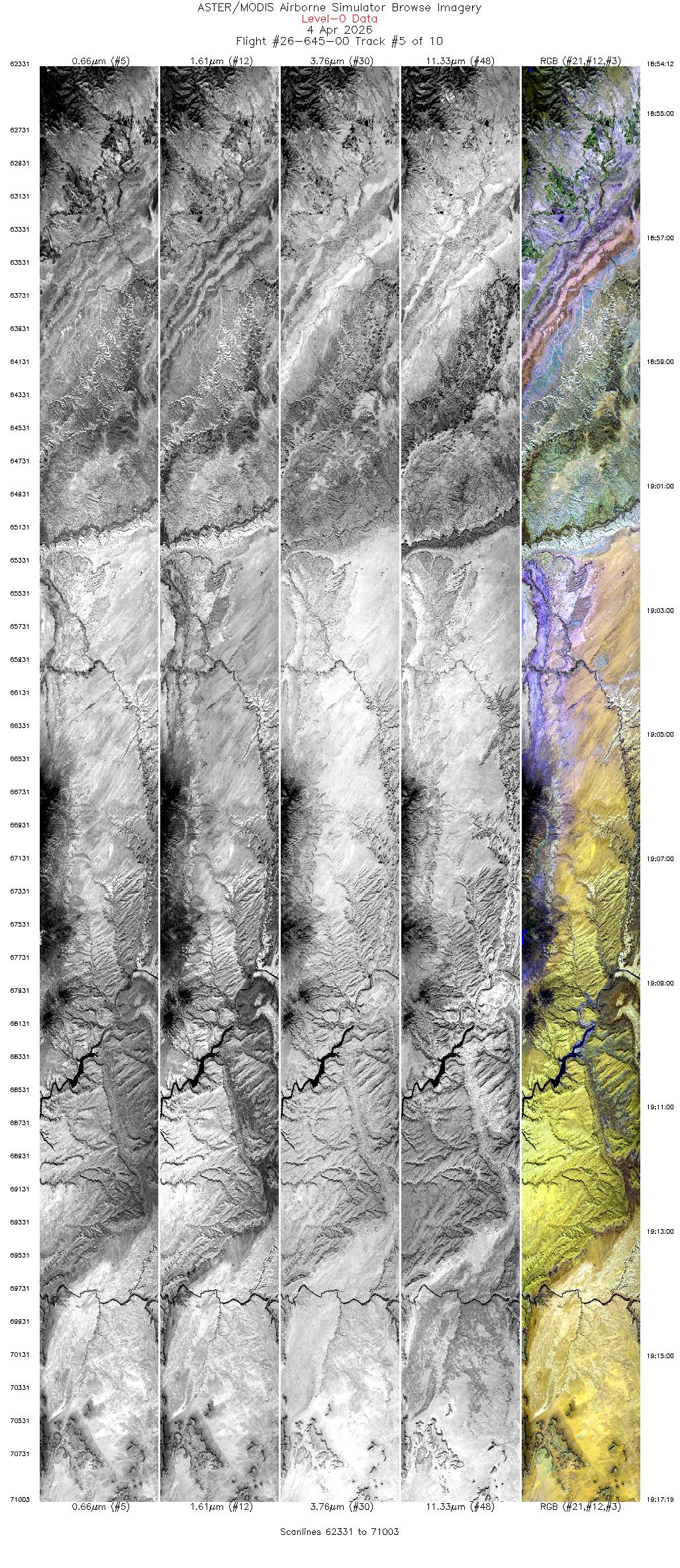

5 18:54 - 19:17 166.4 39.434 - 36.936 111.052 - 110.176 8673 19965

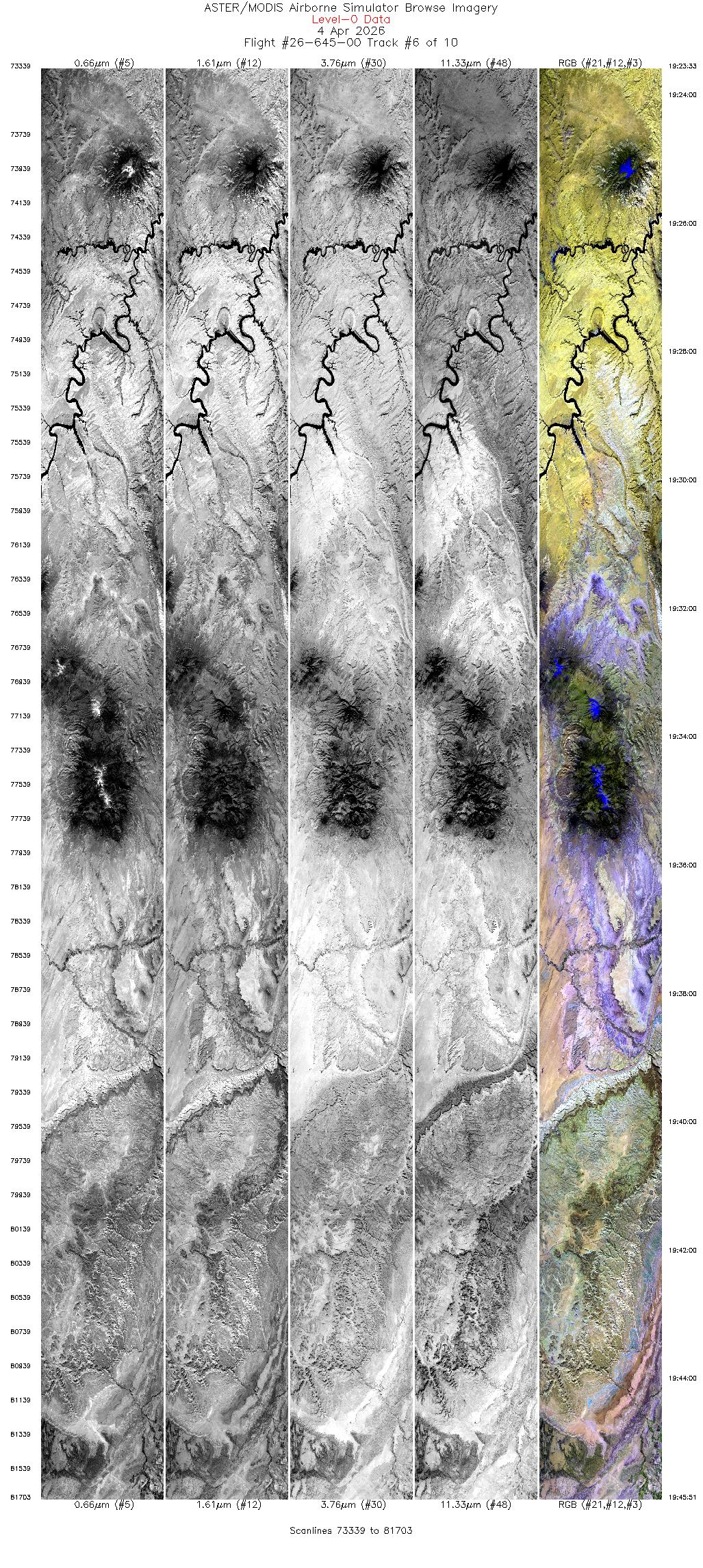

6 19:23 - 19:45 357.4 36.871 - 39.310 110.794 - 110.802 8365 19935

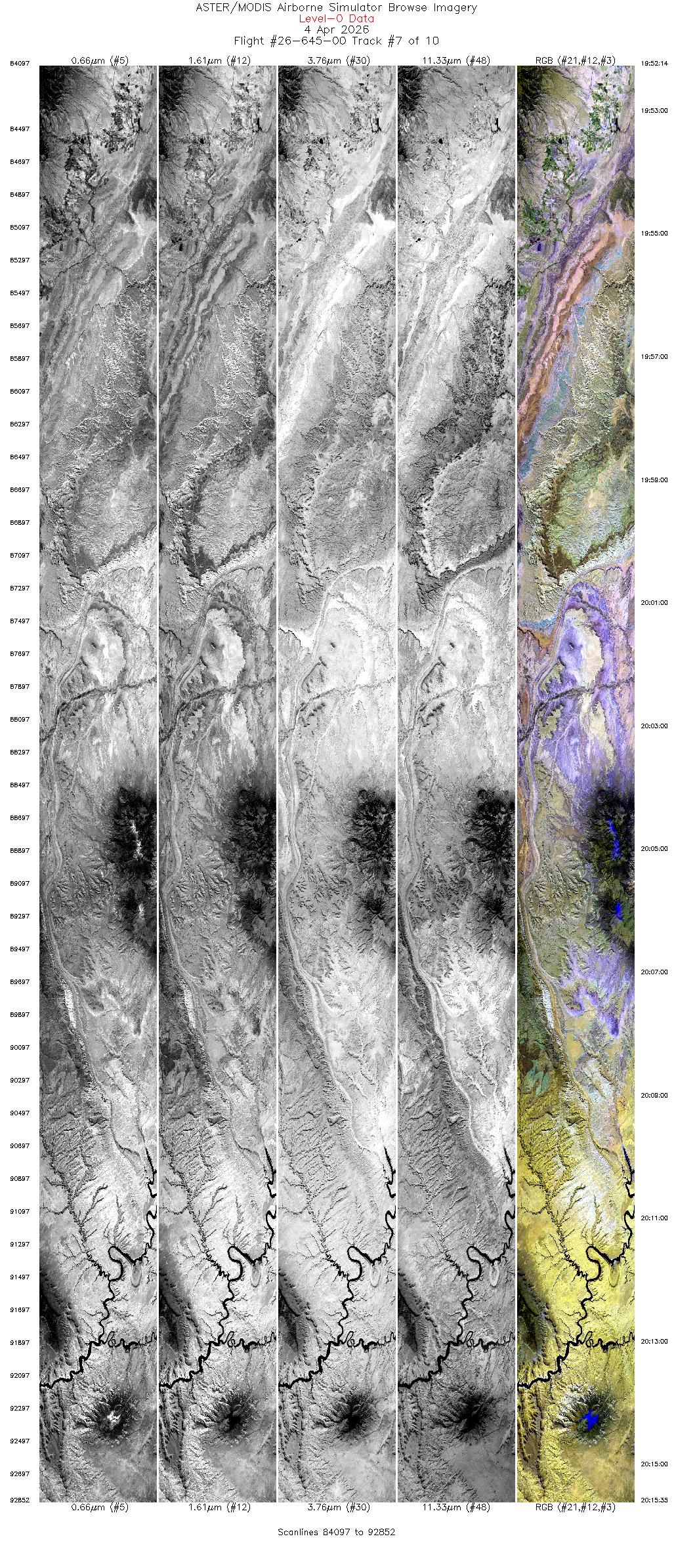

7 19:52 - 20:15 184.4 39.479 - 36.889 110.903 - 110.904 8756 20022
8 20:21 - 20:44 355.0 36.803 - 39.309 110.997 - 111.005 8597 19964
9 21:05 - 21:15 248.1 37.340 - 36.927 110.276 - 111.598 3993 19955

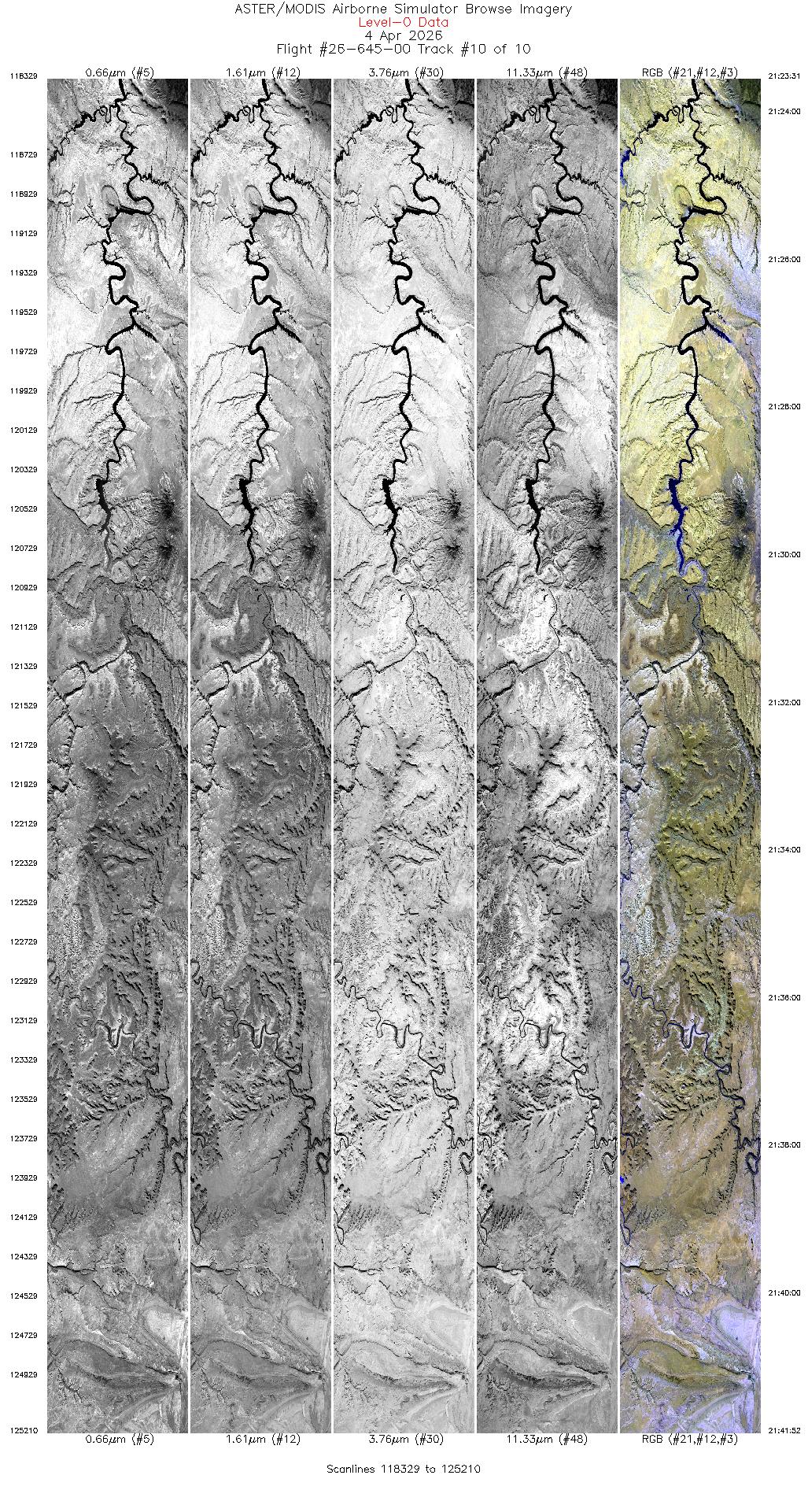

10 21:23 - 21:41 31.2 37.151 - 38.889 110.927 - 109.595 6882 19963
View all Quicklooks in sequence
page title background image

Flight 26-645-00

  • + HOME
  • + CAMPAIGNS
  • - MISSIONS
  • + ORDER DATA
  • + IMAGE GALLERY
  • + REFERENCE
  • + CONTACT US

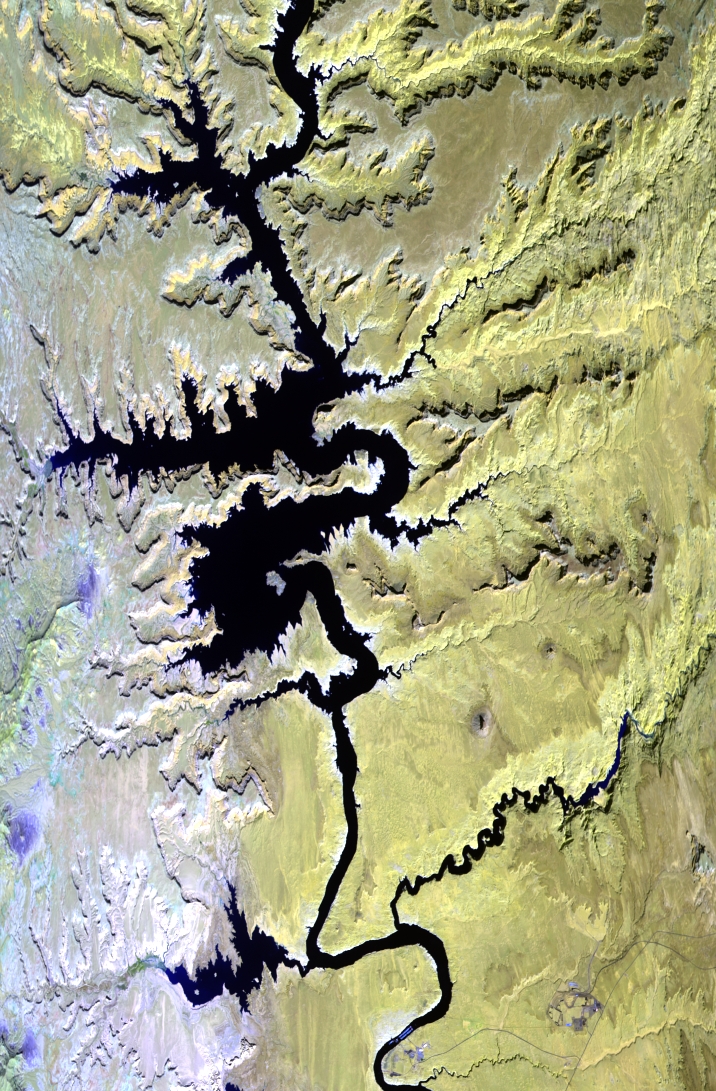

Sample Imagery
Click image for full resolution

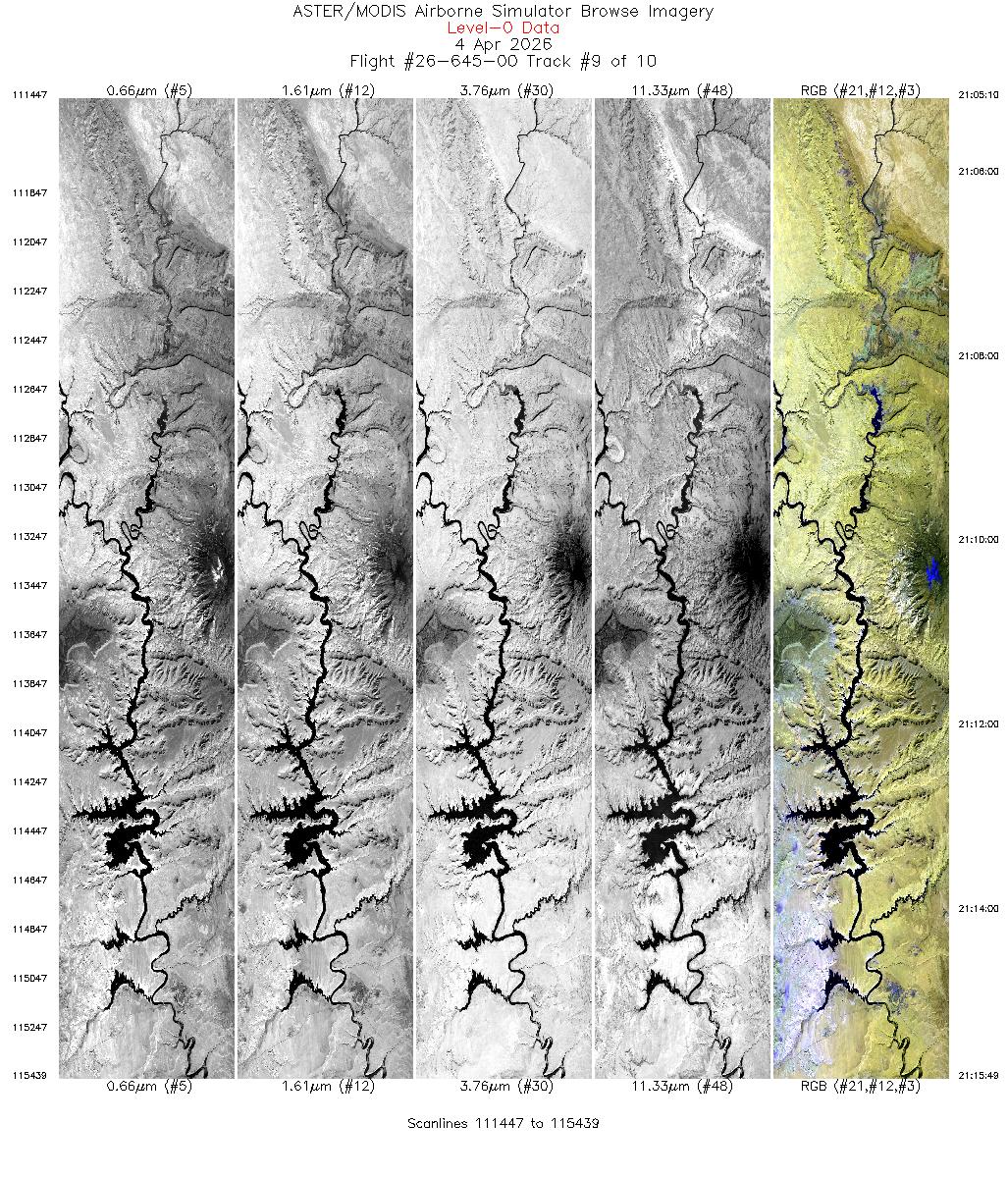

Track: #09
Lake Powell, UT
Click to load the full resolution image Flight Direction Indicator
R: 2.16µm
G: 1.61µm
B: 0.47µm
