FLIGHT SUMMARY INFORMATION

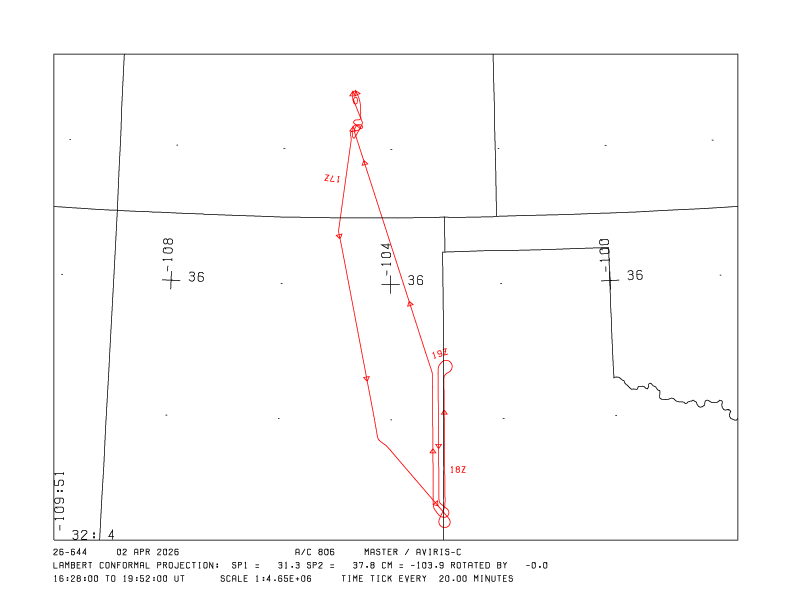

Flight Track Map
track map thumbnail Click map
Flight: 26-644-00
 Date: 02 Apr 2026
Aircraft: NASA ER-2 #806
Campaign: GEMx 2026
Flight Location: Southeastern New Mexico (NM10)
Principal Investigators: Kokaly / Hoefen (USGS)
Additional Sensors: AVIRIS-C
Data Evaluation
Overall quality is good
Processing Information
Level-1B Data in HDF format is available
Flight Line Summary
Spectral Band Configuration
Spectral Response Function Table
Spectral Response Function (text)

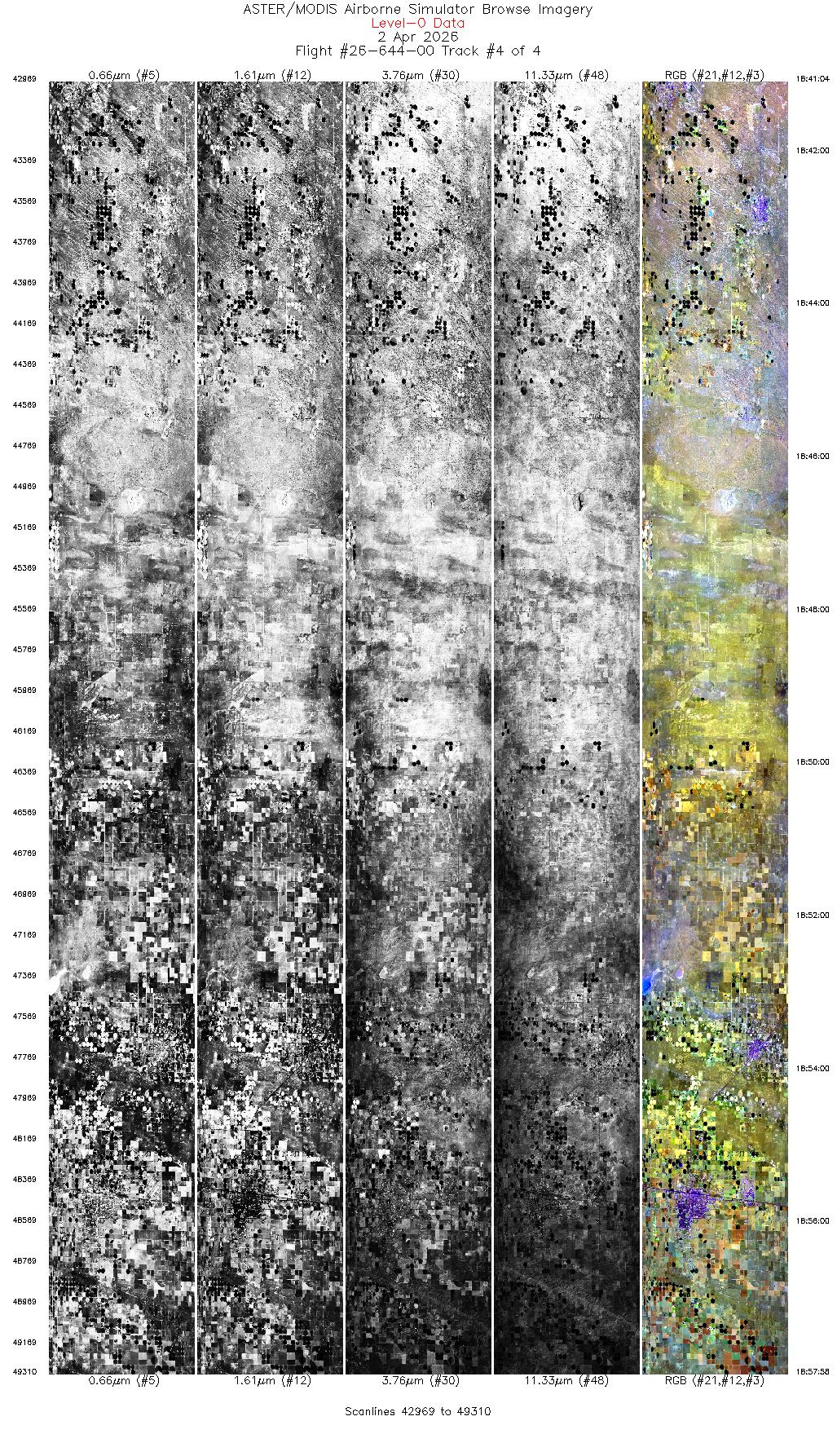

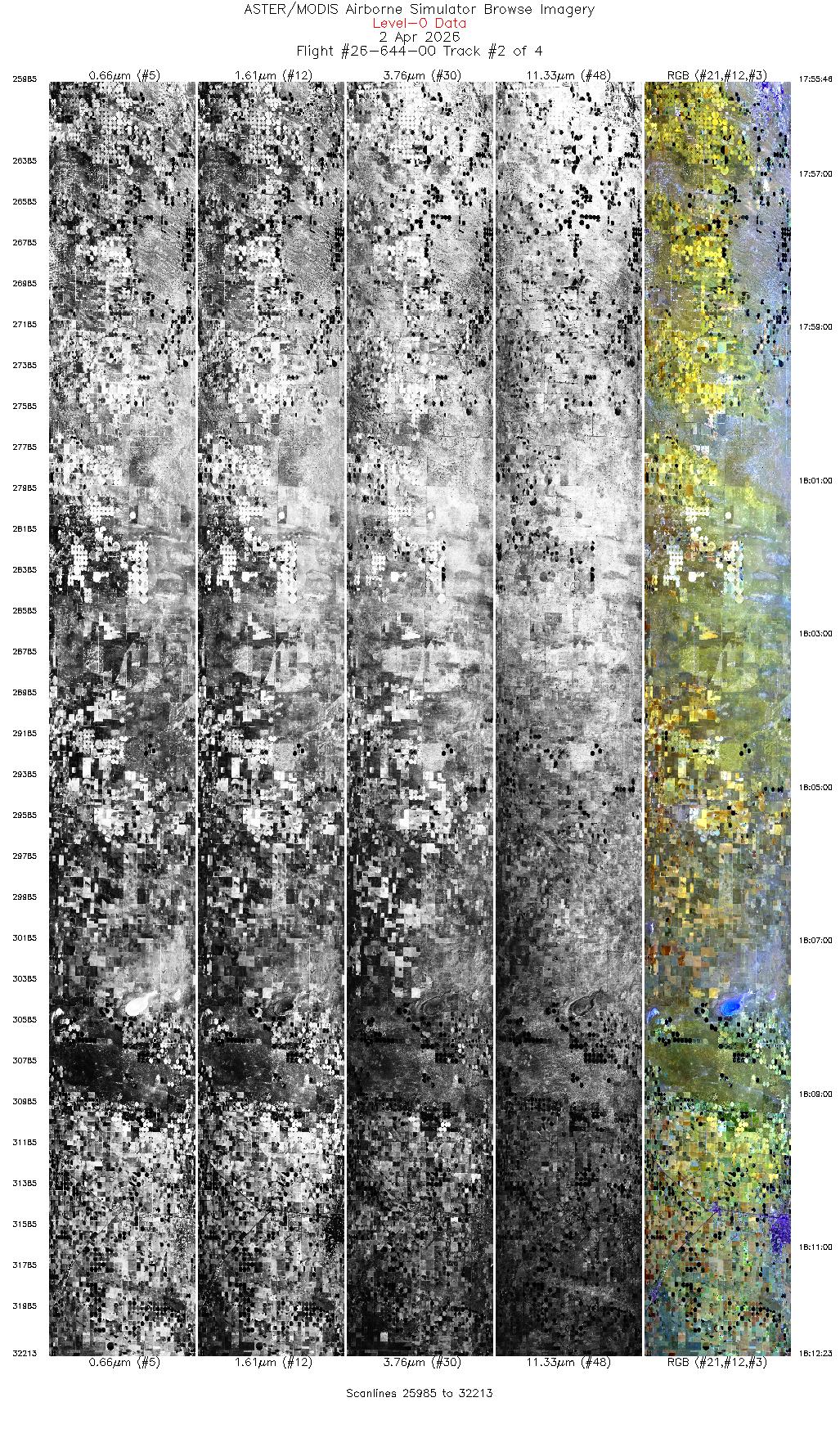

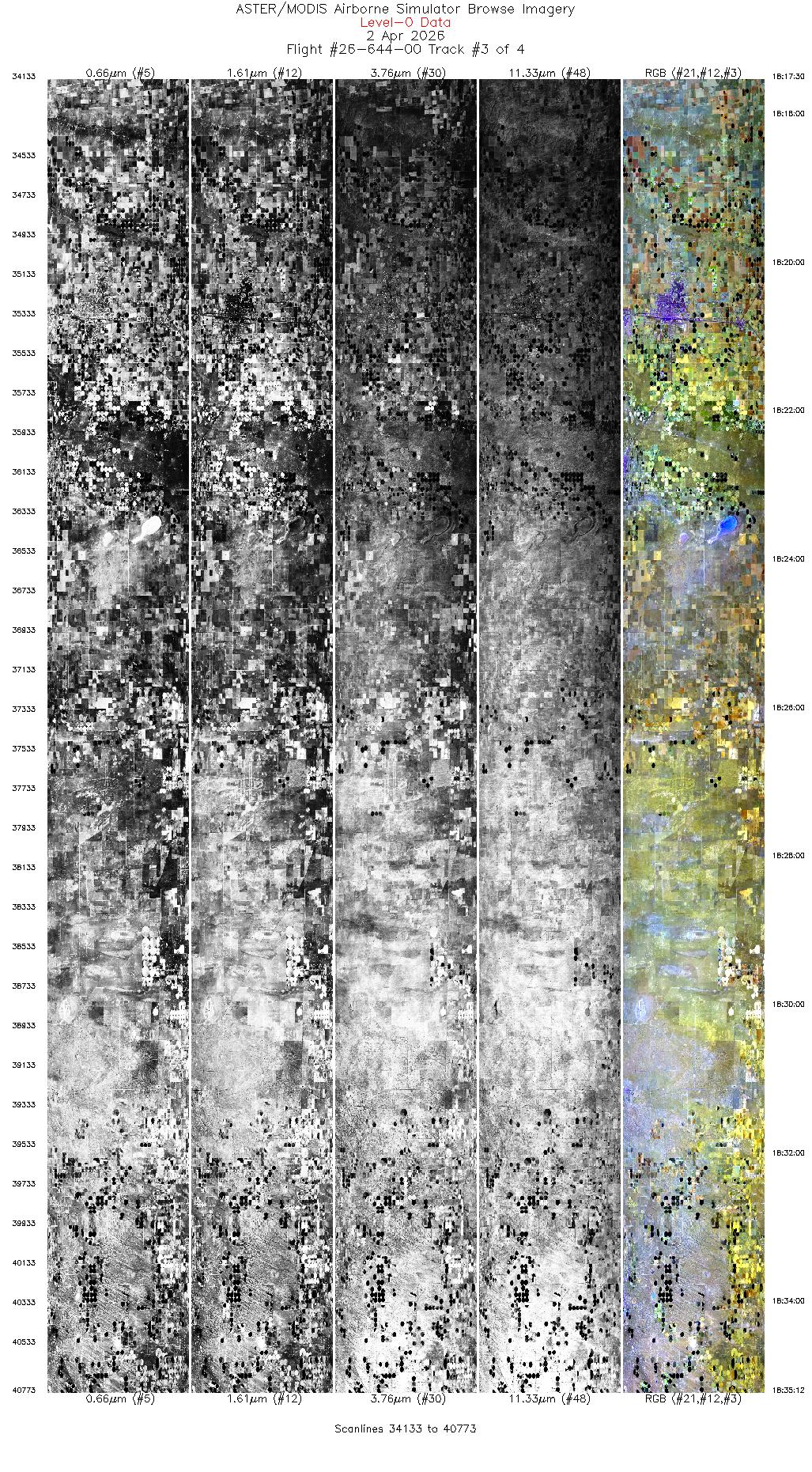

Browse Imagery
Flight Tracks: 4
Scanlines: 23916
Browse Imagery Table
Click a Flight Track number to view a quicklook image
Lat/Lon ranges are for the BEG-END scanline nadir pixels
Flight
Track		 Time Span
(UTC)		 Heading
(Deg)		 Lat Range
(Deg N)		 Lon Range
(Deg W)		 Length
(Scanlines)		 Altitude
(Meters)
1 17:37 - 17:50 138.6 33.597 - 32.540 104.053 - 102.984 4704 19858
2 17:55 - 18:12 359.5 32.734 - 34.602 103.046 - 103.044 6229 19909
3 18:17 - 18:35 183.5 34.746 - 32.812 103.145 - 103.148 6641 19933
4 18:41 - 18:57 355.9 32.757 - 34.661 103.250 - 103.249 6342 19905
View all Quicklooks in sequence
page title background image

Flight 26-644-00

  • + HOME
  • + CAMPAIGNS
  • - MISSIONS
  • + ORDER DATA
  • + IMAGE GALLERY
  • + REFERENCE
  • + CONTACT US

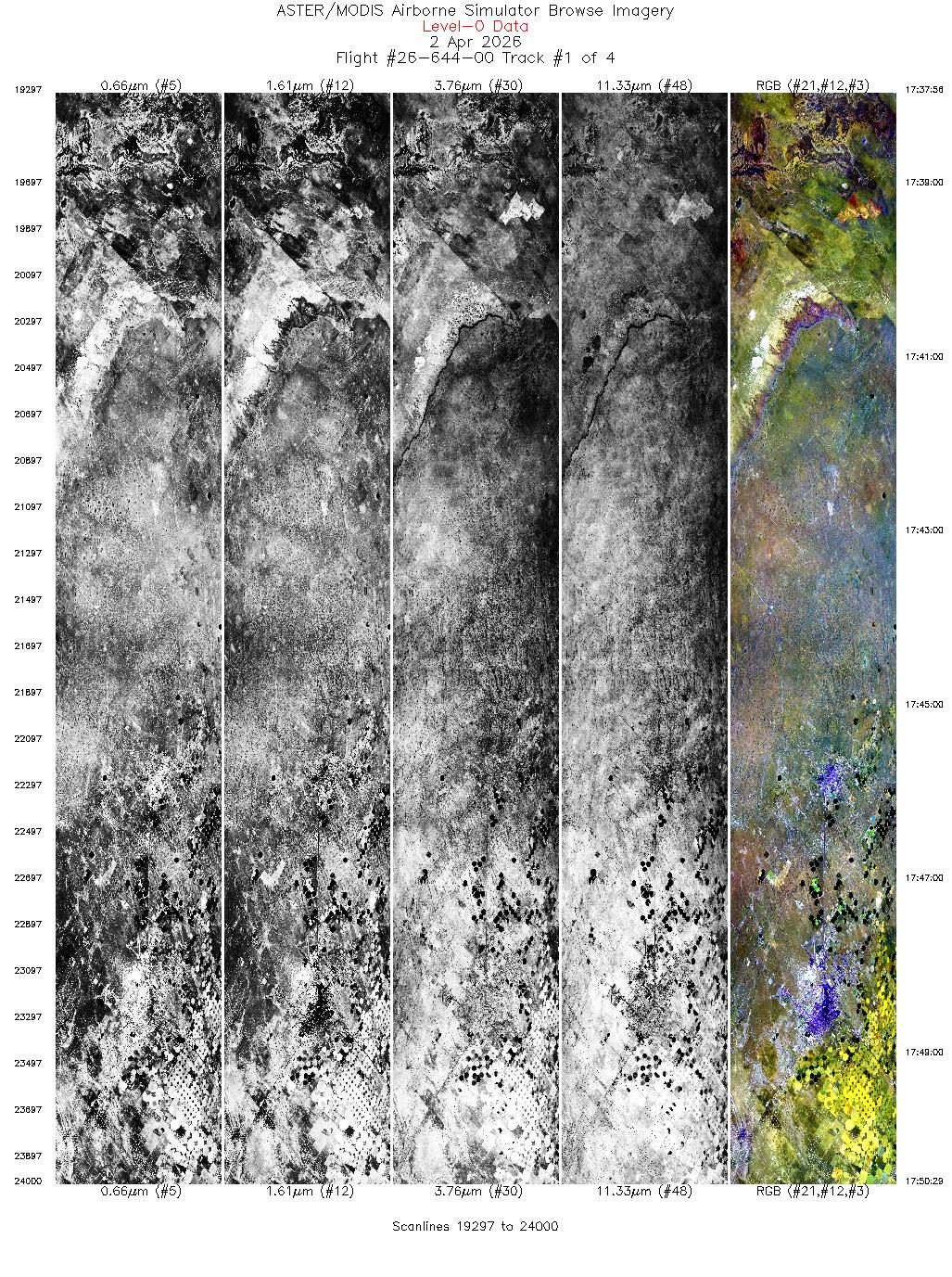

Sample Imagery
Click image for full resolution
Track: #01
Southeastern New Mexico
Click to load the full resolution image Flight Direction Indicator
R: 2.16µm
G: 1.61µm
B: 0.47µm
