FLIGHT SUMMARY INFORMATION

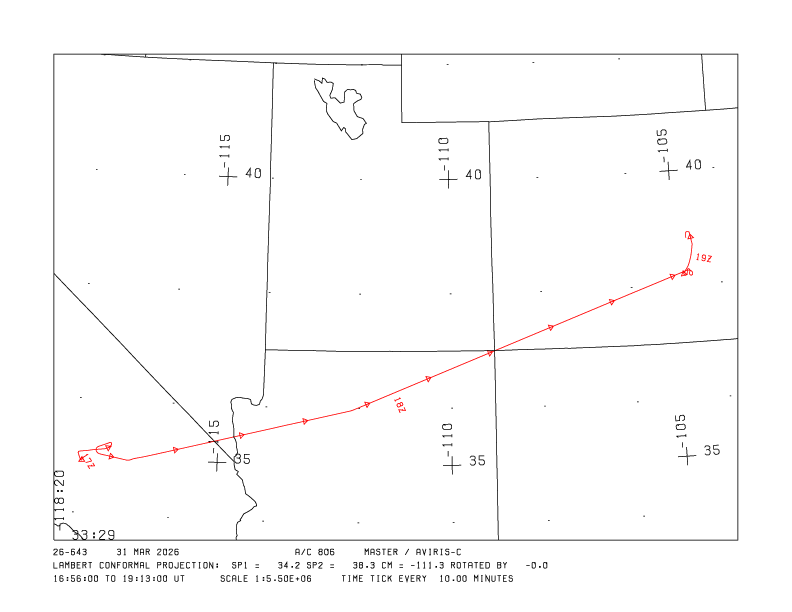

Flight Track Map
track map thumbnail Click map
Flight: 26-643-00
 Date: 31 Mar 2026
Aircraft: NASA ER-2 #806
Campaign: GEMx 2026
Flight Location: California to Colorado
Principal Investigators: Kokaly / Hoefen (USGS)
Additional Sensors: AVIRIS-C
Data Evaluation
Overall quality is good
Processing Information
Level-1B Data in HDF format is available
Flight Line Summary
Spectral Band Configuration
Spectral Response Function Table
Spectral Response Function (text)

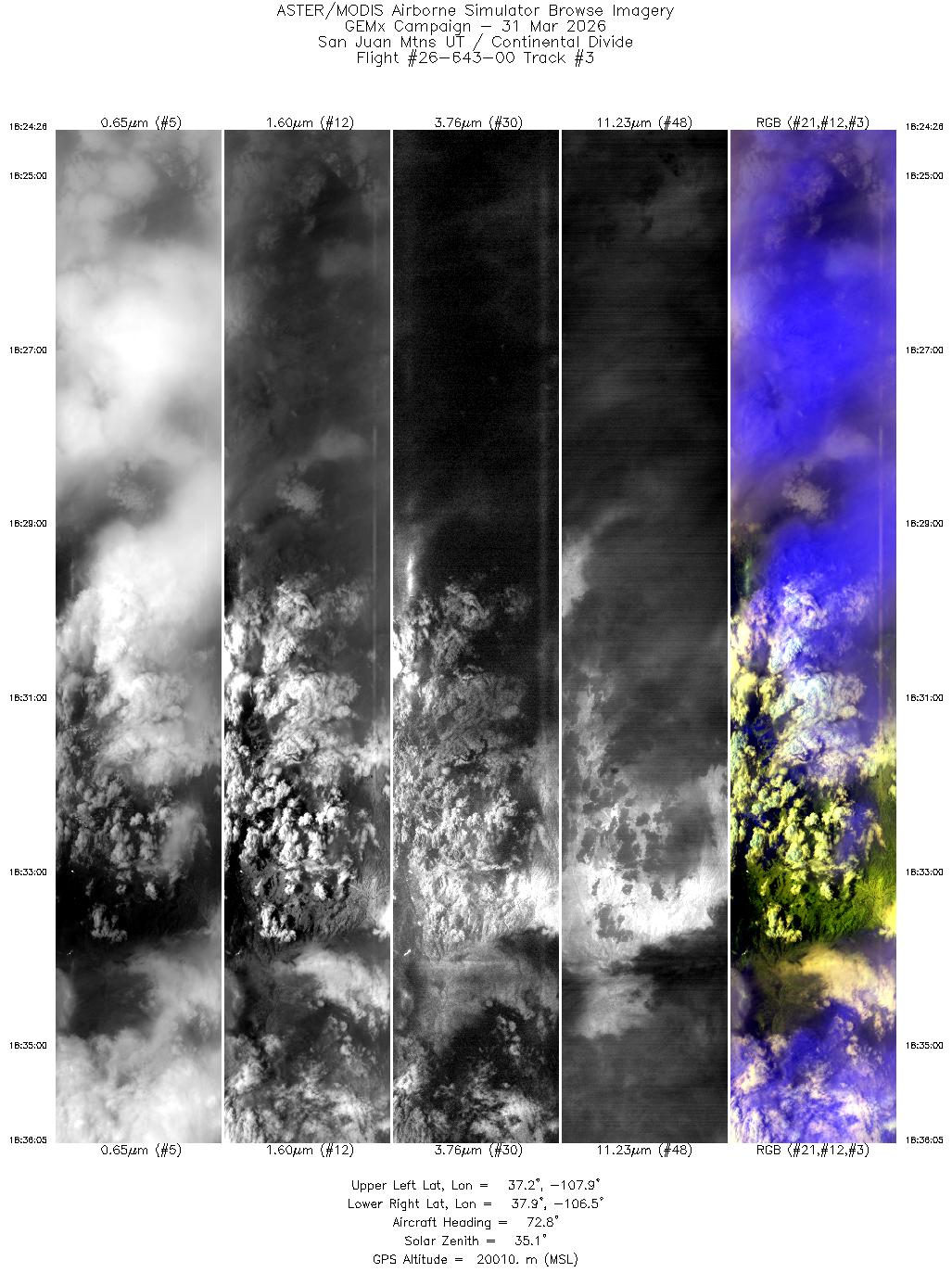

Browse Imagery
Flight Tracks: 3
Scanlines: 26244
Browse Imagery Table
Click a Flight Track number to view a quicklook image
Lat/Lon ranges are for the BEG-END scanline nadir pixels
Flight
Track		 Time Span
(UTC)		 Heading
(Deg)		 Lat Range
(Deg N)		 Lon Range
(Deg W)		 Length
(Scanlines)		 Altitude
(Meters)
1 17:25 - 17:52 76.1 35.185 - 35.952 115.908 - 112.185 10172 19192
2 17:53 - 18:24 71.8 35.960 - 37.315 112.153 - 107.993 11700 20018
3 18:24 - 18:36 72.8 37.315 - 37.785 107.993 - 106.403 4372 20034
View all Quicklooks in sequence
page title background image

Flight 26-643-00

  • + HOME
  • + CAMPAIGNS
  • - MISSIONS
  • + ORDER DATA
  • + IMAGE GALLERY
  • + REFERENCE
  • + CONTACT US
Sample Imagery
Click image for full resolution
Track: #03
Colorado
Click to load the full resolution image Flight Direction Indicator
R: 2.13µm
G: 1.61µm
B: 0.47µm
